Silicon sock and nozzle pliers for A1 / A1mini

Multifunctional Pliers for BambuLab A1 / A1 Mini

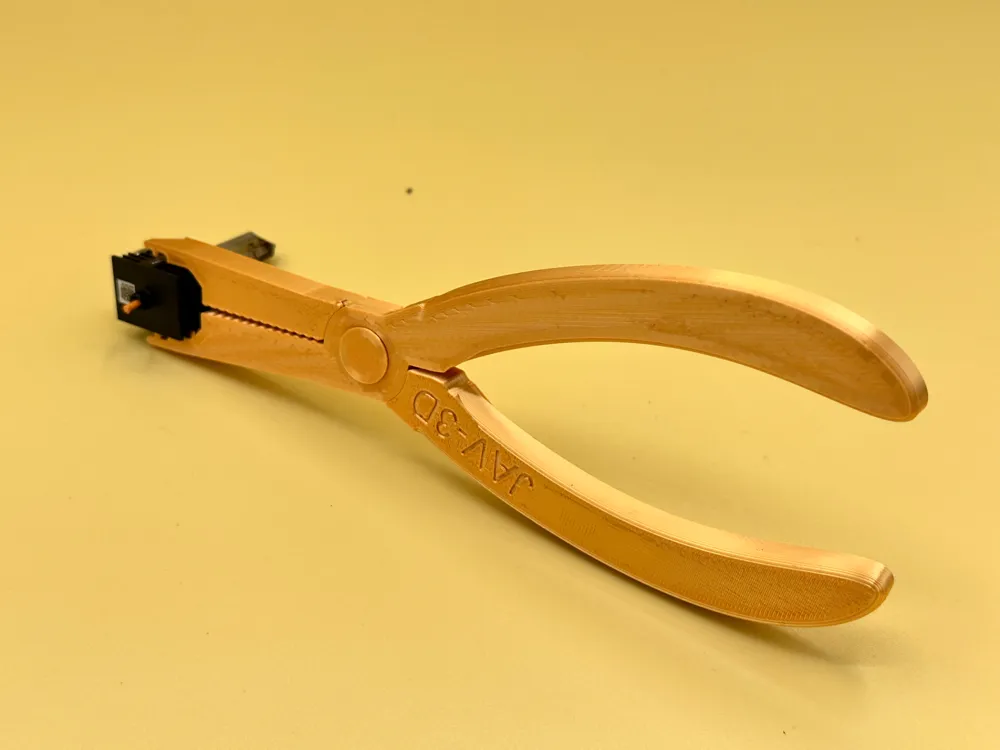

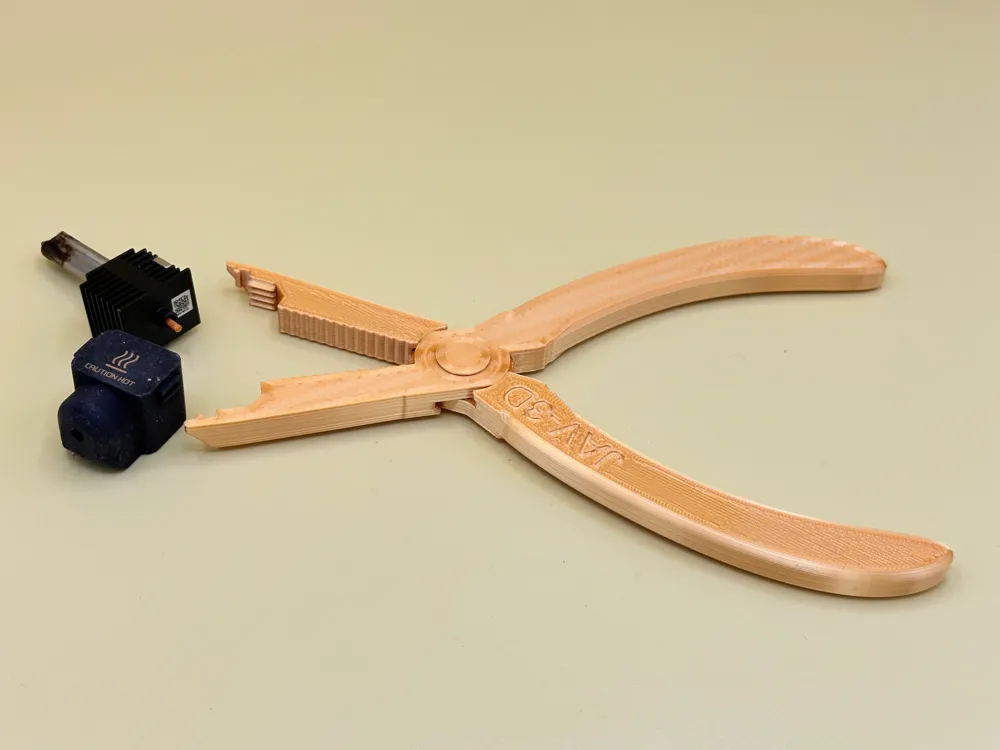

The 3D-printed Multifunctional Pliers is a specialized tool designed for maintaining and servicing the BambuLab A1 / A1 Mini 3D printer. It simplifies tasks such as removing silicone socks, replacing nozzles, and handling PTFE tubes or performing cold pulls. Despite being made of plastic, the design ensures robust and reliable performance.

Features

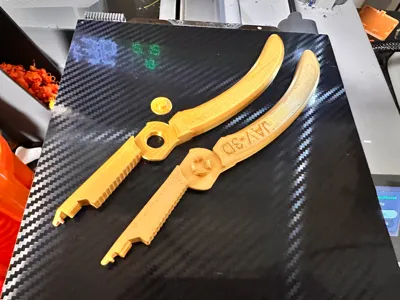

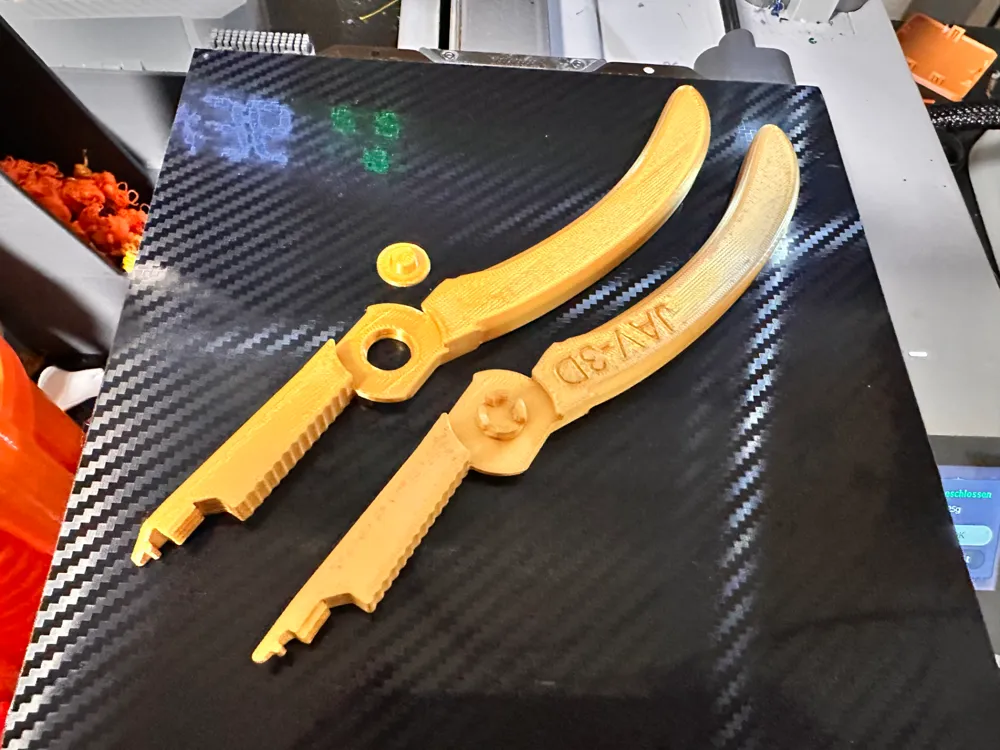

1. Three-Part Assembly:
   • Two Halfes for best stability
   • Pin: Ensures smooth movement and stability when assembled. Can glue in.
2. Specialized Design:
   • Front Tip: Dedicated for quick and easy removal of the silicone sock.

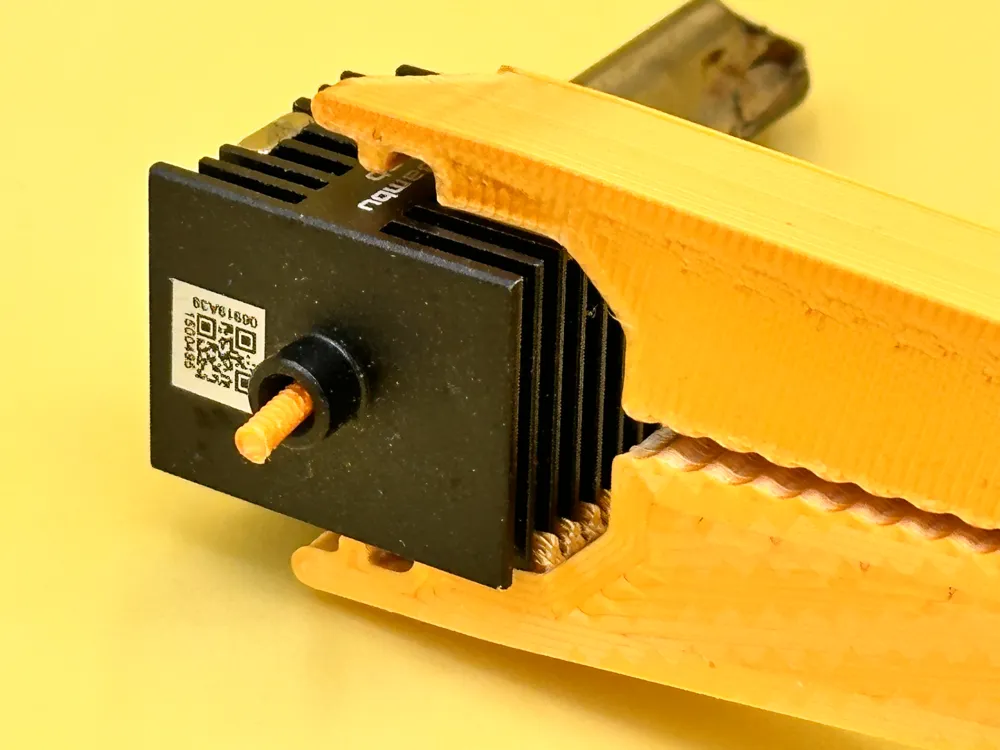

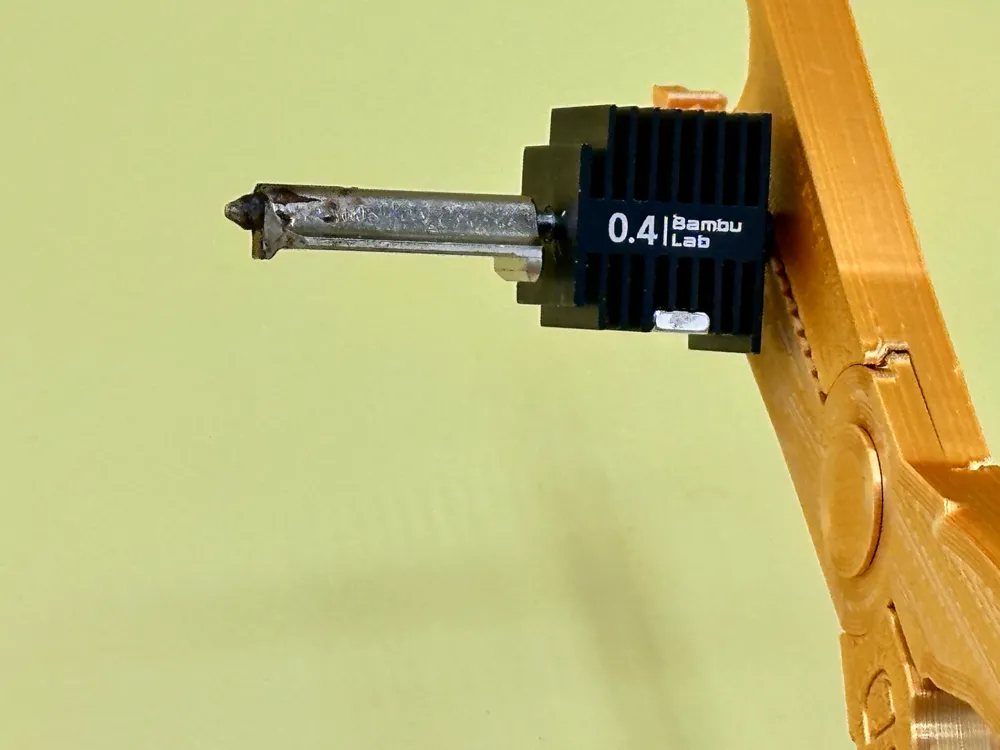

   • Middle Grooves: Custom-fit grooves designed to securely grip the nozzle's heatsink, enabling easy removal or reinsertion without damaging components.
   • Rear Section: Features a knurled flat area ideal for handling PTFE tubes or performing a cold pull efficiently.
3. Durable and Lightweight:
   • The pliers are designed to be stable and strong despite being made from plastic, making them suitable for precision tasks while remaining lightweight.

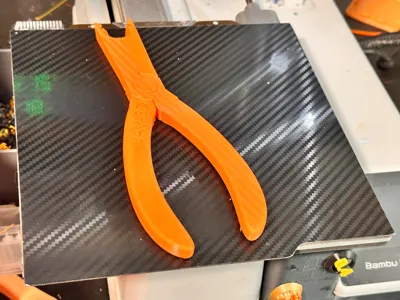

Printing Instructions

1. Material Recommendations:
   • PETG: Offers flexibility and heat resistance.
   • ABS or ASA: Durable and withstands higher temperatures.
   • PLA+: Sufficient for moderate use but less heat-resistant.
2. Print Settings:
   • Layer Height: 0.2 mm for strength and detail.
   • Infill: 30–40% (Gyroid or Grid recommended).
   • Wall Thickness: 1.2 mm (3 perimeters).
   • Supports: Required for the pinholes and intricate overhangs.
3. Adhesion:
   • Heated bed set to 50–60°C for PLA or 70–90°C for PETG/ABS.
   • Use a brim or raft for additional stability during printing.
4. Post-Processing:
   • Lightly sand the pin for smoother movement.
   • Optionally apply super glue to secure the pin for a permanent connection.

Assembly

1. Step 1: Align the two halfs in open position and gently press them together.
2. Step 2: Insert the pin through the central holes of the handles and jaws.
3. Step 3: Ensure the pin is secure; glue may be used for added stability.

Usage Instructions

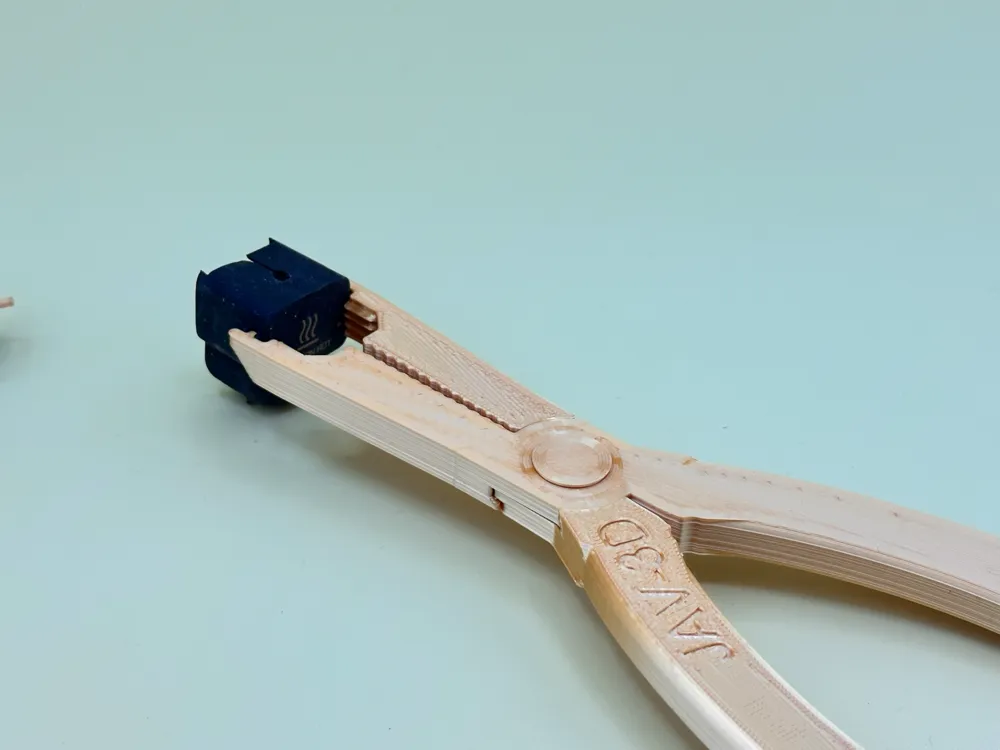

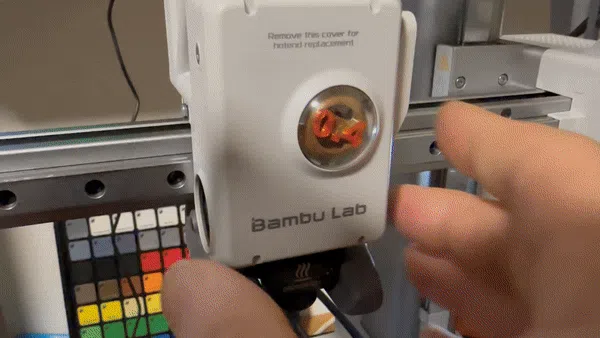

• Silicone Sock Removal: Use the front tip to safely grip and remove the silicone sock.

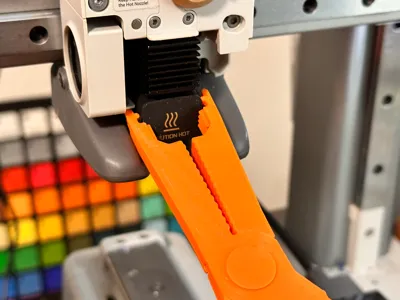

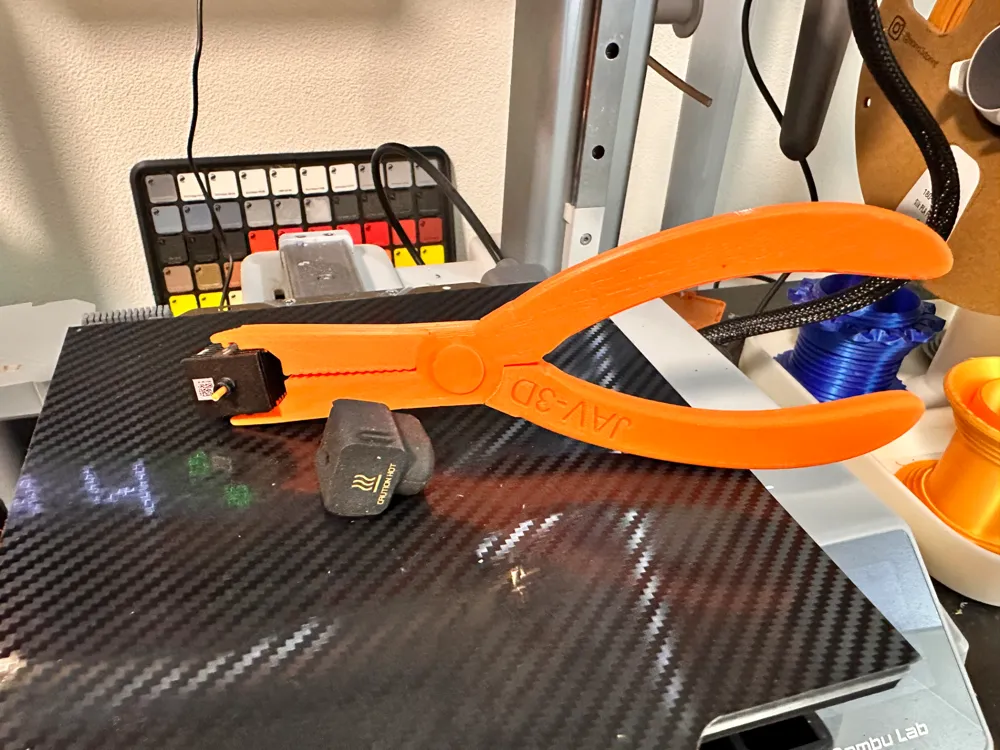

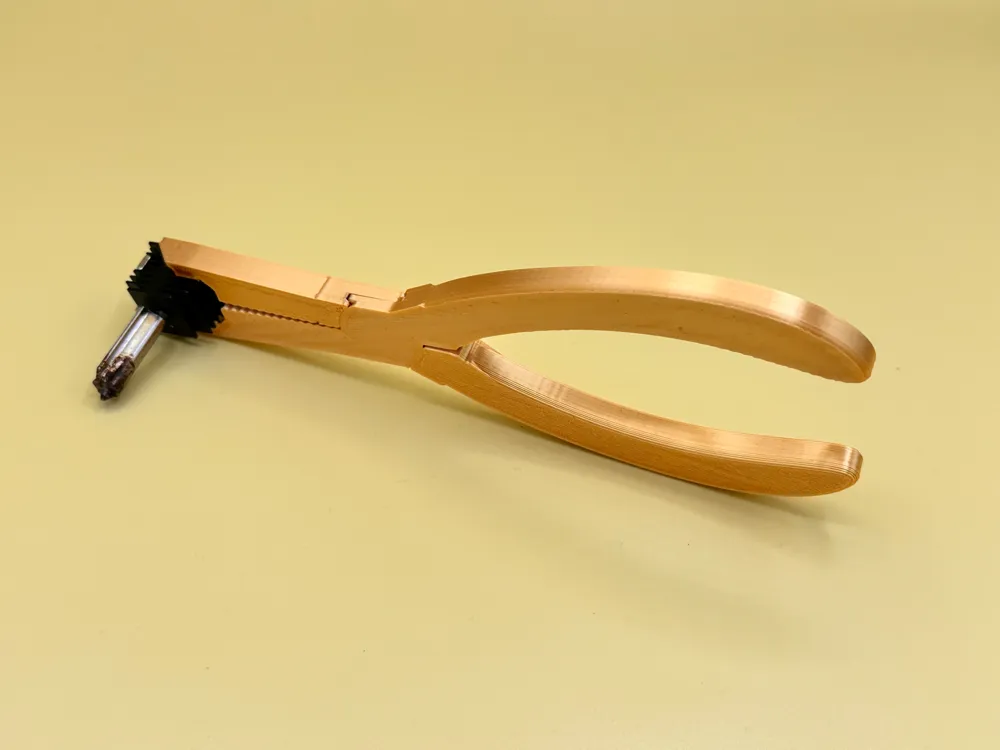

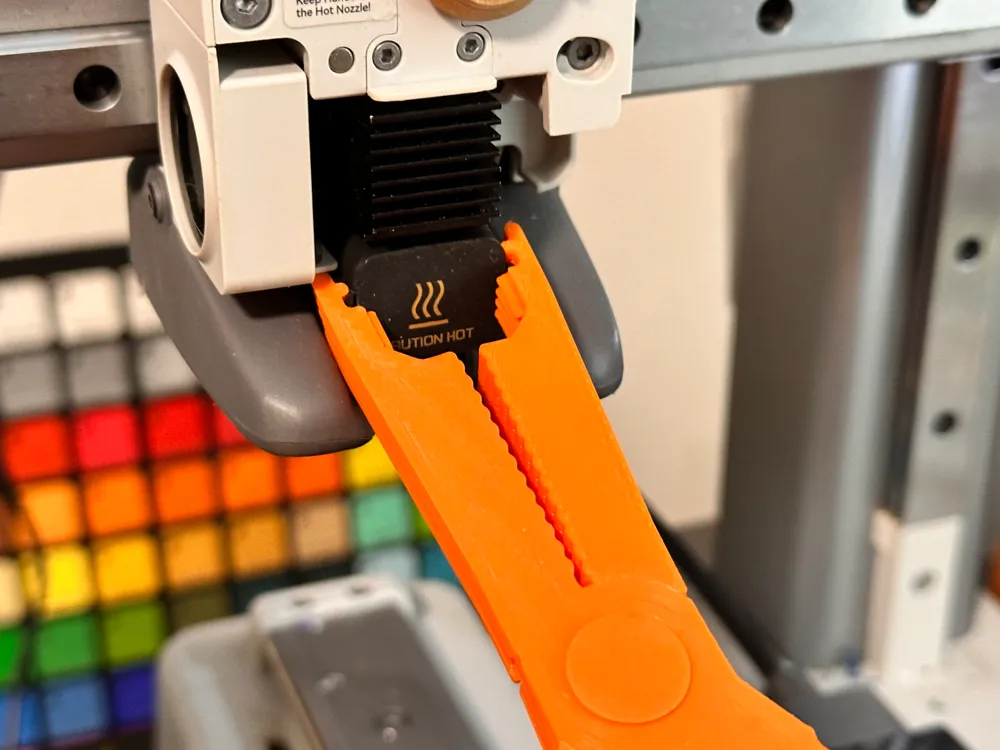

• Nozzle Maintenance: Align the grooves with the heatsink to easily remove or reinstall the nozzle.
• PTFE Tube / Cold Pull: Use the knurled flat rear section for gripping PTFE tubes or performing cold pulls efficiently.

Benefits

1. Convenience: Designed specifically for BambuLab A1 / A1 Mini, simplifying common maintenance tasks.
2. Durability: Built to withstand repeated use while being lightweight and easy to handle.

3. Cost-Effective: An affordable and efficient alternative to traditional metal tools.



This multifunctional pliers tool is a must-have accessory for BambuLab users, providing precision and ease for essential maintenance tasks in a compact and user-friendly design.
