Wyze Cam v4 Window Mount

It is yet another window mount for the Wyze camera, designed to minimize the glare and reflection from the window glass.

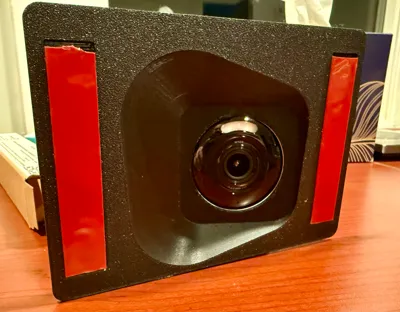

The measurements were taken from the v4 camera, but it looks like the mount would work for v3, too (I don't have a v3 camera, so I can't confirm that). There are two recessed slots for the double-sided tape. The tape I have (unknown brand) is 15 mm wide and 1 mm thick, so the slots are 15.3 mm x 0.8 mm. You can easily adjust the Fusion 360 file for the tape you may have.

The included model has a 20-degree angle to the right and a 5-degree angle to the top from the window plane.

The attached Fusion 360 file contains several parameters that let you adjust the camera's position and orientation, as well as modify the window plate size. The default settings are configured to create a setup similar to the included STL file. With Maker World's parametric model maker feature, you can create models in any camera orientation. For some reason, Parametric Model Maker flips the model upside down. Therefore, after opening the model in your slicer, make sure to orient it with the window plate facing down. There's another bug that disregards support settings in the 3MF profile configured in Parametric Model Maker. So, don't forget to manually enable supports!

In my case, the camera is mounted on the double glass insulated window and in a relatively shadowed area, so the internal glass is cold even during the summer, so I printed my mount using Mate PLA. But in general, PETG or even more temperature and UV-resistant material is recommended.

P.S. That design was inspired by numerous models on Makerworld and other sites, and I'm grateful to all their designers. Unfortunately, none of them worked for me (quality, camera orientation, etc.), so I decided to create my variant and provide the Fusion 360 file so others could easily adjust it.
