Ripple Clock

🕙 Ripple Clock 🕙

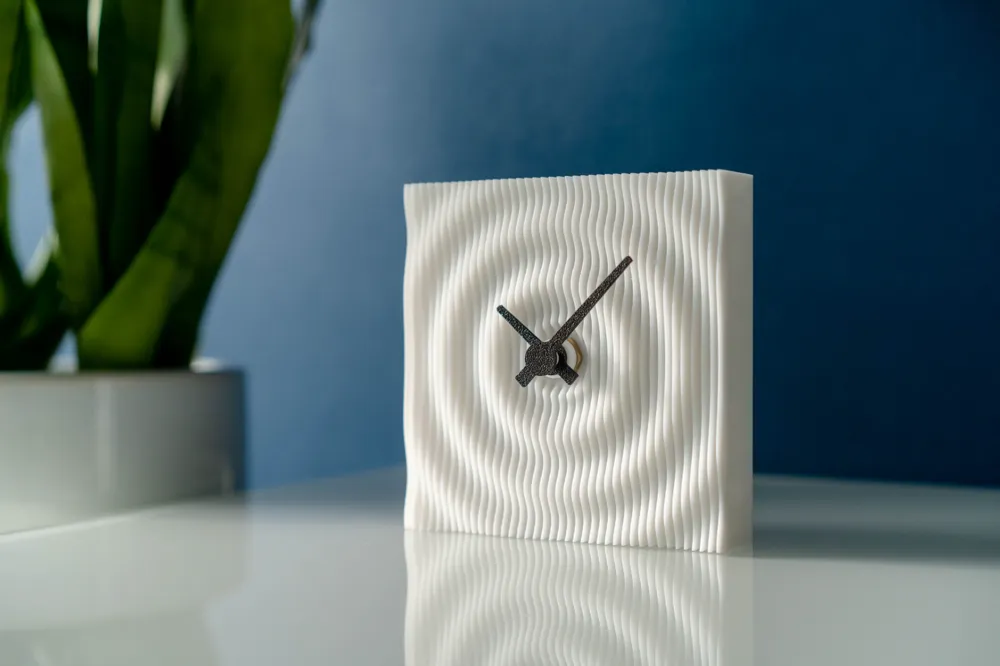

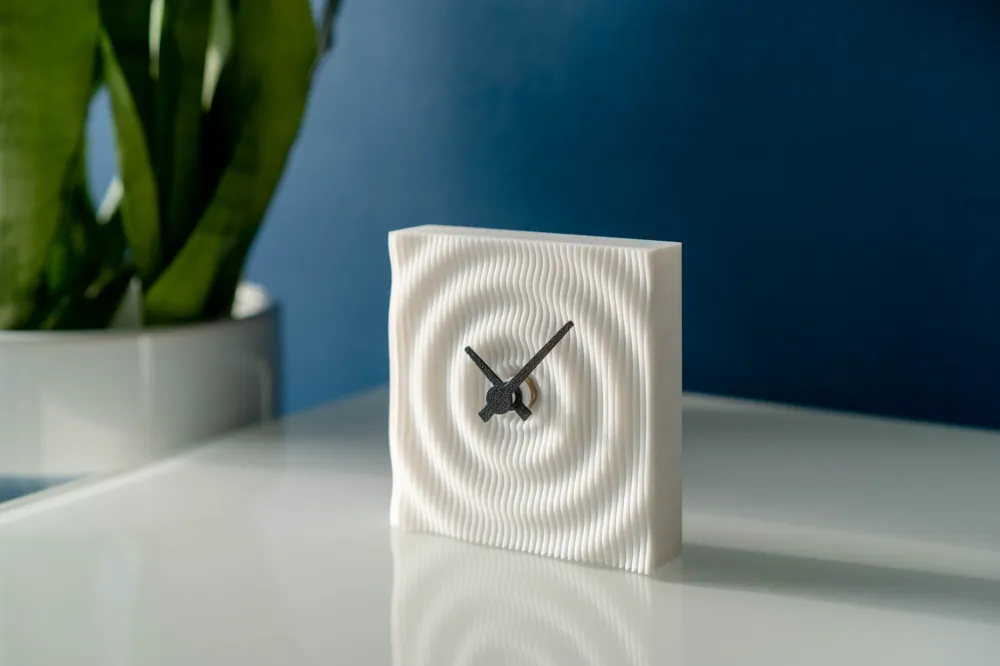

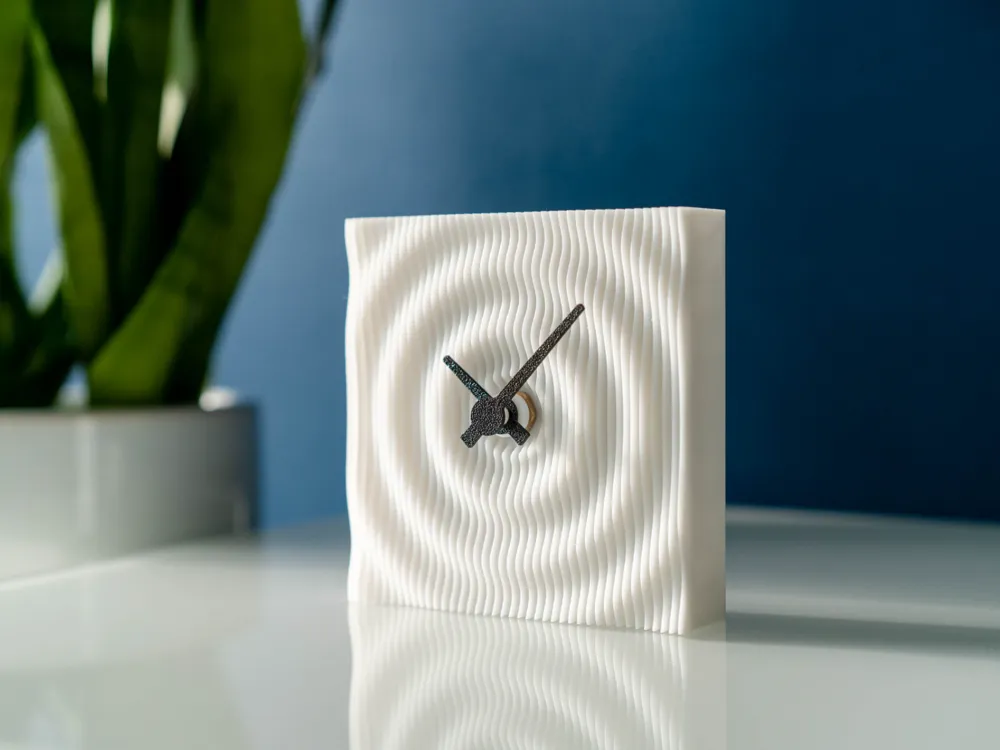

Introducing our latest design - Ripple Clock. Inspired by the tranquil ripples of water, this clock features an elegant, concentric design that brings a sense of calm and motion to your home or office.

The Ripple Clock is designed to fit the Clock Components Kit 011. While there are several variations of this kit, Bambu Lab has only published the model files for one specific version, which differs from the version we received. We have included a couple different print profiles, but it may not fit your variant. Please comment below if your version of the clock component’s measurement is different. We can help to create a new print profile that fits your variant.

55.7mm x 55.9mm - Fits Our Measurements

This seems to be the most recent / common variant.

Measurements:

• Width: 55.7mm
• Height: 55.9mm
• Case depth: 15.8mm
• Second hand mount top to case bottom: 32.3mm
• Minute hand: 3.1mm (3.2mm hole in model)
• Hour hand: 5mm (5.15mm hole in model)

Included Plates:

1. Ripple clock case
2. Hour and minute hand
3. Spacers in 3 different styles

56mm x 56.4mm - Fits Bambu Lab published 3D models

Measurements:

• Width: 56mm
• Height: 56.4mm
• Case depth: 16.4mm
• Second hand mount top to case bottom: 28.9mm (spacer should not be necessary)
• Minute hand: 3mm (3.1mm hole in model)
• Hour hand: 5mm (5.15mm hole in model)

Included Plates:

1. Ripple clock case
2. Hour and minute hand

57.8mm x 57.8mm - Should fit most of the clock component

Included Plates:

1. Ripple clock case

Everyone’s printer / environment setup is a bit different, so the extra clearance set in the model might not work for you, especially when printing clock hands where it requires higher precision. If you run into issue to make the hands fit please try to adjust the following settings:

• Elephant foot
  • Increase it to up to 0.5mm to get rid of an elephant foot
• X-Y hole compensation:
  • Hole is too big
    • Set a negative values to make the hole smaller
    • Change the value in 0.1mm steps
  • Hole is too small
    • Set a positive values to make it bigger
    • Change the value in 0.1mm steps

For more details and exclusive models, check out our Instagram and Patreon! Become a member to our Patreon to get commercial license of our designs, or simply just to support our work. If you just want to give a one-time support, buy me a coffee ☕️

Don't forget to check out our other designs https://makerworld.com/en/@MildMochika

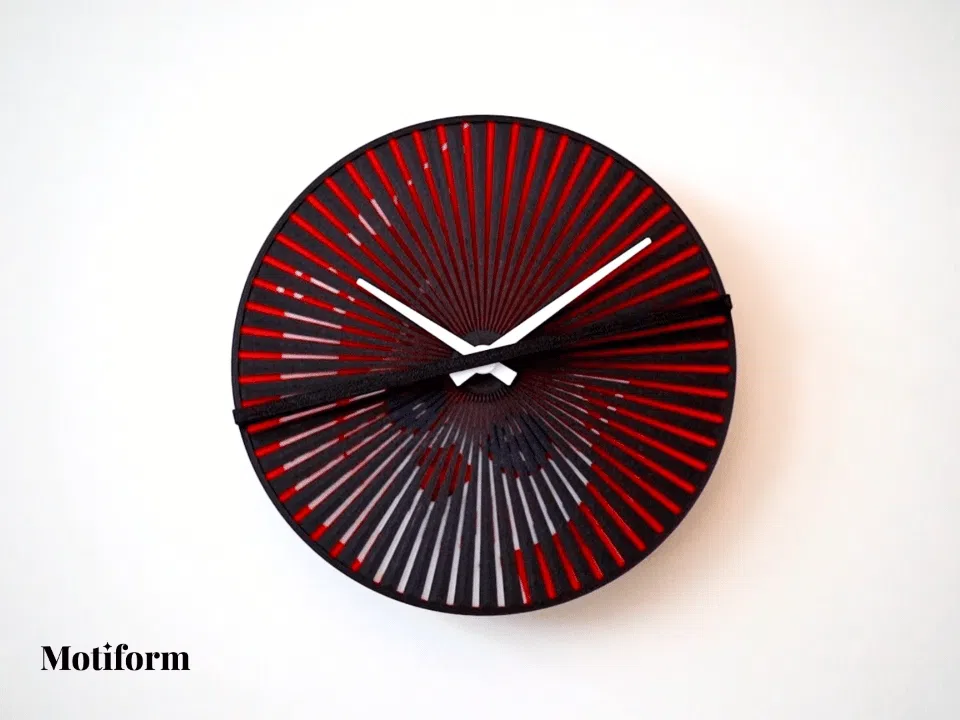

Scanimation Clock / Moiré Clock / Motion Illusion Clock

https://makerworld.com/en/models/878286#profileId-831820

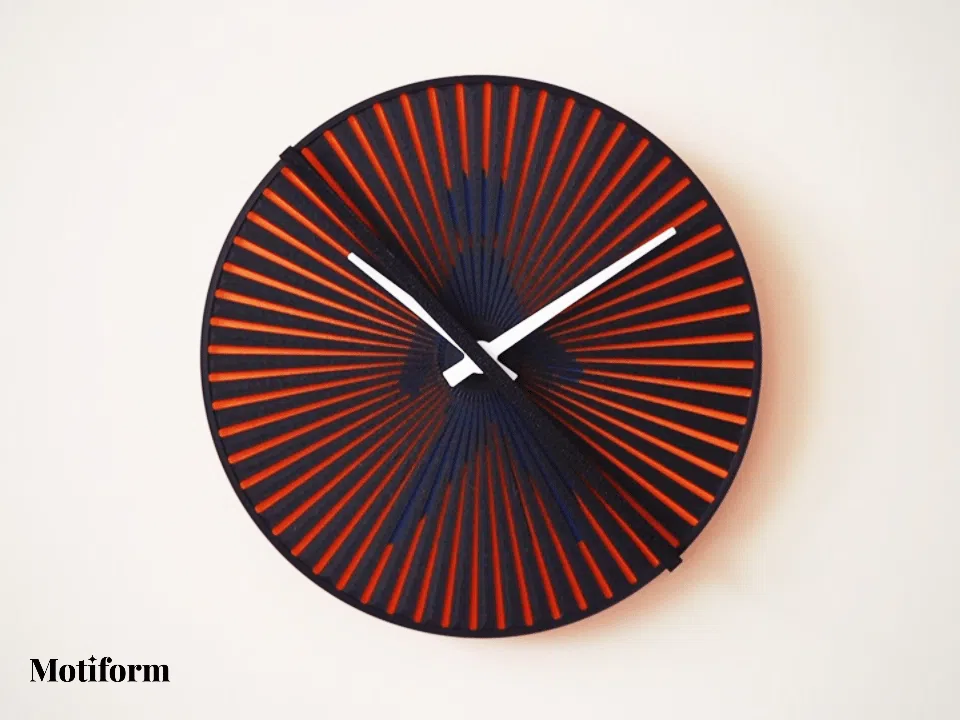

Human Walking Scanimation Clock Face

https://makerworld.com/en/models/905999#profileId-866116

Origami Spiral of Life Clock

https://makerworld.com/en/models/905320#profileId-865312

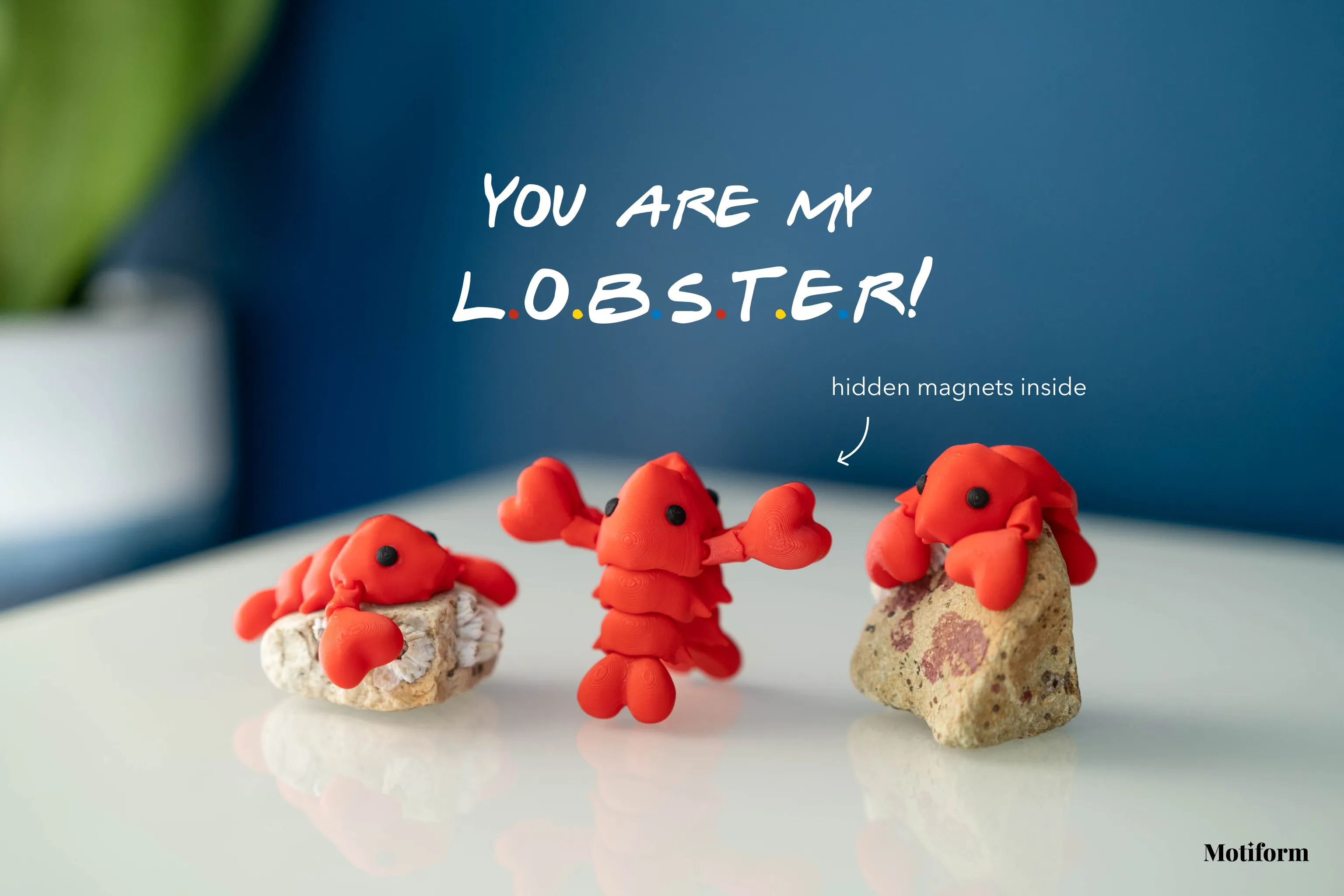

Flexi Lobster Holding Claws (Magnet & Keychain)

https://makerworld.com/en/models/1019976#profileId-1001023

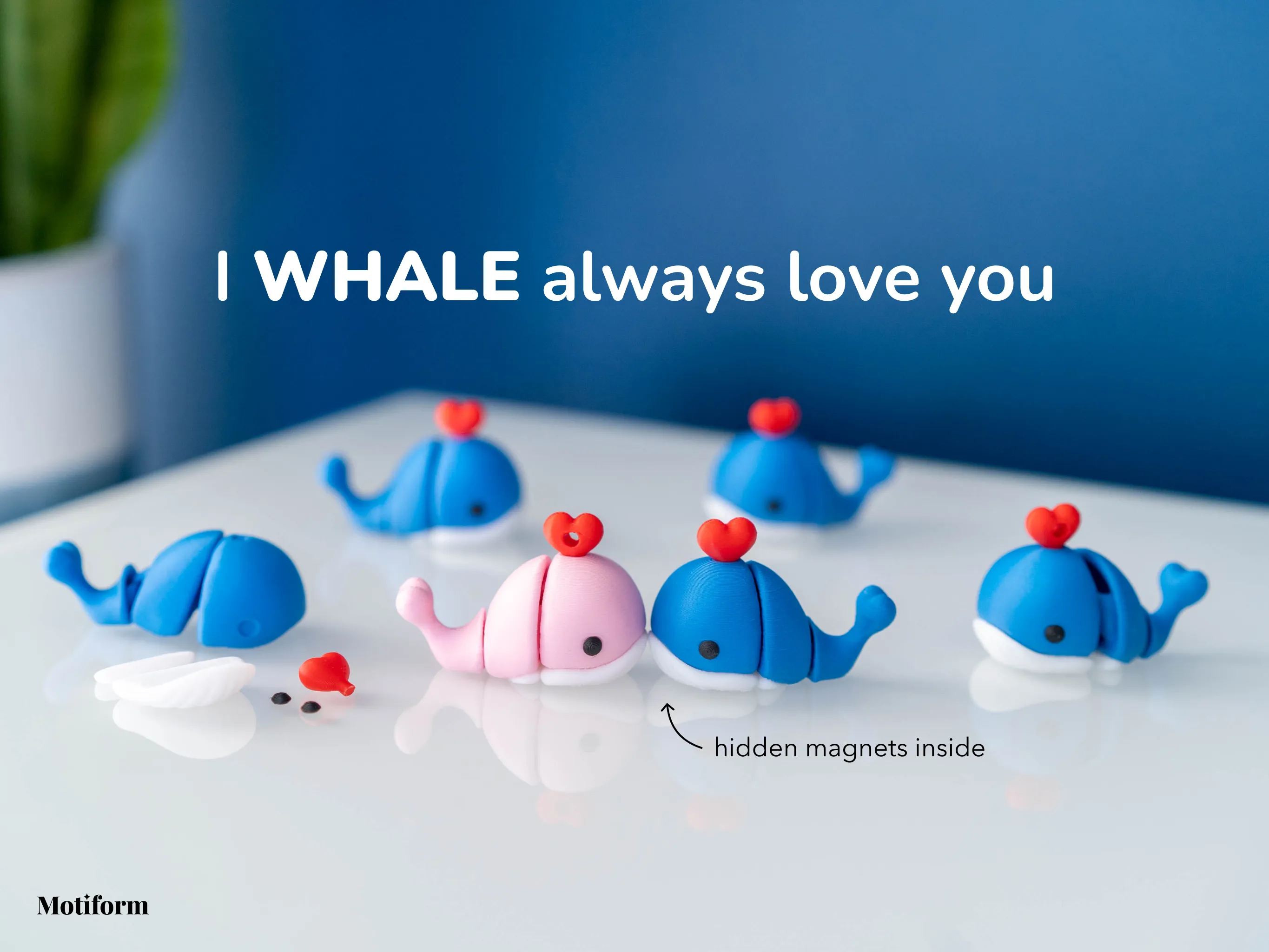

Articulated Whale - I Whale Always Love You

https://makerworld.com/en/models/1063862#profileId-1052567

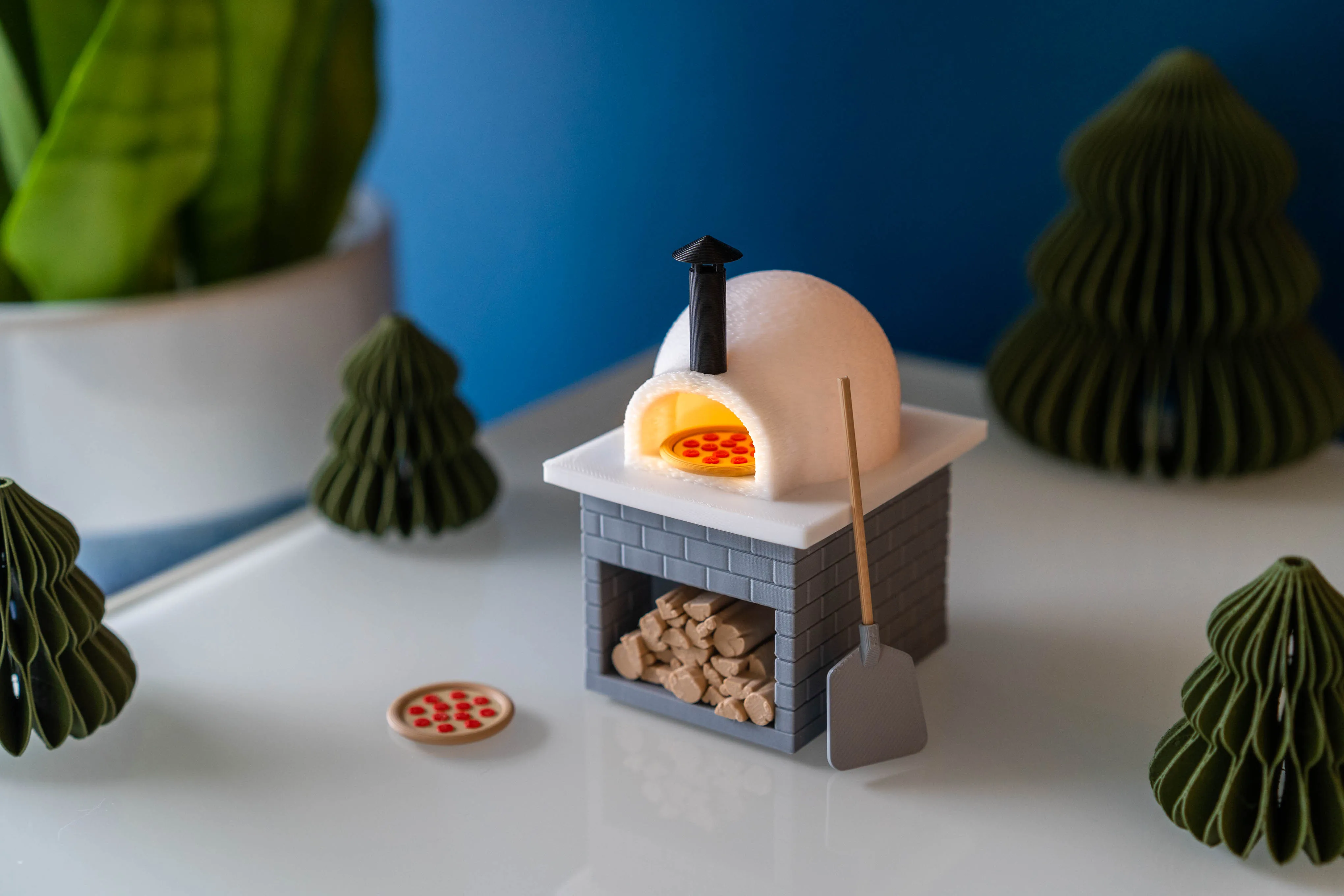

Wood Fired Pizza Oven LED Tea Light Holder

https://makerworld.com/en/models/947351#profileId-914387

Honeycomb Christmas Tree LED Tea Light Holder

https://makerworld.com/en/models/819164#profileId-76194

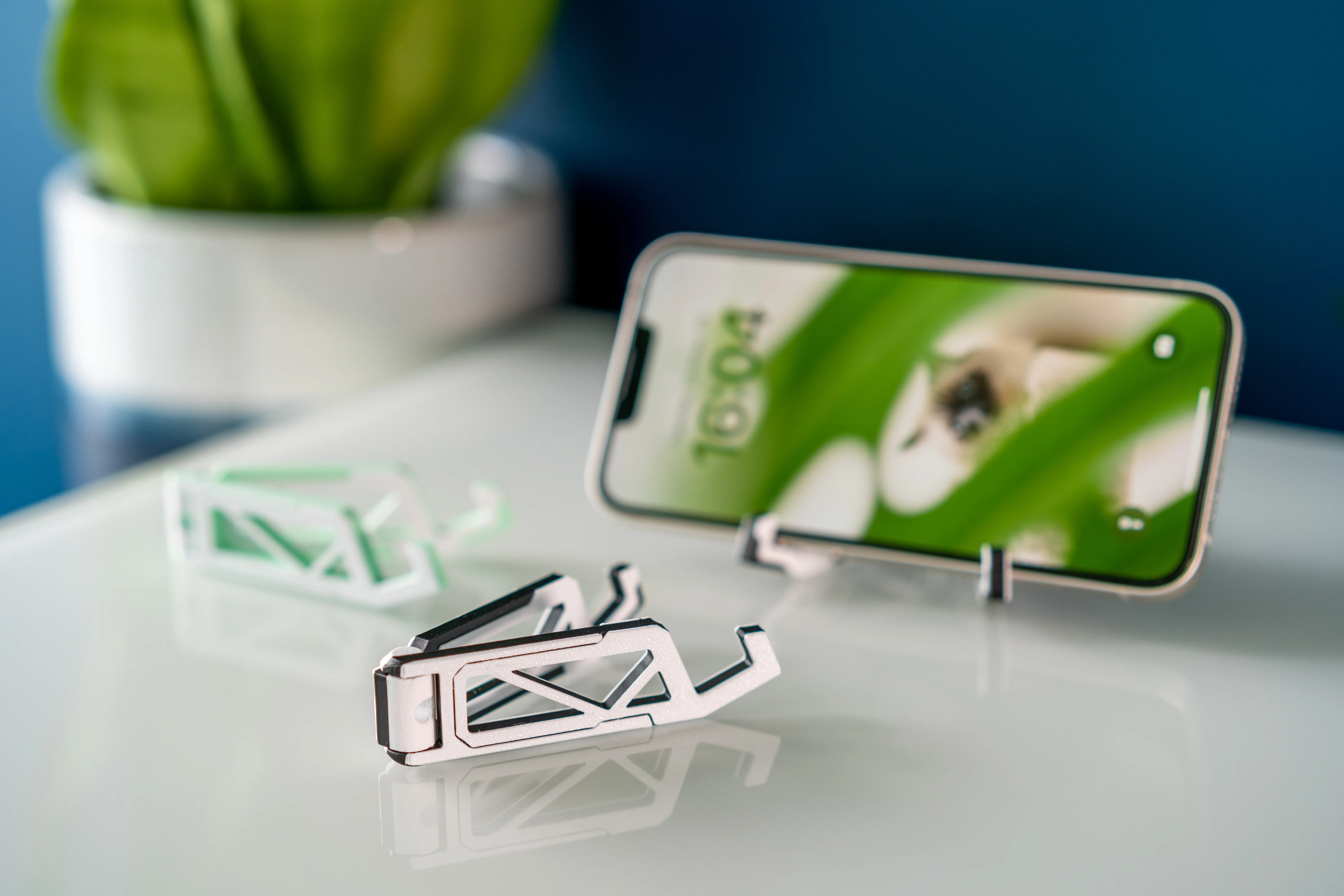

Mecha Style Foldable Phone Stand

https://makerworld.com/en/models/742031#profileId-674527

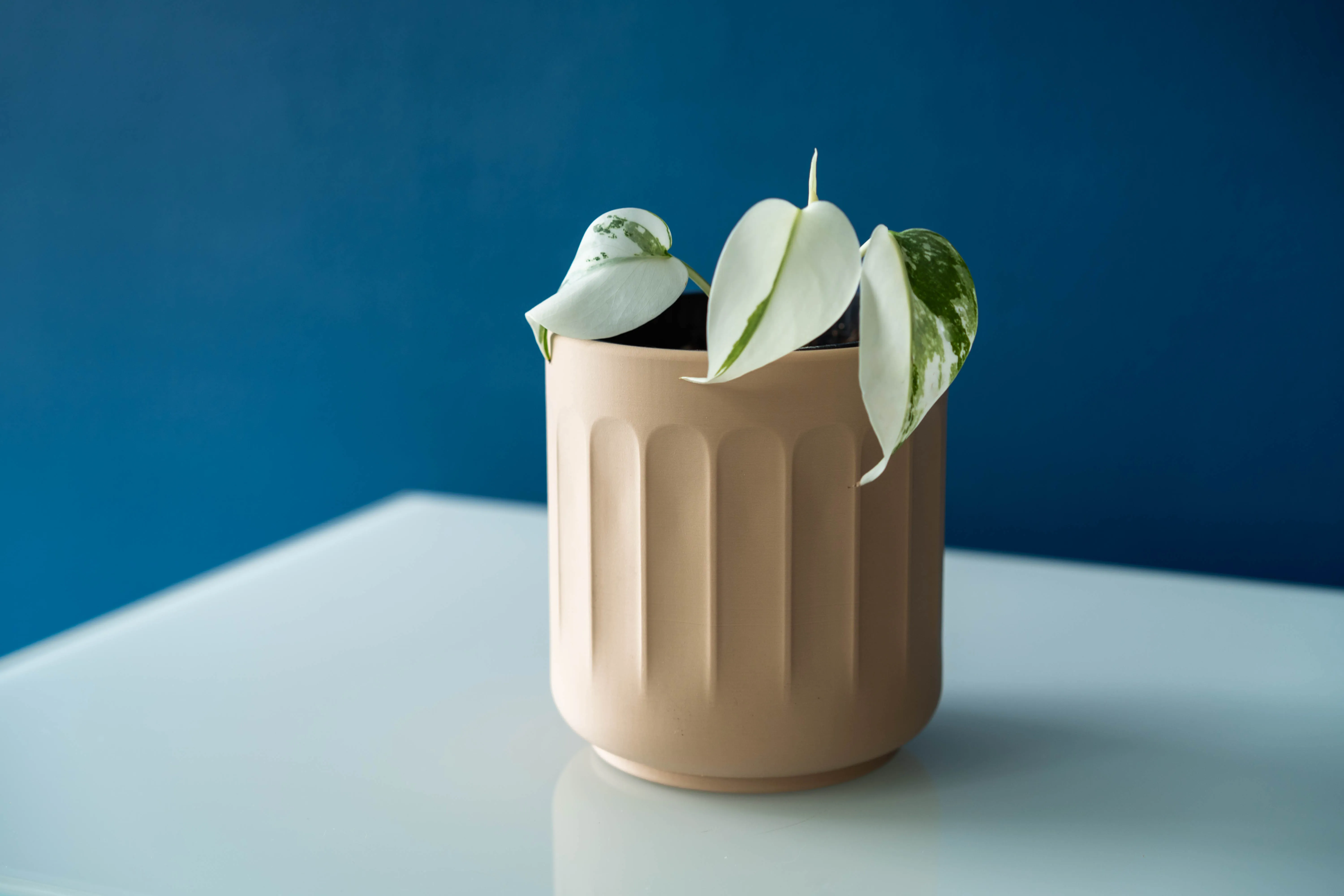

Carved Clay Plant Pot
