== Filament Chip Display Rack ==

Rack for displaying the 20x20x10mm example boxes that'sincluded in FlashPrint. At 140x125x15mm the rack prints flat on the 150x150mm bed of the FlashForge Adventurer 3 models.

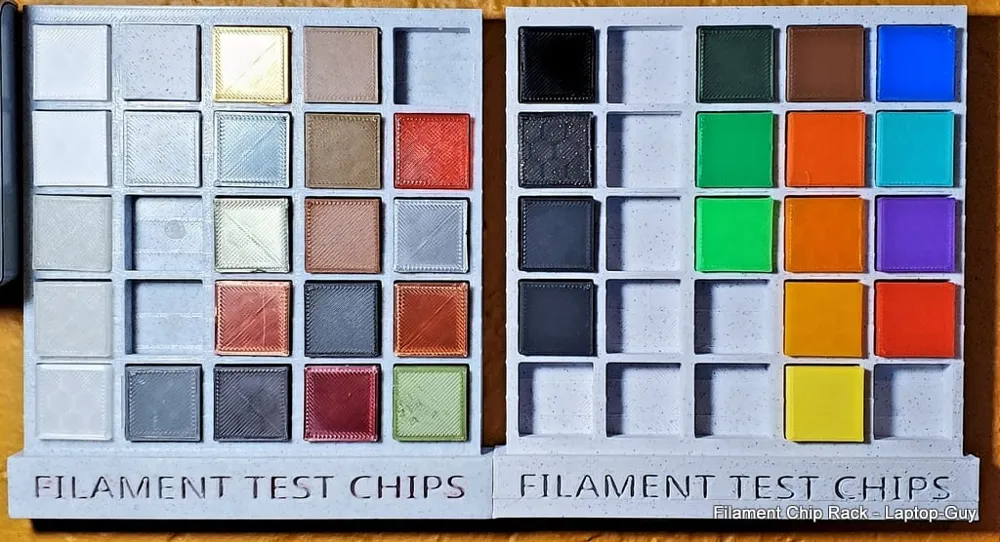

With filament colors and types on display it is easy to select the right one for the job. Use tape and a finepoint it's easy to write the brand and type on the back of each chip to identify stock. Designed with 8mm deep slots to make removing the chips easier.Holds 25 chips per rack, 50 if stacked two per slot.Increase depth for deeper slots or reduce it for faster printing.For portability or if printed with shallow slots use crafting removable glue dots or a drop of rubber cement to hold the chips in place.

Also works for 20mm cubes like the [XYZ 20mm Calibration Cube](https://www.thingiverse.com/thing:1278865).

Print Settings

Printer Brand:

FlashForge

                                            Printer:
Adventurer 3

Rafts:

                                            Supports:
No

Resolution:

Standard

                                            Infill:
15

Filament: Amolen PLA
Marble


                        Notes:
Version History

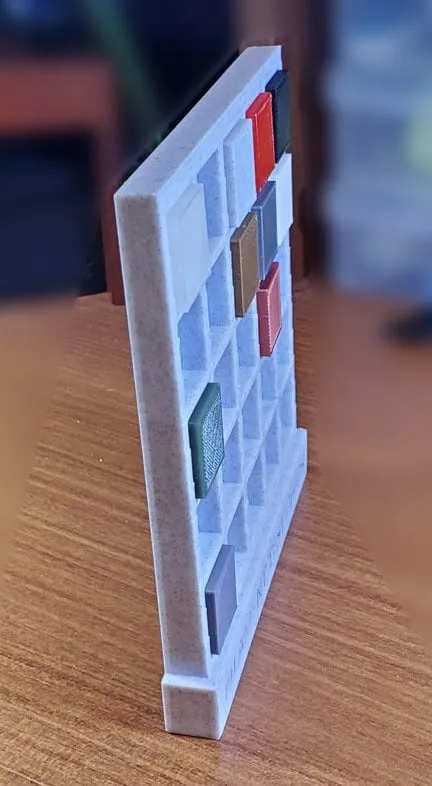

v4.0 - Pushed base forward to line up with back so it can sit against the wall on shelf or be mounted command strips to a vertical surface.

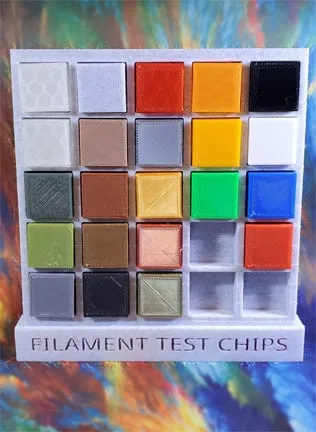

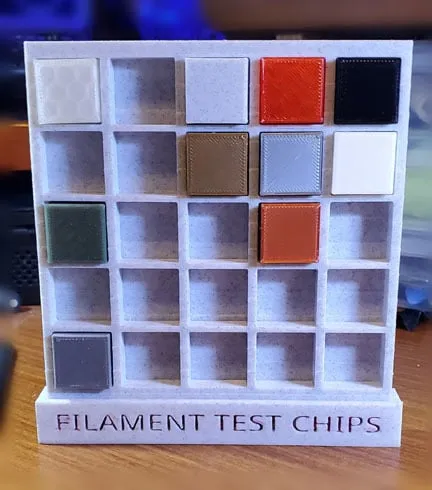

v3.0 - Added angle so chips stay in better, Added label to base.

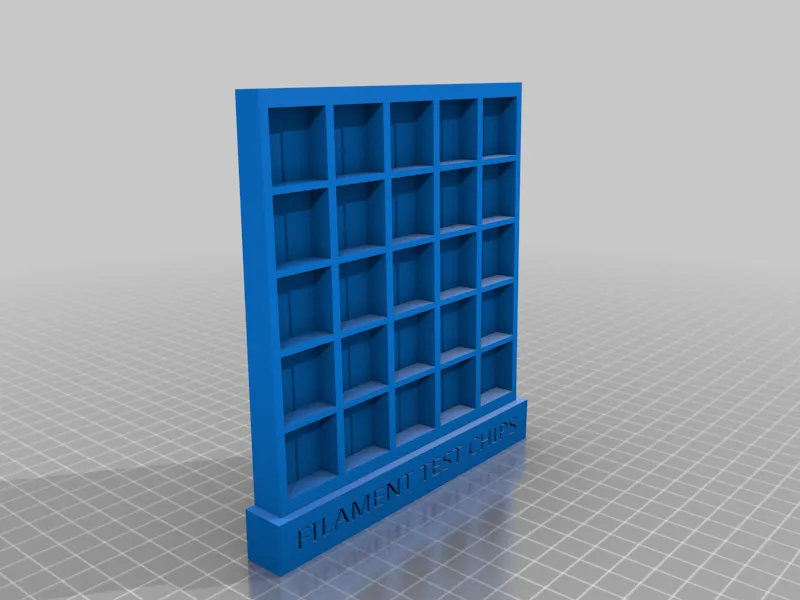

v2.0 - Added base so it could stand and be visible on a shelf.

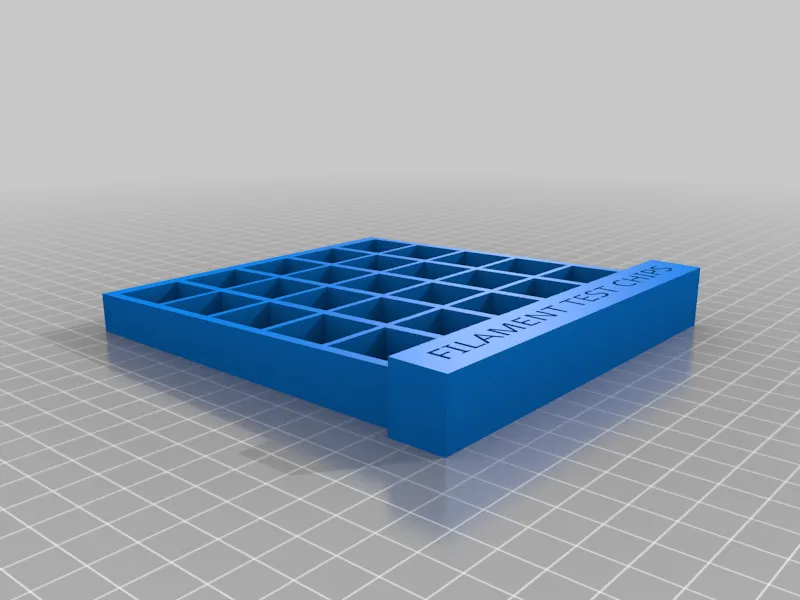

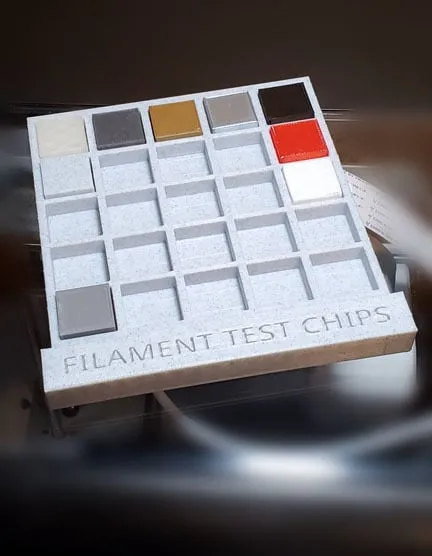

v1.0 - Simple rack with slots, flat tray style.
