Mini NAS – Dual HDD, Single SSD
IP Report
Print Profile(1)
V1
Designer
14.3 h
6 plates
Open in Bambu Studio
Boost
49
120
4
1
62
11
Released
Description

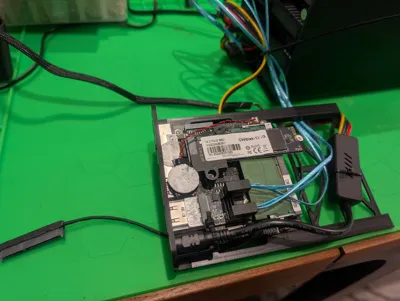

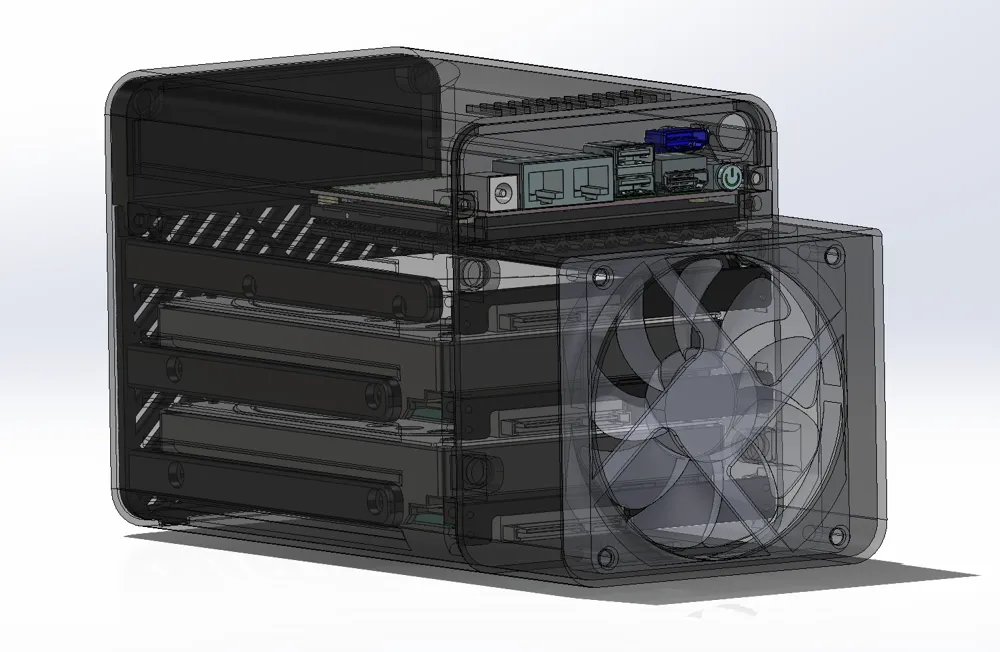

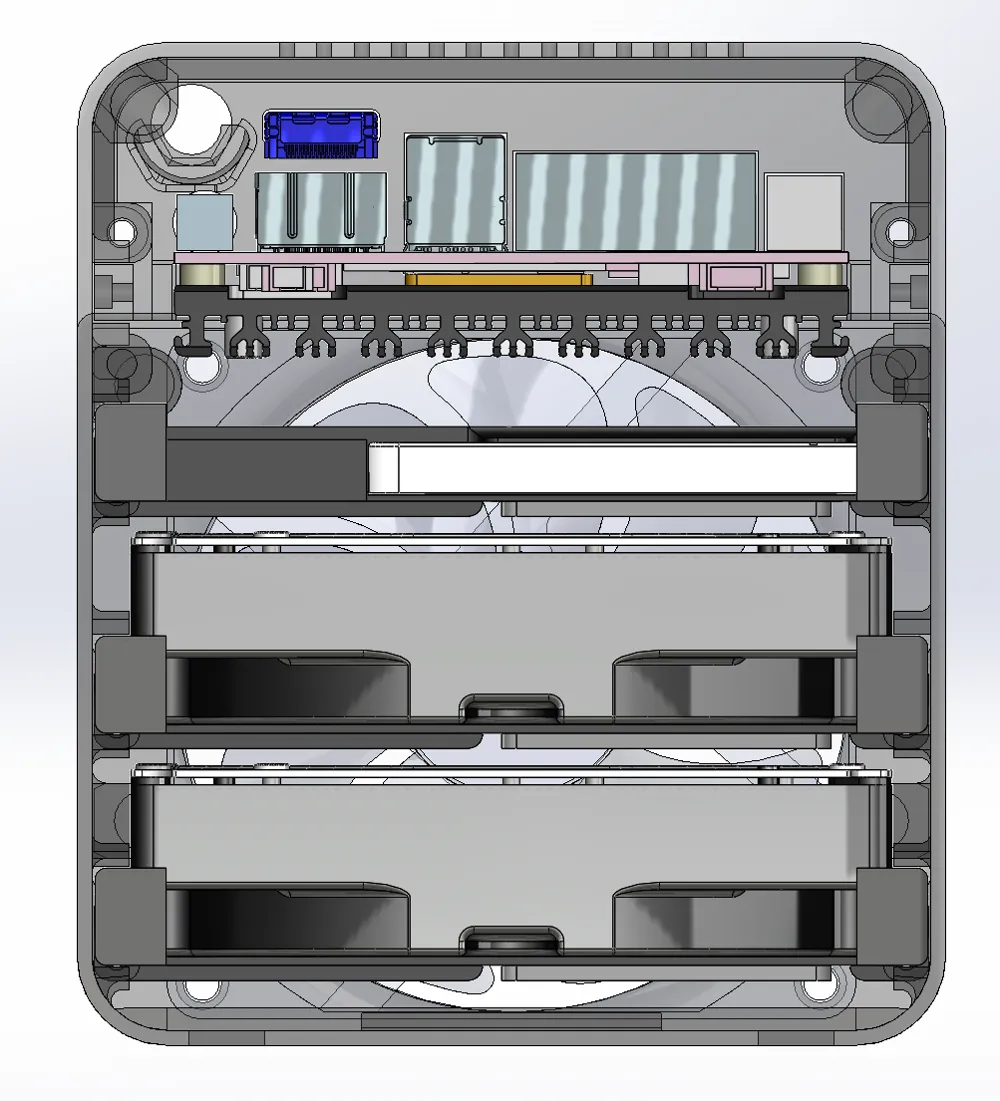

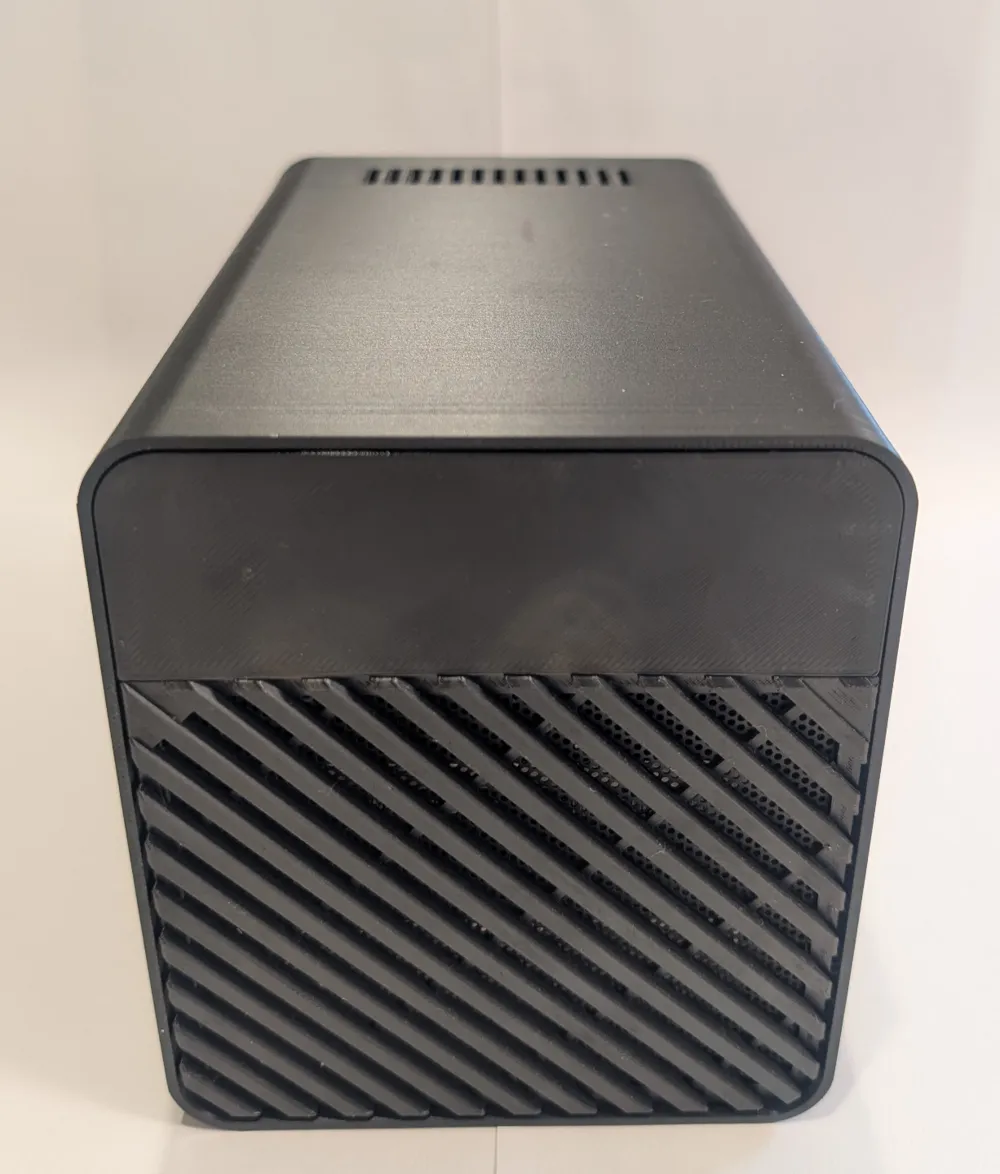

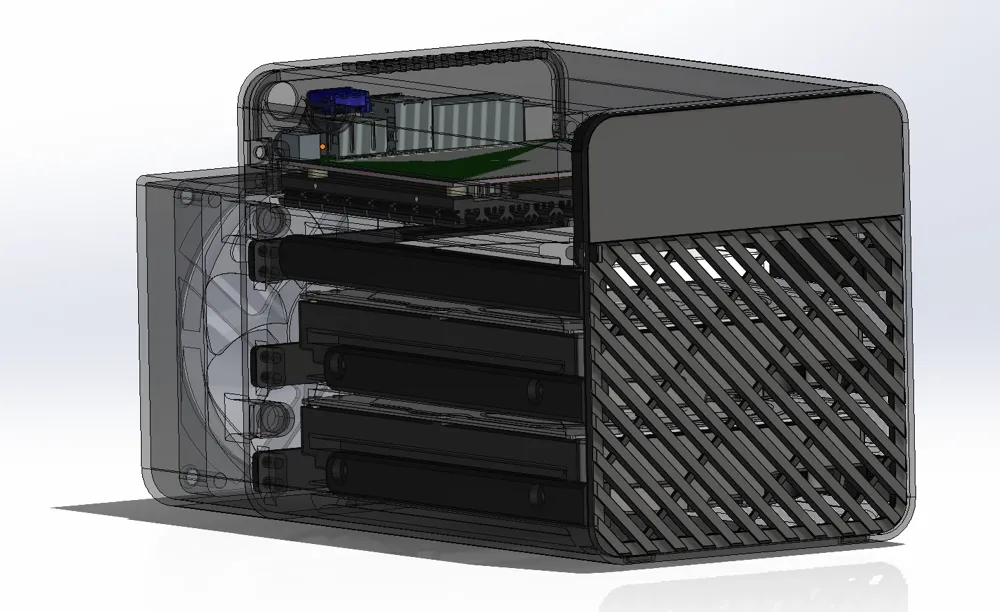

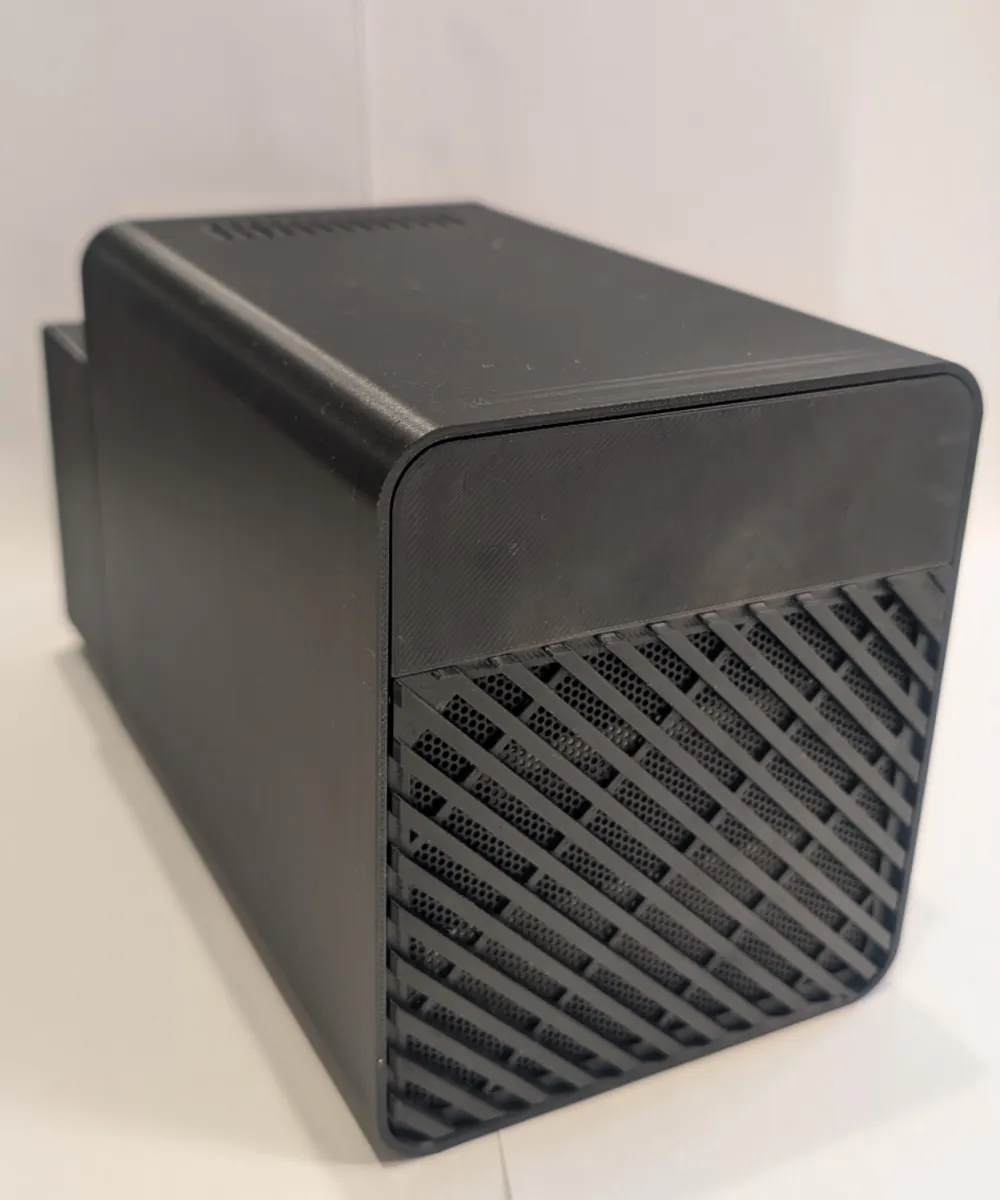

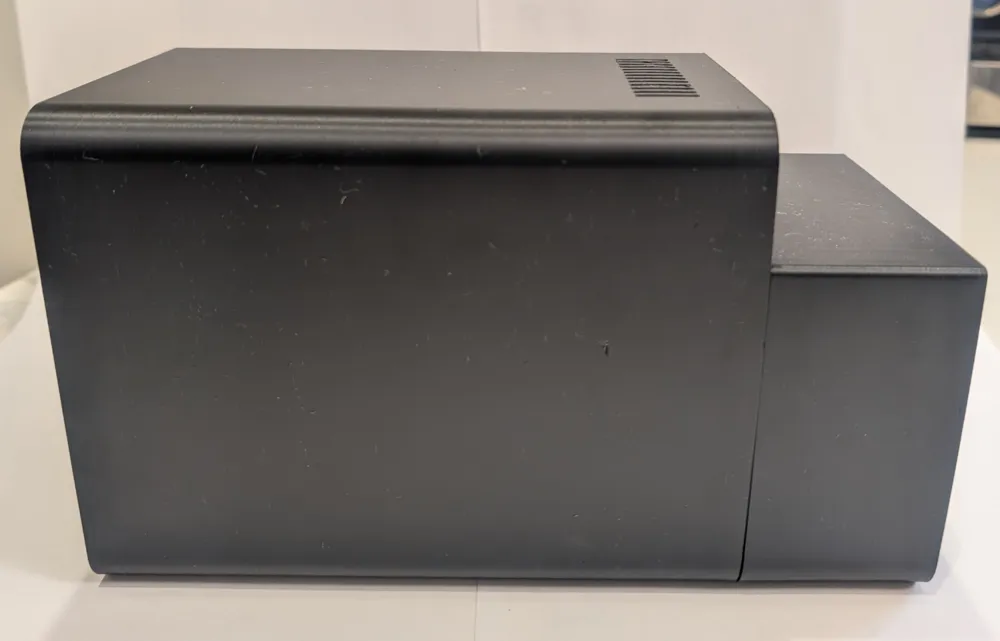

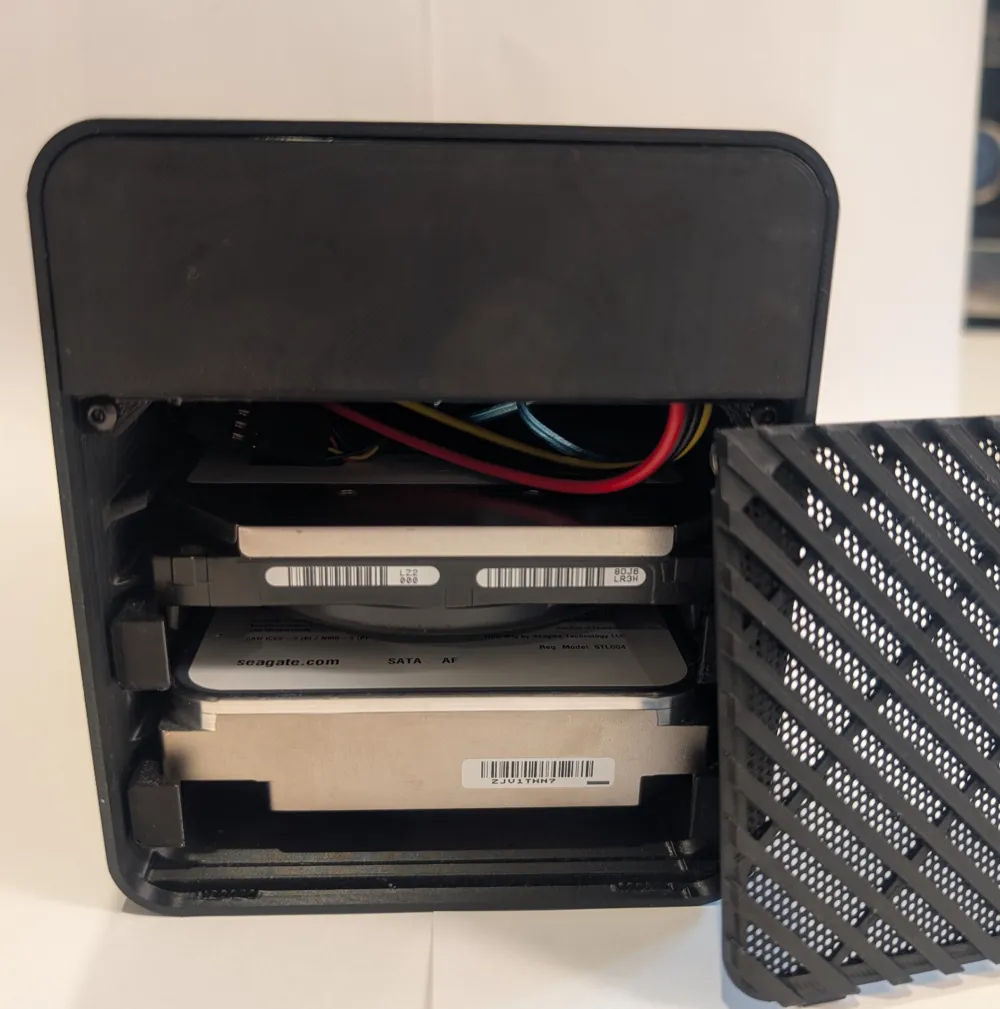

Small 2x 3.5" HDD NAS with support for additional 2.5" SSD. Built around the CWWK x86 P5 development board. The design is inspired by the JONSBO N2 case which I use for my primary server. I wanted a small fully contained NAS for remote backups that could be fully printed in my A1 Mini.

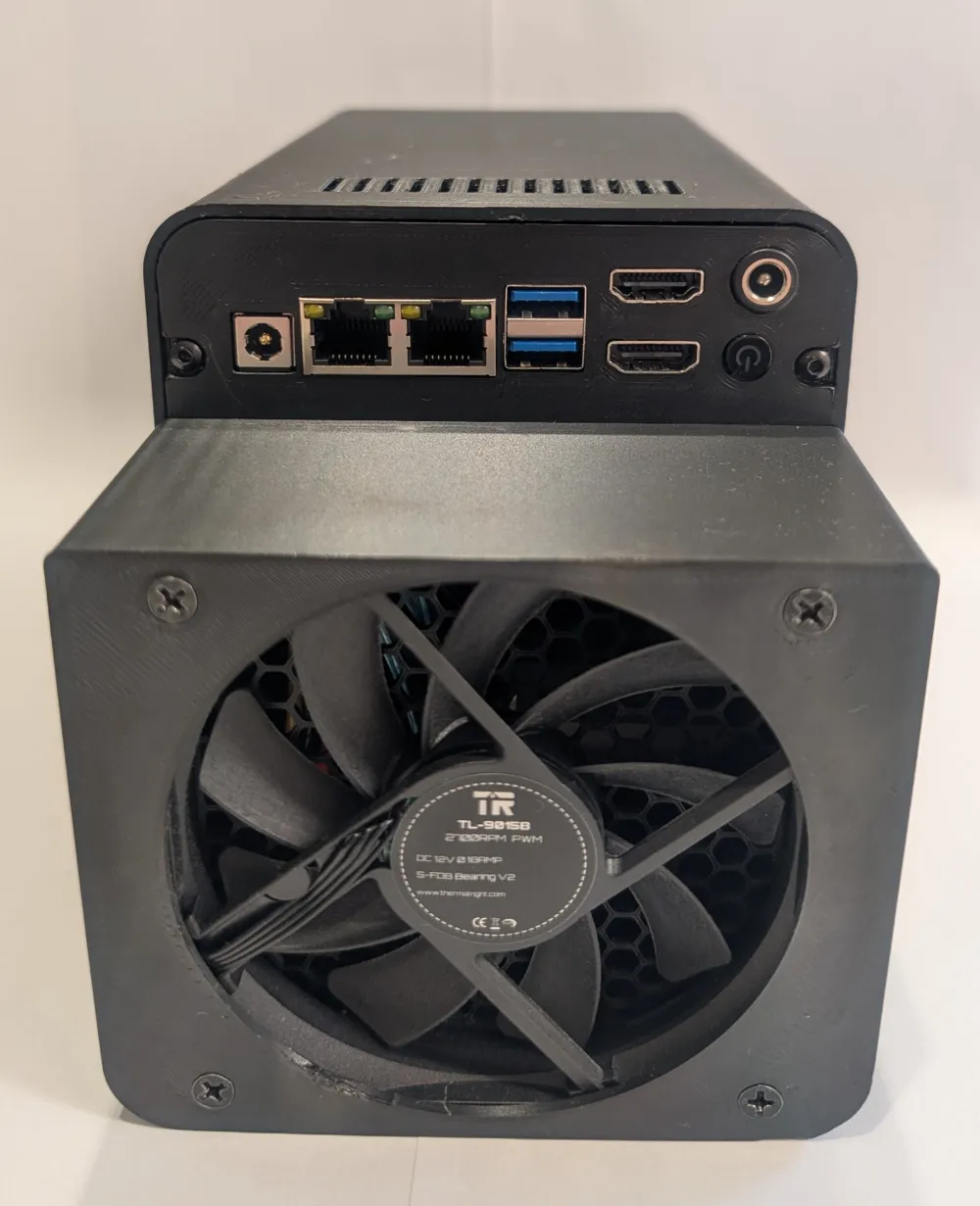

With the 92mm exhaust fan set to a silent fan profile in BIOS, the N100 never exceeded 60C.
Should be printed entirely in PETG due to its higher temperature capability.
| Name | Qty | Description | Link |
|---|---|---|---|
| CWWK x86 P5 Development Board | 1 | + Memory & SSD | Link |
| 92x15mm Fan | 1 | I used Thermalright TL-9015B | Any |
| M2 A+E to SATA expansion card | 1 | The board only provides 2x SATA interfaces, so this is necessary for additional | Link |
| DC5525 splitter with switch | 1 | For using the same power supply for both the board and HDDs | Link |
| 90 degree NVME adapter | 1 | Either this or a short NVME SSD to provide room for the SATA expansion card | Link |

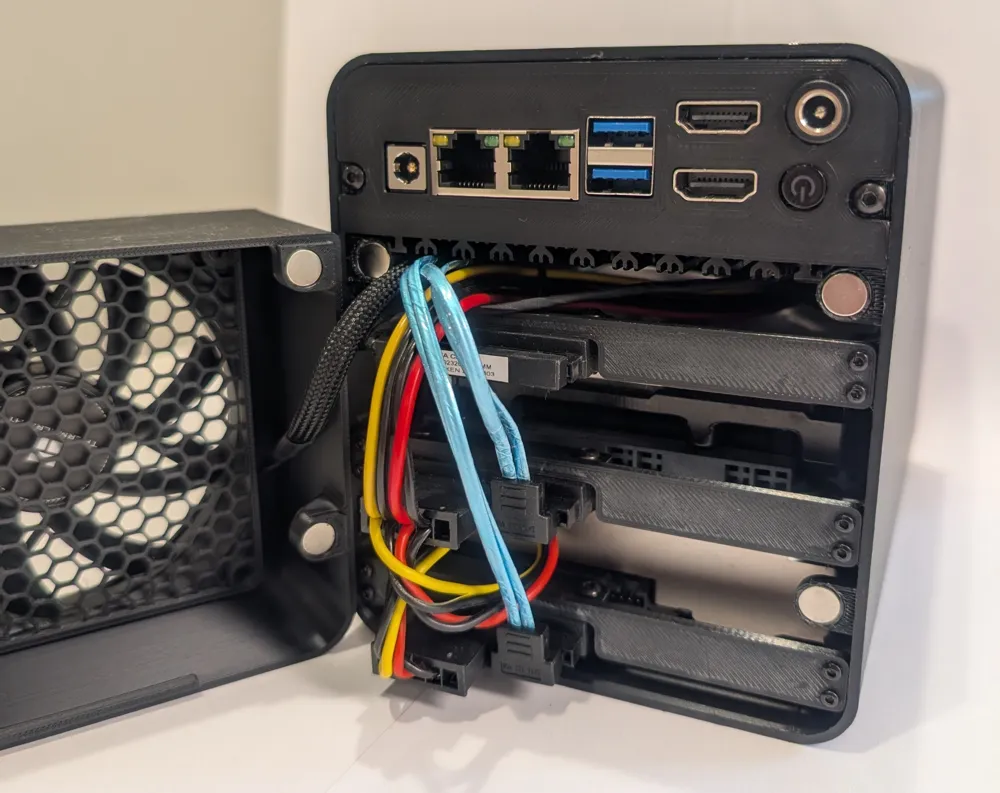

| SATA Male-To-Female adapter | 3 | To mount to the back of the HDD bays | Link |
| DC5525 12V to SATA power voltage regulator | 1 | HDDs require 12V in addition to 5V (the dev board only provides 5V) | Link |
| SATA 3.0 low profile cable - DOWN-RIGHT - 40cm | 2 | Link |
Additional hardware for case assembly (see assembly guide):
- 4x M2x10 screws
- 14x M2x4x3.2 heat set inserts
- 14x M2x6 screws
- 4x M3x4x4.2 heat set inserts
- 4x M3x6 screws
- 6x M3x12 screws
- 6x M3 nuts
- 14x 8x2mm magnets
- 4x fan screws
- HDD/SSD mounting screws as required
Documentation (1)
Assembly Guide (1)
Mini Nas Assembly Guide.pdf
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
