Description

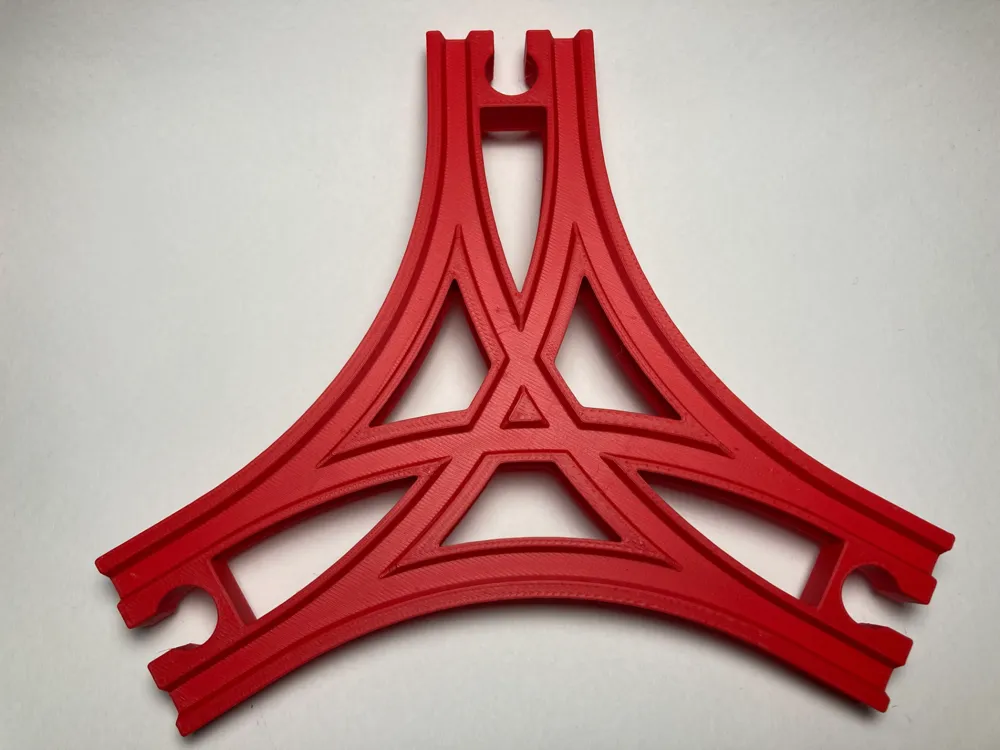

I always felt like most train tracks out there waste too much filament without any benefit. So I designed my own.

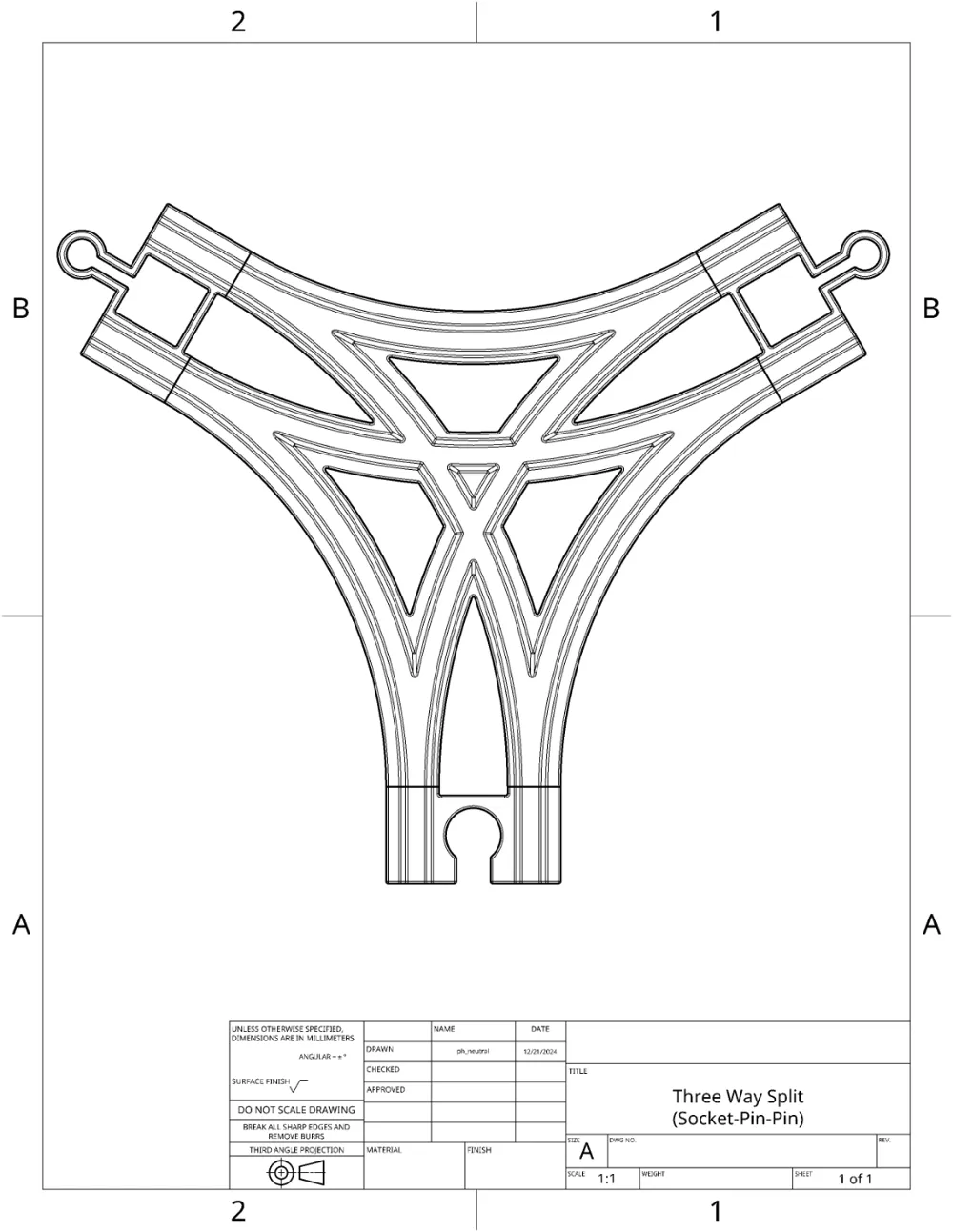

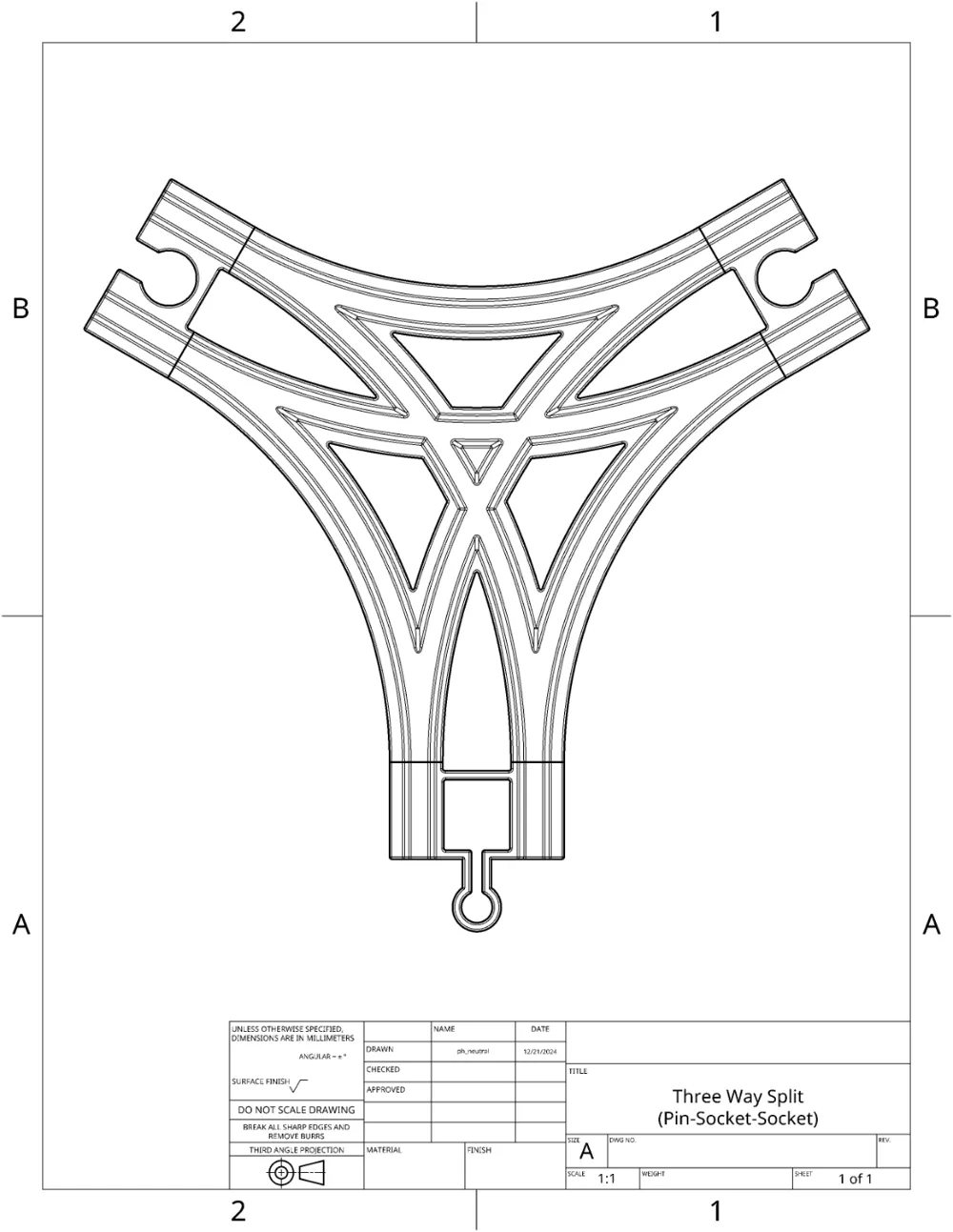

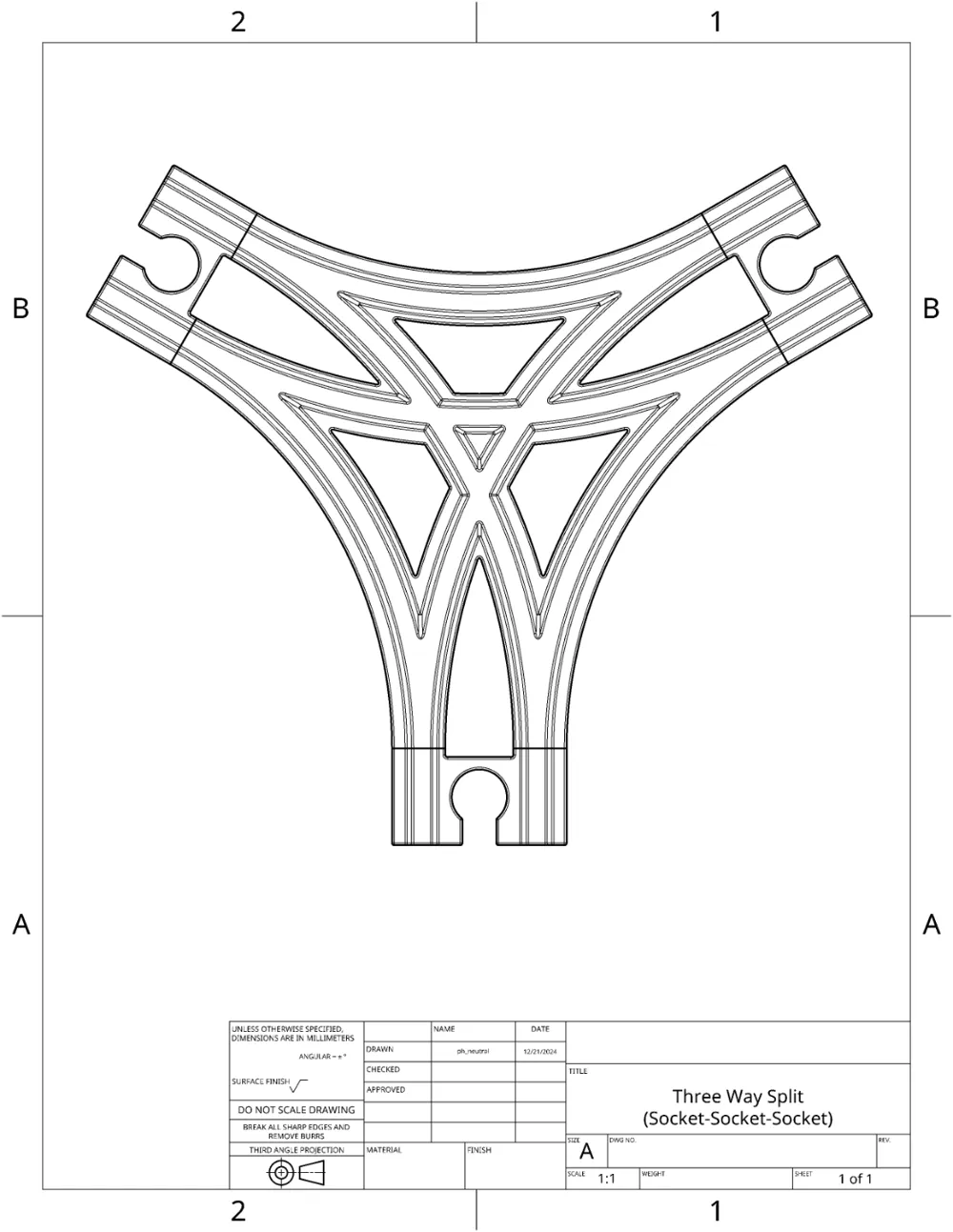

Most 3-way splits/switches have one straight track and two 90 degree turns, which are too step for many trains/wagons. This version has only 60 degree turns, which work for all the trains/wagons that we own.

Also check out my other train track designs: https://makerworld.com/en/collections/3318020-skeleton-tracks-brio-ikea

Nozzle	0.4 mm
Layer Height	0.2 mm
Material	PLA/PLA Matte
Wall Loops	2
Supports	no
Plate	Textured PEI

I recommend printing this on a textured PEI plate. Otherwise you might want to add a brim to avoid warping.
