Ethernet Outlet Plate for Keystone Coupler or Jack

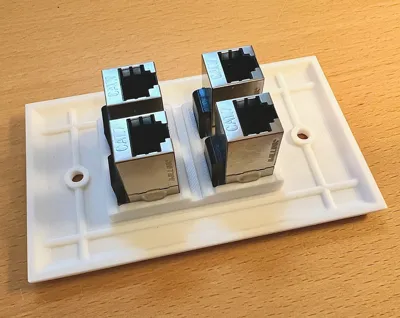

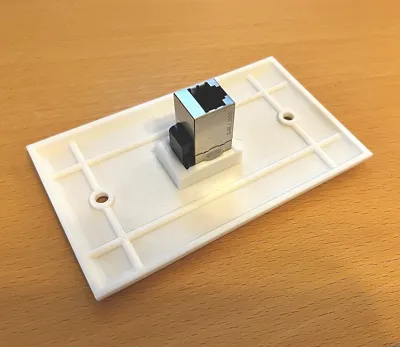

These Models are for Ethernet Outlet Plates or Covers for one, two or four Keystone Ethernet Couplers or Jacks. I've included models for both a standard sized Outlet Plate and an enlarged or XL Outlet Plate. I recommend printing with 4 or more Wall Loops and a minimum 25% infill for strength to reduce warpage when screwed to the wall box. The Plates were designed for a Keystone coupler or Keystone jack that simply snap into the Outlet Plate. Two 6-32 wall plate screws are required to mount the Outlet Plate to an outlet box.

Note: Good bed adhesion is a must. If edges or corners lift a little from plate during print, the rolled or beveled edge will not come out looking good.

3/13/2025: I added a new profile for a standard size cover to handle 3 Keystone couplers

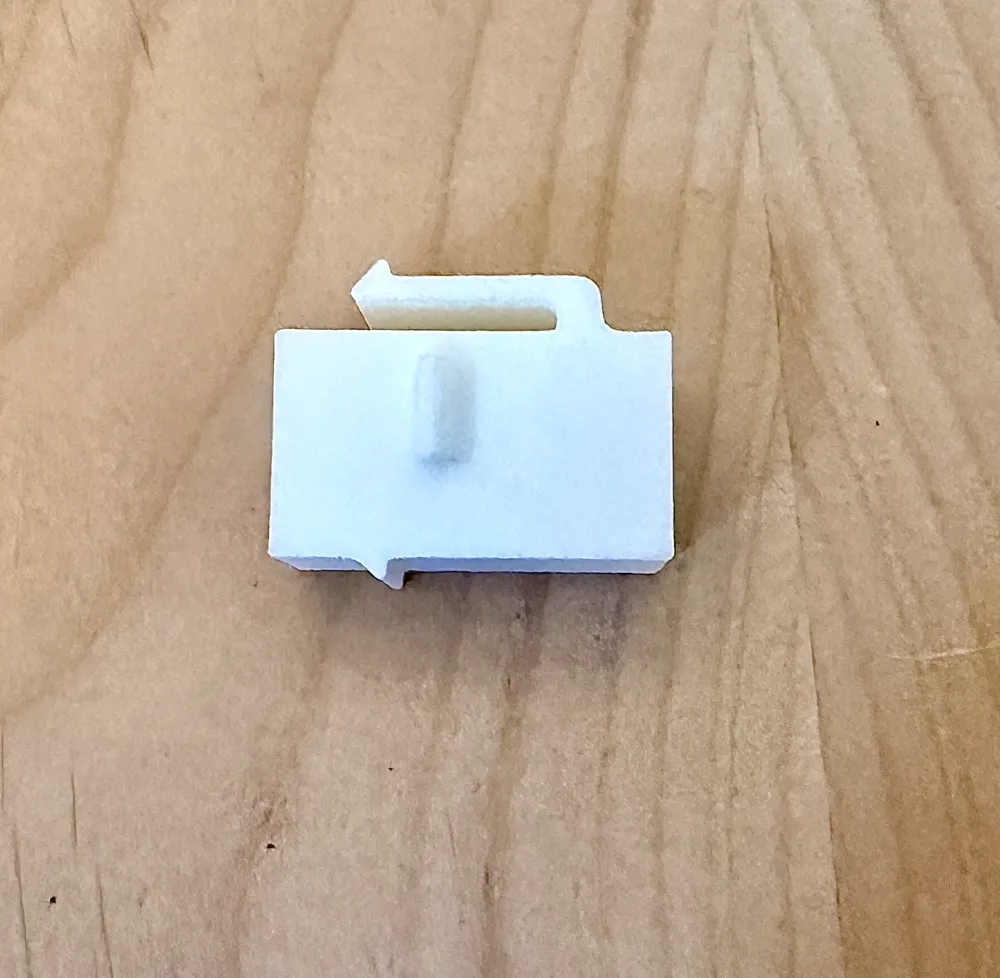

3/14/2025: I added a new profile for a filler plug for unused slots

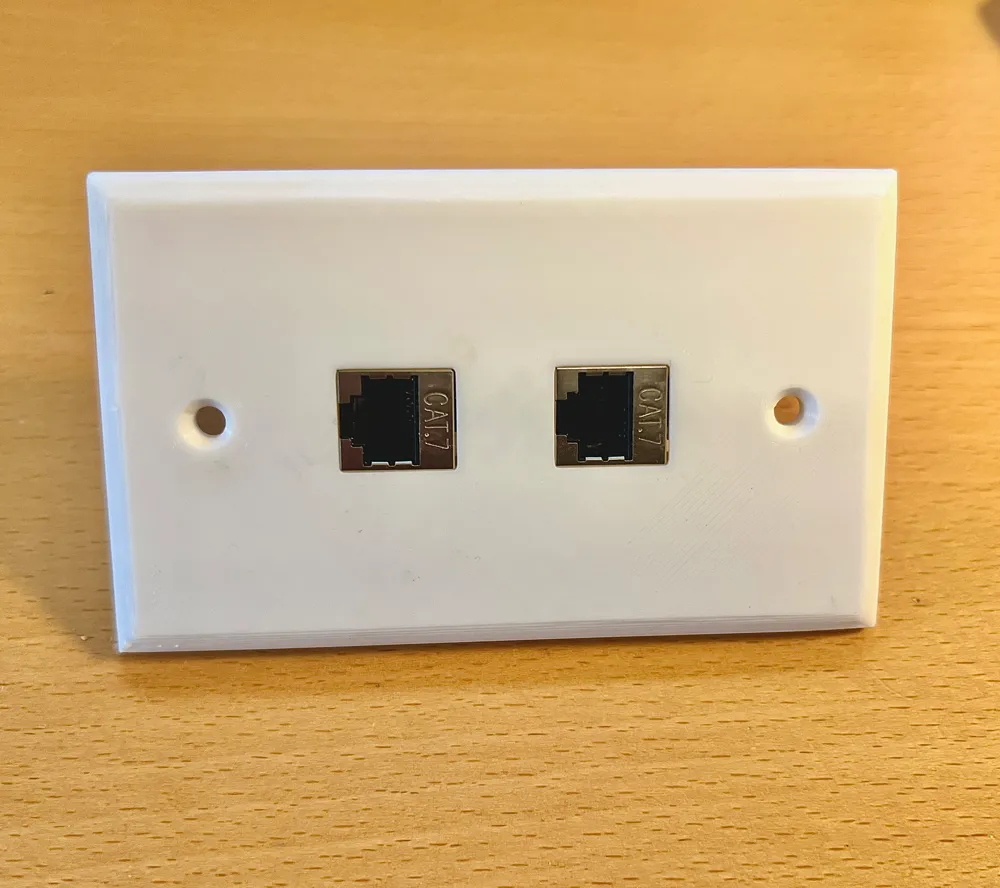

8/15/2025: The rolled edge of the original design can be difficult to print and come out looking good. Supports can help. The rolled edge is a more tradition outlet plate design. I added as a new profile a set on champered or beveled edge models that are easier to print.

When using the Profiles, delete the objects you don't want to print

I used the following ethernet couplers for my application:

https://www.amazon.com/dp/B09F9FN53W?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

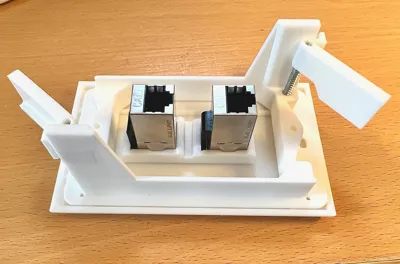

The Outlet Plates works well with the following wall box:

Outlet Box/Bracket - Low Voltage, Open Back by JC58 - MakerWorld
