Compliant mechanism caliper
Print Profile(4)
Description
Compliant Mechanism Caliper – Credit Card-Sized Measuring Tool

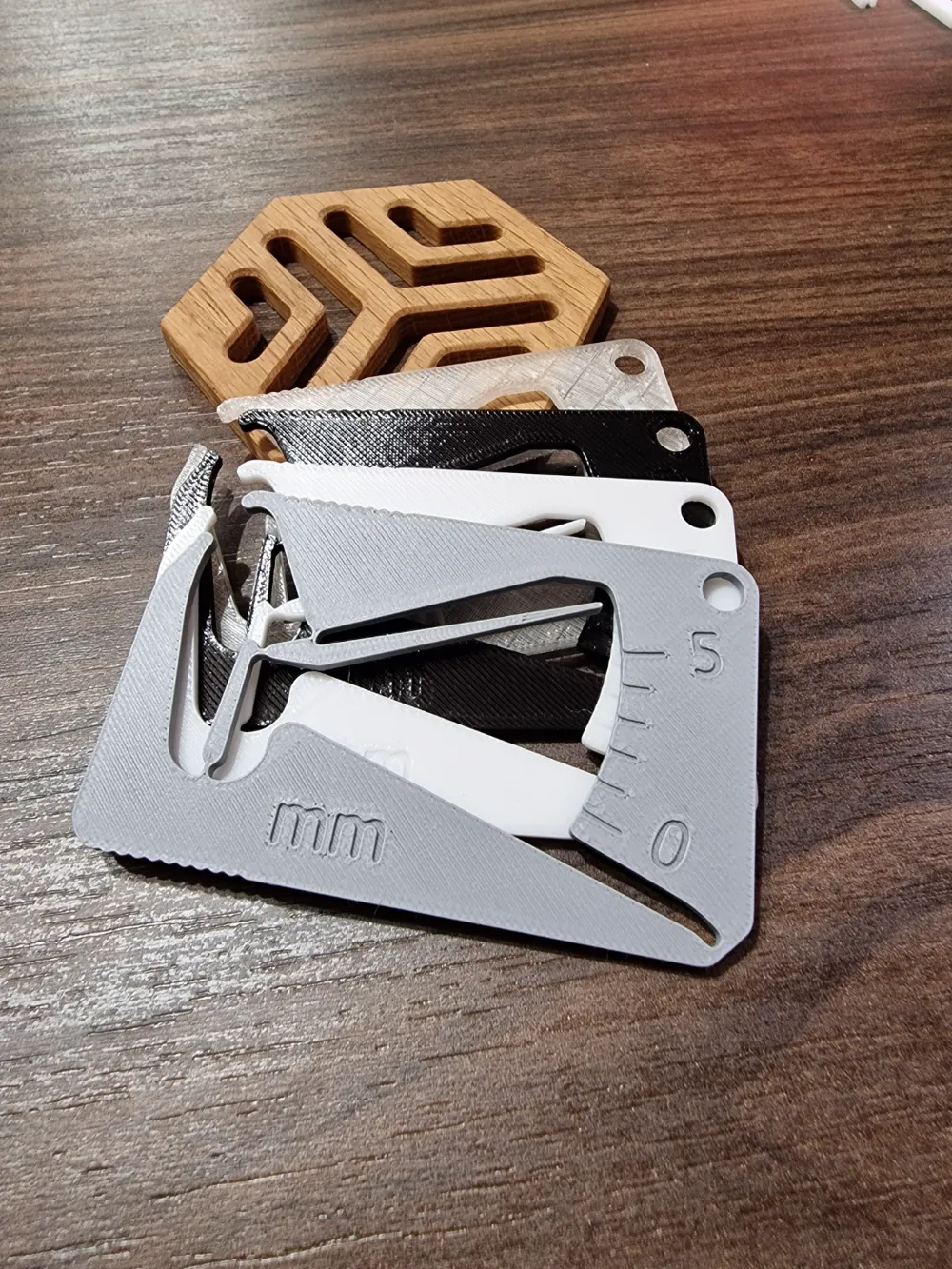

This ingenious device combines simplicity, functionality, and innovation in a single component! The Compliant Mechanism Caliper is a flexible measuring tool enabling precise thickness measurements from 0 to 5 mm—all in the size of a credit card. Perfect for keeping in your wallet!
Boost Me (for free)
If you are satisfied with the result, please boost ✌️
Highlights:

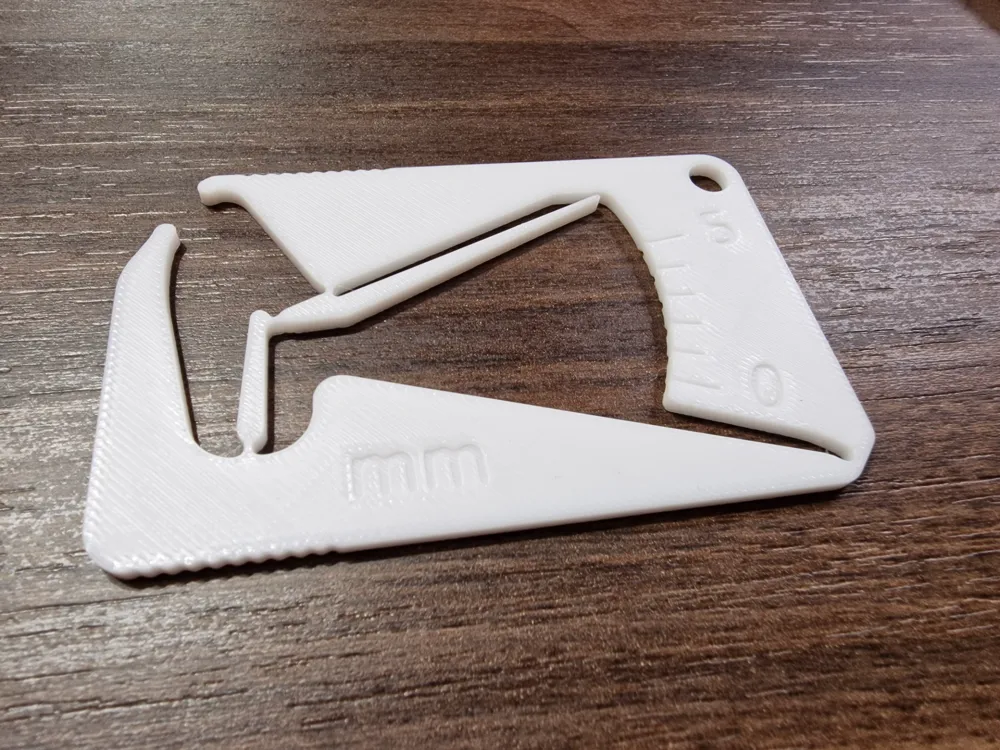

- Simplicity: The design comprises a single component, functioning solely through material flexibility—no additional parts or moving connections.

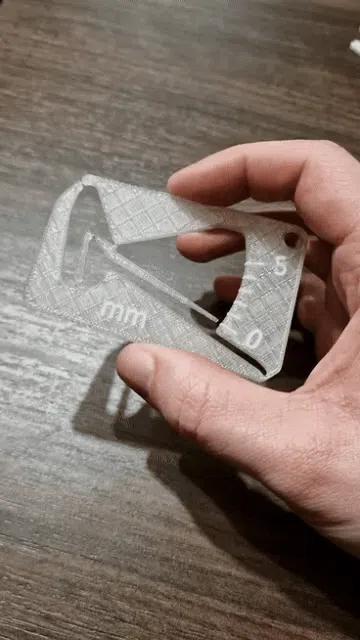

- Multifunctionality: Ideal for on-the-go measurements of paper, wire, plastic films, or other thin objects.

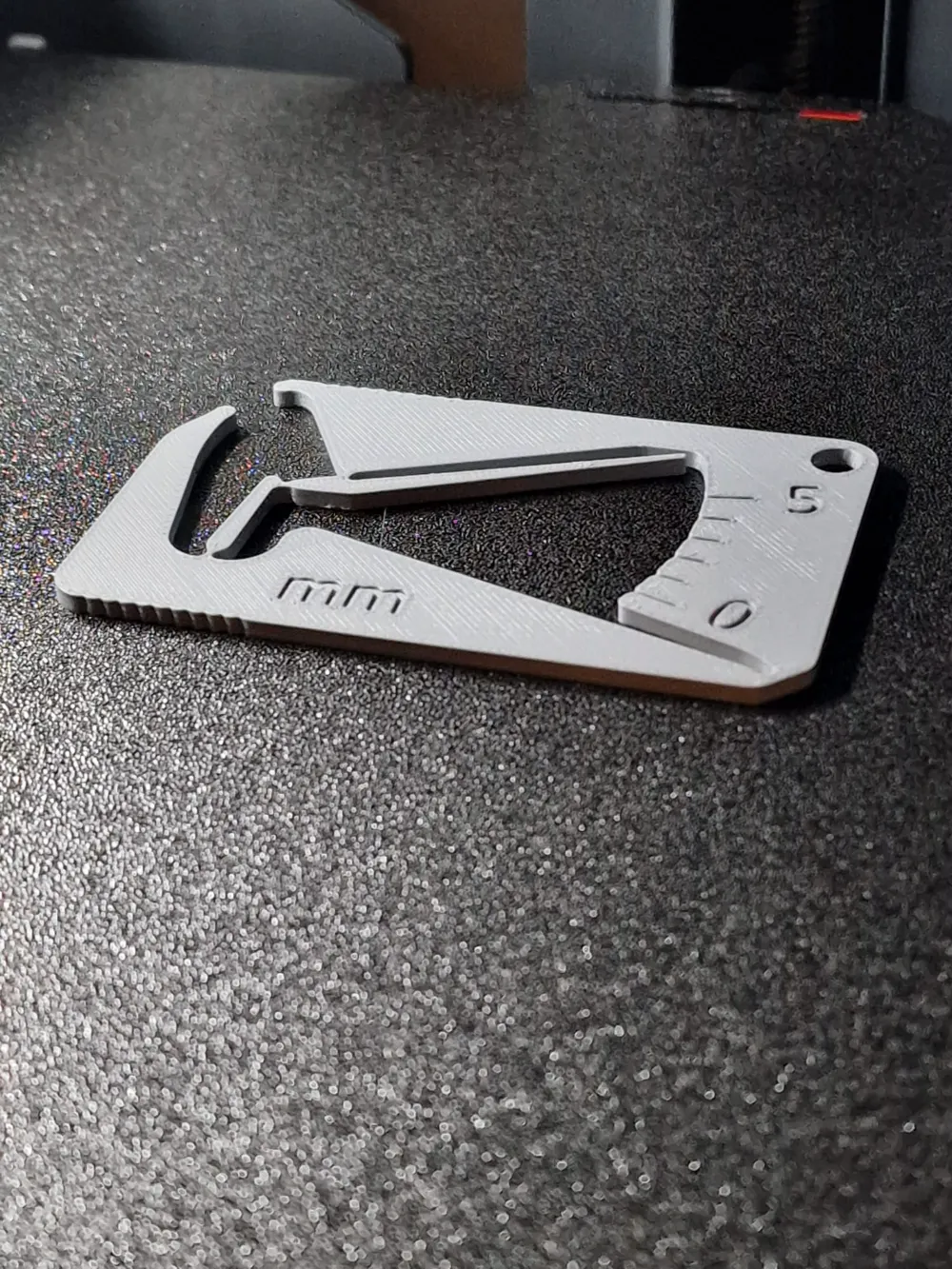

- Compactness: Its credit card dimensions allow for effortless storage in any wallet.

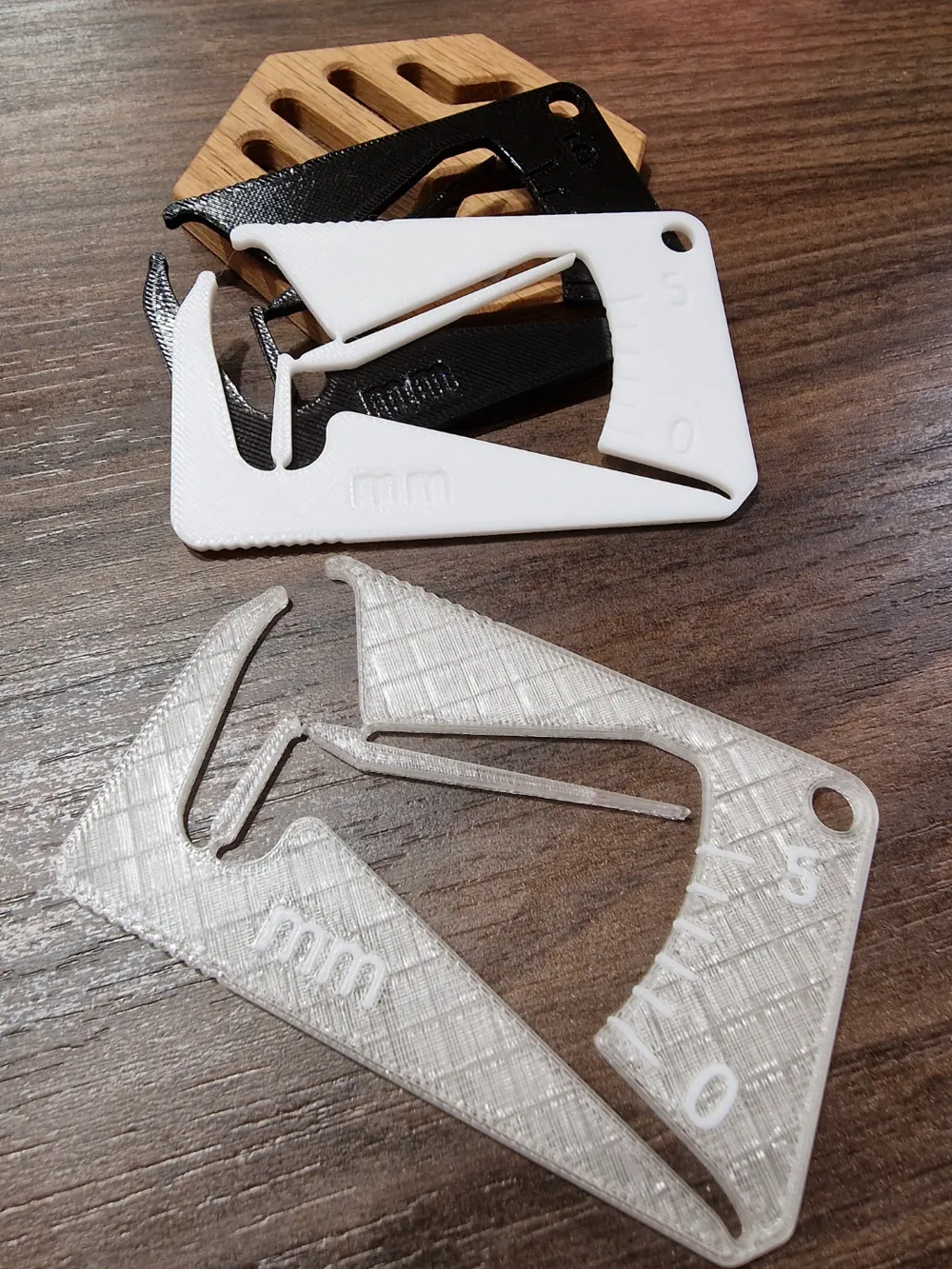

- Variants:
- Monochrome Version: Minimalist and understated.
- Multicolor Version: Features a color-coded scale for easier reading.

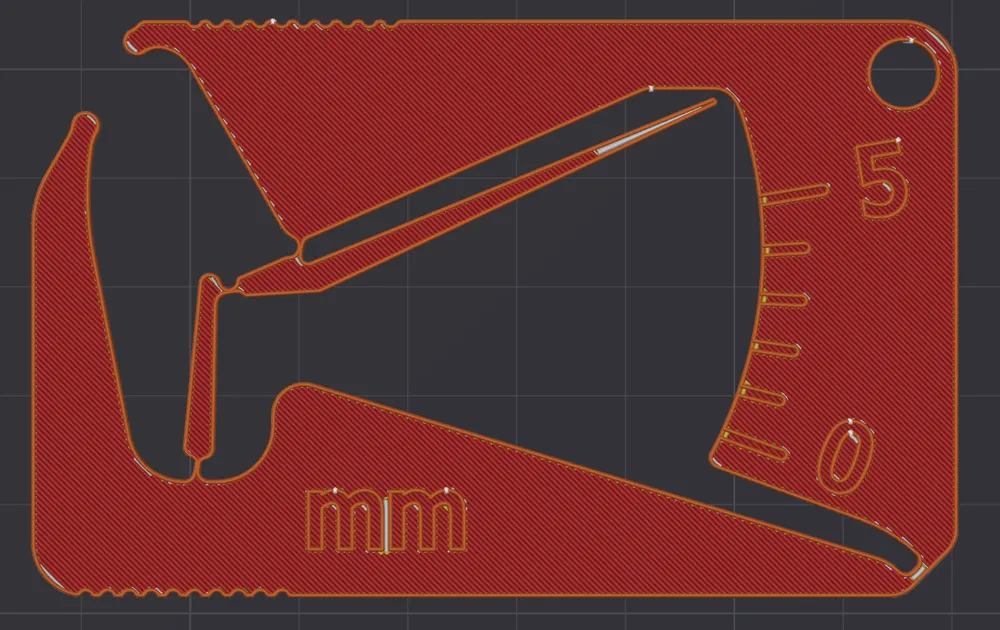

Printing Details:
- Recommended Materials: PETG or PLA+ (generic PLA lacks durability)
- Print Settings:
- Layer Height: 0.2 mm
- No Support Material Needed
- Minimum Infill: 15–20 %
- Special Note for Multicolor Printing: Easily adjust colors via color changes in your slicer or app.
Why This Model?
This measuring tool is not only functional but also a superb example of modern design and the innovative use of compliant mechanisms. It is perfect for makers who appreciate practical gadgets and enjoy printing.
Download the STL files now and print your own copy! Show us how you use it or personalize it to your liking.
