Prusa Mini - Webcam Bracket [Microsoft LifeCam HD-3000]

Simple Bracket to install a webcam on the Prusa Mini.

WebCam Model: Microsoft LifeCam HD-3000

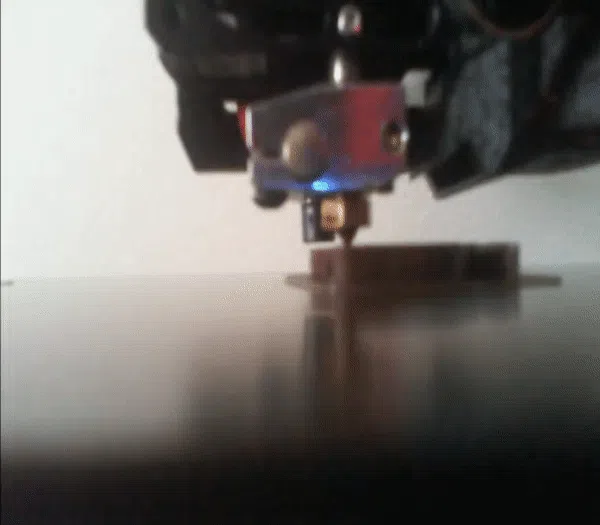

Its purpose is to offer a clear view of the nozzle and layers. Here's an example of what you could see during printing. Because the Cam is attached to the Z axis, it will layer by layer follow the nozzle throughout the print process.

To be assembled you can follow two ways:

Method 1: With Screw and Knurled Nut (Preferred)

Material needed:

1. 1 x M3x25 screw
2. 1 x M3xL5xD4 Knurled Nut

The knurled nut will be put into the Cam Clamp's smaller hole, and the clamp will be secured to the motor bracket with the M3x25 screw.

Method 2: Using a screw that is directly inserted into the clamp

Material needed:

1. 1 x M4x25 screw

The screw will pass through the larger hole and thread on the clamp's opposite smaller hole, fastening the cam clamp to the motor bracket.
