Description
I could not find a good case for this project, so i made one.
its for the RadiationD-v1.1(CAJOE) board that is featured on youtube and you can get aliexpress as “DIY Geiger Counter Kit”

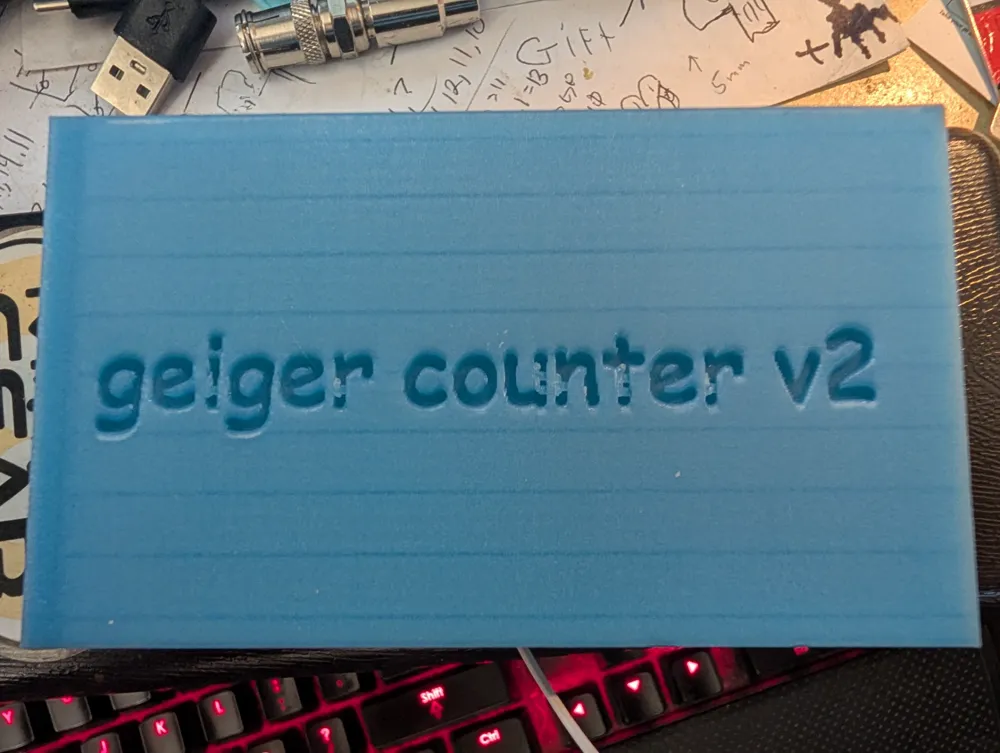

I printed in PLA (glow in the dark) and the lid is inset for 2mm plexi.

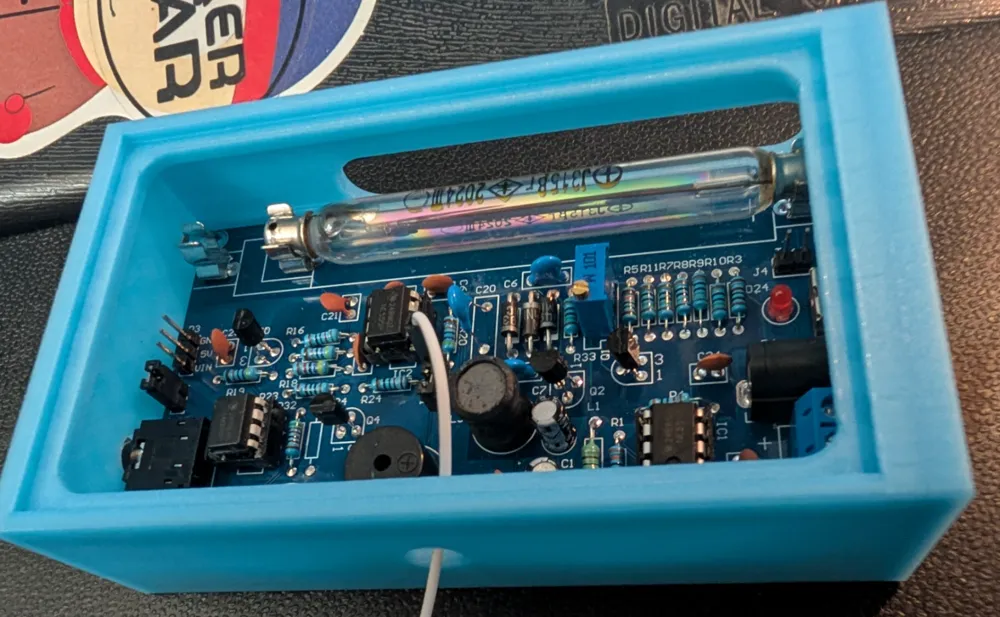

It is a pretty tight fit, but should protect the glass tube and electronics.
If you are using this with a microcontroller. you need 3 pins, you need 5v, GND found on the left side of the board and you need the top pin from J1 in the middle of the board above the buzzer. Remove the jumper and the top pin is your signal output.
