Skadis mount for IKEA PAX - Threaded Insert

UPDATE 2024.11.21:

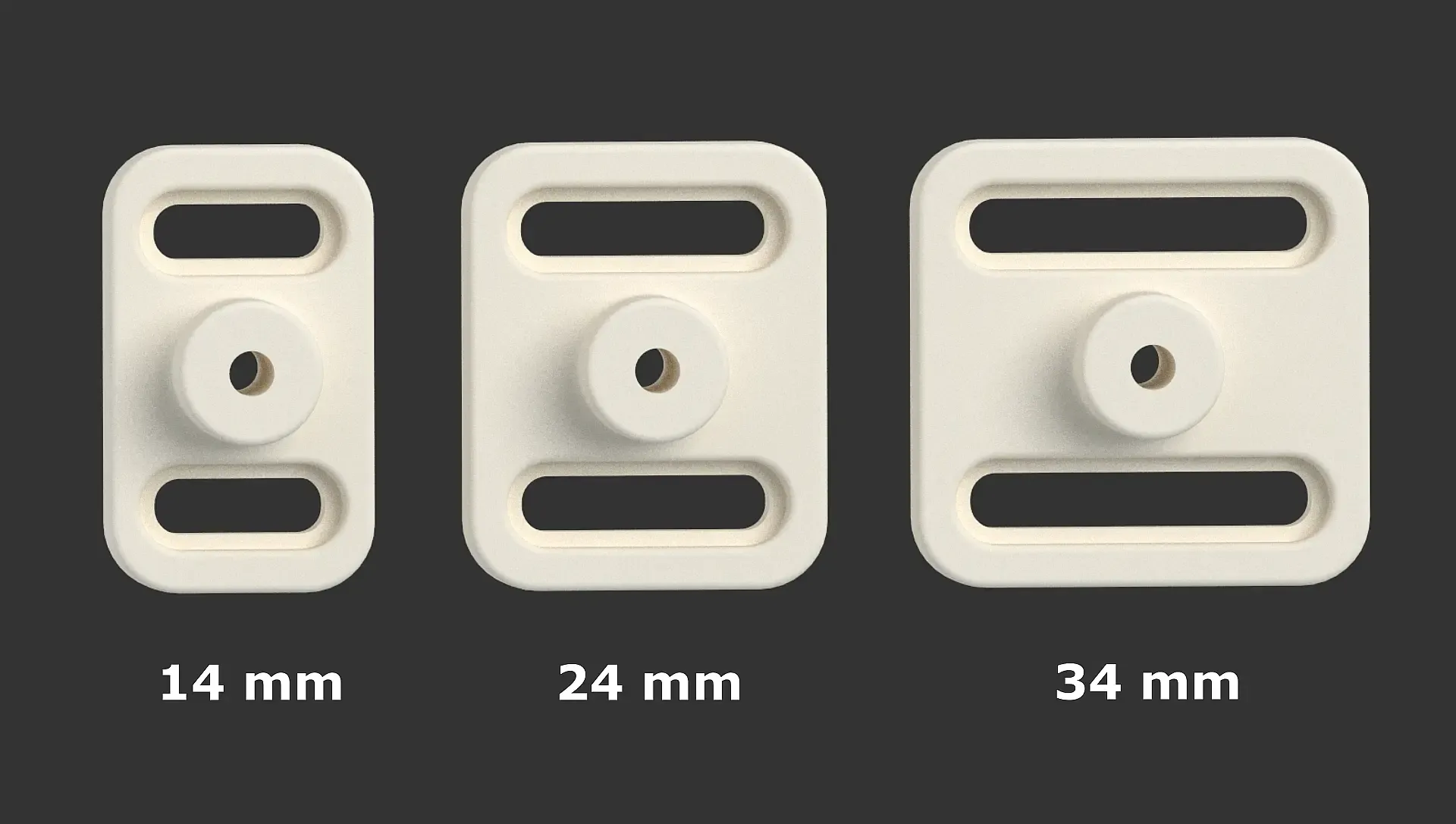

Three different sizes of this SKADIS mount are now available, offering maximum flexibility.

UPDATE 2024.11.30

Added a version for heated inserts to each size. All Versions:

This is the version standard or S for threaded inserts

Looking for a sturdy way to mount a Skadis board inside your Pax wardrobe without compromising on style or flexibility? I designed this custom Skadis mount to solve common issues with available models that often lack stability, require extra holes, and can look unsightly if you decide to rearrange things later. My model offers flexibility with slot-based screws.

Parts Required for Mounting One Skadis Board:

Option 1: Using the original Skadis spacers at the bottom

• 2 printed mounts
• 2 M4 threaded inserts
• 4 Ikea PAX KOMPLEMENT hinge screws or “Euro screws (6.3 x 16 mm Pan-Head)”

Option 2: Using 4 mounts for additional stability at the bottom

Installation Guide:

1. Insert one of the screws that came with your Skadis board to press the support out of the model.
2. Install a threaded insert into each mount.

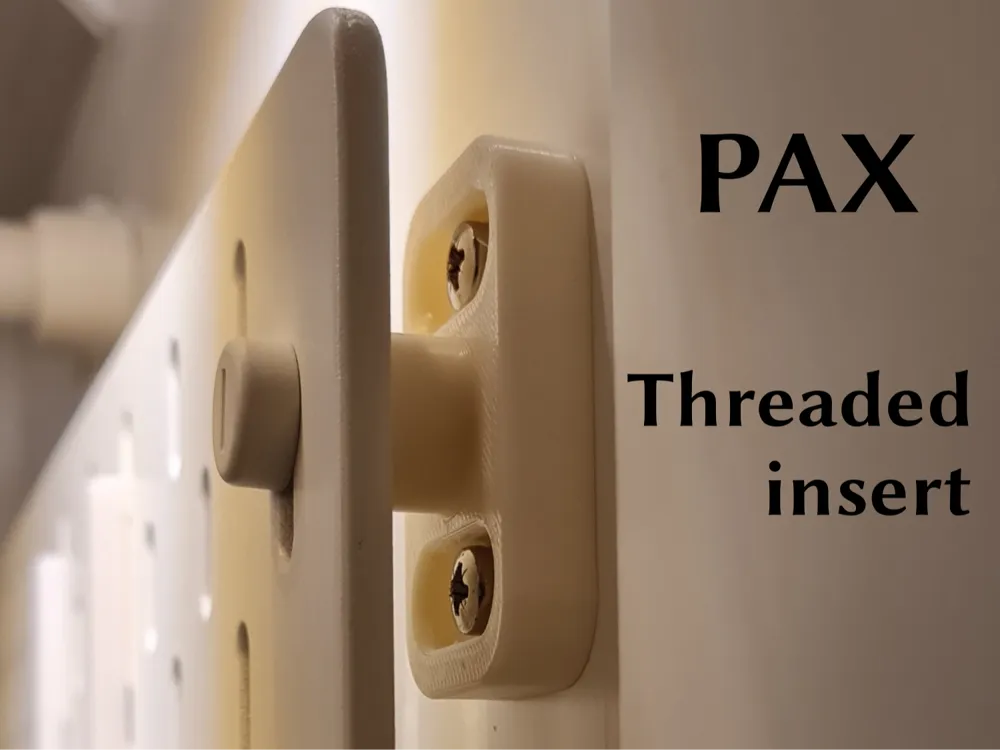

3. Attach the mounts to your Pax wardrobe, keeping them slightly loose for initial alignment.
4. Secure the Skadis board onto the mounts, allowing it to slide sideways to your preferred position.
5. Once aligned, remove the Skadis screws and fasten the four hinge screws – only light force is needed as the screws are remarkably strong.
6. Reattach your Skadis board.
7. Follow your chosen option to install the bottom parts.

This design ensures a strong hold, easy adjustability, and a clean look that will keep your Pax wardrobe looking sharp even if you rearrange later. Happy printing!

Share your prints in the comments section.
