0.2mm layer, 3 walls, 20% infill

Designer

5.1 h

1 plate

5.0(9)

Open in Bambu Studio

Boost

132

109

Released

Bill of Materials

Bambu Filaments

Select all

PETG HF

Black (45101) / Filament with spool / 1kg

ASA

ABS

List other parts

M4 x 15 Socket Head Screw x 2: TopAssembly
8 - 4mm x ... (min. 10mm but adjust to your situation) Countersunk screws x 8: MountingScrews

Description

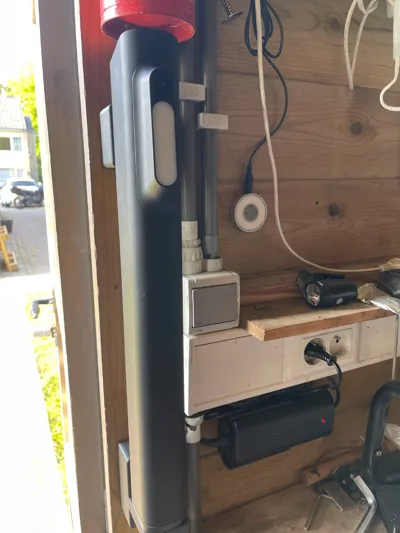

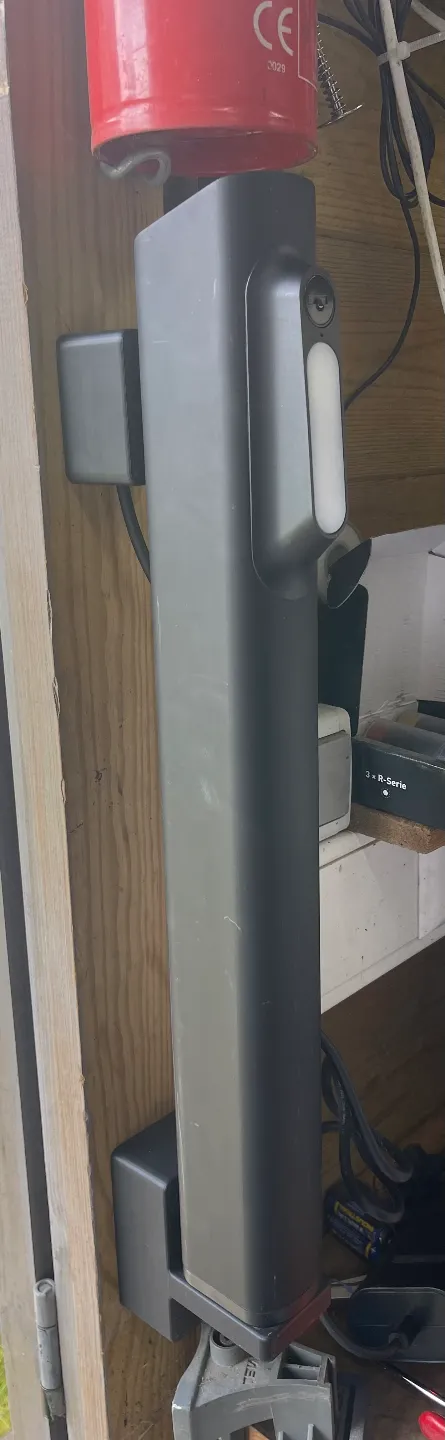

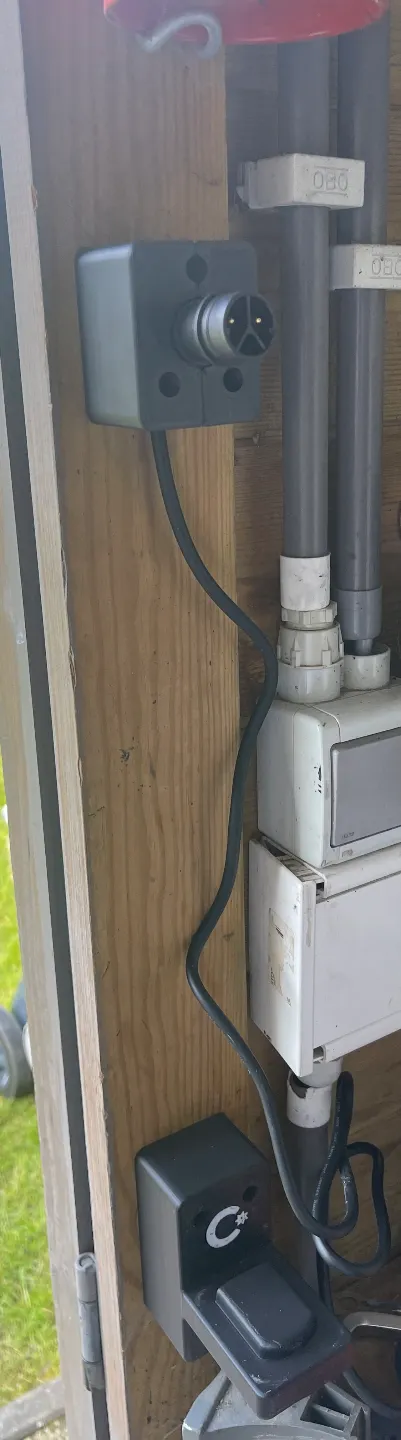

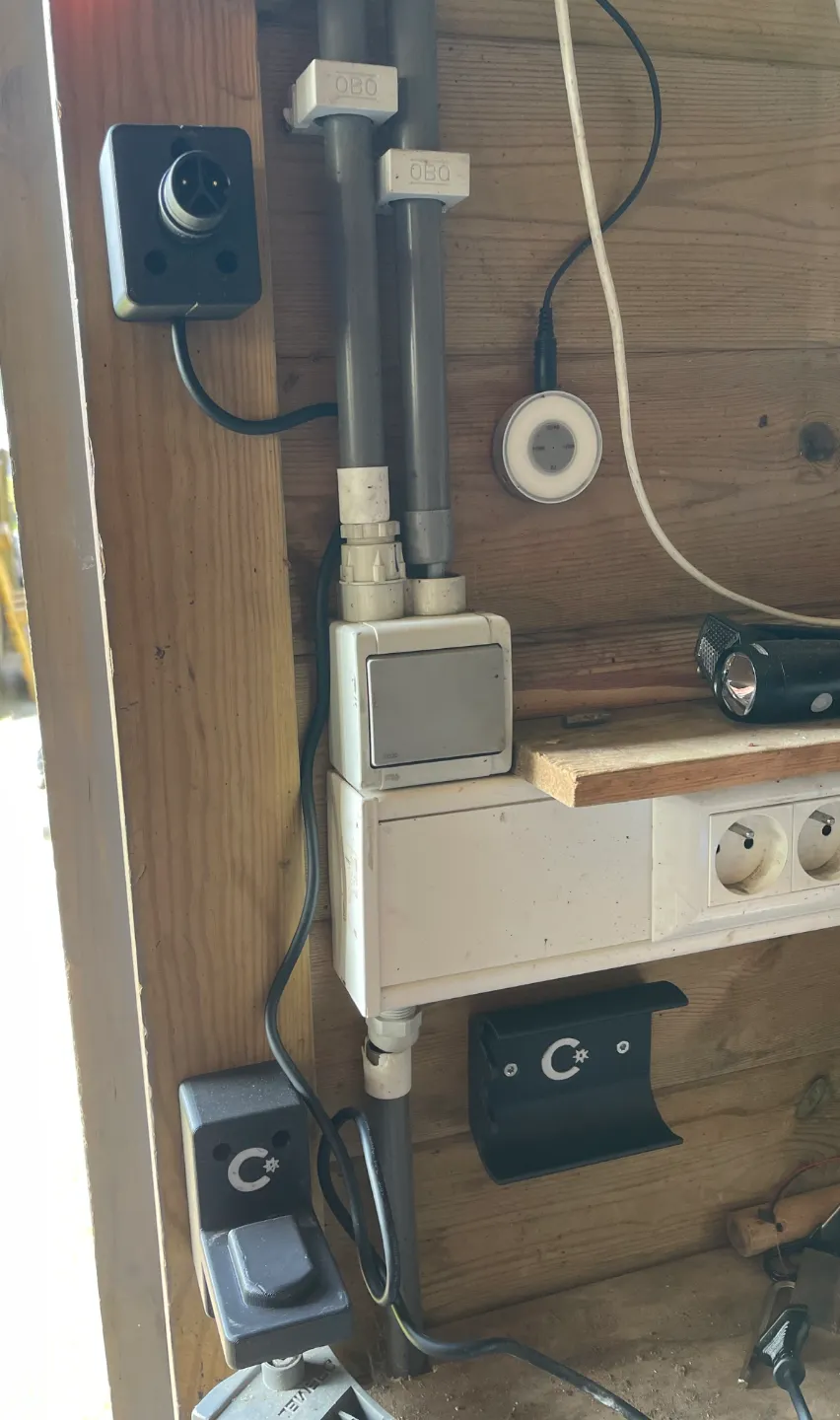

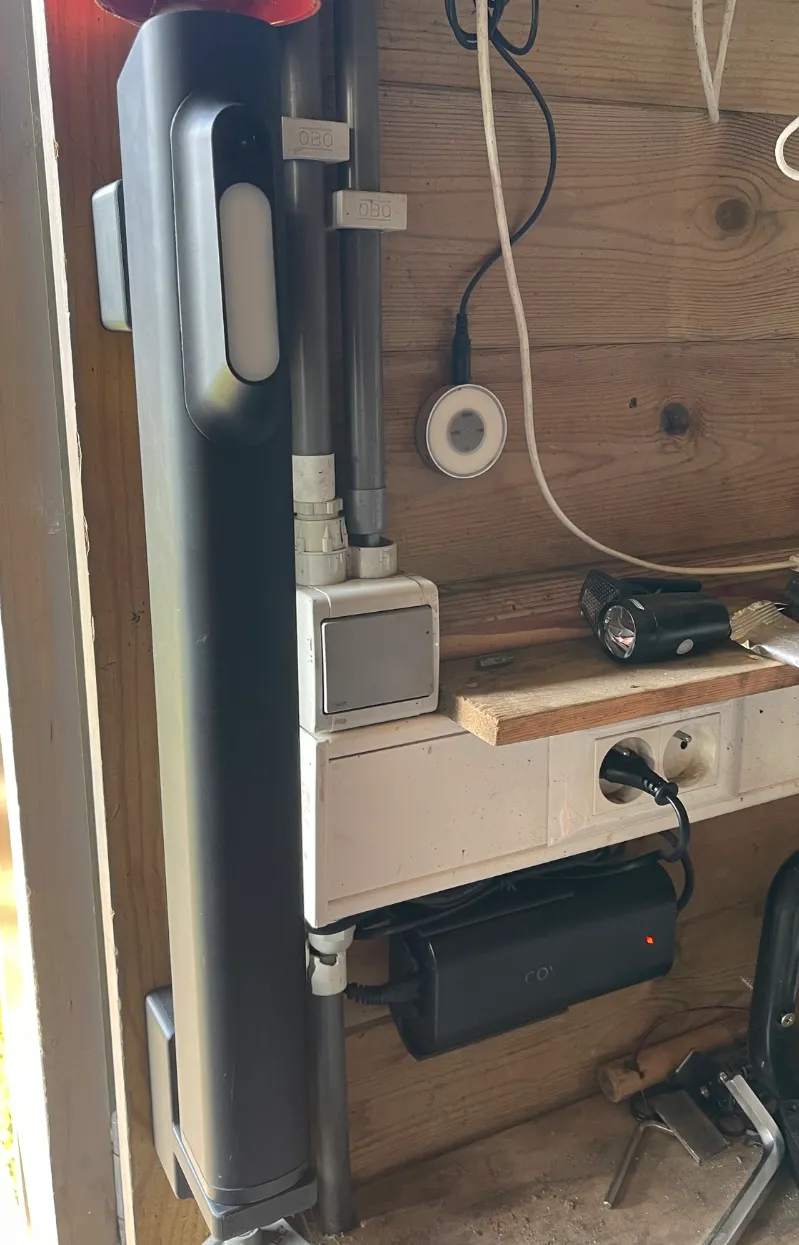

Avoid cable clutter with your Cowboy electric bike battery charger with this wall-mount charging dock for your original Cowboy charger. I have designed this to work with the charging cable that comes with the Cowboy 4(ST). If the previous generations of cowboy chargers have the same charging head, this should work fine.

I would advise printing in ASA/ABS or PETG. The adaptor will, and the battery may become hot while charging, making PLA deform.
