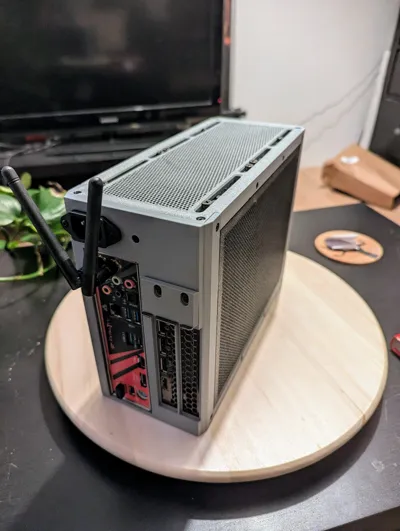

Mini itx pc case for itx mobo and flex psu

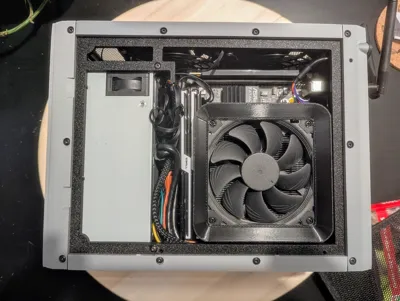

max cpu cooler: 47mm

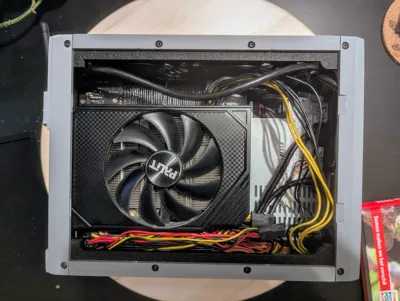

max gpu size: 2 slot and 258mm

40 M3x5mm screws:

https://nl.aliexpress.com/item/32810852732.html?spm=a2g0o.order_list.order_list_main.84.1f2779d2nQxaYA&gatewayAdapt=glo2nld

34 M3x3mm inserts

https://nl.aliexpress.com/item/1005004535859664.html?spm=a2g0o.order_list.order_list_main.89.1f2779d2nQxaYA&gatewayAdapt=glo2nld

6 M3x5mm inserts

https://nl.aliexpress.com/item/1005004535859664.html?spm=a2g0o.order_list.order_list_main.89.1f2779d2nQxaYA&gatewayAdapt=glo2nld

8x 3x10mm magnets

https://nl.aliexpress.com/item/1005005118080851.html?spm=a2g0o.order_list.order_list_main.129.1f2779d2nQxaYA&gatewayAdapt=glo2nld

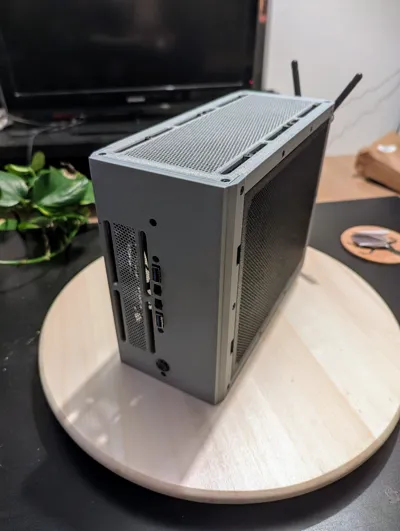

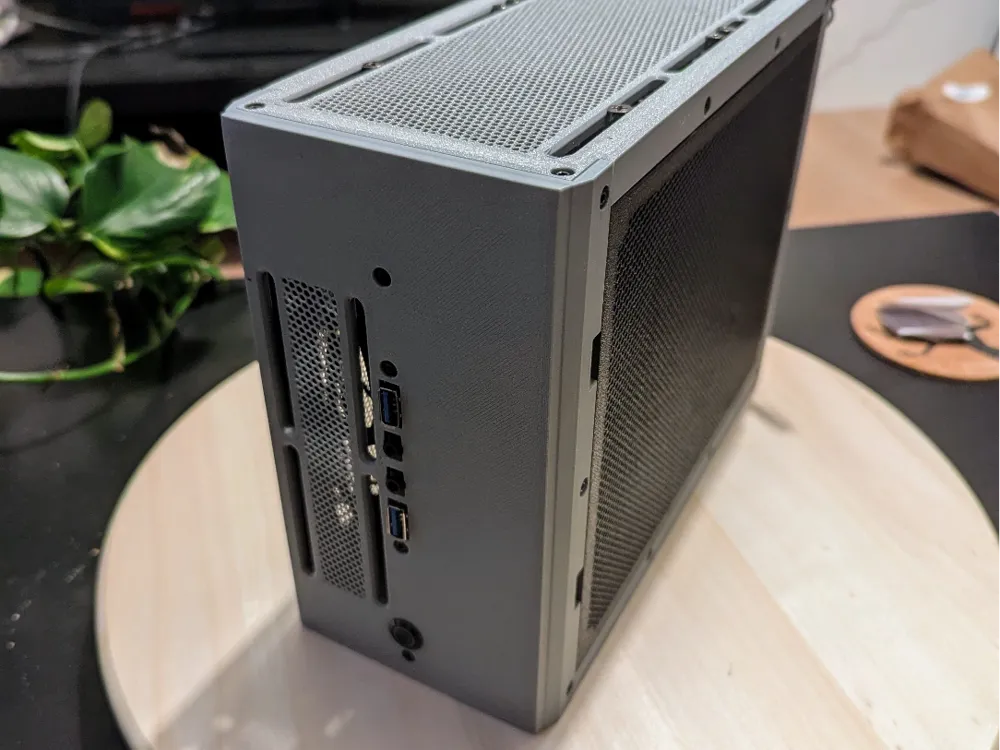

Front I/O:

https://nl.aliexpress.com/item/1005002089885018.html?spm=a2g0o.order_list.order_list_main.99.1f2779d2nQxaYA&gatewayAdapt=glo2nld

Power button:

https://nl.aliexpress.com/item/1005001604210551.html?spm=a2g0o.order_list.order_list_main.109.1f2779d2nQxaYA&gatewayAdapt=glo2nld

Power cord extension;

https://nl.aliexpress.com/item/1005003726636769.html?spm=a2g0o.order_list.order_list_main.69.1f2779d2nQxaYA&gatewayAdapt=glo2nld

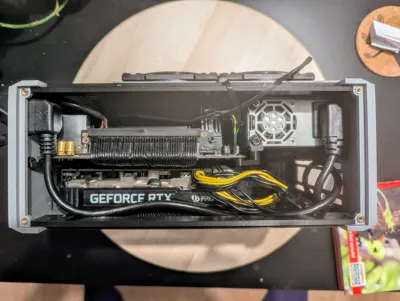

Riser cable (T1 PCIe 4.0 X 16 Riser Cable (18.5CM)):

https://ncased.com/collections/t1/products/vgpu-pcie-cable-kit?variant=46555098939560

case

pc case

Comment & Rating (8)

@Martin__

Can you send me the exact dimensions of the case please? And how does the case deal with heat. Wouldn’t it be better to use more durable filament like ASA?

(Edited)

@MrGravia

What size power switch does one use, and what front I/O do you have installed there?

The designer has replied

@stiggie91

12mm button: https://nl.aliexpress.com/item/1005001604210551.html?spm=a2g0o.order_list.order_list_main.64.1f2779d2nQxaYA&;gatewayAdapt=glo2nld front I/O https://nl.aliexpress.com/item/1005002089885018.html?spm=a2g0o.order_list.order_list_main.99.1f2779d2nQxaYA&;gatewayAdapt=glo2nld

@covrak

Wow, the best Midori style 3D printed case I've seen! I wish it was A1 mini compatible, though...

@lelecotech

Good morning It turned out very well Do you have a video or manual for assembly

Show original

@user_3752566398

And what is the pcie riser size?

@user_3752566398

Hello, what are the dimensions of the case?

@Kuono93

Can you create one for PS5
