Description

*Updated model (pillars are less rounded) should be a little stronger to avoid potential sag in warm environments.

There are 4 versions - Wide Rounded is the preferred model, but whatever matches your other equipment

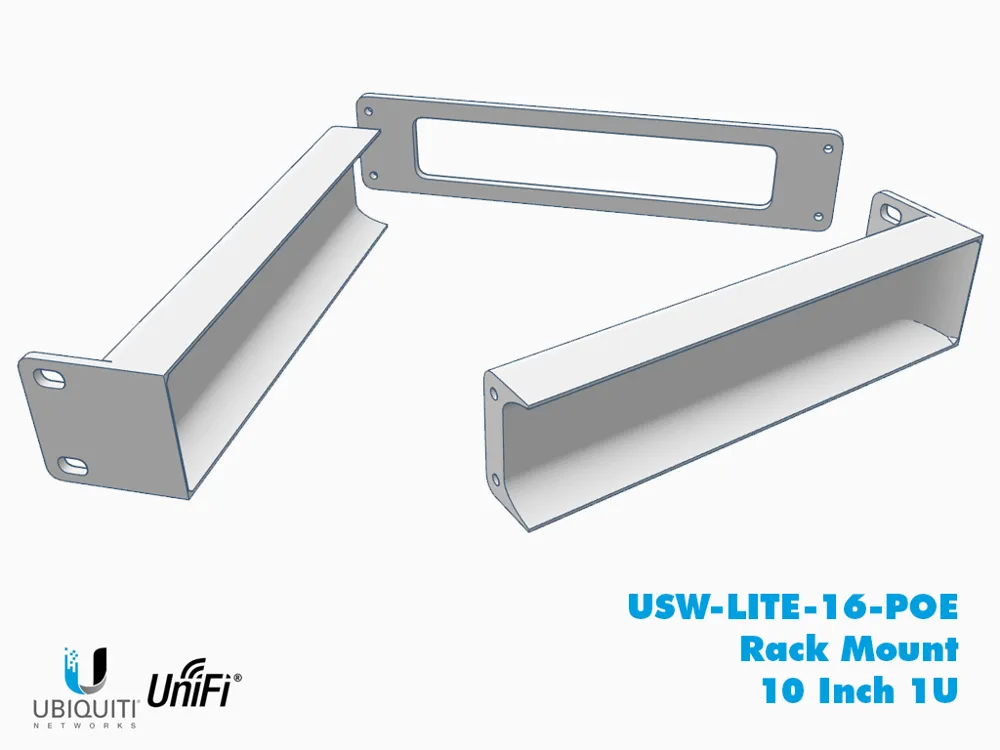

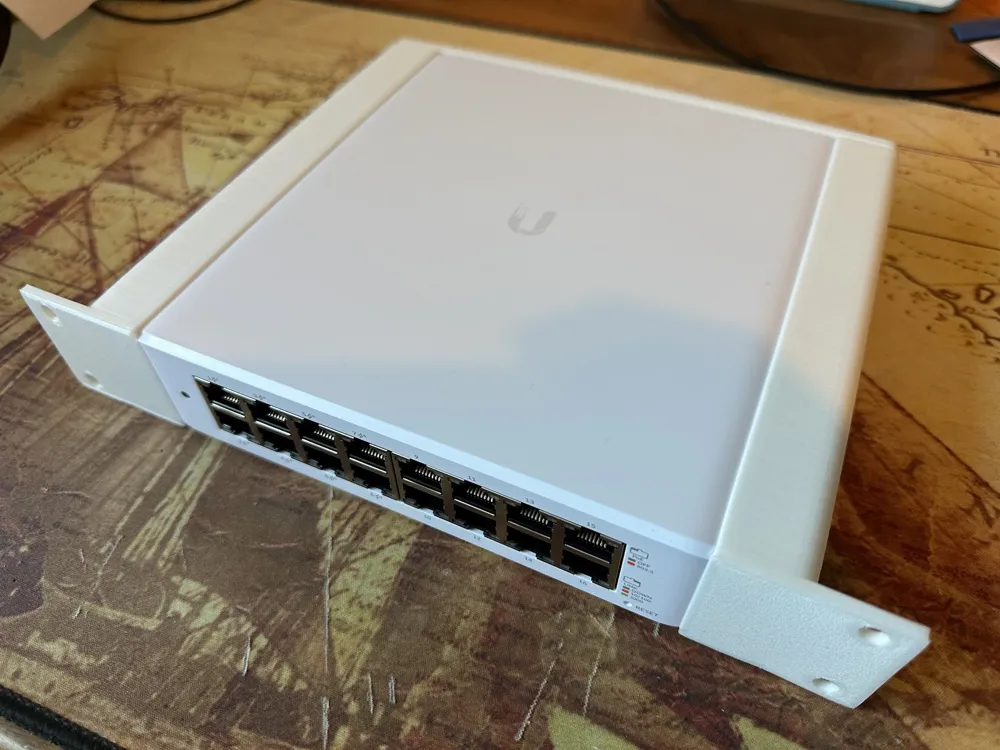

I wanted a 1U 10 Inch rack mount for the Ubiquity Unifi USW-LITE-16-POE and one didn't appear to exist, so I made one.

It's technically slightly larger than 1U with the rubber feet, if you don't have the clearance you can remove the feet, but it's likely even with something directly below you'll be fine.

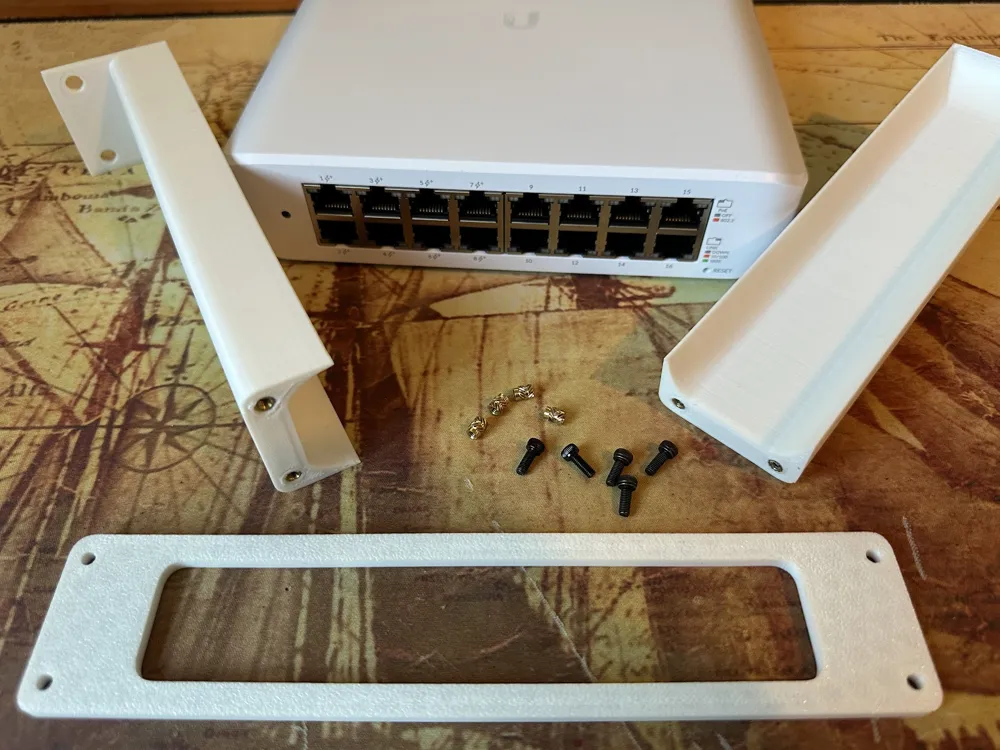

You will need heat set inserts and M3x8 bolts, slightly longer bolts are likely to be fine.

M3 4.6mm diameter heat set inserts: https://www.amazon.co.uk/gp/product/B095VW7GBW/?th=1

My other 10 inch models here: https://makerworld.com/@n3rding/collections/3262188
