Description

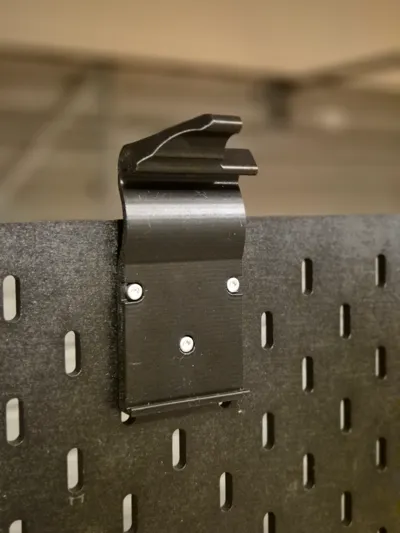

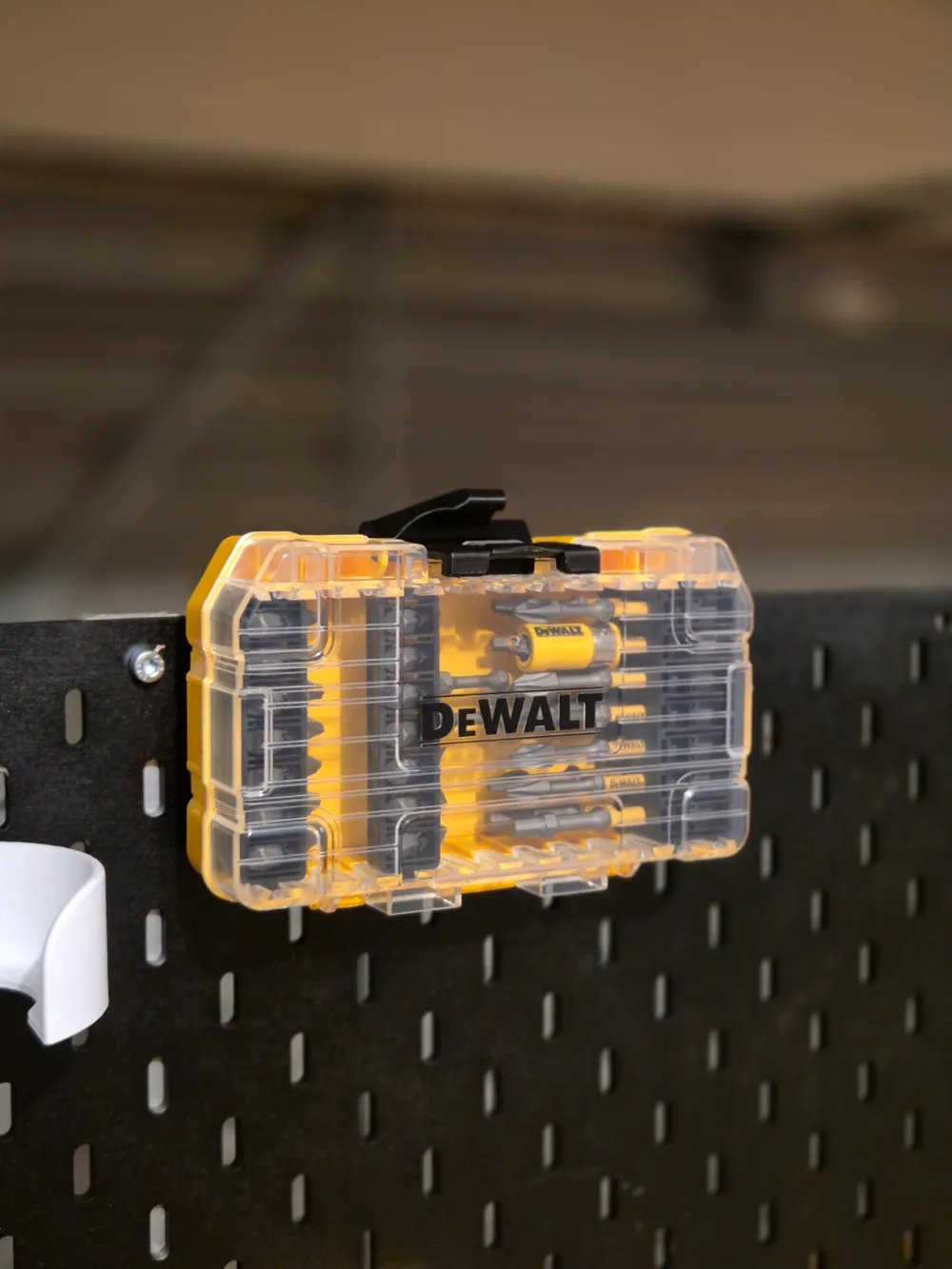

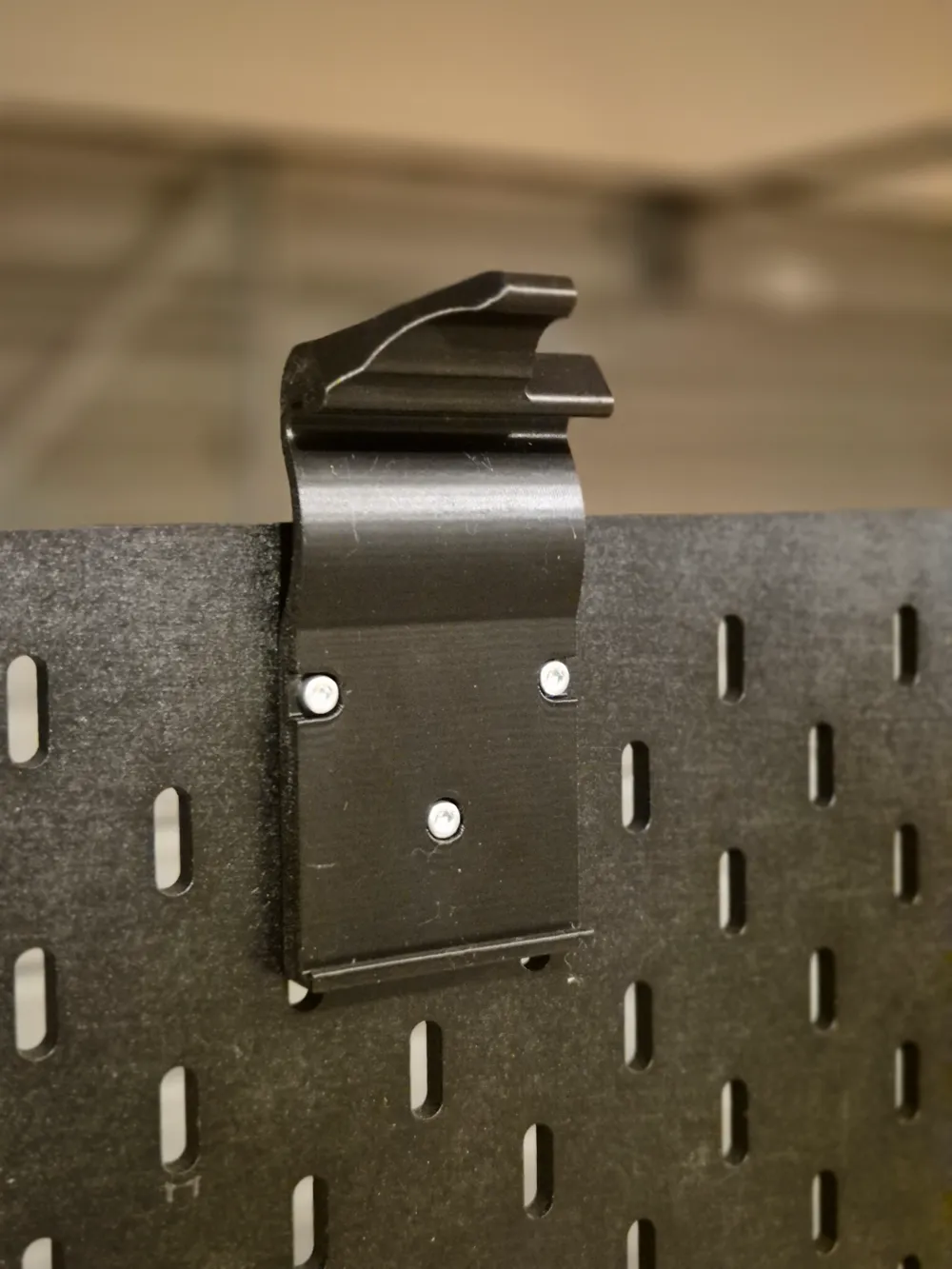

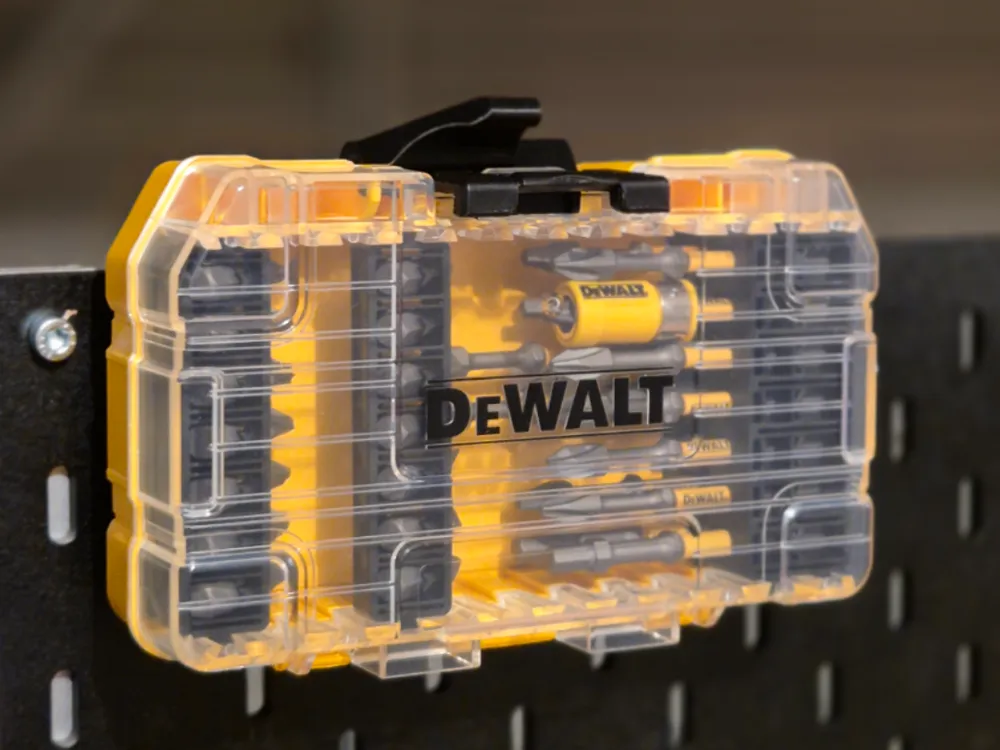

DeWalt ToughCase+ Ikea Skadis Mount. Has a little latch at the top to clip it into place and release it. I use it with DT70723-QZ. Uses 3 M3x10mm Screws. I used simple washers and nuts to secure on the other side. I recommend a wide washer - at least 7-8mm. I just used M4 washers as they were larger and I had them available.

I highly recommend printing in PETG as PLA may not be flexible enough or snap.

Boost Me (for free)

Boost me if this was helpful for your Skadis Board

Comment & Rating (7)

@functionalmaker

Boosted

Print Profile

0.24mm layer, 3 walls, 8% infill

Even works if you just want to mount it to a flat surface. Perfect!

The profile uploader has replied

@NZPrint

is the fitment as satisfying as it is on my print?

@barelygud

Printed no problems and very sturdy fit. Just one question: Could you make a version to fit the DT70803-QZ case? Thanks for the design!

The designer has replied

@NZPrint

hi thanks for the feedback. unfortunately I dont have that case so i wouldnt be able to take the dimensions and test it.
