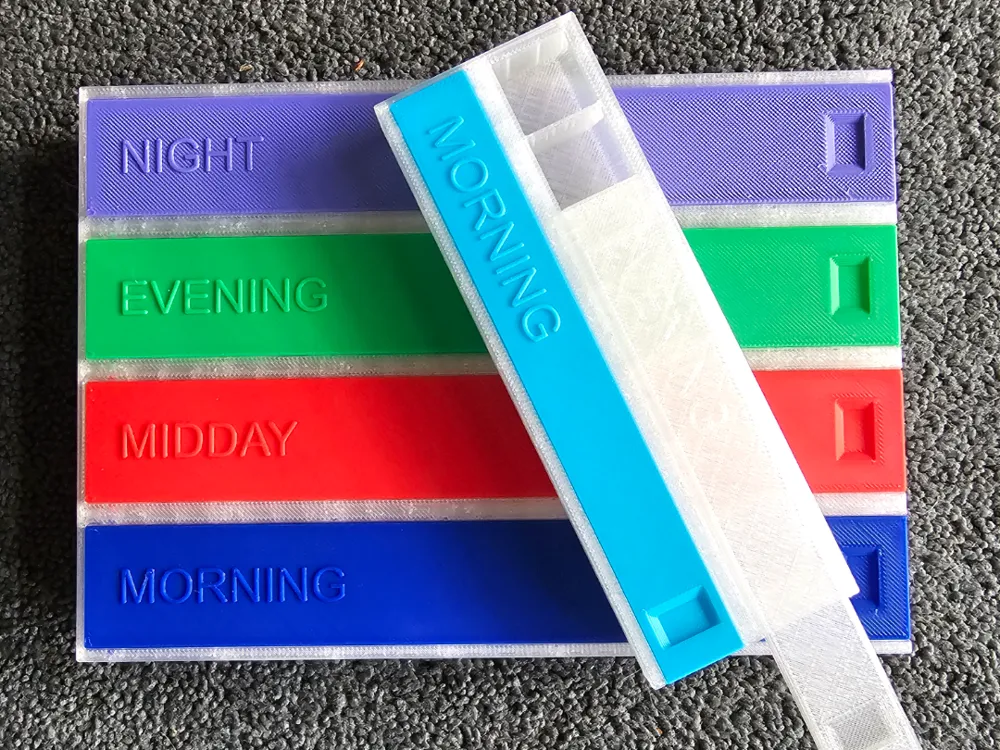

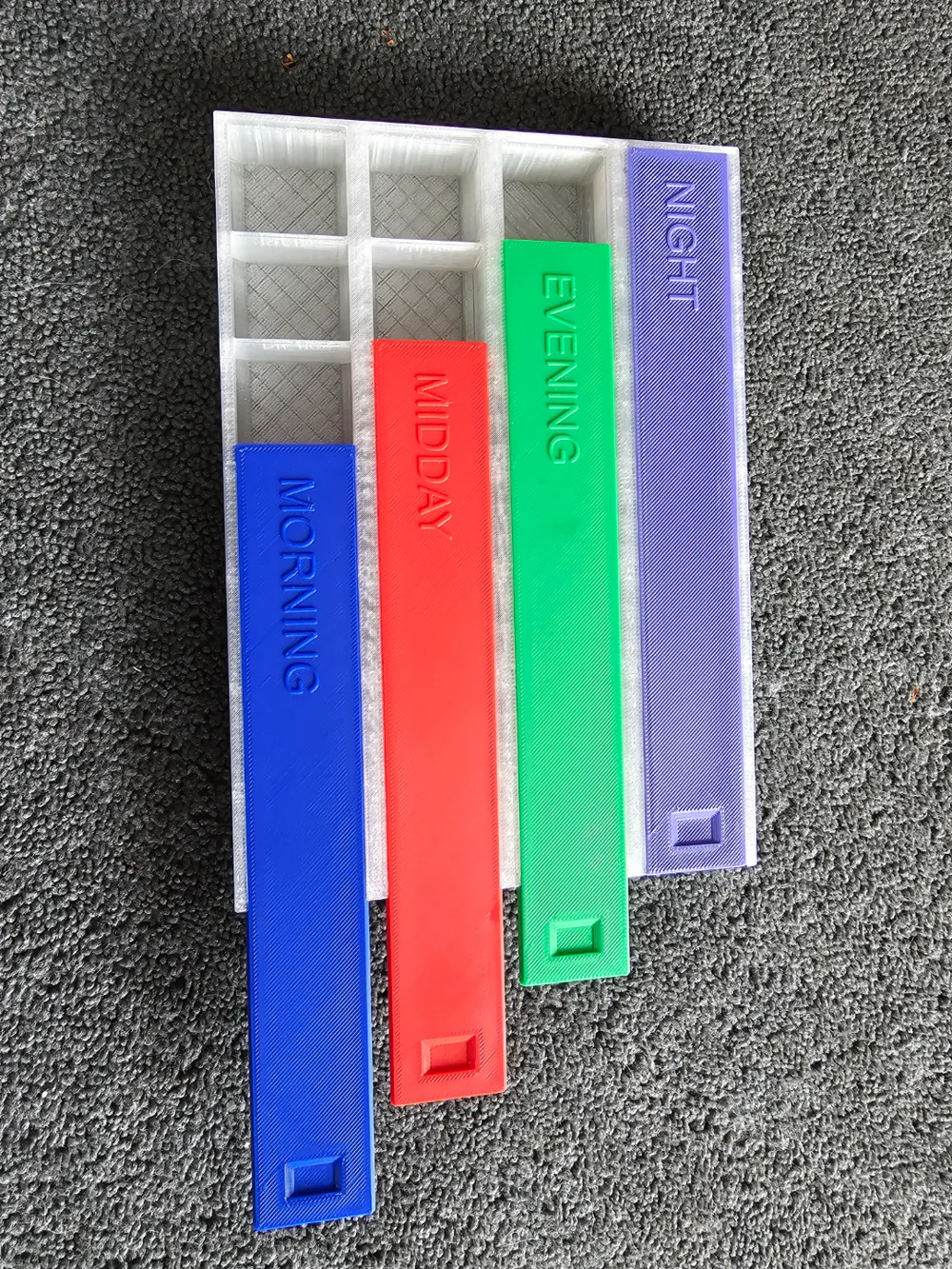

Pill Box Large (1 to 4 rows) Sliding Lid

A large 7 day pill/medication box with captive sliding lid(s) for up to 4 different times during the day.

1, 2, 3 & 4 Row Versions Included

The print profile contains 3 plates. Simply remove the components you do not want before slicing. The plates are:

1. 5 sliding lids with different text (MORNING, MIDDAY, AFTERNOON, EVENING & NIGHT).
2. 1 row and 4 row bases
3. 2 row and 3 row bases

The compartments have an internal dimension of 25mm x 30mm x 20mm deep. Each can hold a large amount of tablets.

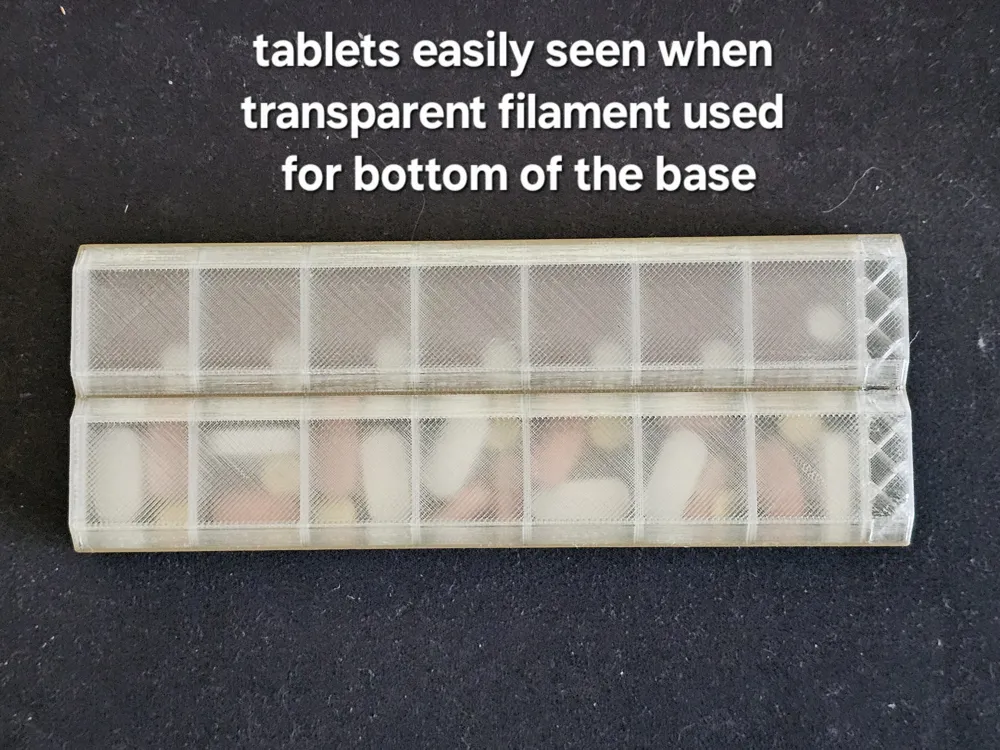

If the bases are printed in clear - it is very easy to determine where the tablets are. Using darker lids also assists.

Days of the Week

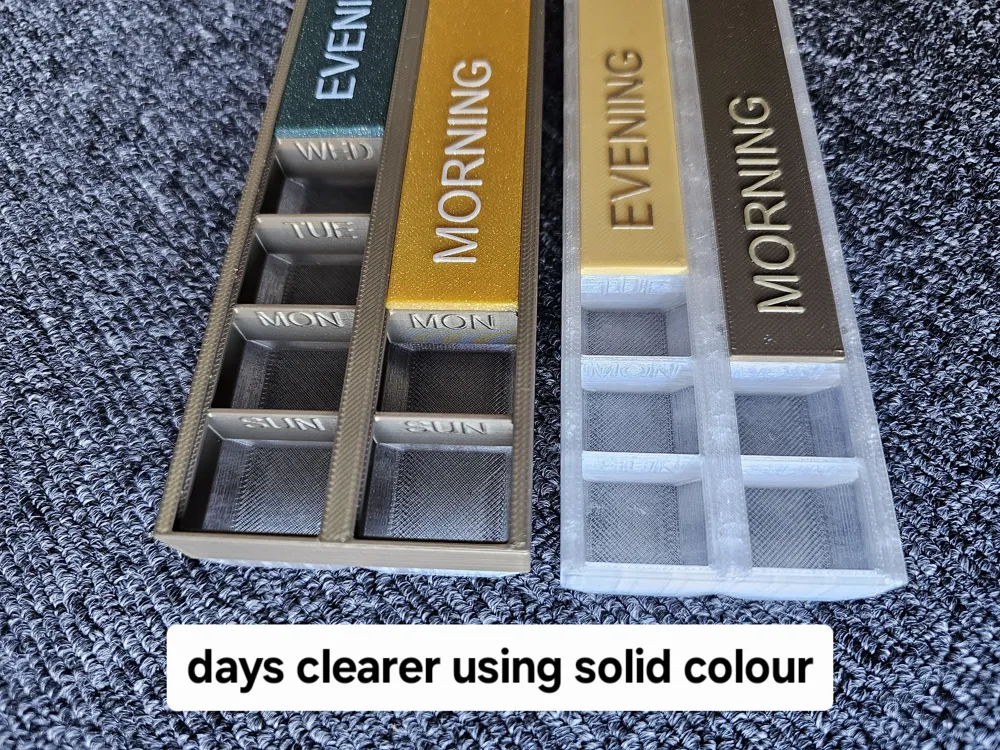

Each compartment has the day of the week written on the divider (these would stand out more if the bases are printed in a solid colour).

Captive Sliding Lid

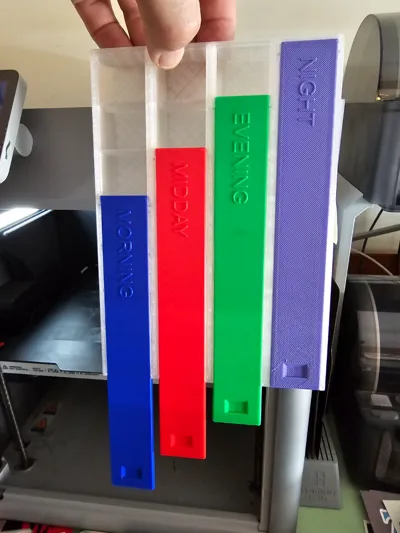

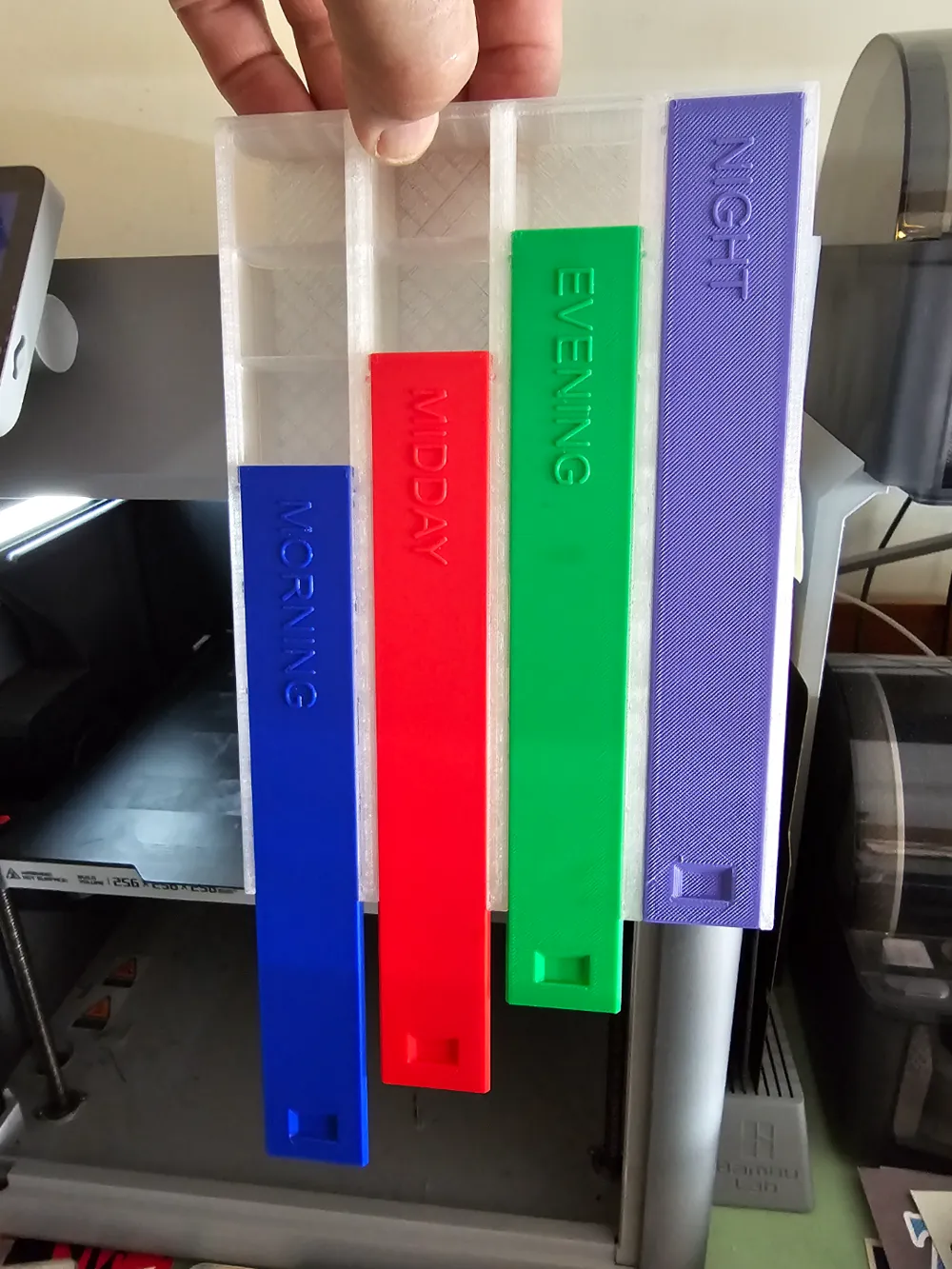

The sliding lids hold in place at every compartment/day position using a spring like mechanism. The lids will not slide out on their own - even if held vertically as seen in one of the pictures.

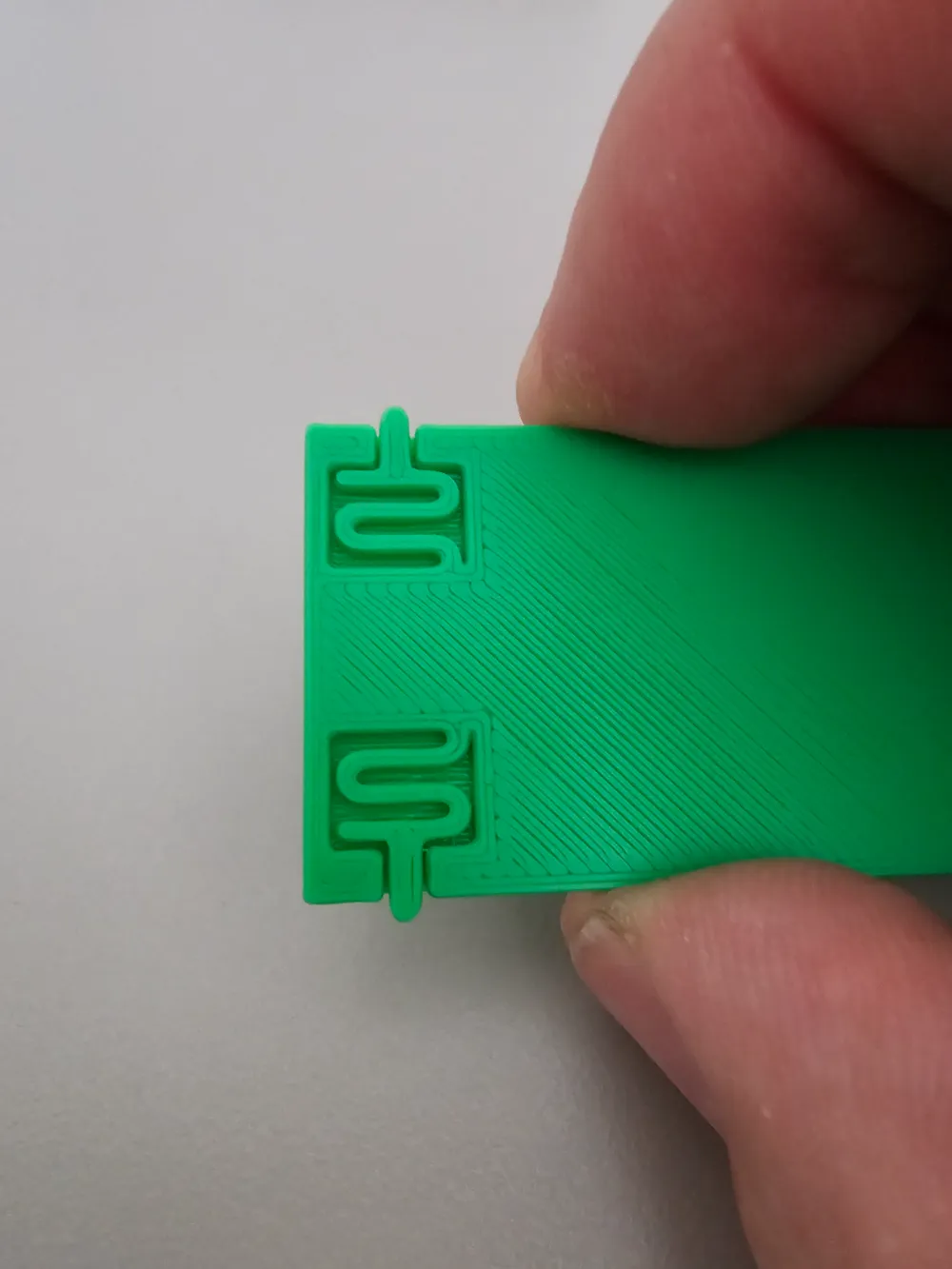

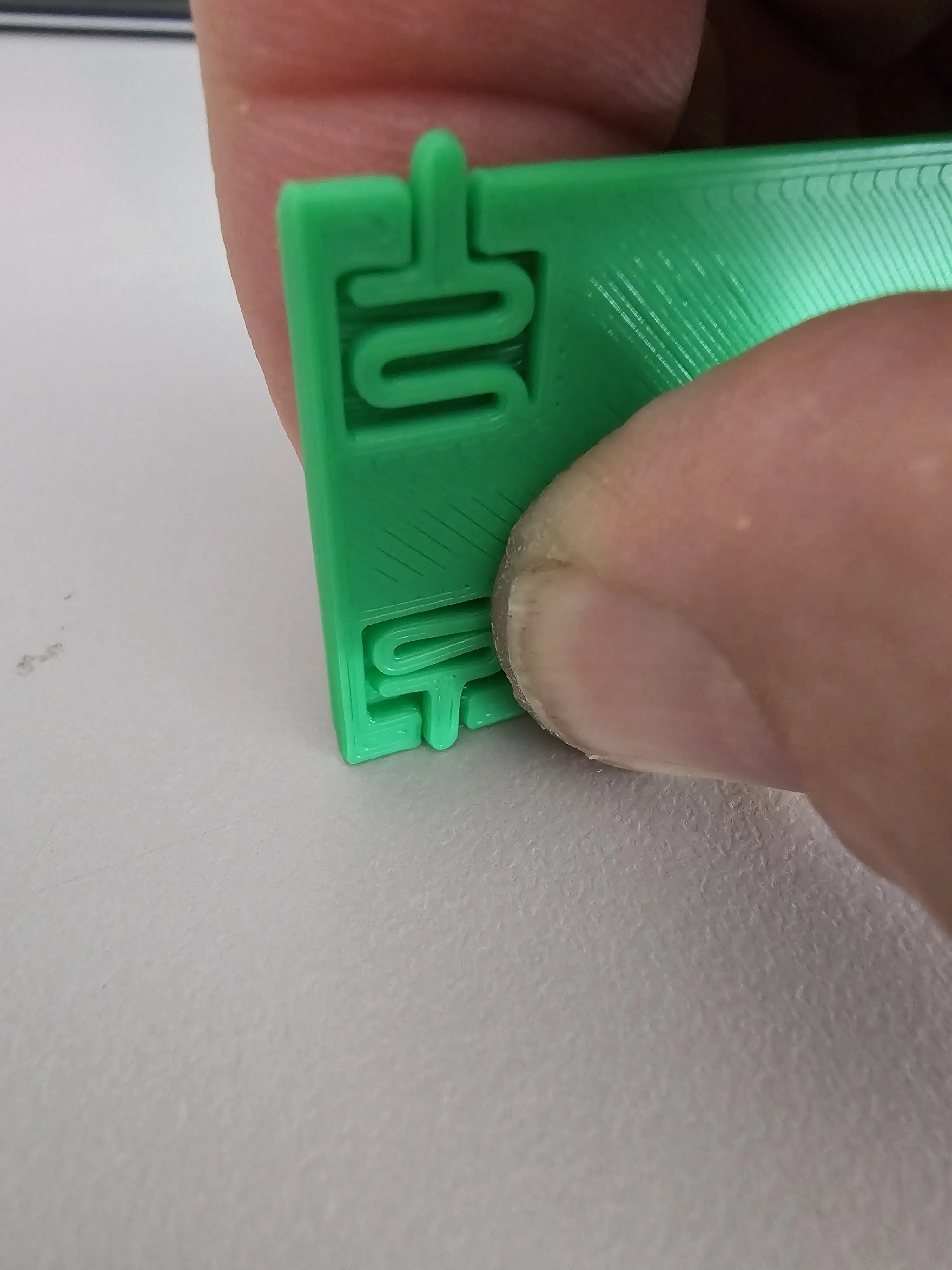

The ‘springs’ need to be free to move. This is easily achieved by holding the lid on its edge on a flat surface and pressing down as follows:

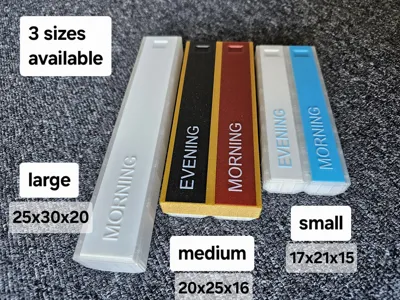

Need a Smaller Version?

I have a small (17mm x 21mm x 15mm deep) version available in 1 row and 2 rows that you will find here Pill Box Small (1x7 days, 2x7 days) Sliding Lid,

and a medium (20mm x 25mm x 16mm deep) version available in 1 to 4 rows that you will find here Pill Box Medium (1 to 4 rows) Sliding Lid.
