Pill Box Small (1x7 days, 2x7 days) Sliding Lid

A compact 7 day pill/medication box with captive sliding lid(s).

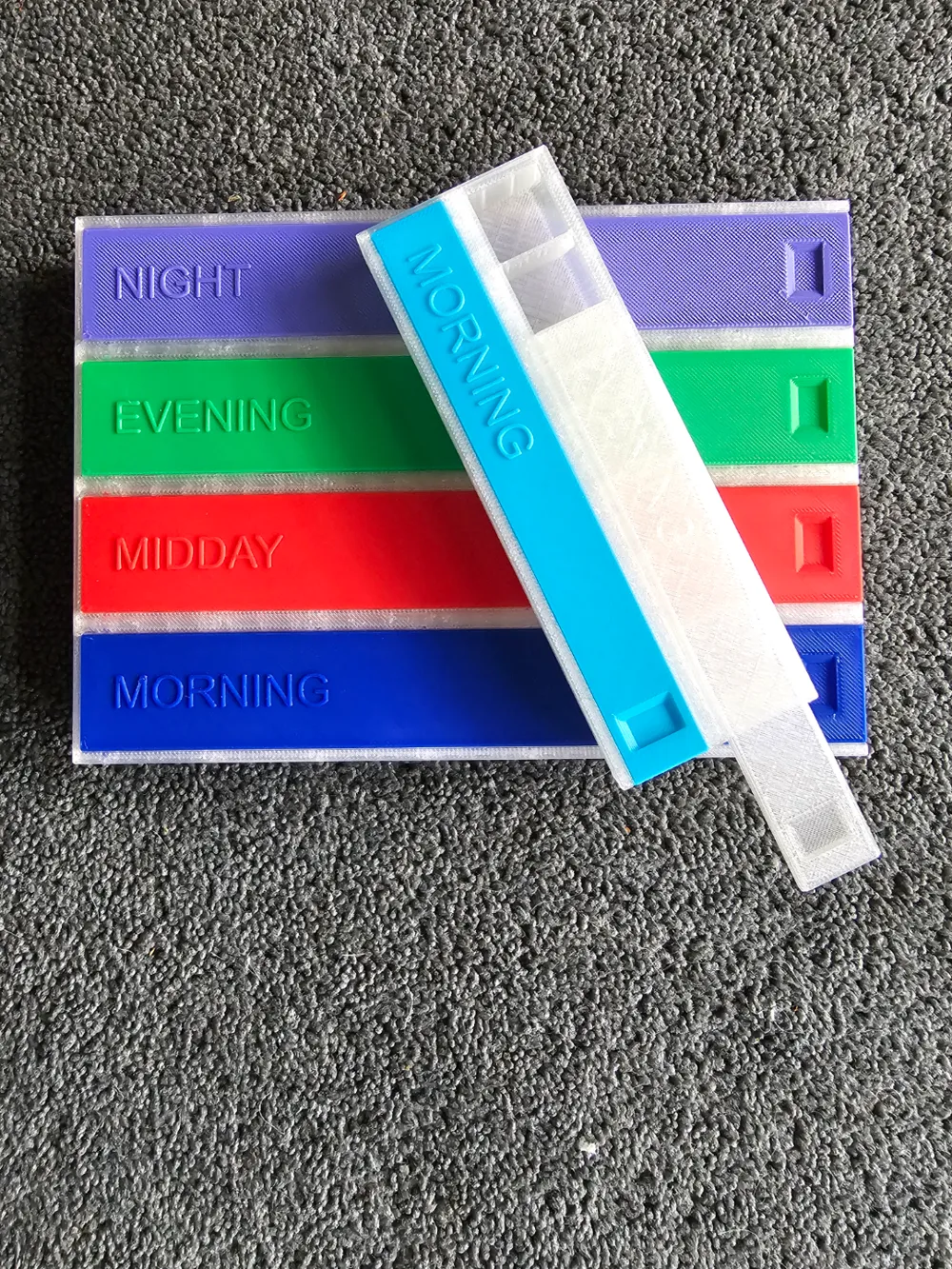

1 and 2 Row Versions Included

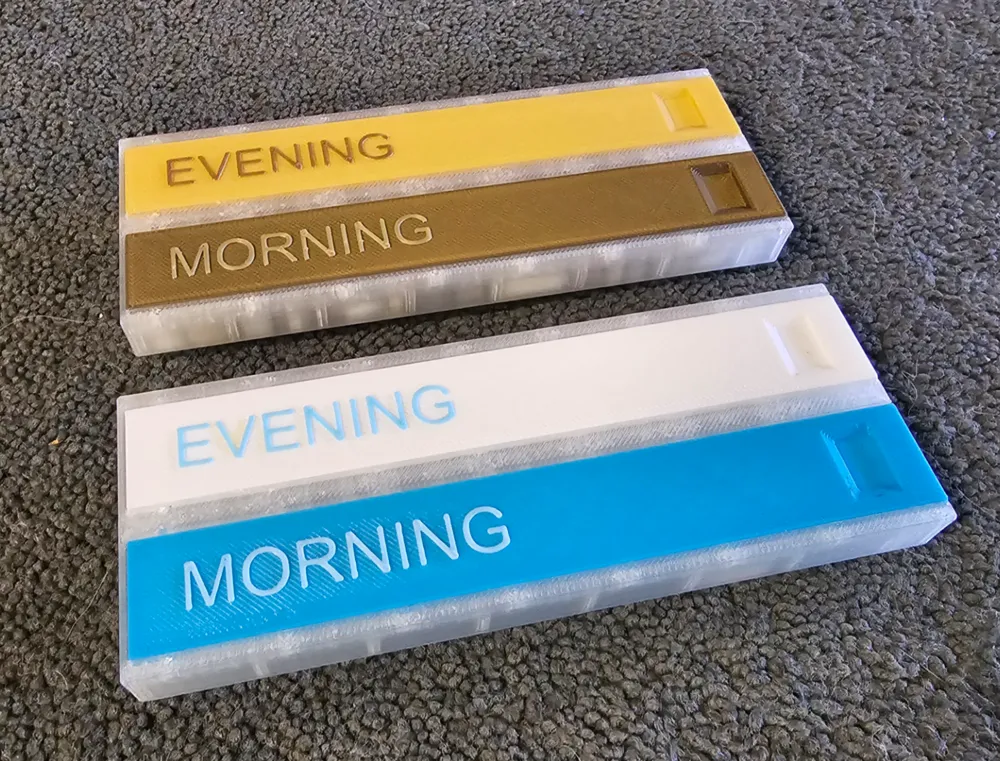

The print profile contains single row and double row versions and two sliding lids with raised text.

The compartments have an internal dimension of 17mm x 21mm x 15mm deep. Each can hold around 6 tablets (depending on size).

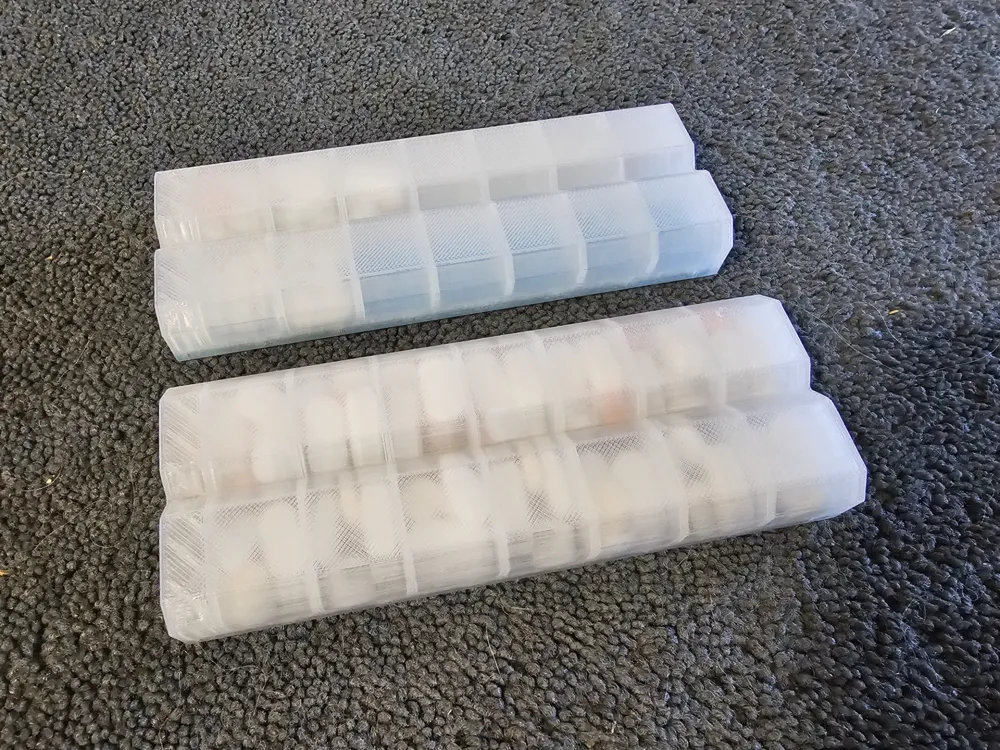

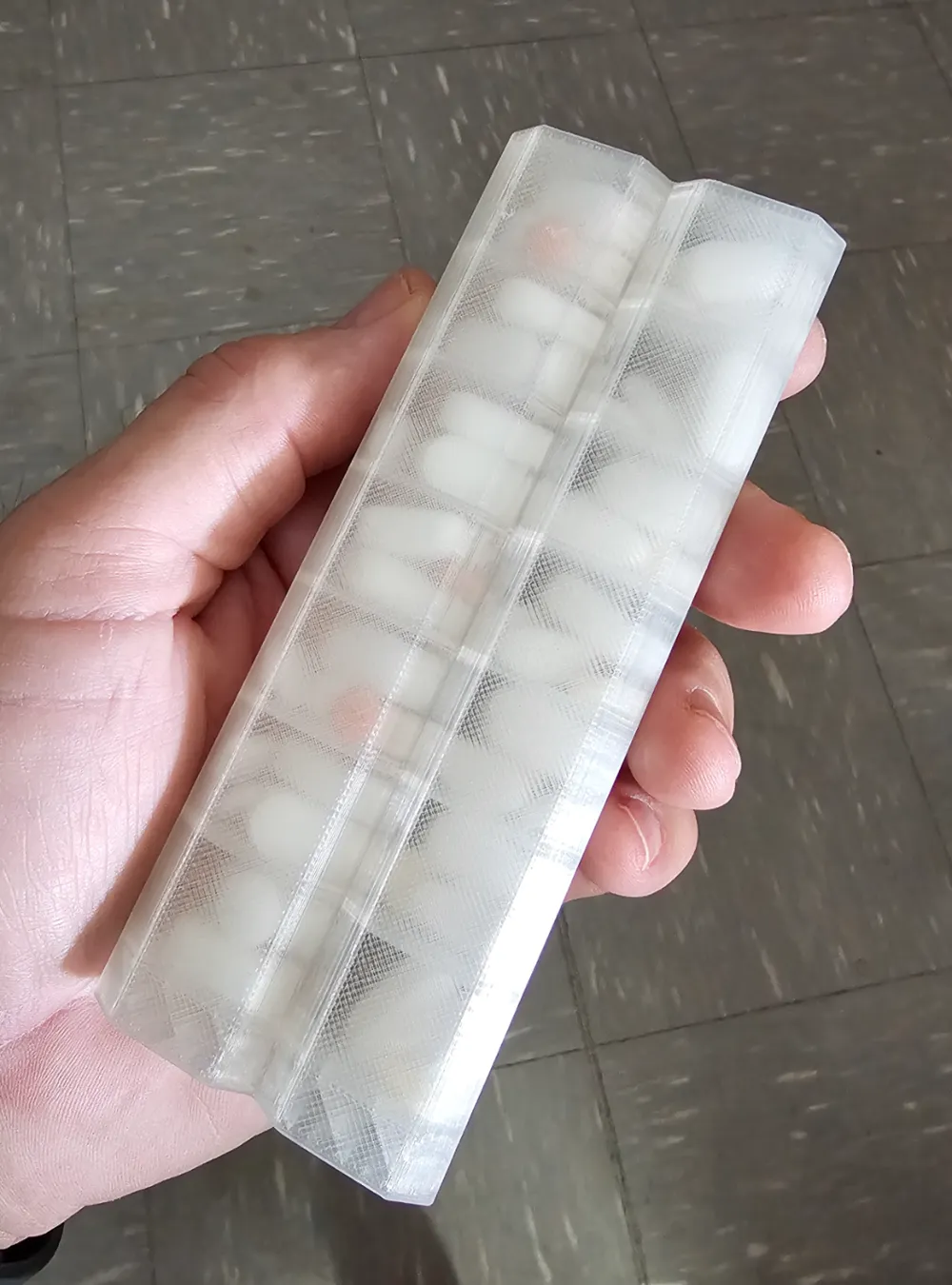

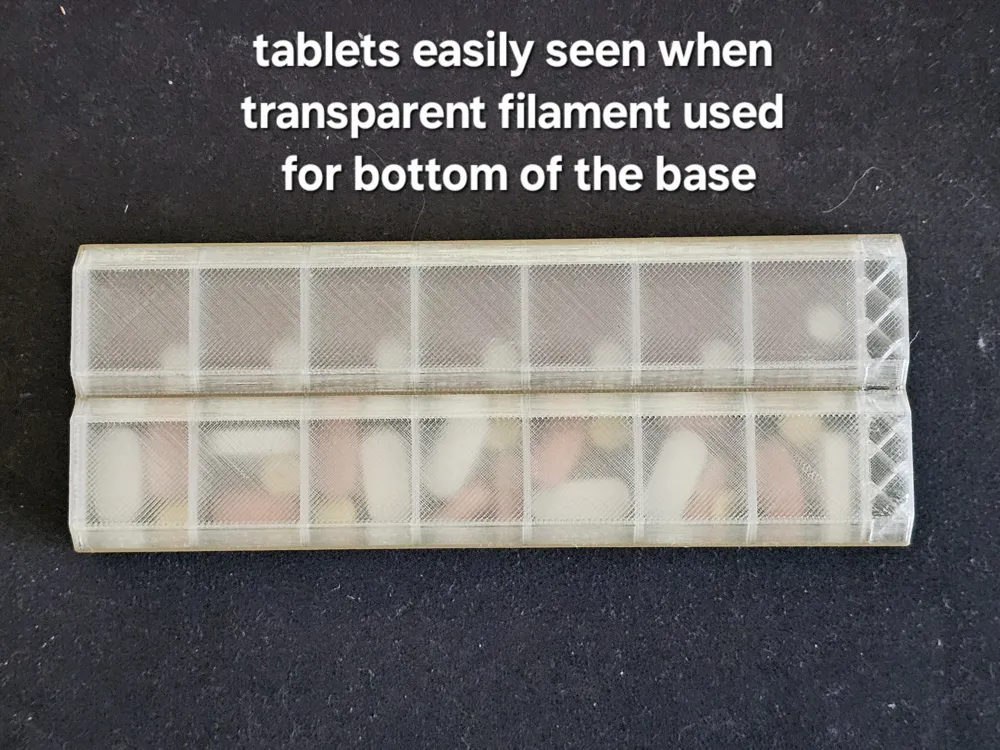

If the bases are printed in clear - it is very easy to determine where the tablets are. Using darker lids also assists (i.e the underside photo for the box with the blue morning lid).

Days of the Week

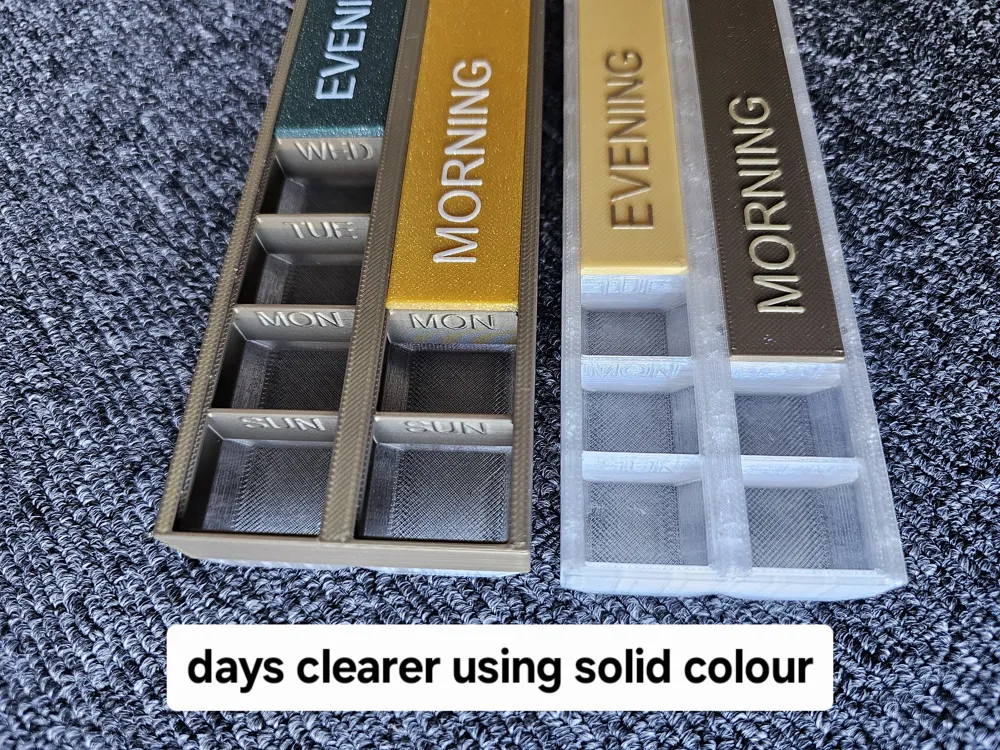

Each compartment has the day of the week written on the divider (these would stand out more if the bases are printed in a solid colour).

Captive Sliding Lid

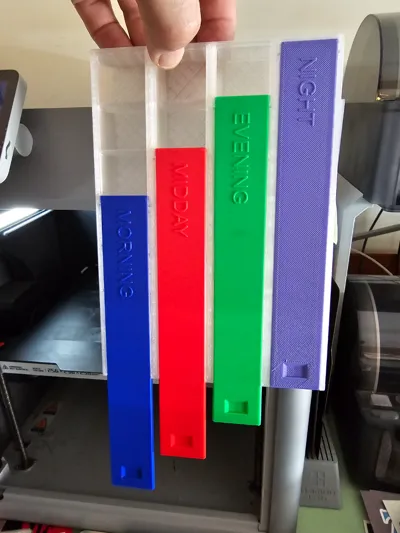

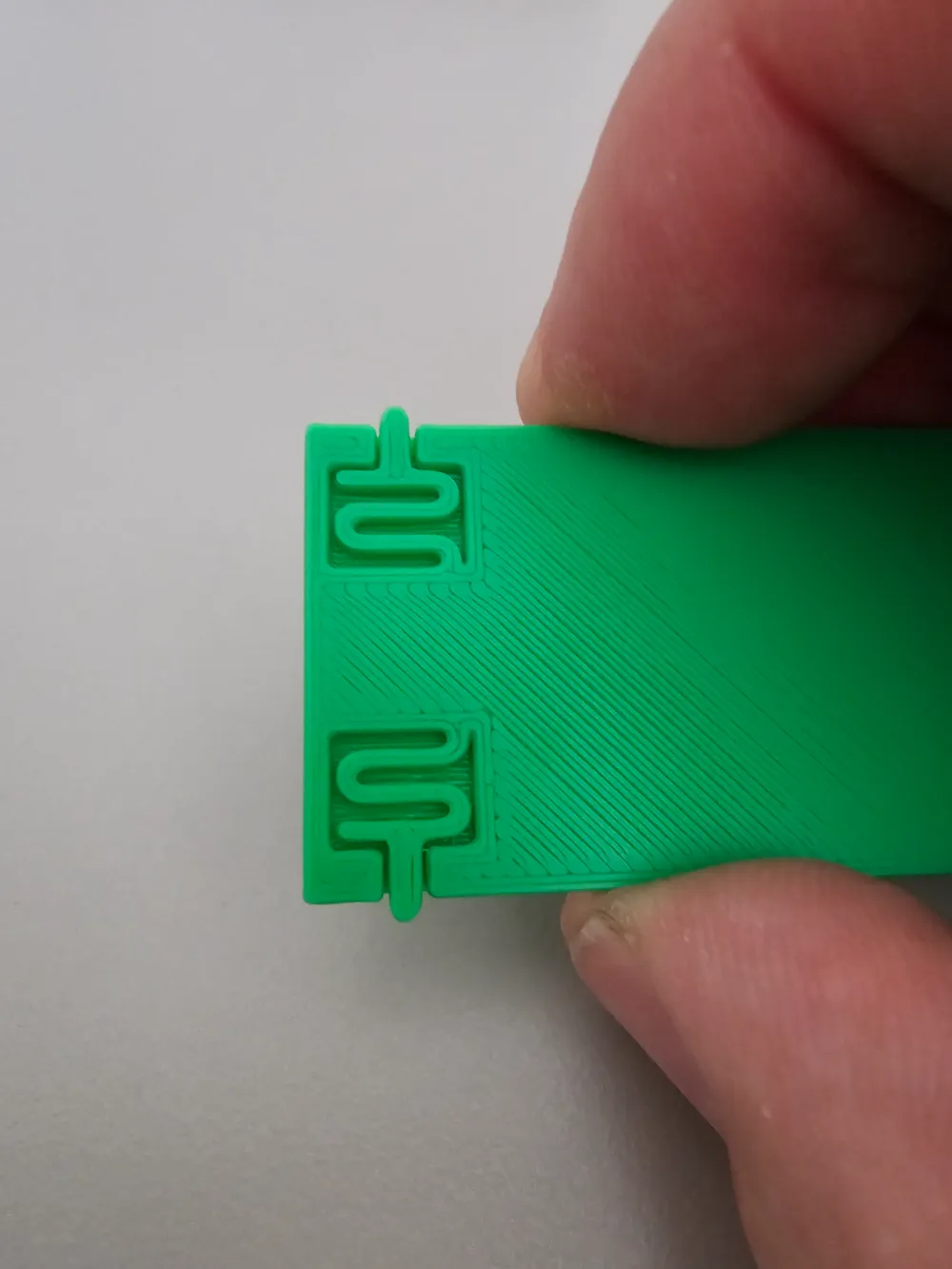

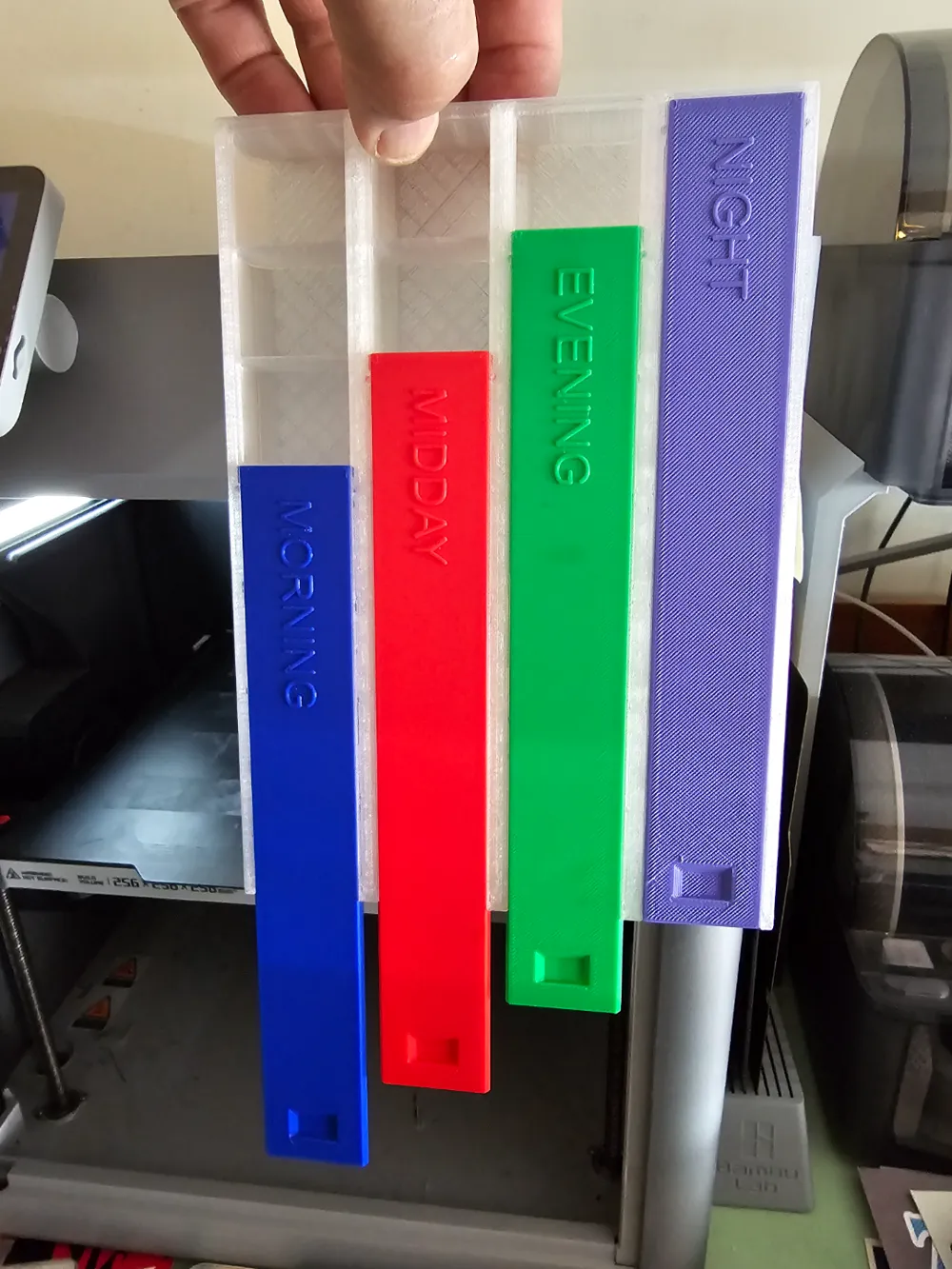

The sliding lids hold in place at every compartment/day position using a spring like mechanism. The lids will not slide out on their own - even if held vertically as seen in one of the pictures.

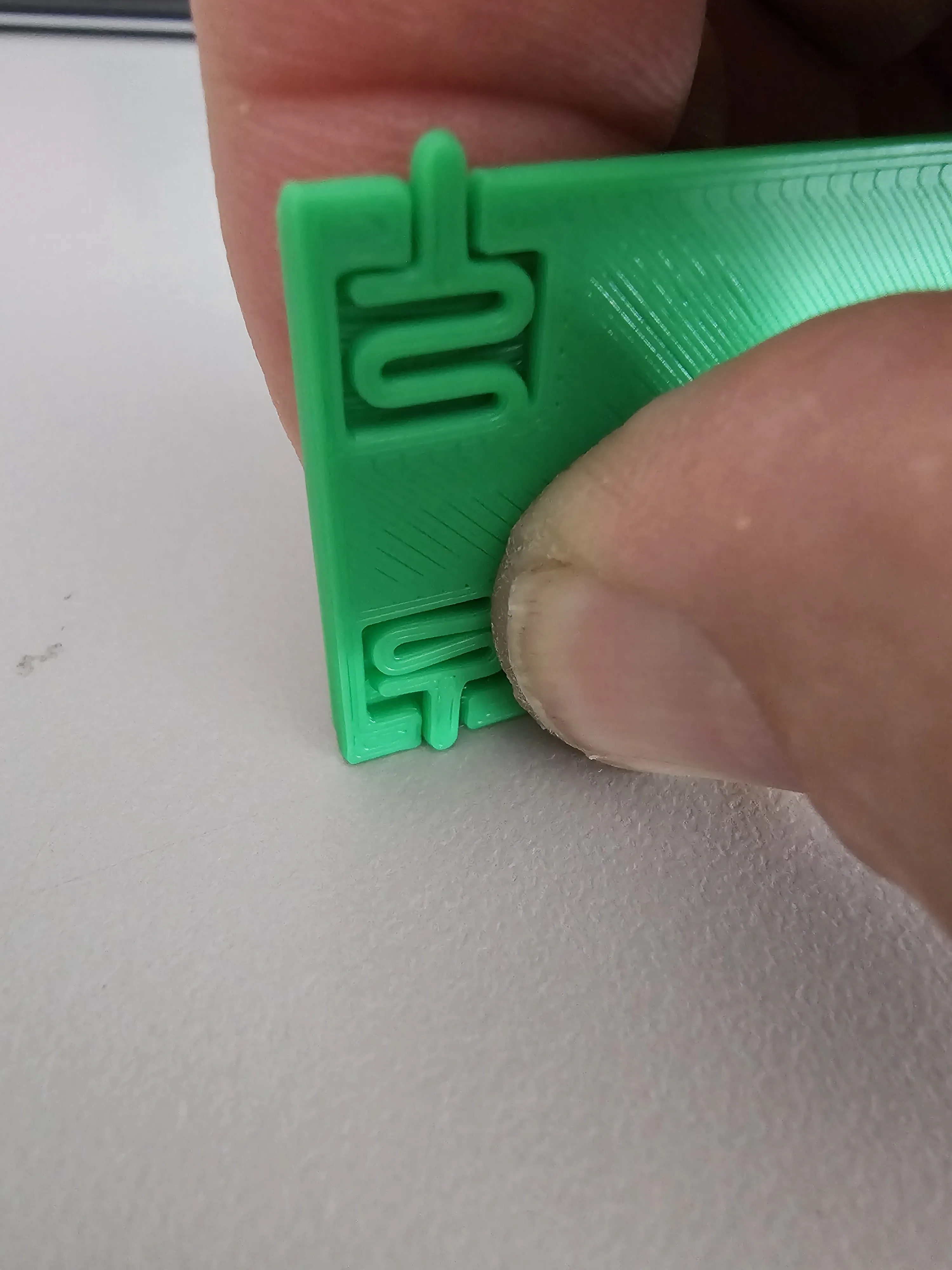

The 'springs' will initially be stuck in place. A simple way to free them up is to press the edge onto a flat surface as follows:

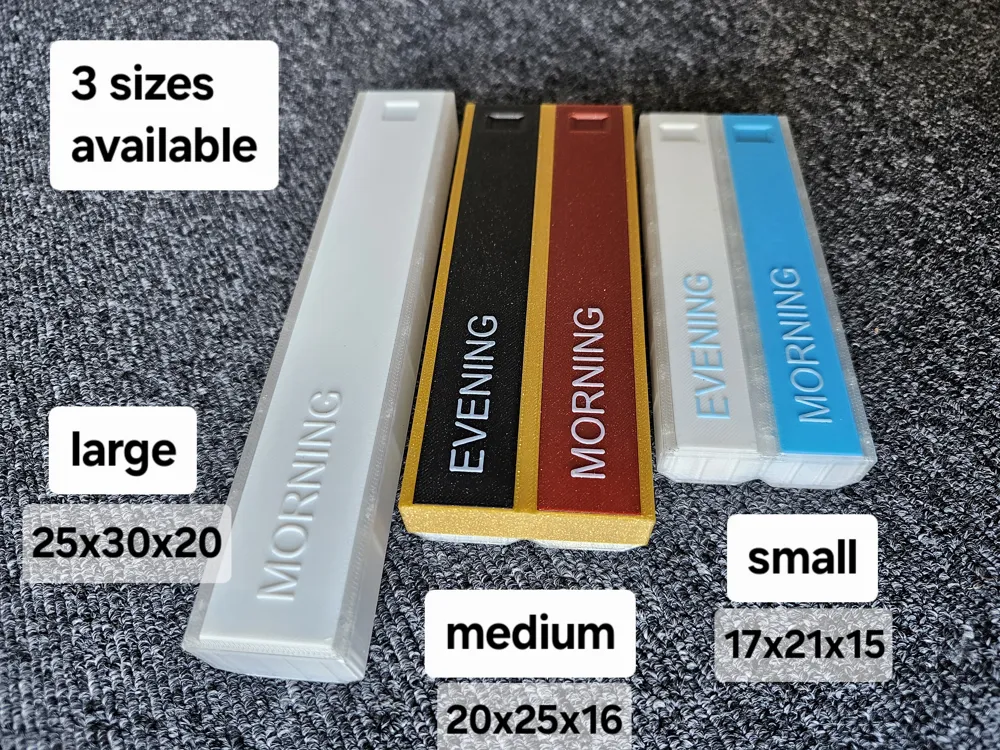

Need a Larger Version?

I have a large (25mm x 30mm x 20mm deep) version available in 1 row, 2 rows, 3 rows and 4 rows that you will find here Pill Box Large (1 to 4 rows) Sliding Lid,

and a medium (20mm x 25mm x 16mm deep) version available in 1 to 4 rows that you will find here Pill Box Medium (1 to 4 rows) Sliding Lid.
