Mini Paracord Pulley (608) – Skeleton Zero
Print Profile(2)
Bill of Materials
Description
Small, elegant pulley for light-duty paracord.
No supports; pick compression axle (strong) or snatch screw.

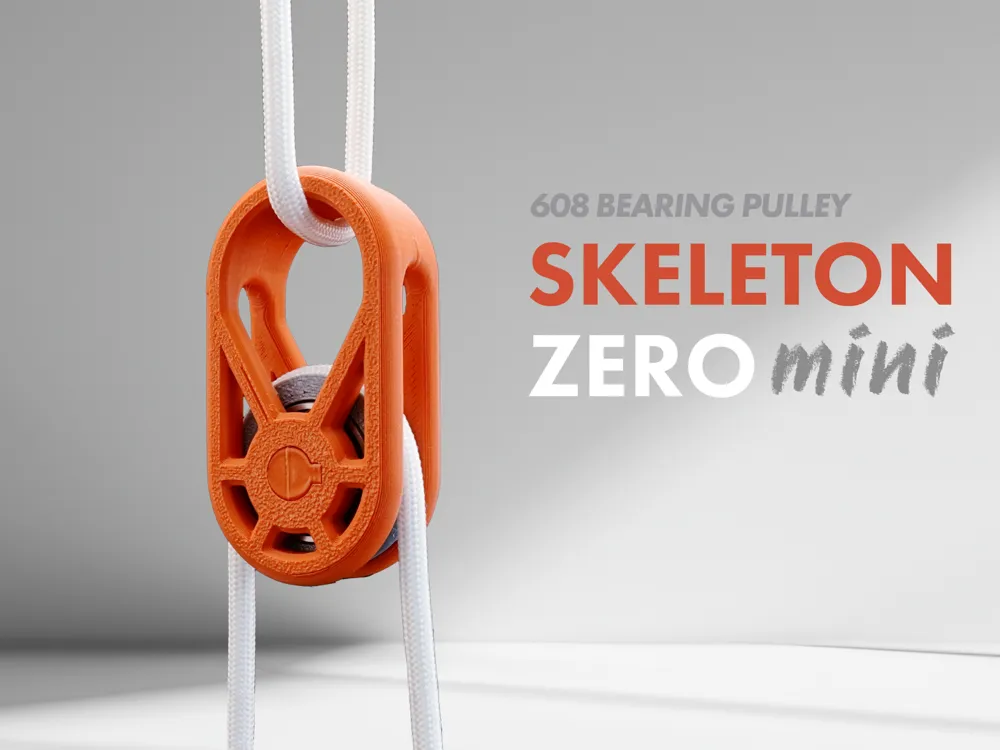

Skeleton Zero Mini is a small pulley for light-duty paracord jobs. This model has been designed to print without supports and does not require a metal bolt but you will need to provide a 608 bearing or print one for demo purposes.
Option 1: Compression Fit Axle
The axle is a two-part compression fit locking design and assembly is simple but will require some gentle hammering ideally with a plastic hammer or the butt end of a screwdriver. Once hammered into place it will be quite strong easily capable of lifting 25 pounds with default slicer settings. This is the strongest option.
Option 2: Printed Screw Snatchblock
Print the screw by maxing out wall loops or use 100% infill. This design has an additional feature that it can be opened and closed like a snatchblock. This is the more versatile option since it allows for easy disassembly.
Boost Me (for free)
Your boosts help me to buy filament which goes towards designing and prototyping new models. Thank you for your support.
