Anycubic Kobra 3 "Multibox" *Update*

UPDATE

Sorry, but the handles was lost. Now the new Upload with the full Multibox.3mf with all Plates with different Settings for the Kobra3 and the Handles.stl with 3 different kinds of it.

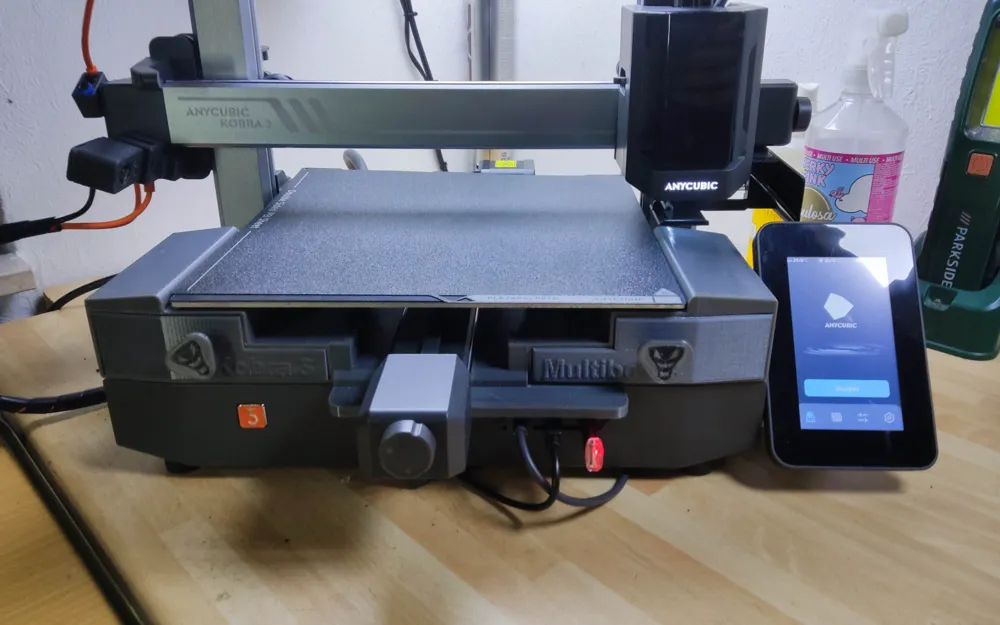

Since I missed the tool drawer of my Anycubic Vyper, I thought about where the Kobra 3 might have enough space for a drawer and came up with this solution. The Kobra 3 Multibox not only fits the design language of the printer, it fits seamlessly into the overall picture. Finally, there is space on my desk again, as I can store all utensils for the daily use of the printer in the two drawers.

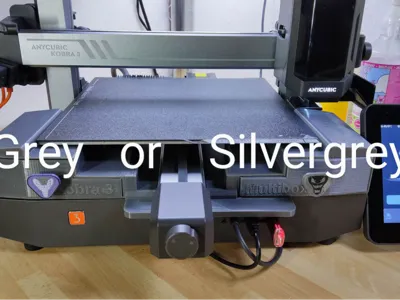

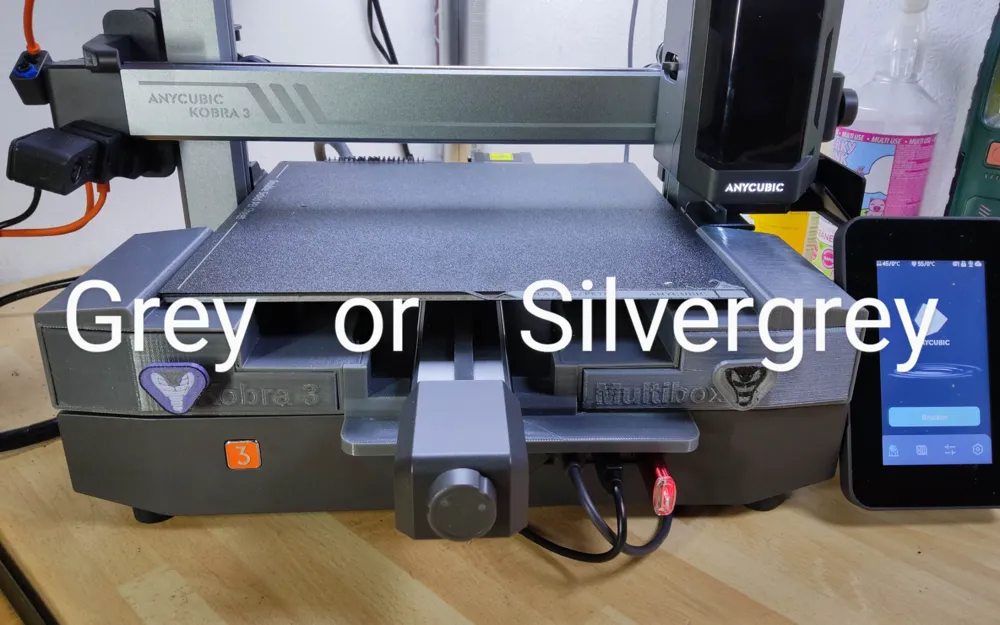

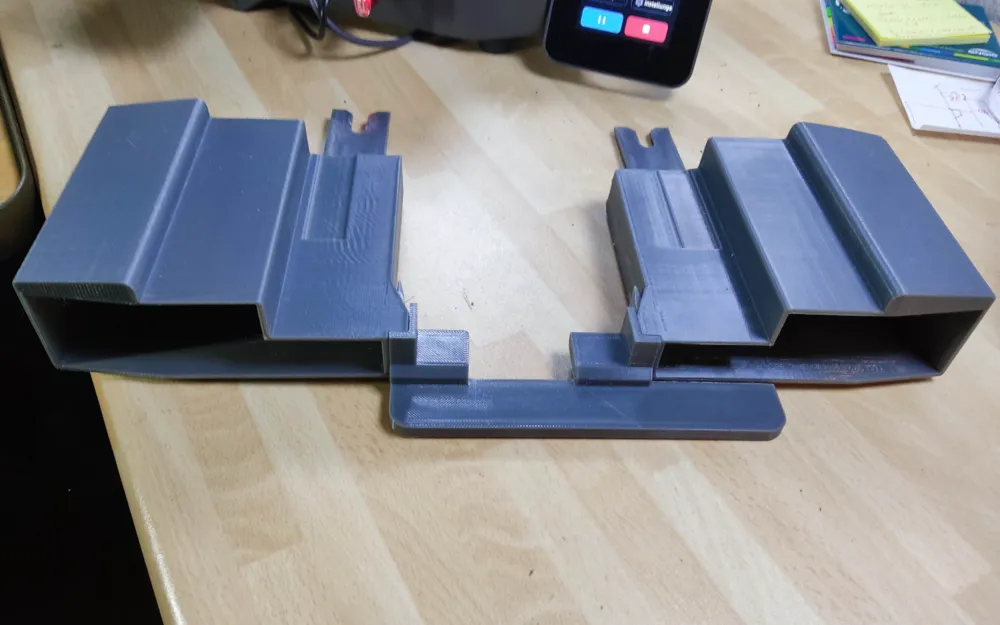

The multibox consists of 2 drawers, which can be printed either in grey or silver grey (see photos).

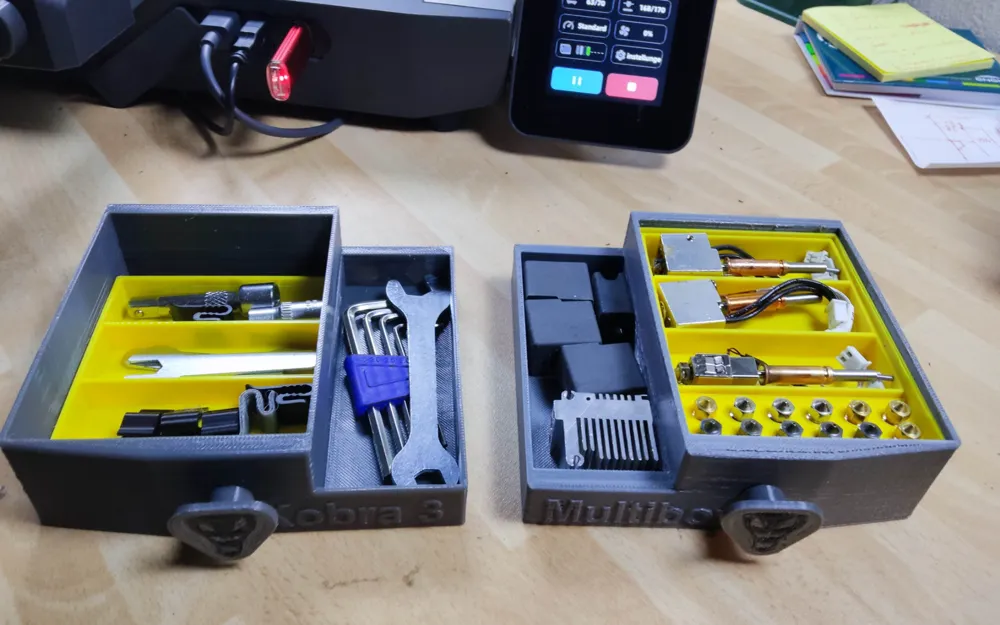

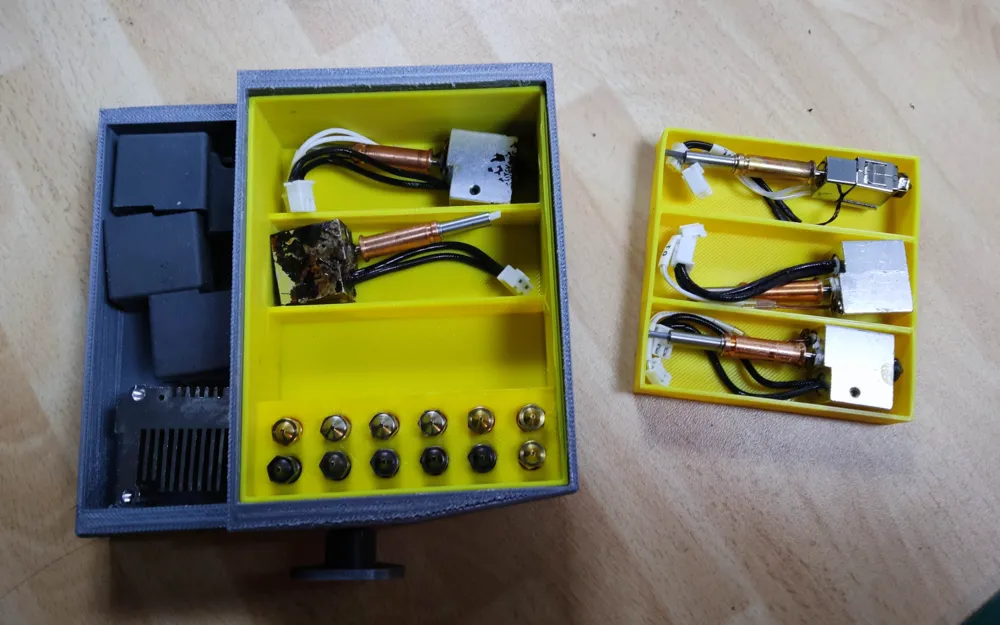

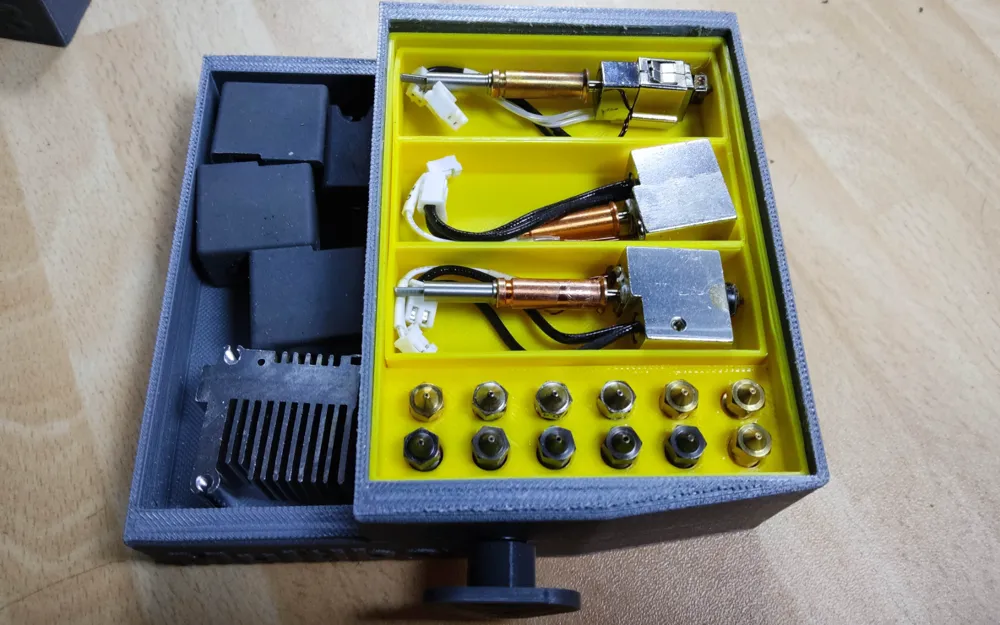

In the right drawer there is space for a total of 6 complete hotends, as well as 12 nozzles.

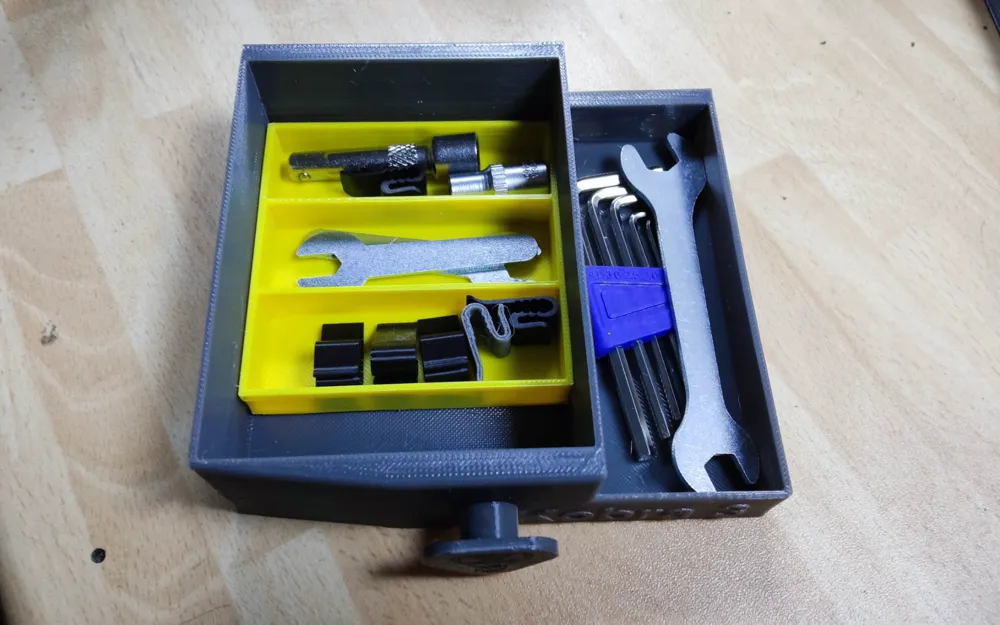

In the left drawer there is space for tools and small items.

There are 3 designs to choose from as handles, two of them with the Cobra emblem.

To mark the hotends, I designed different clips for: 0.2 -0.4 - 0.6 - 0.8mm Nozzles for: Brass - Copper - hartened.

For faster differentiation, the clips are color-coded. Simply clip onto the hotends and you're done.

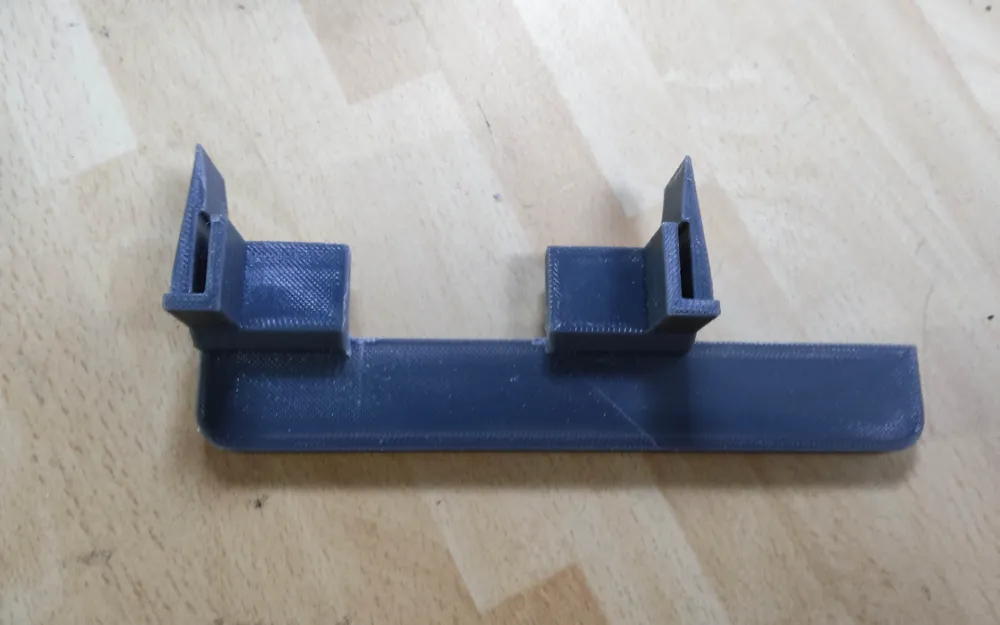

To protect the plugs and the USB stick, I have integrated a wire protector.

In the files you will find the "Kobra Multibox.3mf" as an entire project with all print settings for the

corresponding plates. Everything was printed in 0.16mm. In addition, all parts can be loaded and printed separately as .stl.

I wish you a lot of fun with my Kobra 3 multibox! If you have any questions or suggestions, please feel free to contact me, I will answer every message even with problems and change requests.

Features:

3 different handle designs. 1x round with cobra head, 1x triangular with cobra head, 1x simple button

Drawers optionally in grey or silver-grey

Drawer Updates

Colored clips for marking the hotends: 0.2 - 0.4 - 0.6 - 0.8 for brass - copper-plated and hardened nozzles

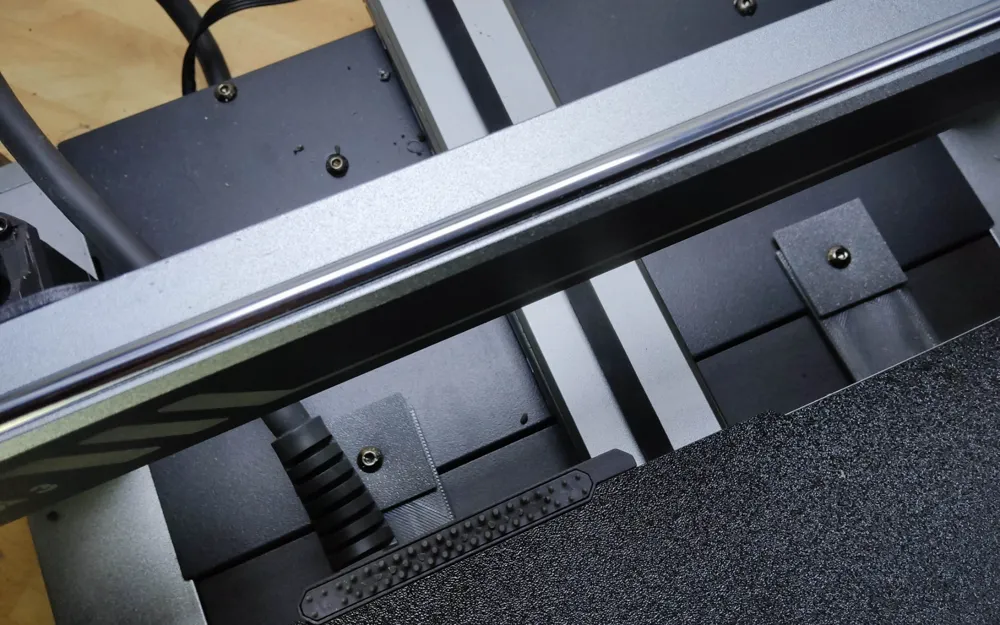

Easy to mount to existing screws in 2 minutes

Custom-fit design

What is needed:

2x press-fit nuts 5mm for the handles

2x M4x12 for the handles

Optional: 4x magnets 5x1mm for the drawers (also works without)

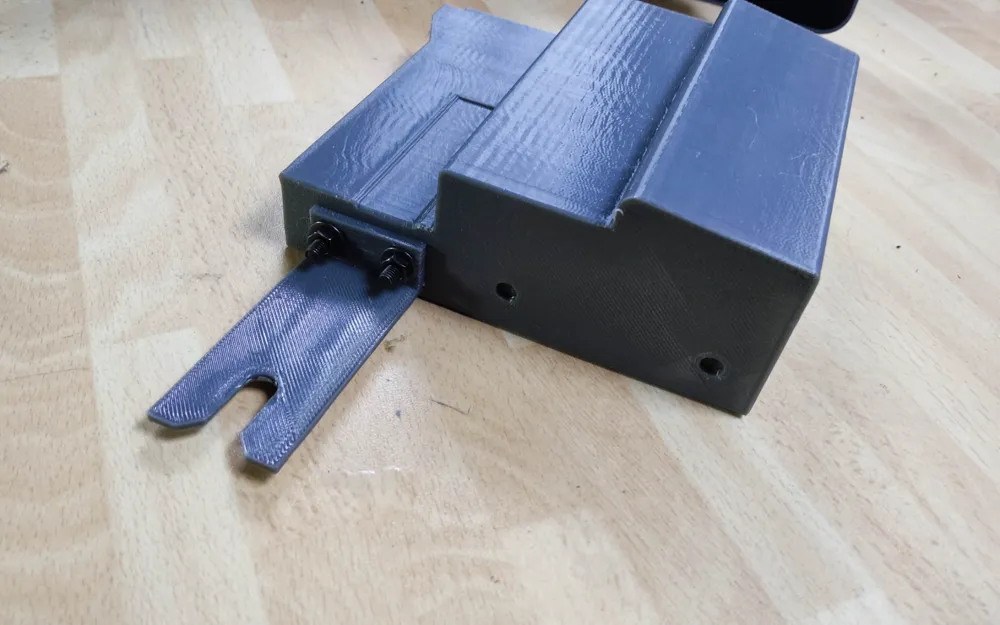

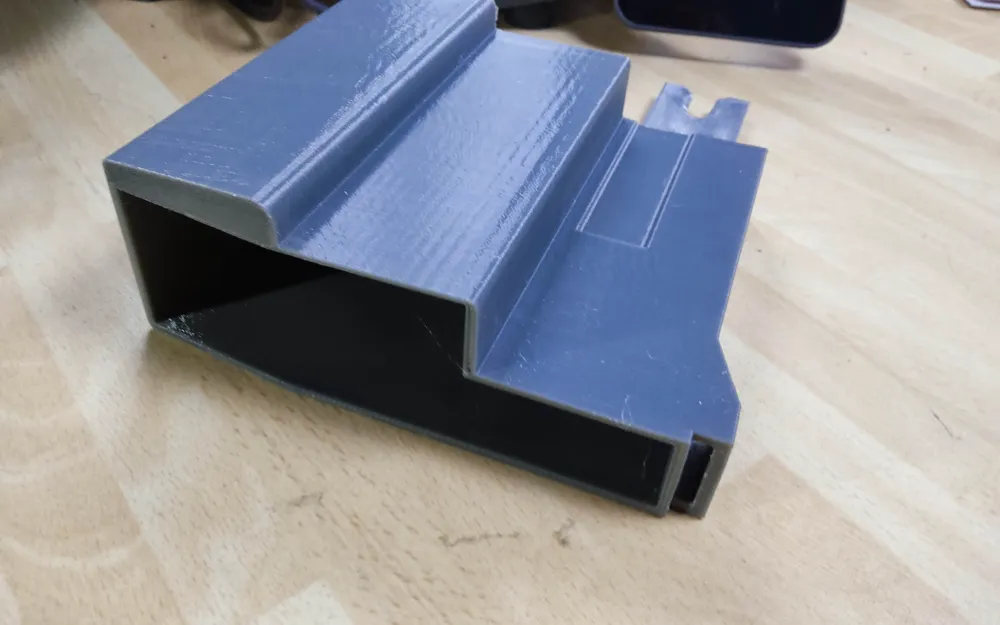

4x screws M4x12 with nuts and washers to attach the brackets to the housings

Filament used:

Anycubic PETG grau

Anycubic PETG silbergrau

Anycubic PETG gelb

Anycubic POETG schwarz
