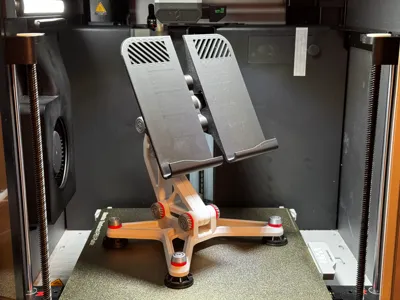

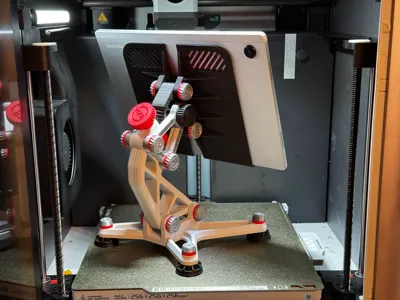

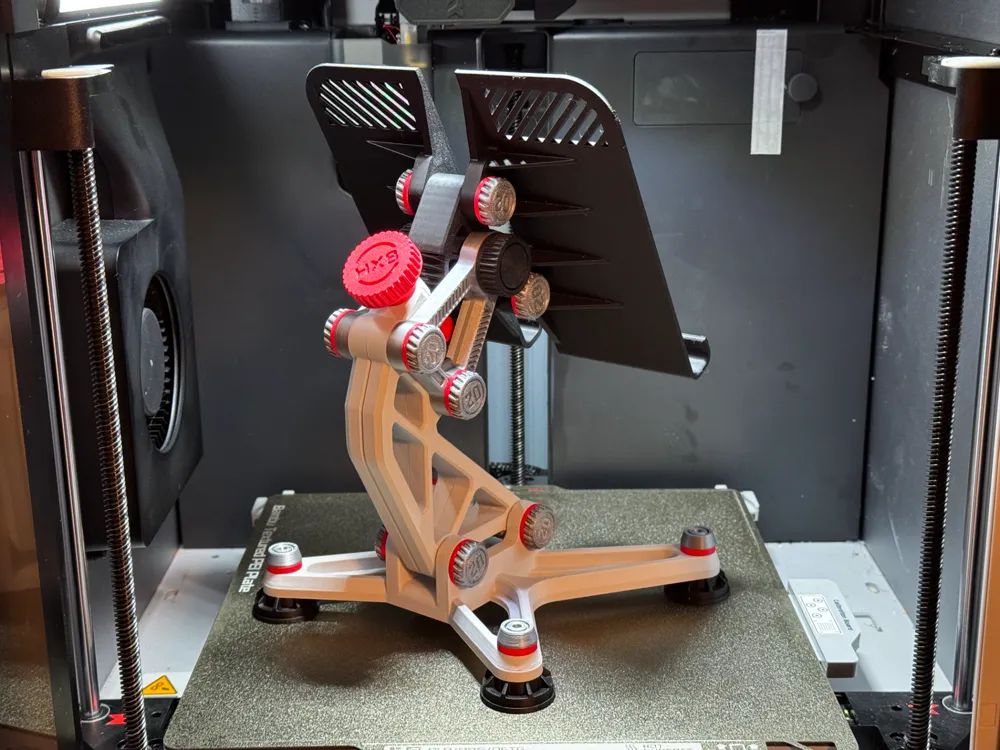

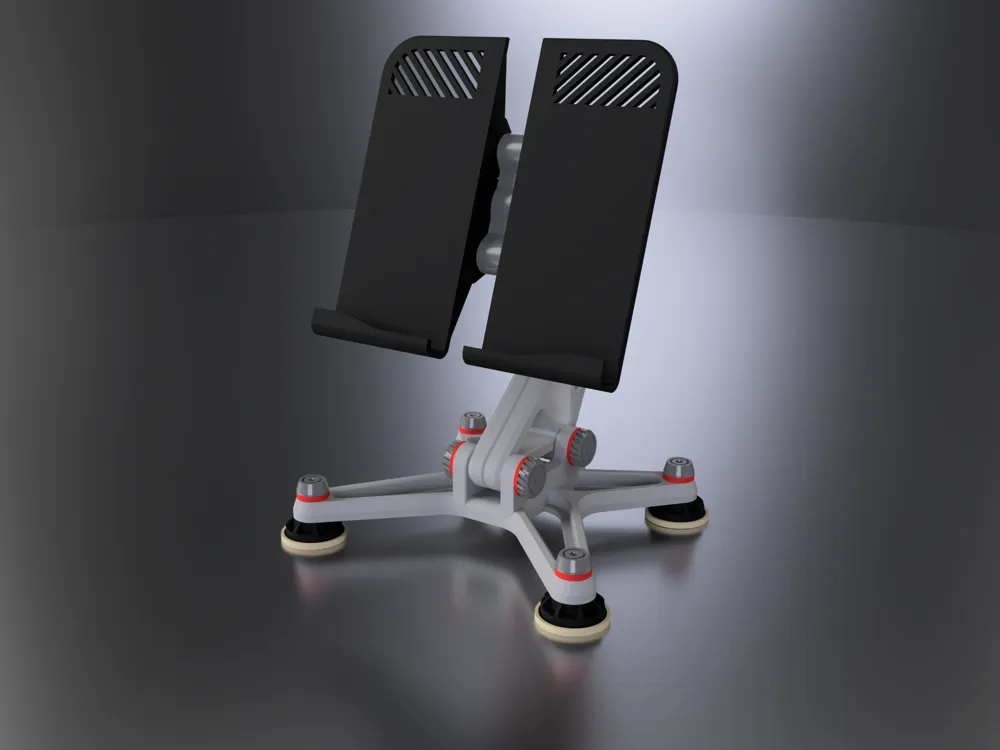

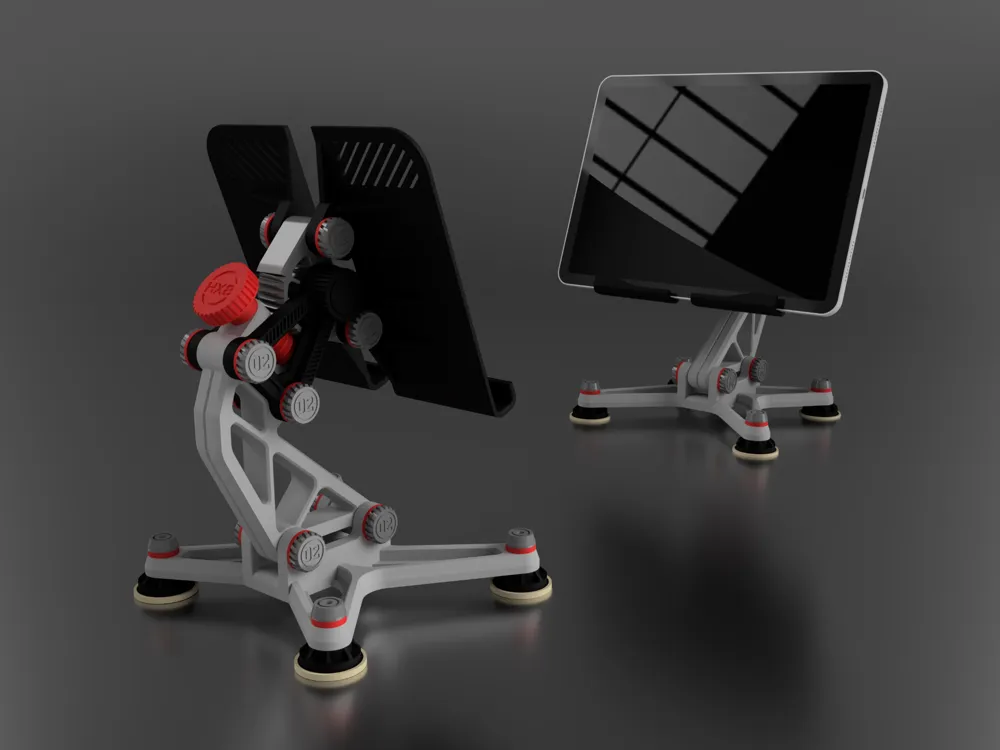

iPad Stand
Compare to the phone stand, the tablet stand changed/improved by:
- Redesigned the main base, larger, thicker, to hold heavier devices.
- changed to worm gear system to freeze the angle.
- added the highly demanded TPU feet cover.
We have 3 sizes of holders here, for 12mm, 20mm and 30mm thick devices.
Size compare to my V2 phone stand
By printing:
- The only part needs support is the main base holes, all other parts are not needed.
- I set a very high tolerances for all bolts and nuts, I think 95% of printers or filaments will just be fine without change the X-Y compensation.
- All parts contain threads please do with 0.16mm layer height.
- For A1 Mini users: you may change the components position on the plate in the print file to adapt the print bed size.

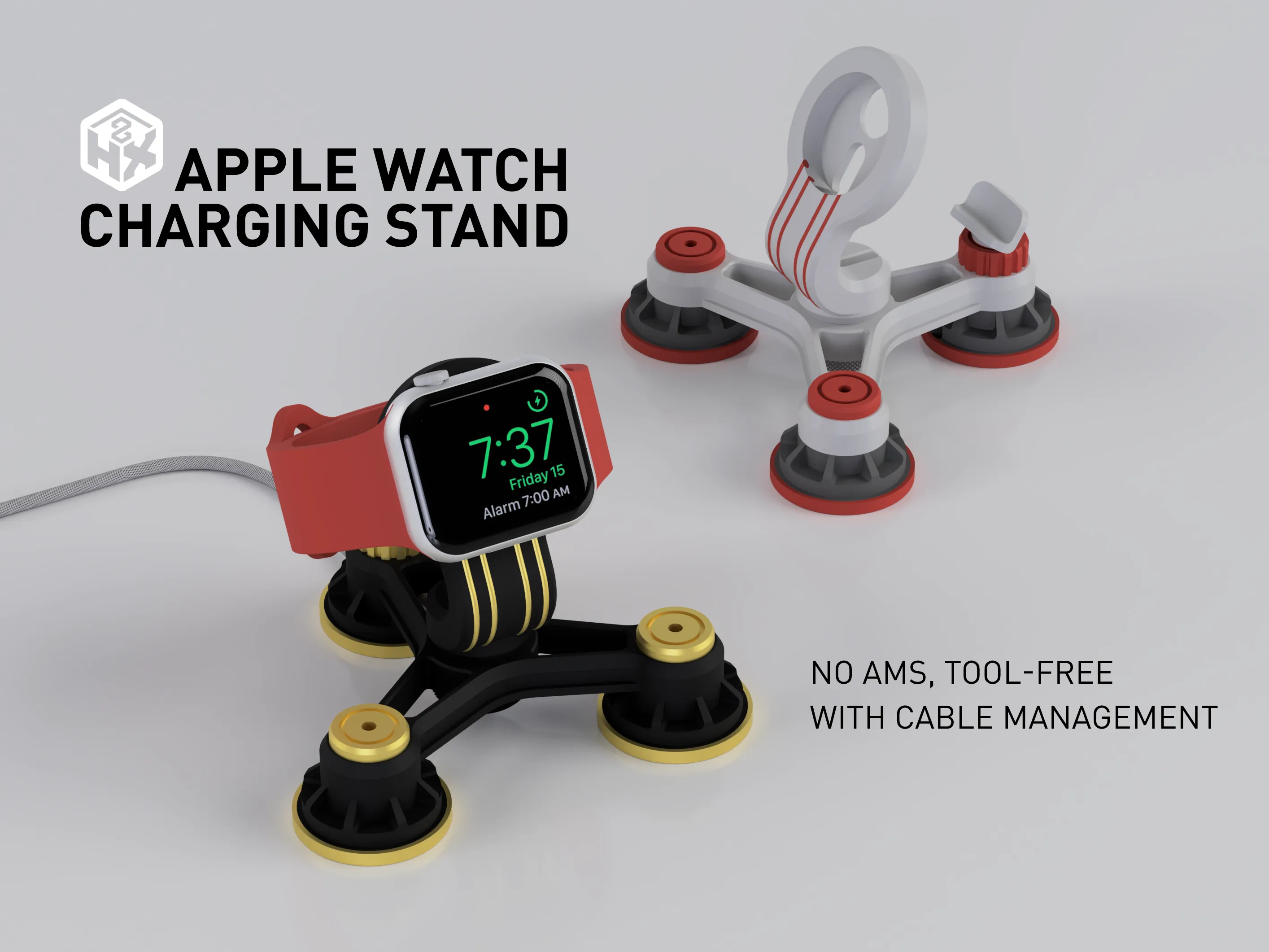

If you like this design, I just created another one for Apple Watch, check it out here:
Link: https://makerworld.com/en/models/1741949-hx8-apple-watch-charging-stand

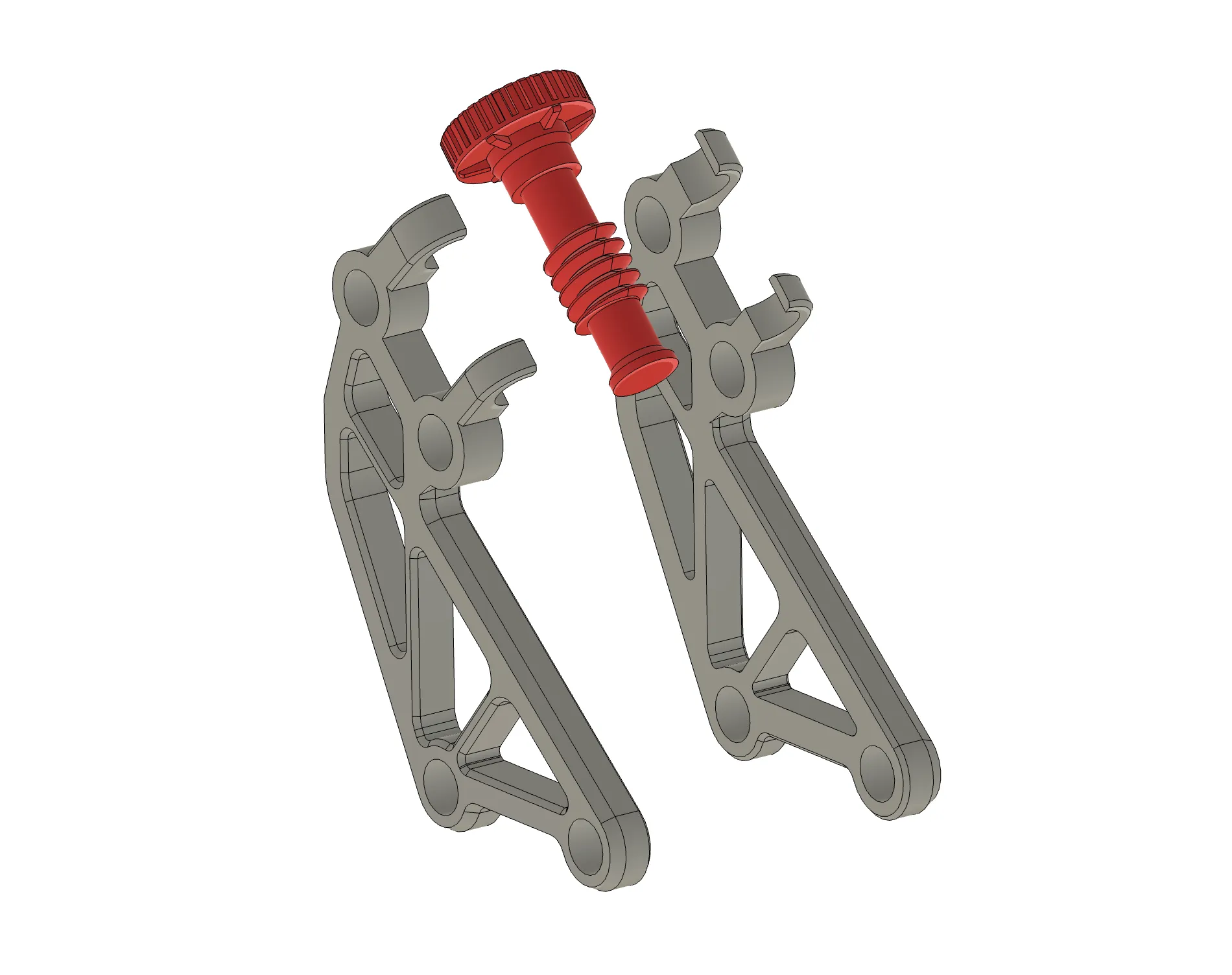

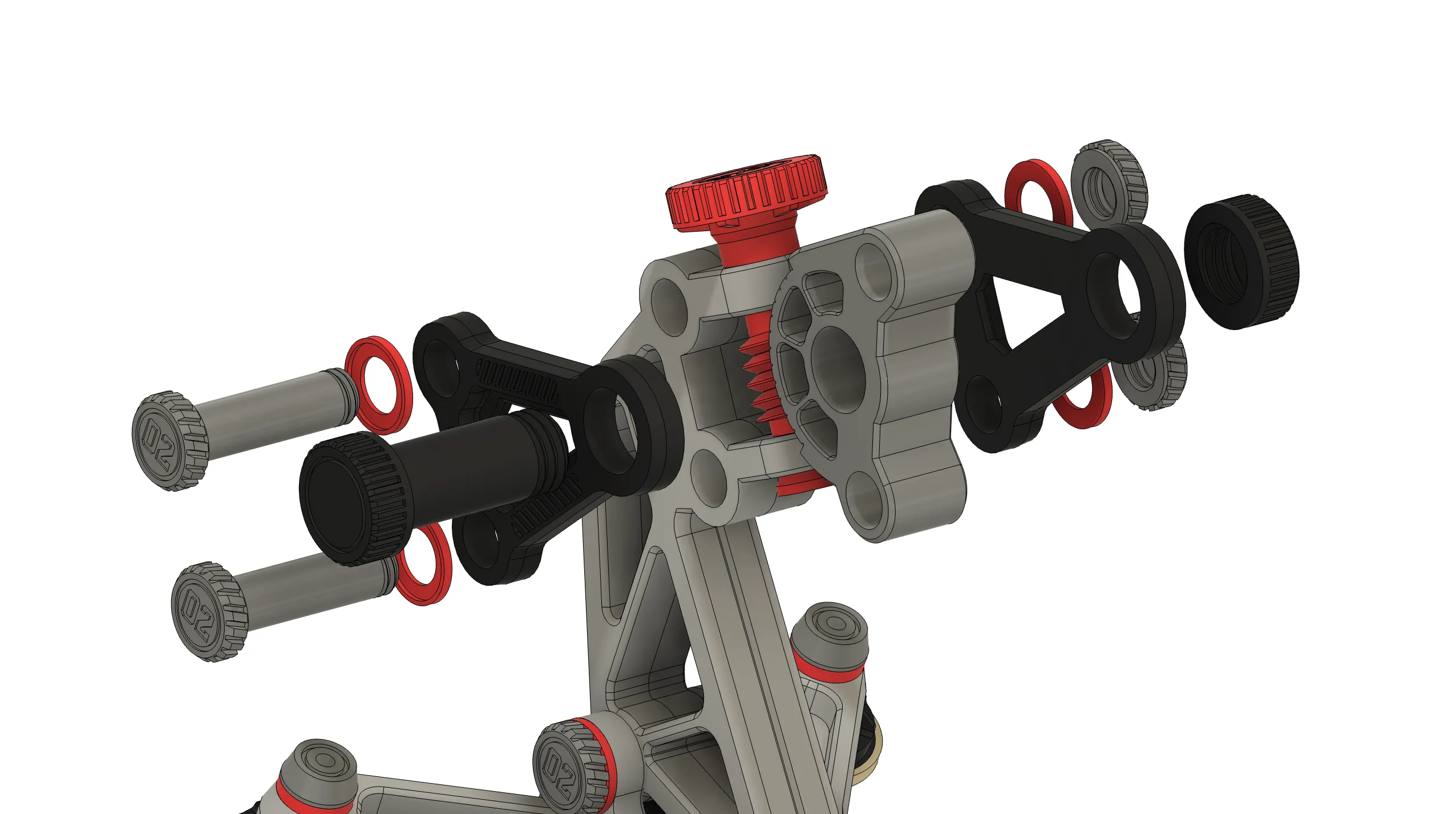

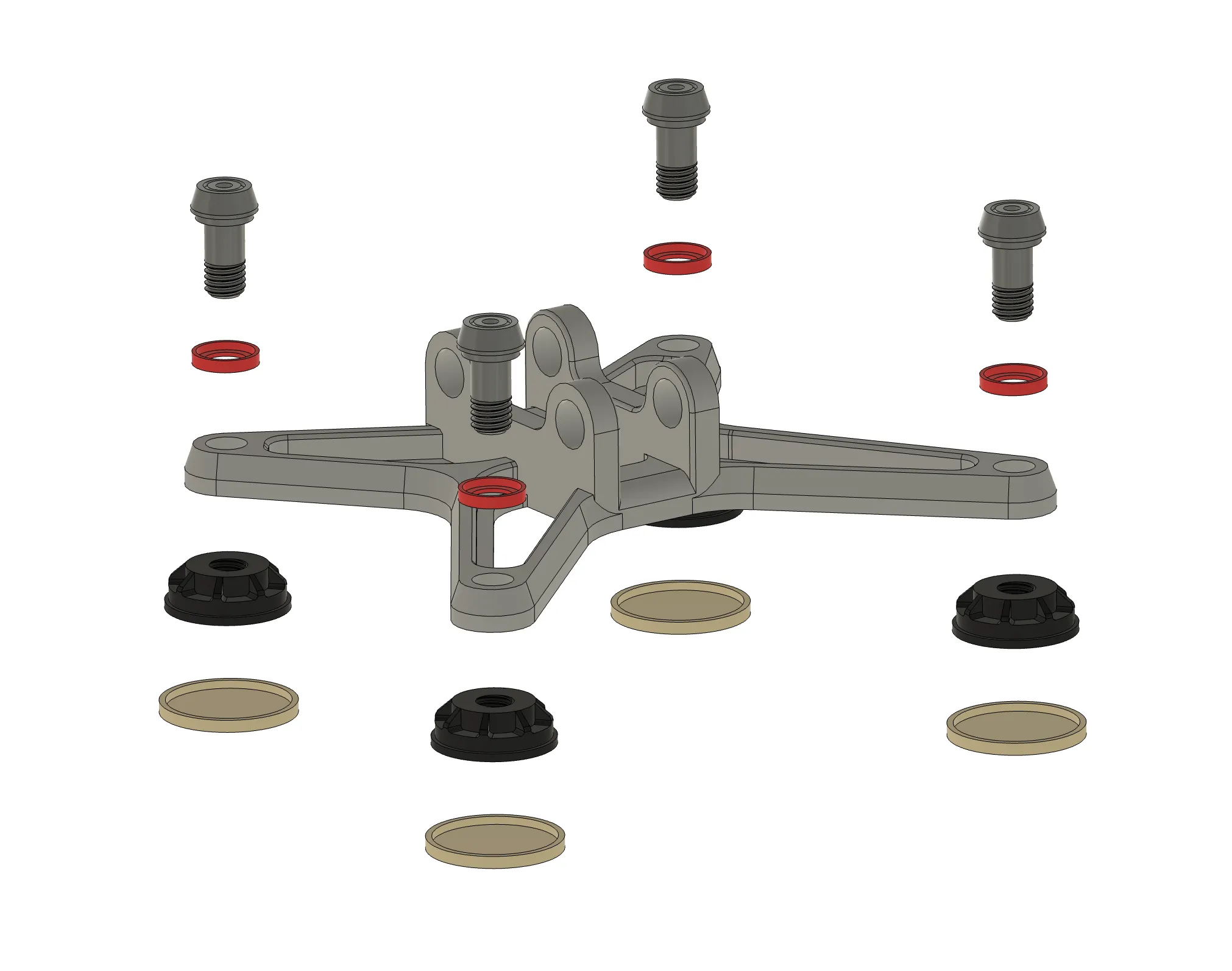

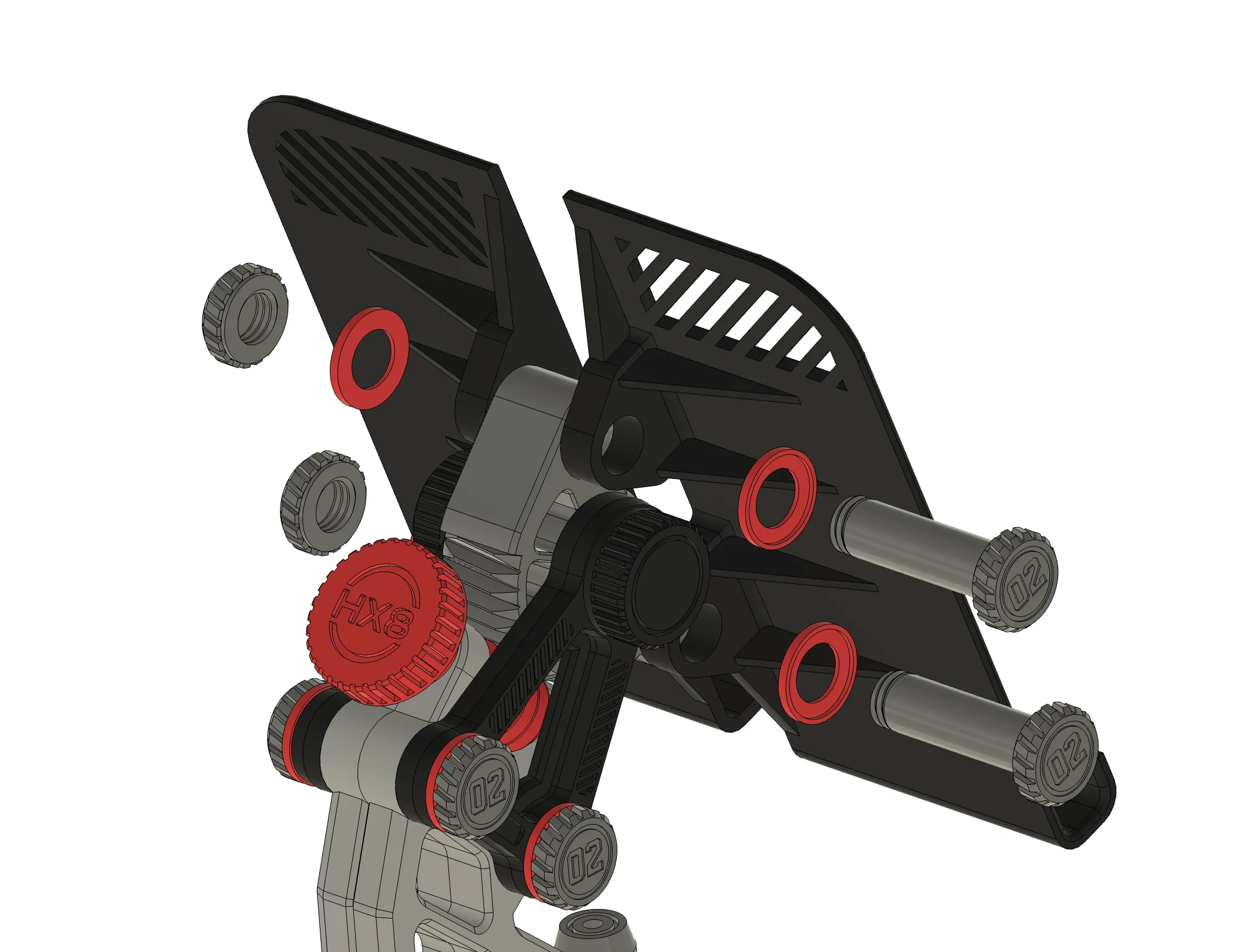

Assembly instruction
1
2
3
4
5
Enjoy your print!
