Modular Background Panels / Wall Art

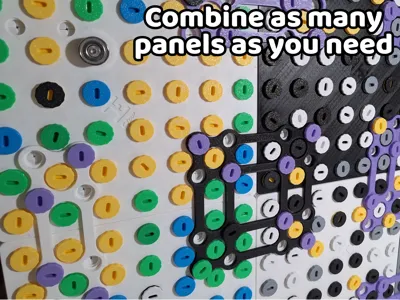

I made these panels to be lightweight, sturdy and perfect for video backdrops. Inspired by traditional wood panel ard, I created a scalable system using efficient triangular shapes and minimal filament use (all dimensions you see are in Millimeter).

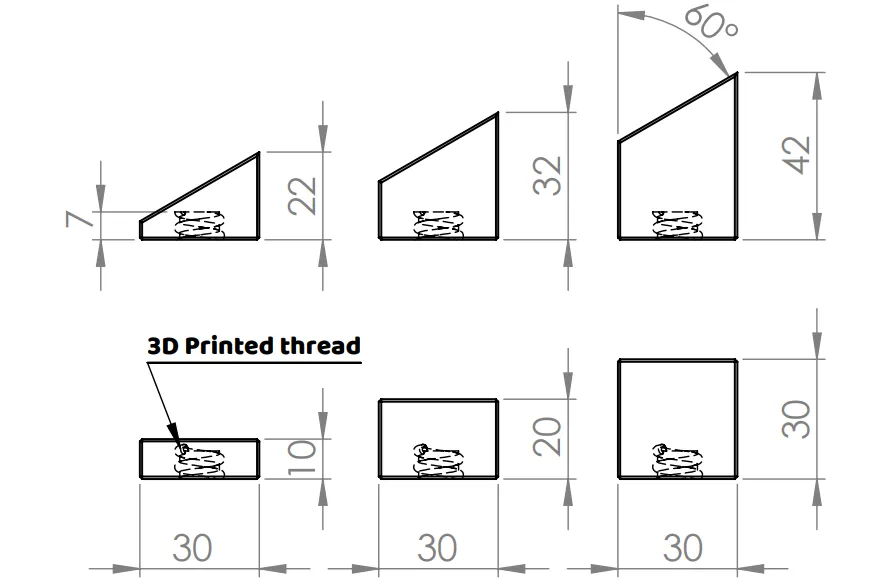

I designed 2 different shapes you can choose from:

You have the triangular shapes:

• Shape_A22
• Shape_A32
• Shape_A42

I also made cube shapes:

• Shape_B10
• Shape_B20
• Shape_B30

As you can tell, the length of the shape is in het name.

All shapes have 3D printed thread for the 3D printed bolts.

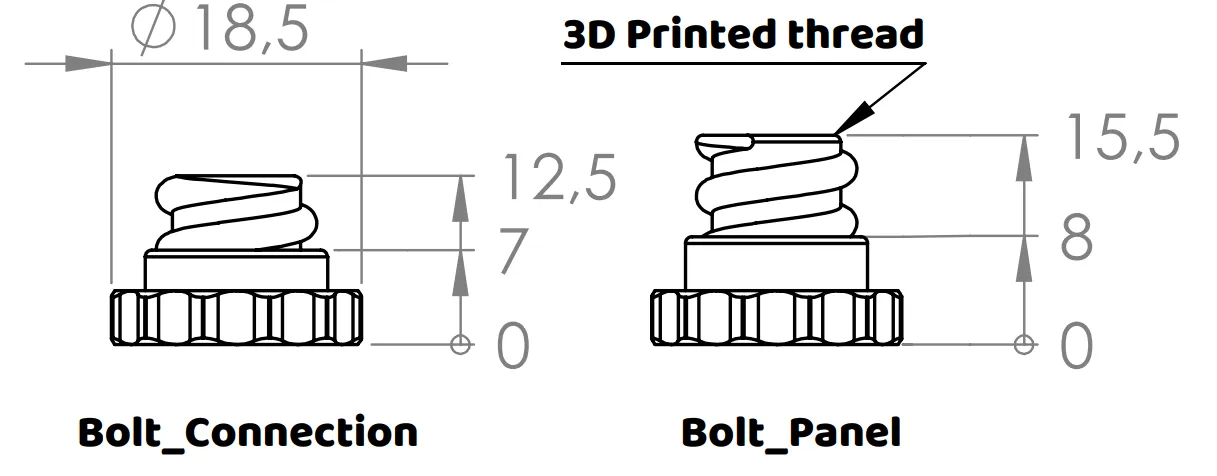

I made 2 different size bolts:

• Bolt_Connection
  > To mount all the connection pieces and extra parts into the plates
• Bolt_Panel
  > To mount all the shapes onto the plates

The thread is the same but to mount the shapes properly I recommend using the longer bolts

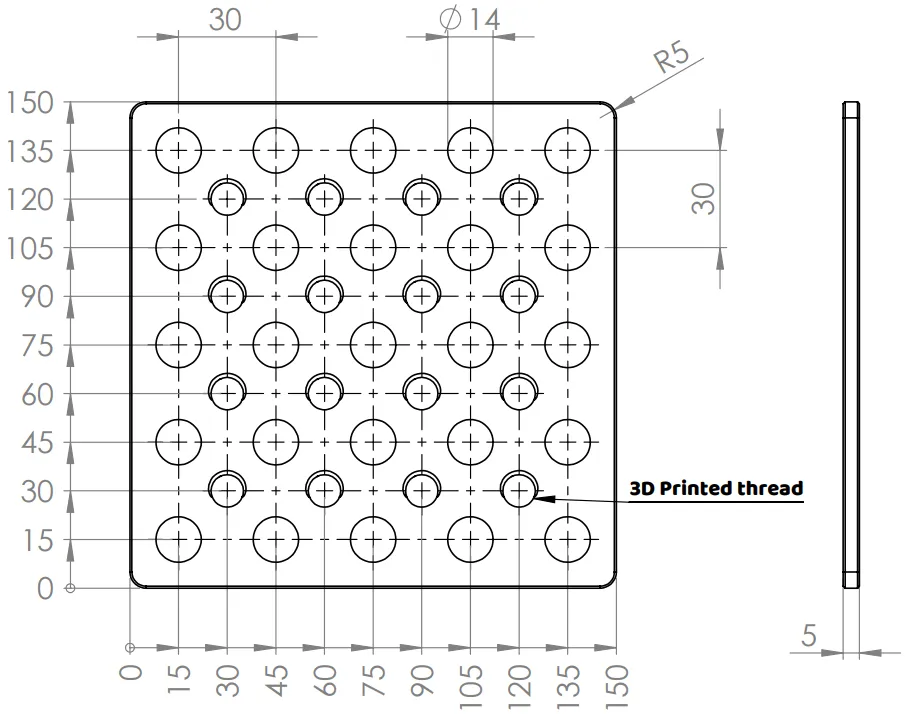

I made different panels, these are the dimensions:

• 090x090
• 150x090
• 150x150
• 180x090
• 180x180
• 210x210
• 240x240
• 300x150
• 300x300
• 360x180
• 360x360
• 420x210
• 420x420
• 480x240
• 480x480

For the big panels I provided the 3D printed thread only in the corners and the middle of the side.
The 3D printed thread is for all connections and extra parts which need to be mounted with Bolt_Connection

If you have any suggestions for new shapes, more dimensions of the panels or something different, please let me know in the comments!
