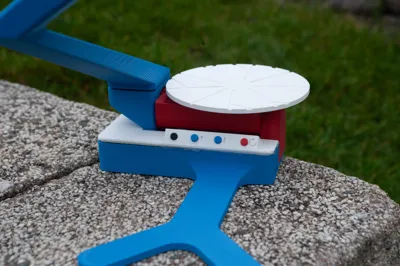

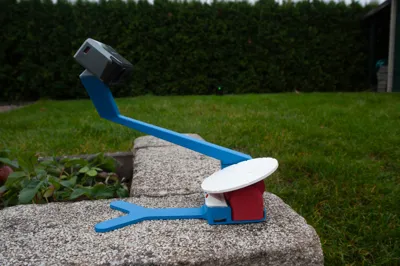

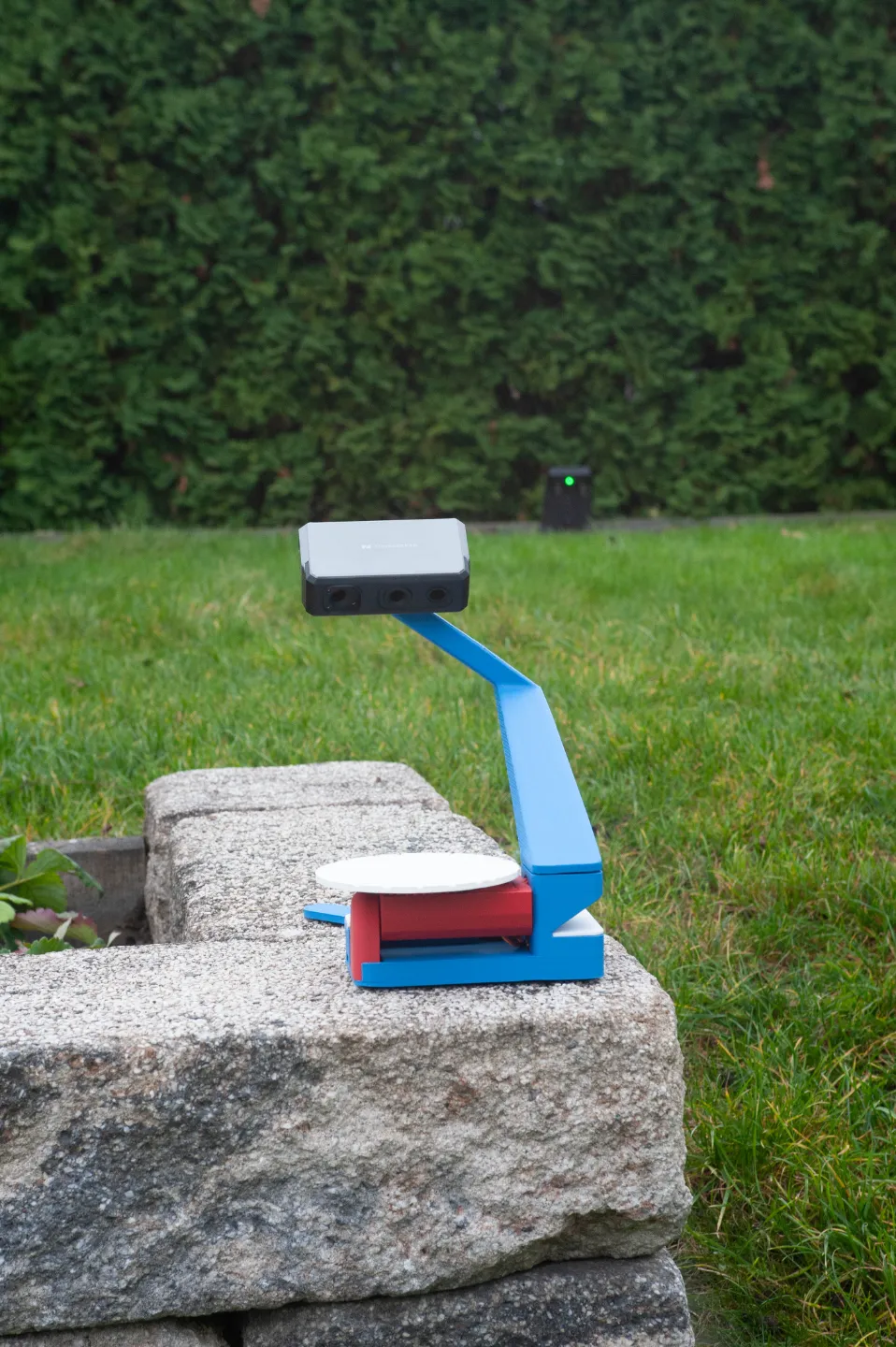

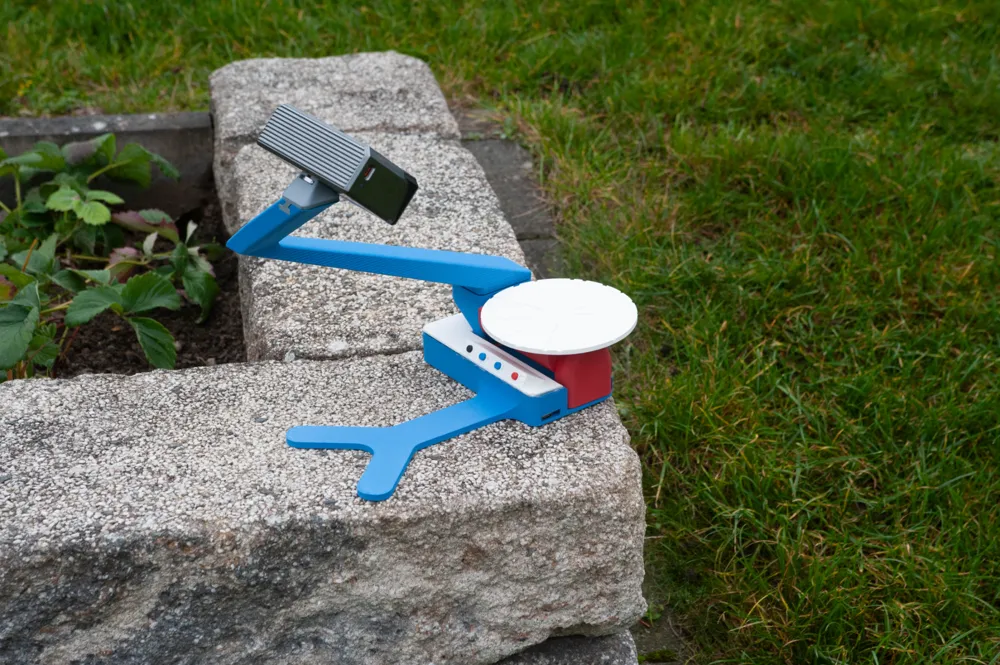

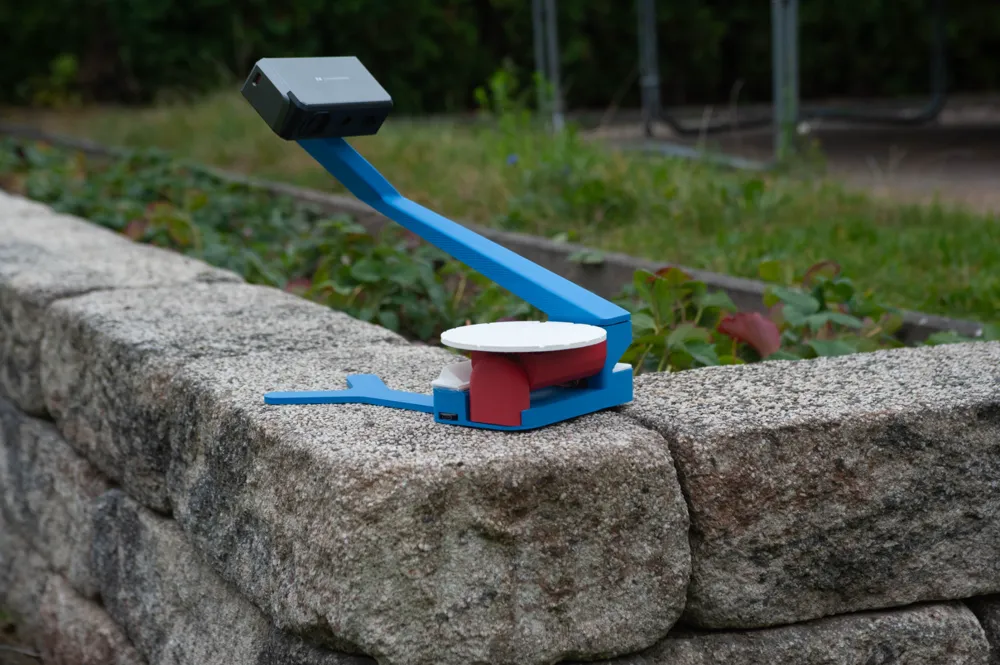

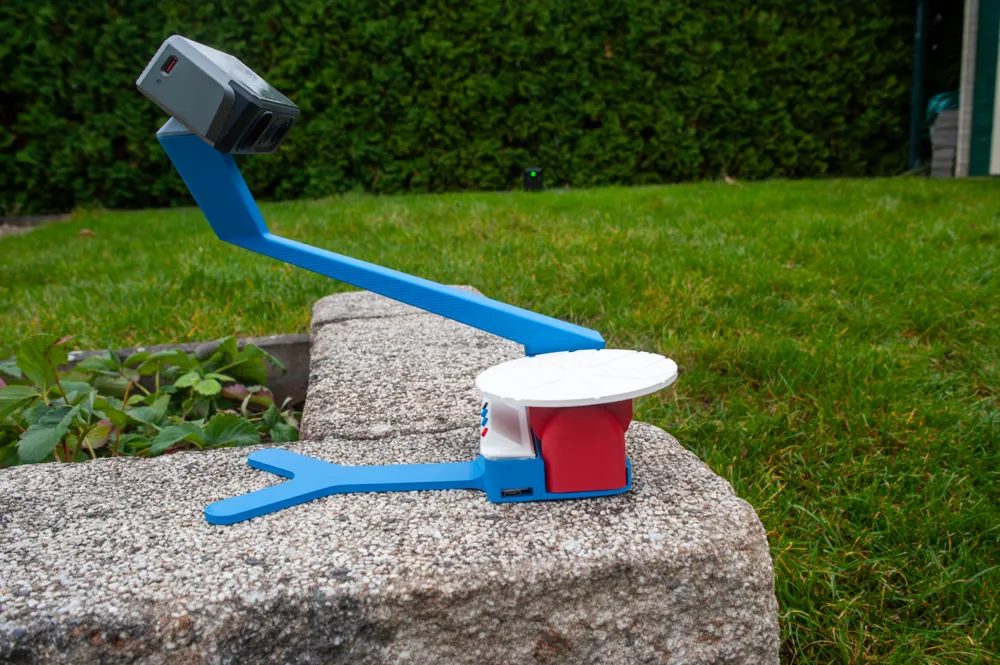

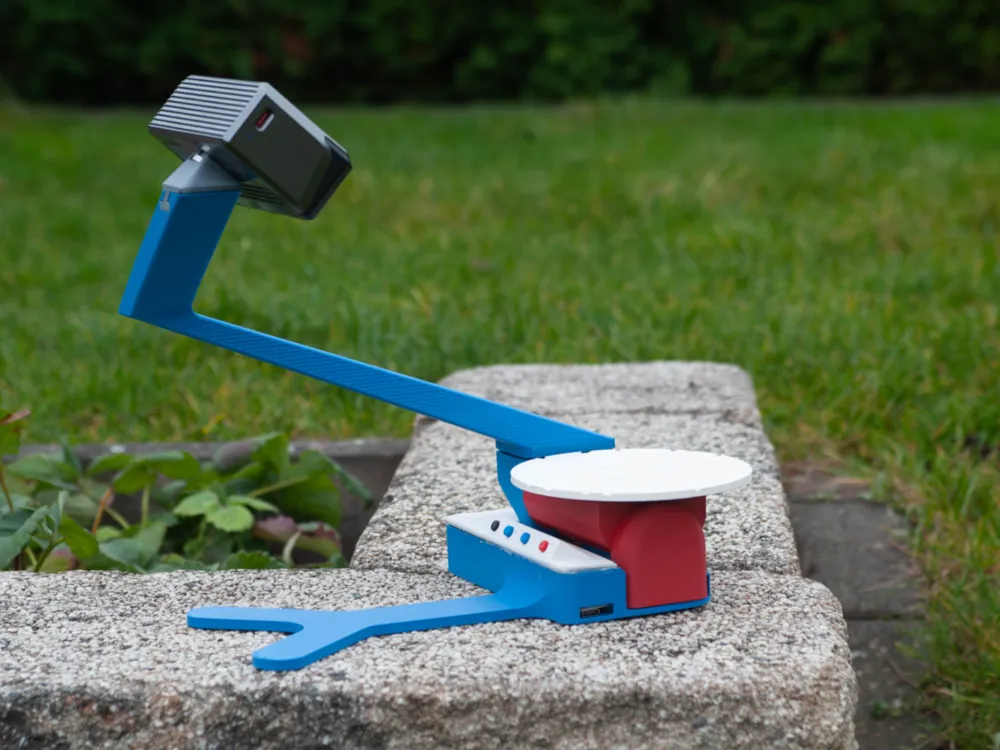

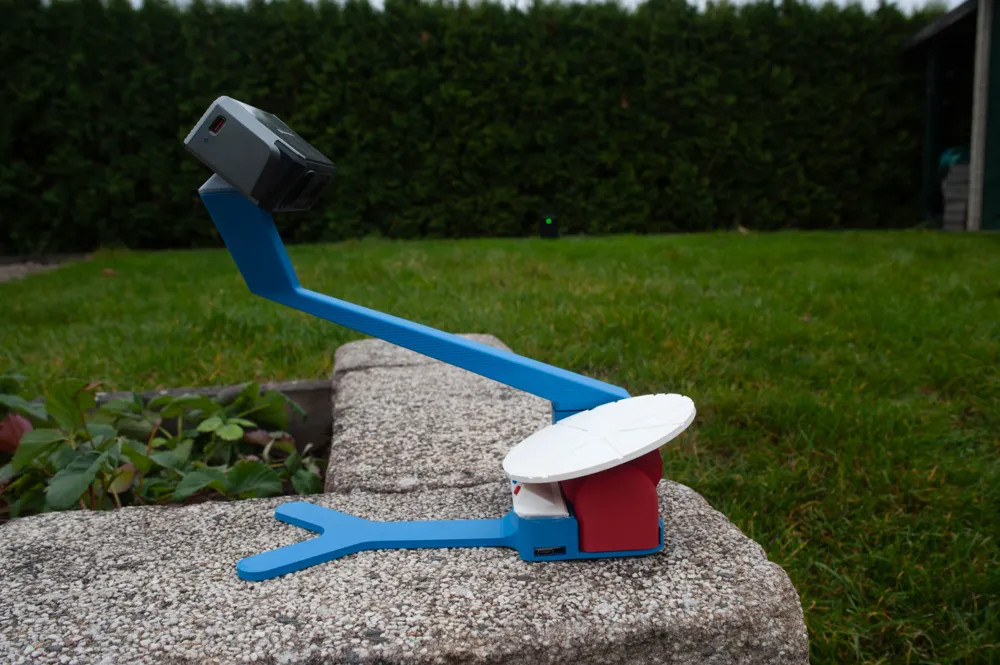

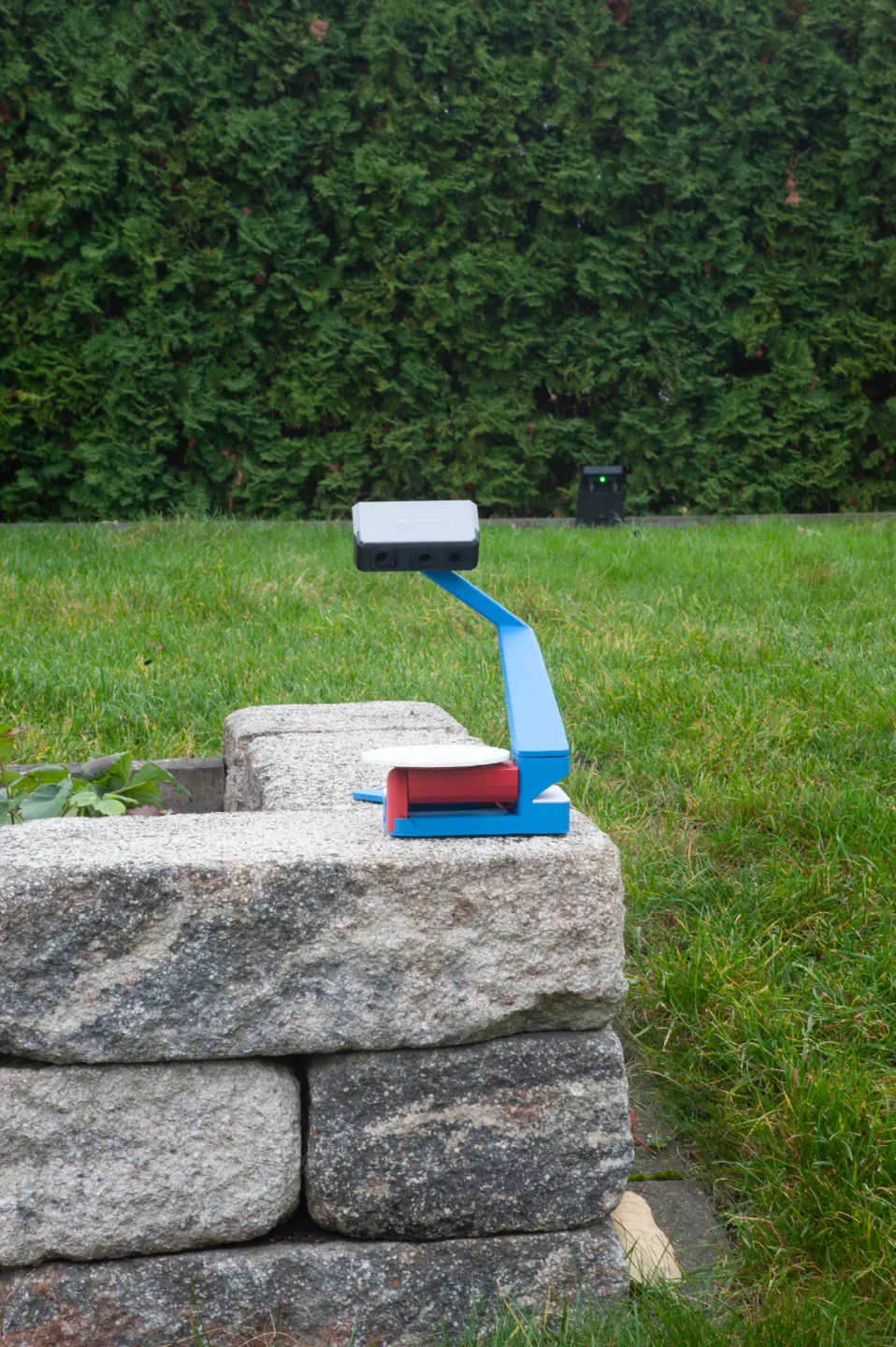

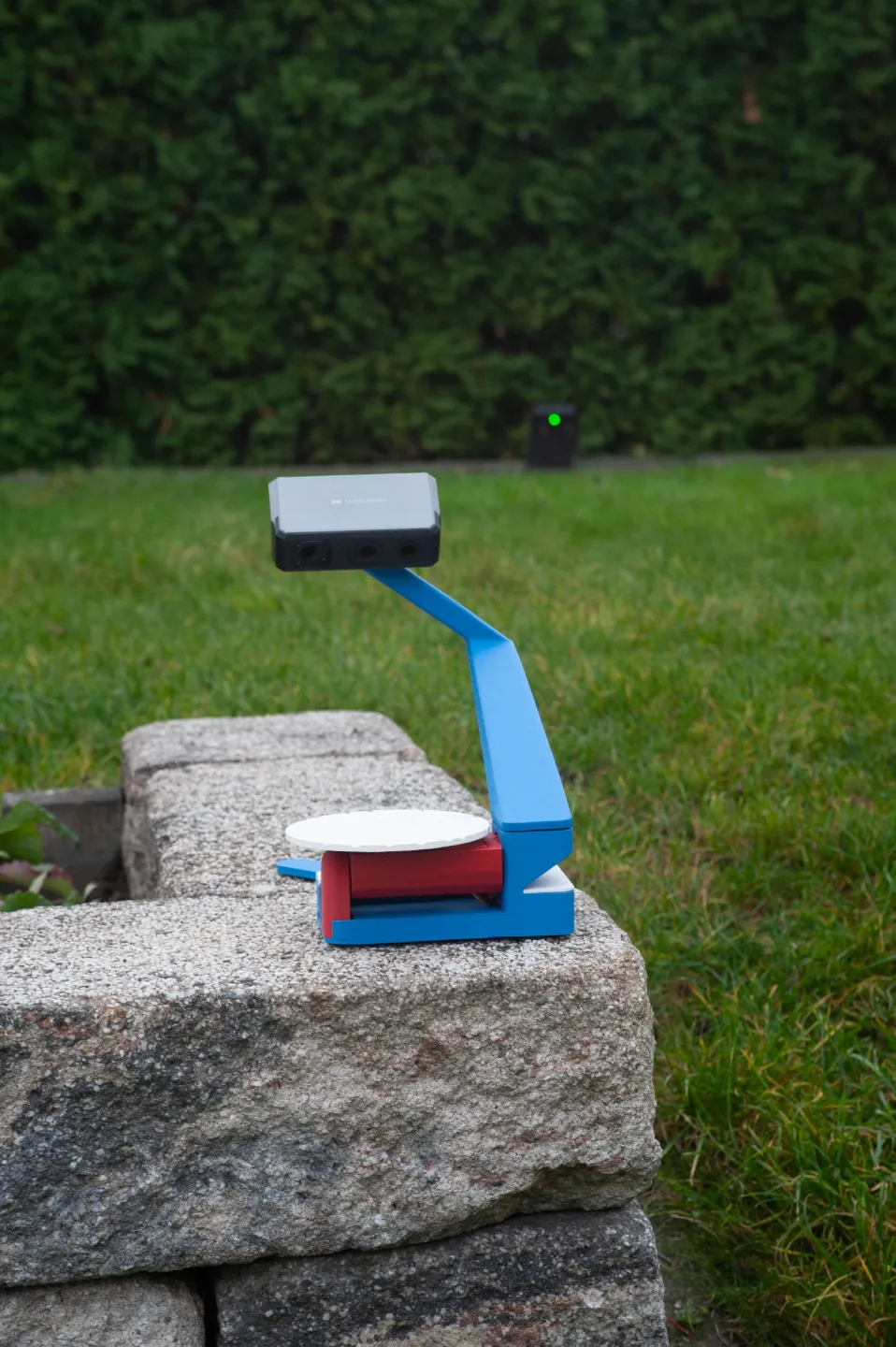

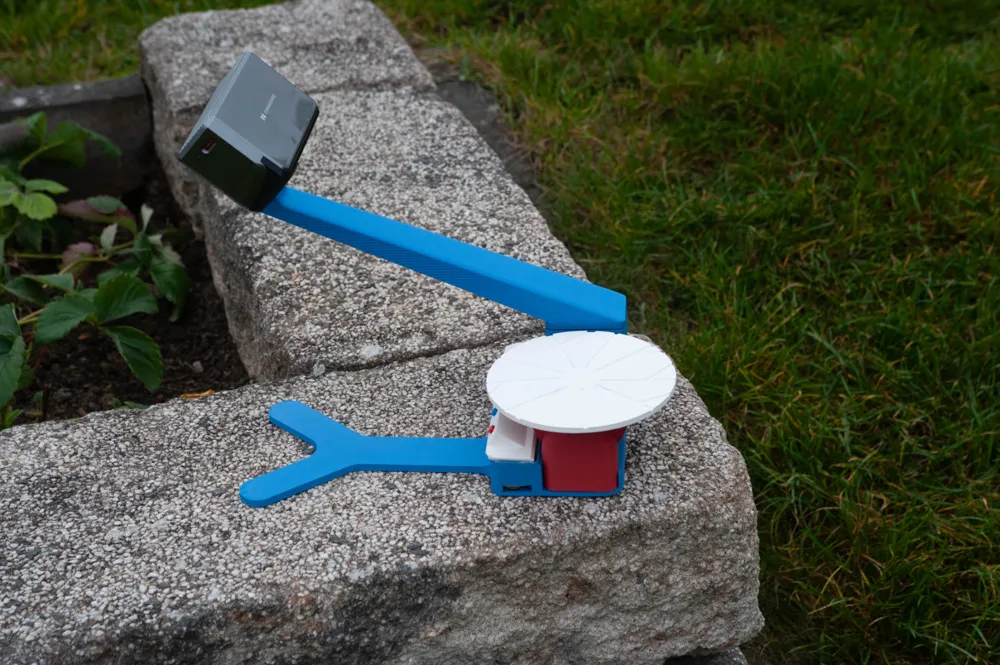

2 Axis Electric Turn Table

This versatile 2-axis turntable is specifically designed for use in 3D scanning applications and for presenting objects. With the ability to both rotate objects around their own axis and tilt them, this turntable allows for precise control and versatile applications

Technical Details:

• Rotation Function (360°): A continuously rotating servo (360° servo) allows for full rotation of the object, ideal for all-round scans and presentations

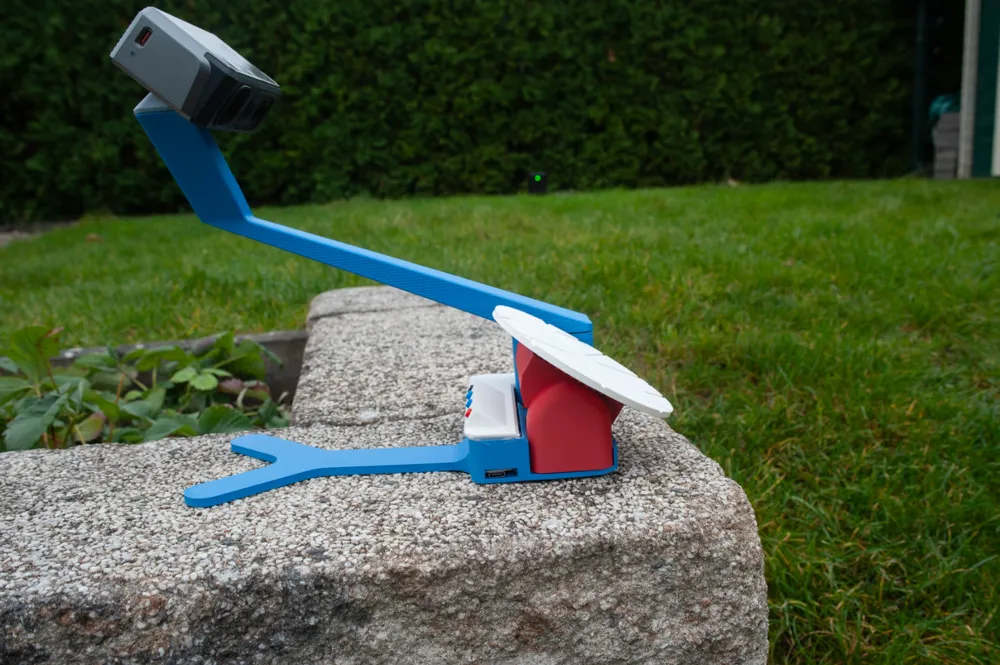

• Tilt Function (180°): A 180° servo allows the object to be tilted forwards or backwards, enabling even more complex surfaces to be scanned

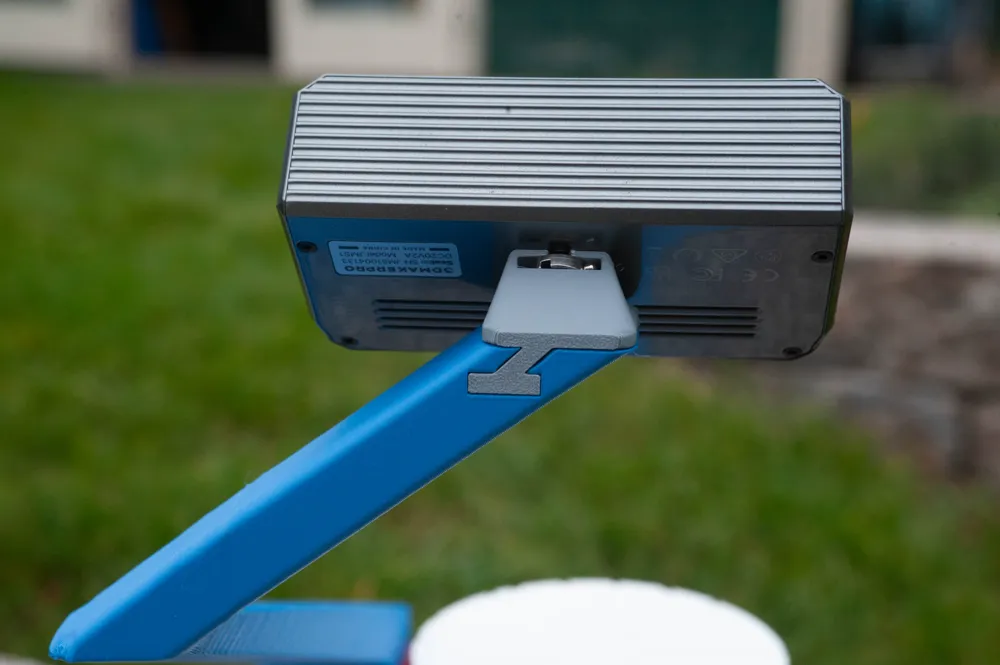

• Modular Attachments: The turntable is equipped with a modular attachment system, allowing various 3D scanners or cameras to be easily mounted. This makes it particularly flexible and adaptable

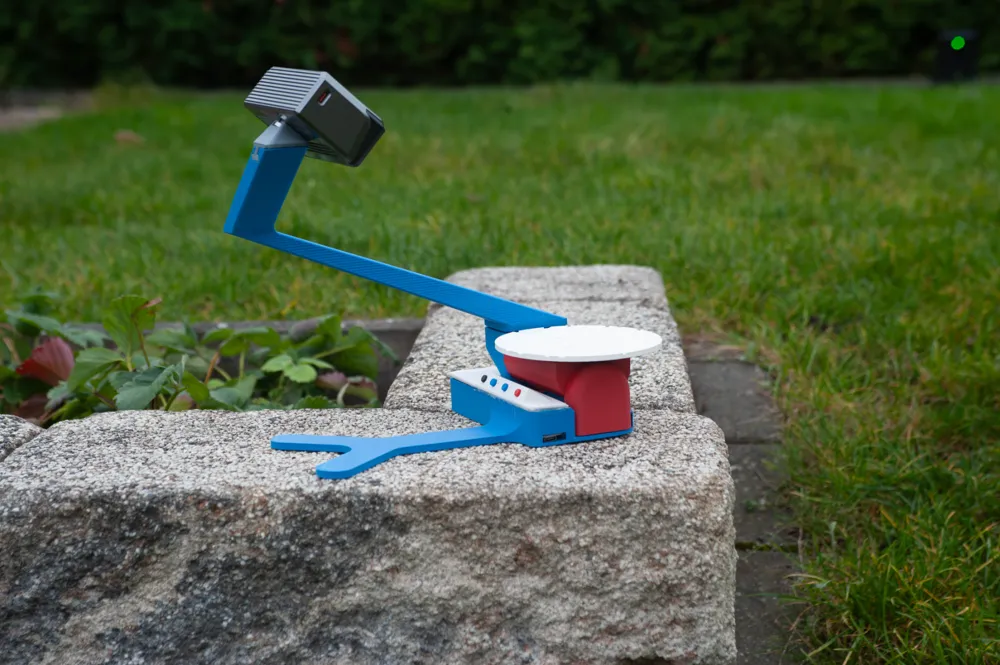

• User Control: Control is via four buttons:
  1. Start/Stop Rotation (360° Servo)
  2. Start/Stop Tilt (180° Servo)
  3. Manual Rotation (Step-by-step control)
  4. Manual Tilt (Step-by-step control)

Electronics and Components:

• Microcontroller: Arduino Nano for controlling the servos and buttons
• Power Supply: Flexible via USB connection or an external battery source
• Easy Programming: Thanks to the Arduino Nano, the software can be individually adapted and extended to integrate various scan modes or automated processes

Areas of Application:

• 3D Scanning: Perfectly suited for creating 3D models of objects from various angles
• Product Presentation: Ideal for presenting prototypes or product models at trade fairs or in showrooms
• Research and Development: A useful tool for engineers and designers to examine models from all perspectives

This turntable offers a user-friendly, flexible, and efficient solution for anyone needing precise control during 3D scans and presentations


Assembly Instructions

What u need:

1. 3 Bearings 608zz : https://www.amazon.de/dp/B09PVDDBWF?ref=ppx_yo2ov_dt_b_fed_asin_title
2. 1 Servo 360° SG92R: https://www.amazon.de/dp/B0CNXNBTJ2?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
3. 1 Servo 180° Miuzei 9G: https://www.amazon.de/dp/B07KPS9845?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
4. 1 Arduino Nano: https://www.amazon.de/dp/B0CX1B4X7M?ref=ppx_yo2ov_dt_b_fed_asin_title
5. 4 Buttons: https://www.amazon.de/dp/B082DBBPGC?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
6. 7 Magnets 12mmx3mm: https://www.amazon.de/MIN-Klebemagnete-Selbstklebend-Magnettafel-K%C3%BChlschrank/dp/B0CP7V2HGN/

Wiring

Programm is in the Documentation
