Description
Summary

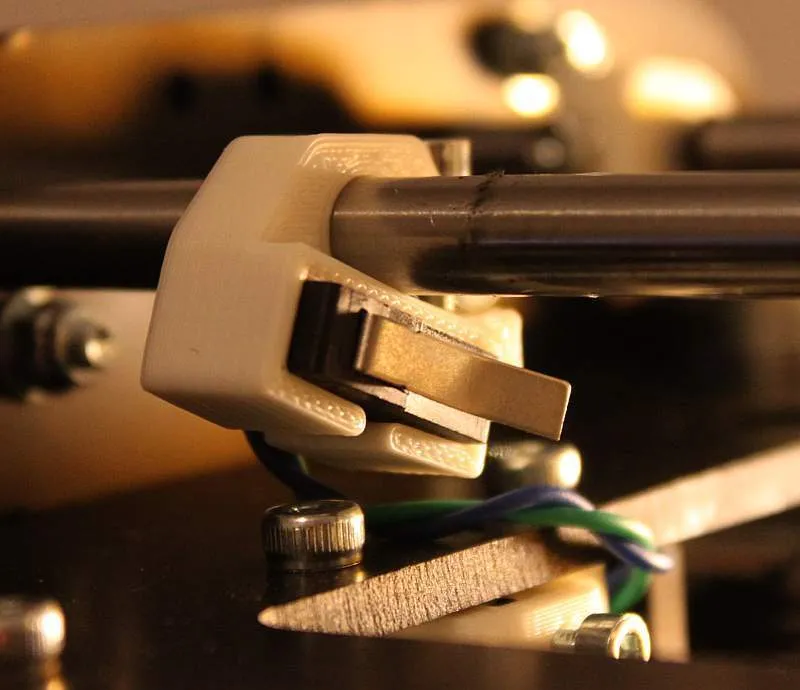

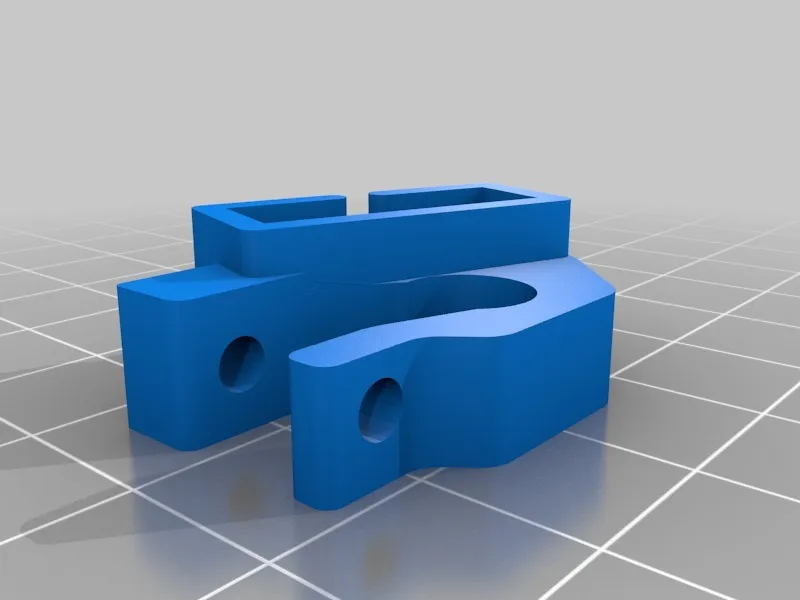

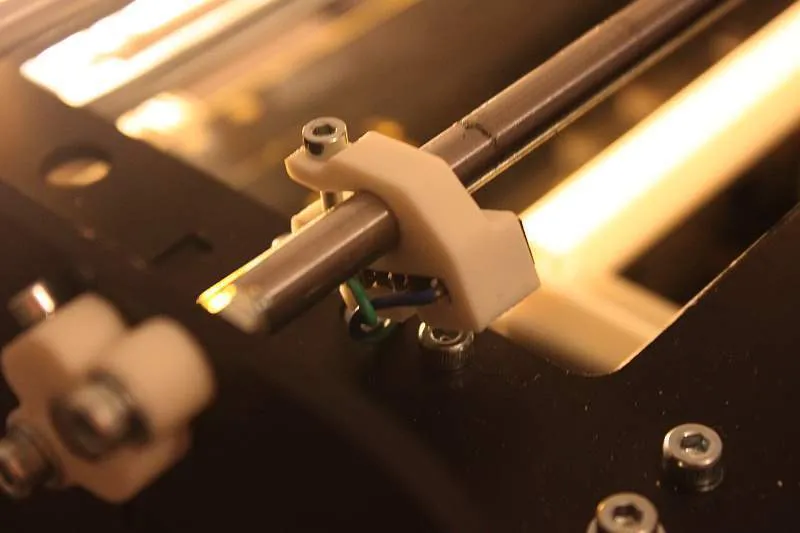

I designed a compact mechanical endstop holder for a second Orca i am building.
Reason for nearly closed case is that it will hold the endstop better than only two short fans (when properly printed) and for a optical nicer look.
Corners are all rounded for better and faster printing
Should also fit any other printer with 8mm rod
Instructions
Vitamins : M3x20mm screw + nut
