120mm Fan Mount for Air Circulation-3030 Extrusion

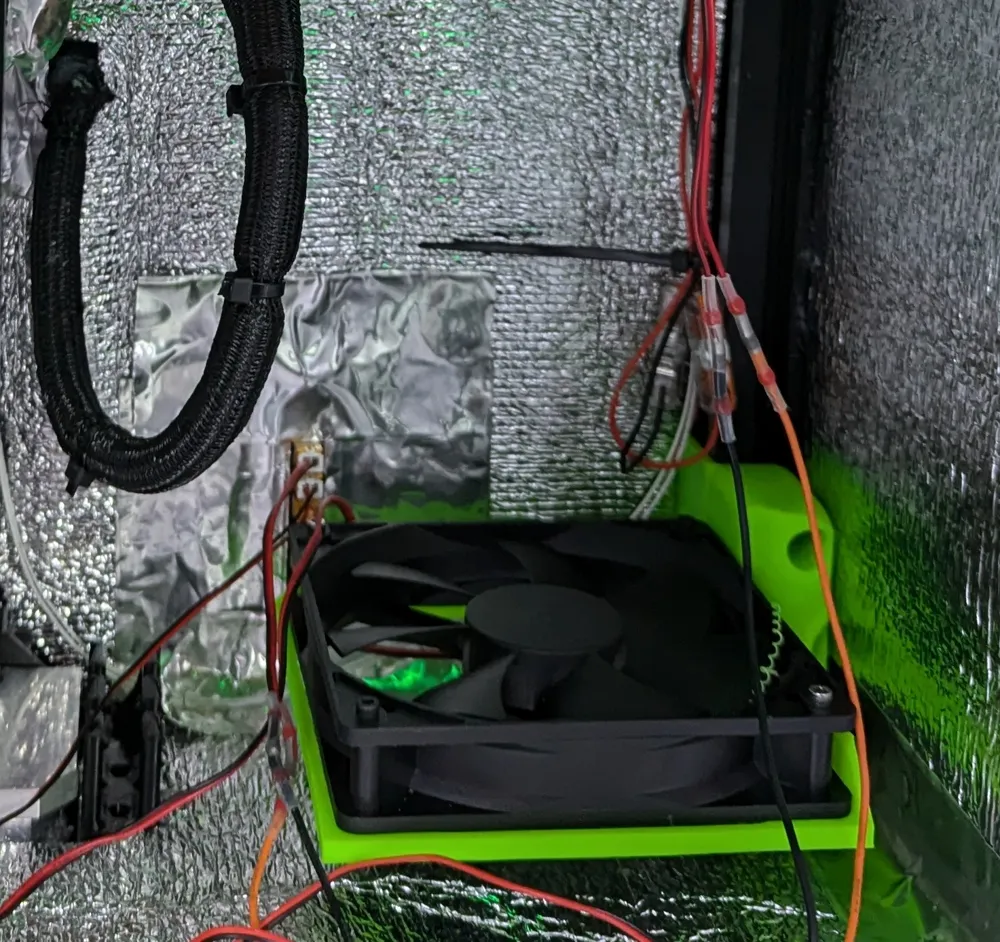

This allows you to mount 120mm fans on a vertical piece of 3030 extrusion. It was designed to help with air circulation when heating the chamber for more even temperatures through the chamber. I have 1 fan's airflow pointing upwards, and the other pointing downwards

How to Print

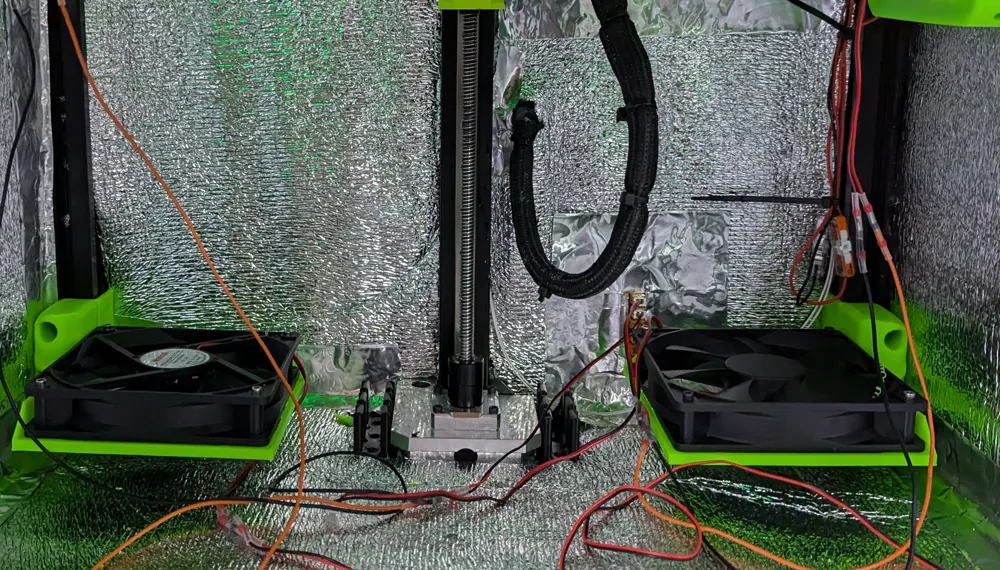

• To get 2 mounts that will mount to either side of your printer (like in the pictures above), clone the original model, and mirror that new model on the Y Axis
• Anything should work, my standard is 3 walls, 4 top/bottom layers, 10% infill

Materials

• 4x M3 heatset inserts
  • For mounting the fan (you can also use longer screws and an M3 nut if you want)
• 4x M3 bolts
  • long enough to mount your fan, usually 30-40mm works
• 2x M6x8 bolts
  • To mount to the 3030 extrusion

Happy printing!
