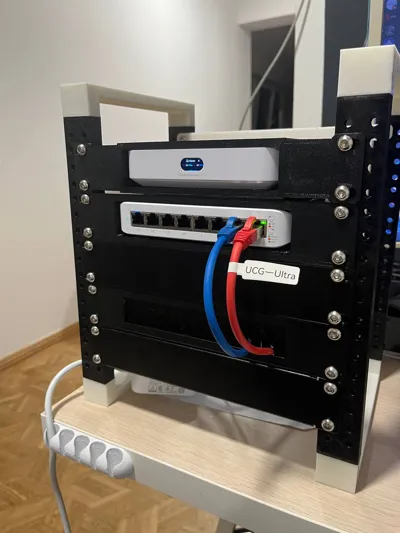

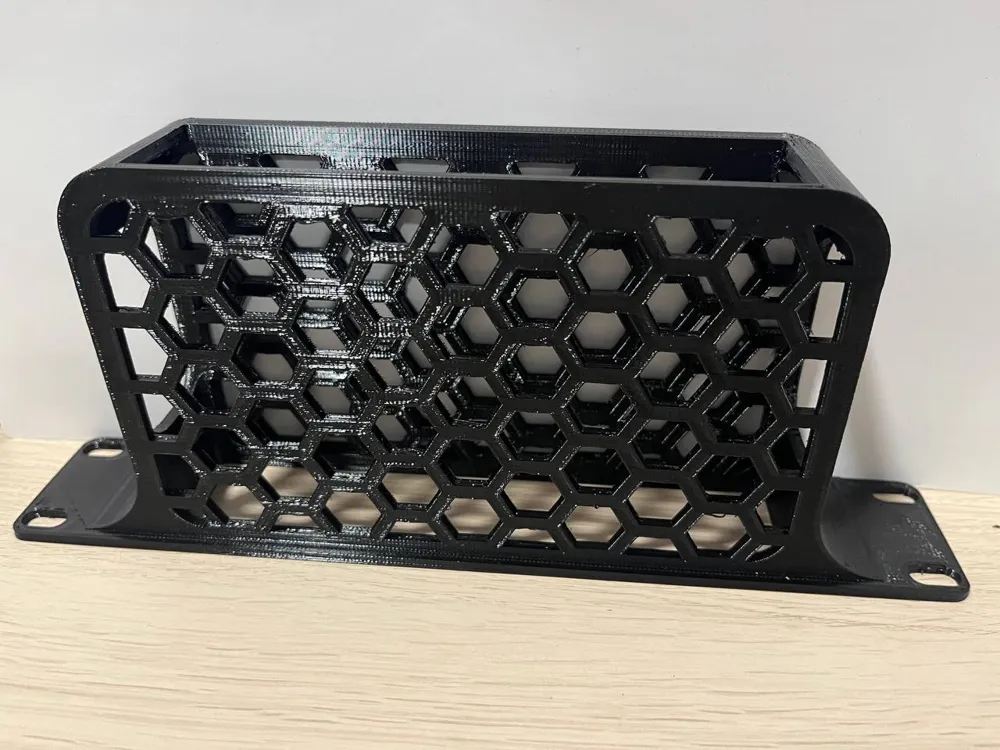

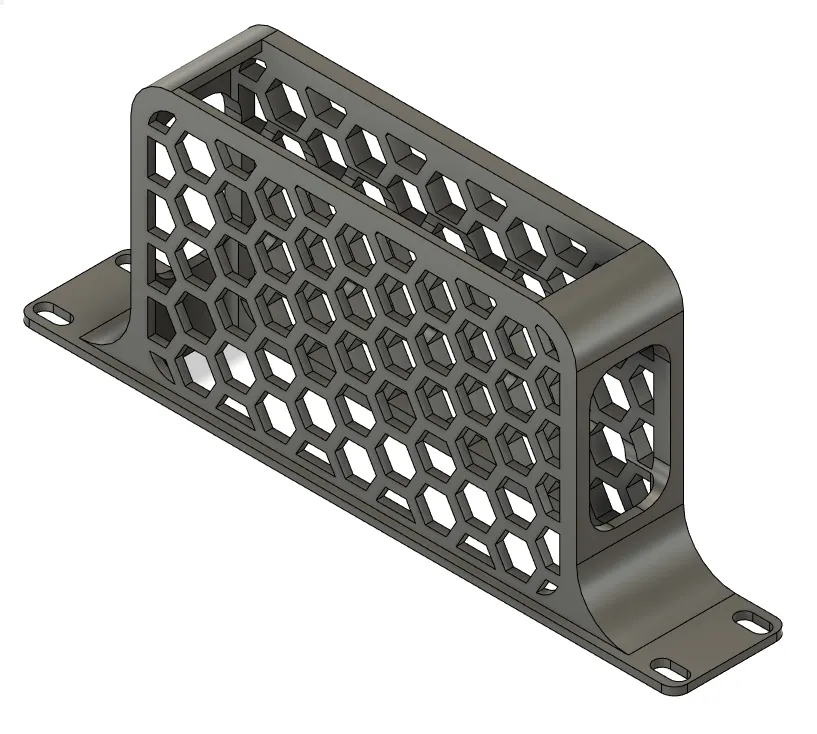

Ubiquiti Unifi USW-Lite-8 PoE 10-inch rack mount

A 10-inch rack mount for the Ubiquiti Unifi USW-Lite-8 PoE.

This model is part of a series of 10-inch rack mounts I've designed. You can check out the others here.

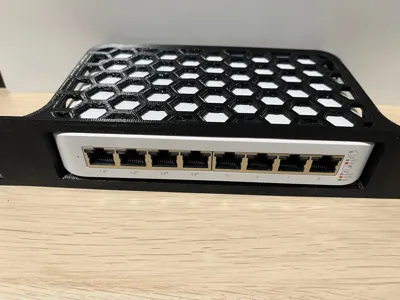

To install your switch to this mount, simply slide it in. But once you reach the rubber feet on the bottom, press the a little so they can compress and enter the mount, after that the switch should slide and will stay securely in place.

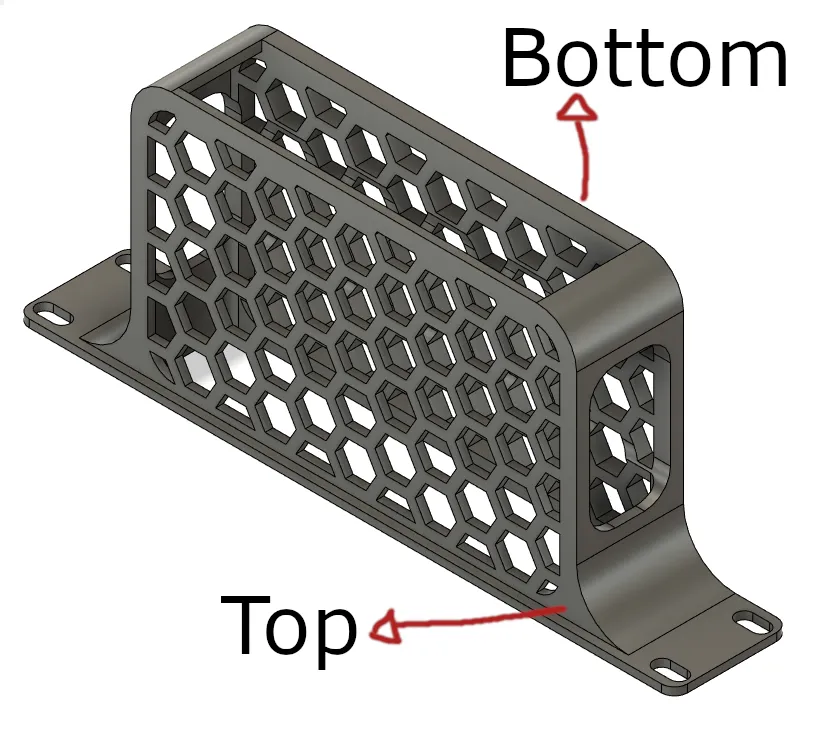

Although orientation shouldn't matter much, I made the bottom part of this mount a bit thicker, so bear that in mind when adding your switch to it.

Do you like my models? Consider buying me a coffee ;)

Print Settings

Rafts:

Doesn't Matter.

Supports:

No.

Resolution:

0.2 or 0.24

Infill:

15% or more

Filament:

PLA+/PETG/ABS/ASA/Nylon
