Description

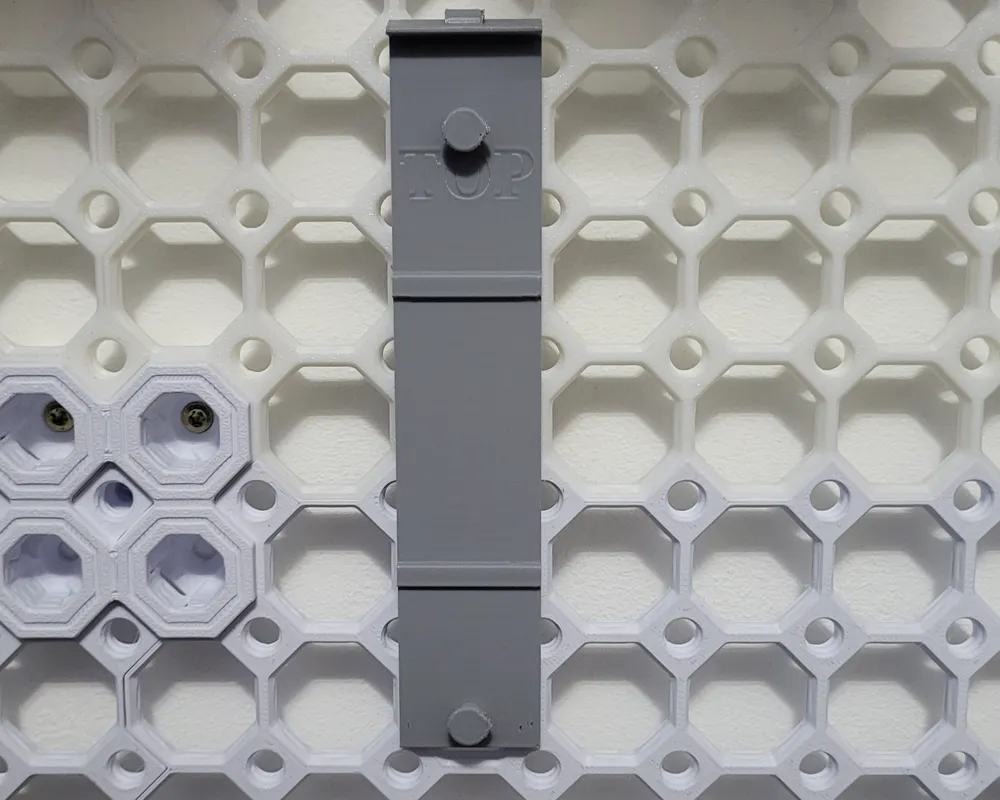

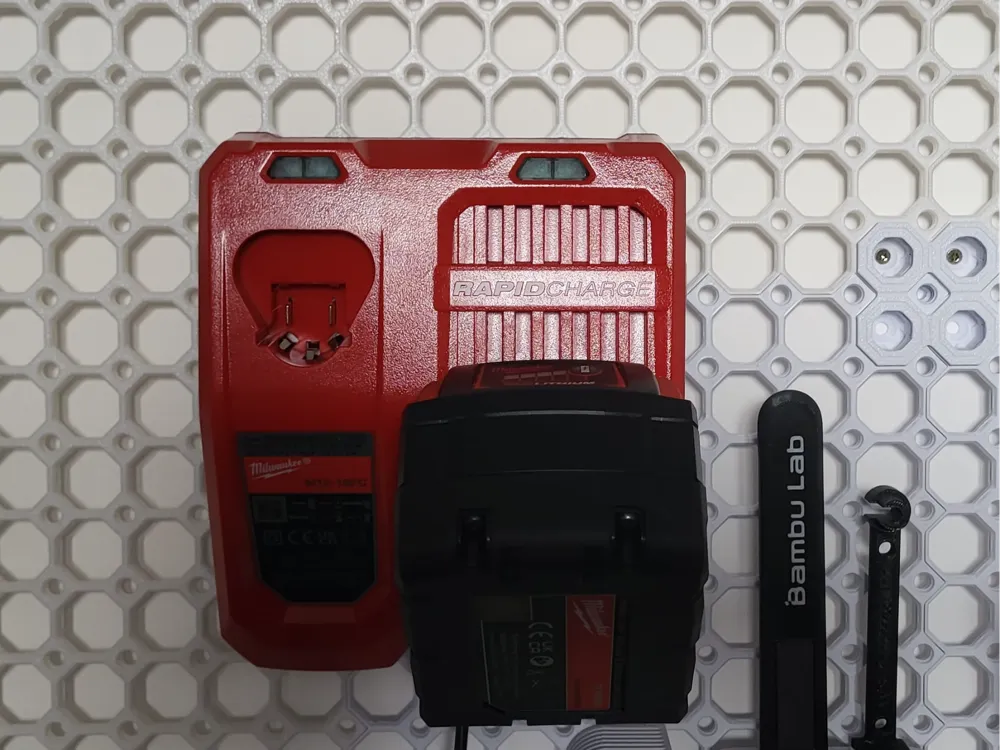

A Multiboard mount for the Milwaukee Rapid charge. this was made for model M12-18FC but should work with most if not all models.

I have also included a universe version that will work with other chargers like Dewalt.

Boost Me (for free)

If you find it useful a boost would be welcomed.

multiboard

multiboard accessory

multiboard attachment

milwakee

charger and battery organiser

Comment & Rating (18)

@Grugzer

the rapid charger fits snug but a regular one is just slightly smaller. I fixed it coming off the mount when you remove a battery with double sided tape. However the flat part of the stud that connects to the charger is too thin. one of them folded when I put a 8ah battery on the charger and fell down.

The designer has replied

@StarBuck_BSG

thanks for the feedback the heavy weight of a battery was always going to be and issue which is why the print is orientated side ways. But with the pin needing to be thin to fit its an issue. Maybe i can put a small hole in the back so a M2 screw can be put in to the center of the pins to provide the need strength to support weight of a battery with out it bending.

@Jkenway

Doesn't quite fit the M12-18FC, the bottom rib on the mount clashes with charger. I removed the rib on the charger but the mount wont clip over the top. Needs modifications.

The designer has replied

@StarBuck_BSG

Interesting it must have been modified. is it a new one ore older? feel free to modify the model and upload a print profile or if you send over the measurements i will make a new variant when i get a chance.

@user_928255873

Too loose of a fit to use, bummer as was so excited for this. Charger does not “snap” in and is pulled off with the battery, the lip on the top does not help with retention. looking forward to version 2 so it can be used! Thank you for your efforts on this, it’s a perfect tool for a lot of us.

@evolintent

Print Profile

0.2mm layer, 2 walls, 15% infill

moves alot when you put batteries on and off

@Ceritops

Mine fits fine, but it is wobbly. The mounts broke as soon as I tried to put the battery on it (petg).

@user_2231705276

top lip doesn't line up. And regardless, because it's only supported in the center it tips side to side when you touch it. I'd only use a design like this if you're being very stingy with filament.

@4192

Print Profile

0.2mm layer, 2 walls, 15% infill

@Mrdude11

Print Profile

0.2mm layer, 2 walls, 15% infill

@Whiskeyjack

Print Profile

0.2mm layer, 2 walls, 15% infill

@Matteo44

Print Profile

0.2mm layer, 2 walls, 15% infill
