Description

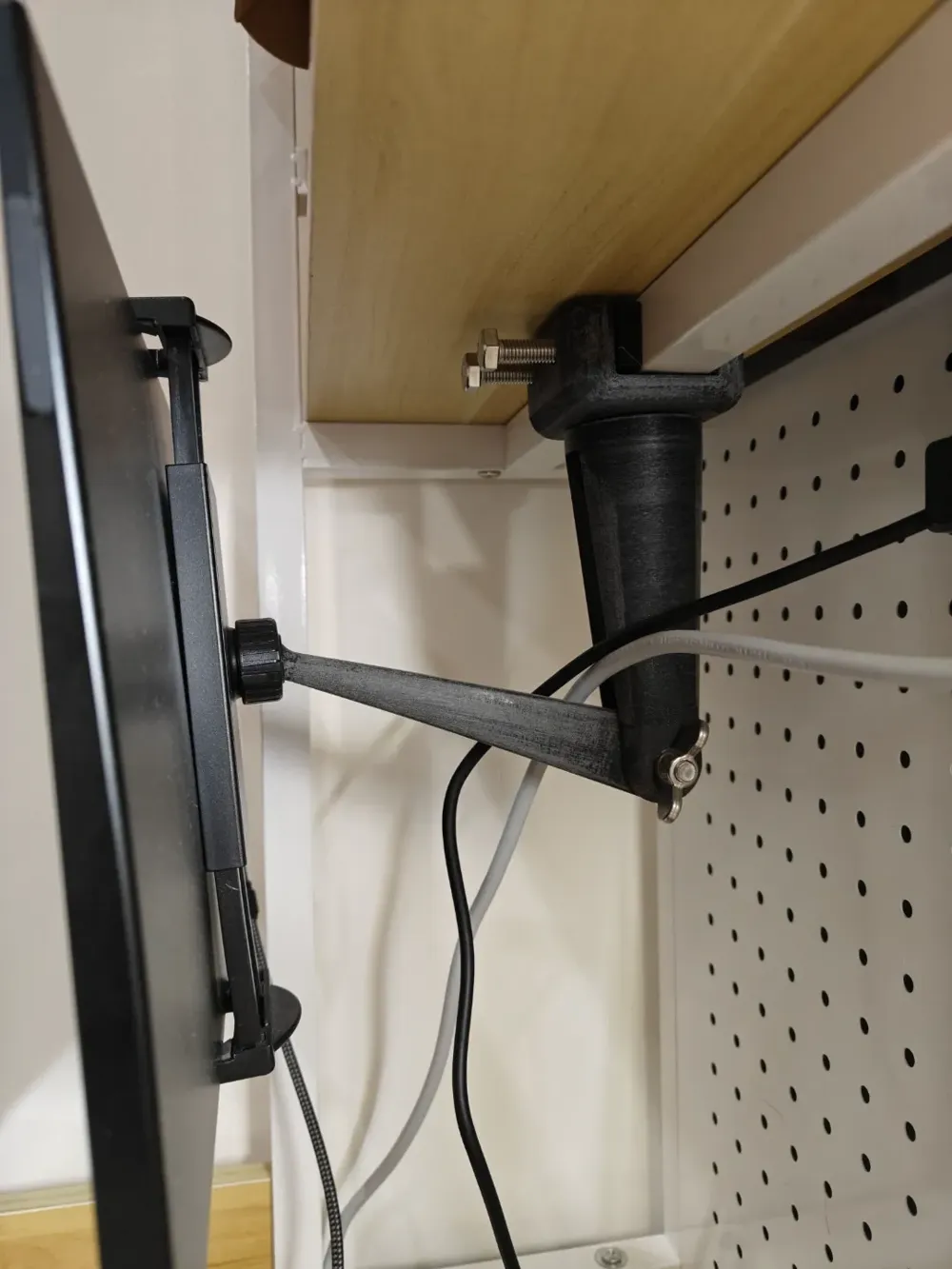

An inversed mount for small screens like portable monitors, adjustable angle, can be clipped upside down on the beam of the desk or cabinet, without taking up desk space.

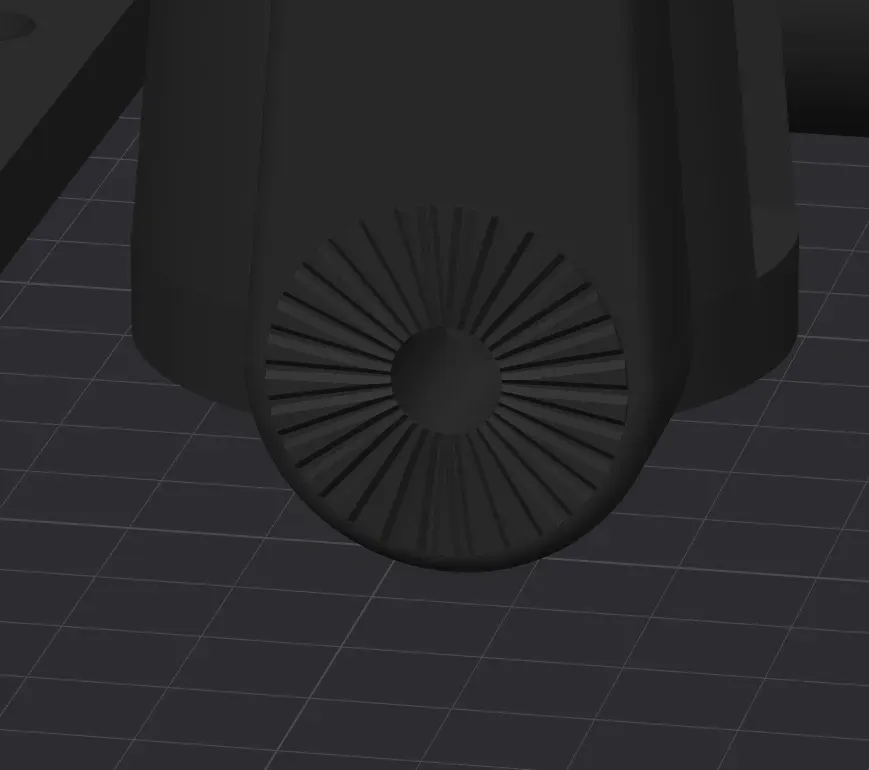

The pitch axis is designed with a gear meshing structure, which will not shake when the bolt is tightened.
If the friction of the clamp is not enough, consider sticking double-sided tape, or use TPU printed pads.
Other Parts:
M8*40mm Hex Socket Head Bolt x4
M8 Nut x2
M8 Nut x2
M2.5*40mm Dowel Pin x1 (optional, used to insert into the hole on the ball head, strengthen the connection between the ball head and the bracket, can also be replaced with a similar screw)

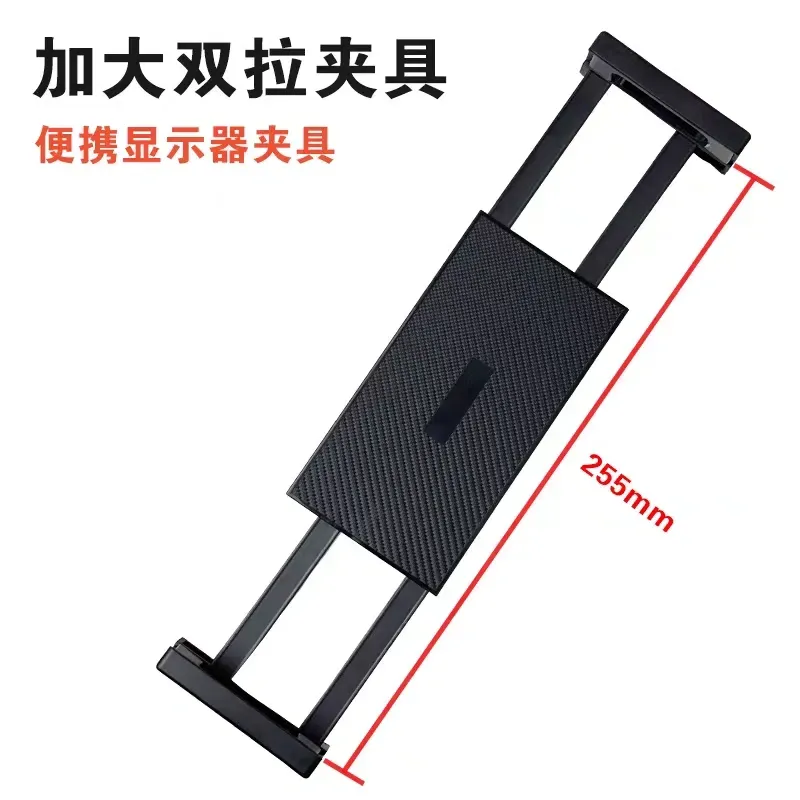

Finished portable screen clip (price about 20 yuan)
