Unifi USW-Lite-16 PoE 19-inch Modular Rack Mount

A modular, 2-part, 19-inch rack mount for the Ubiquiti Unifi USW-Lite-16 PoE.

This mount is part of a 19-inch modular rack mount system I designed, you can mix and match the modules with other mounts. Take a look at my models here to find out the other 19-inch mount modules.

Do you like my models? Consider buying me a coffee ;)

Parts

• 3x M5 screws (Min size: 12mm, recommended size: 16mm).
• 3x M5 hex nuts.
• M4x10 for the back cover.

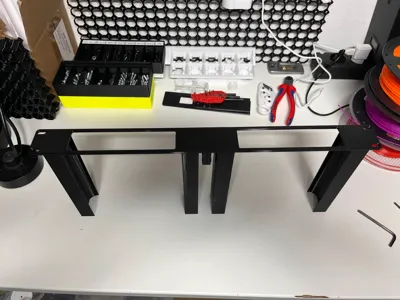

Assembly

OBS.: The modules used in this tutorial are only for illustration purposes, and I'm using it for the whole series. It might not reflect the models you download at this page.

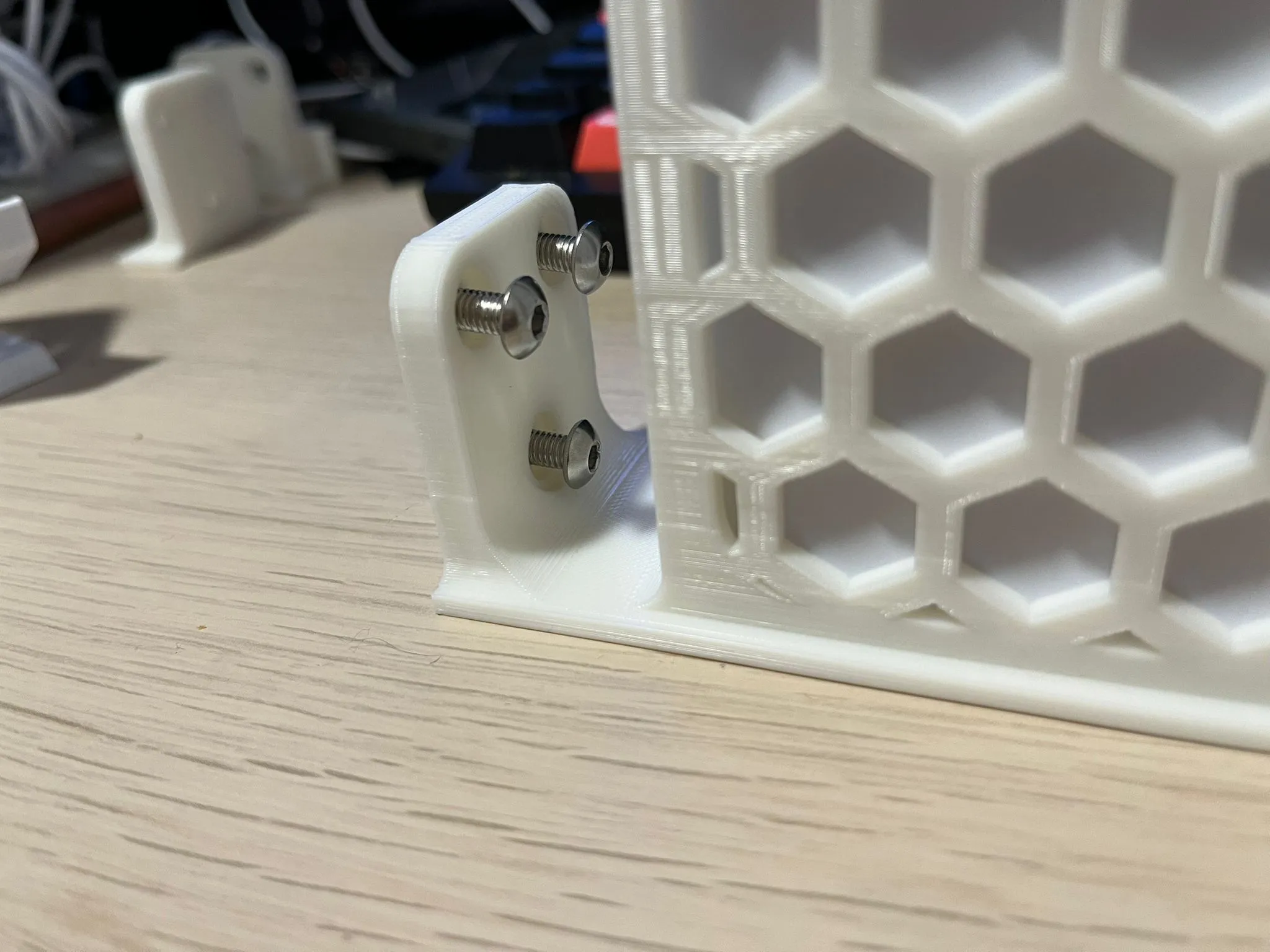

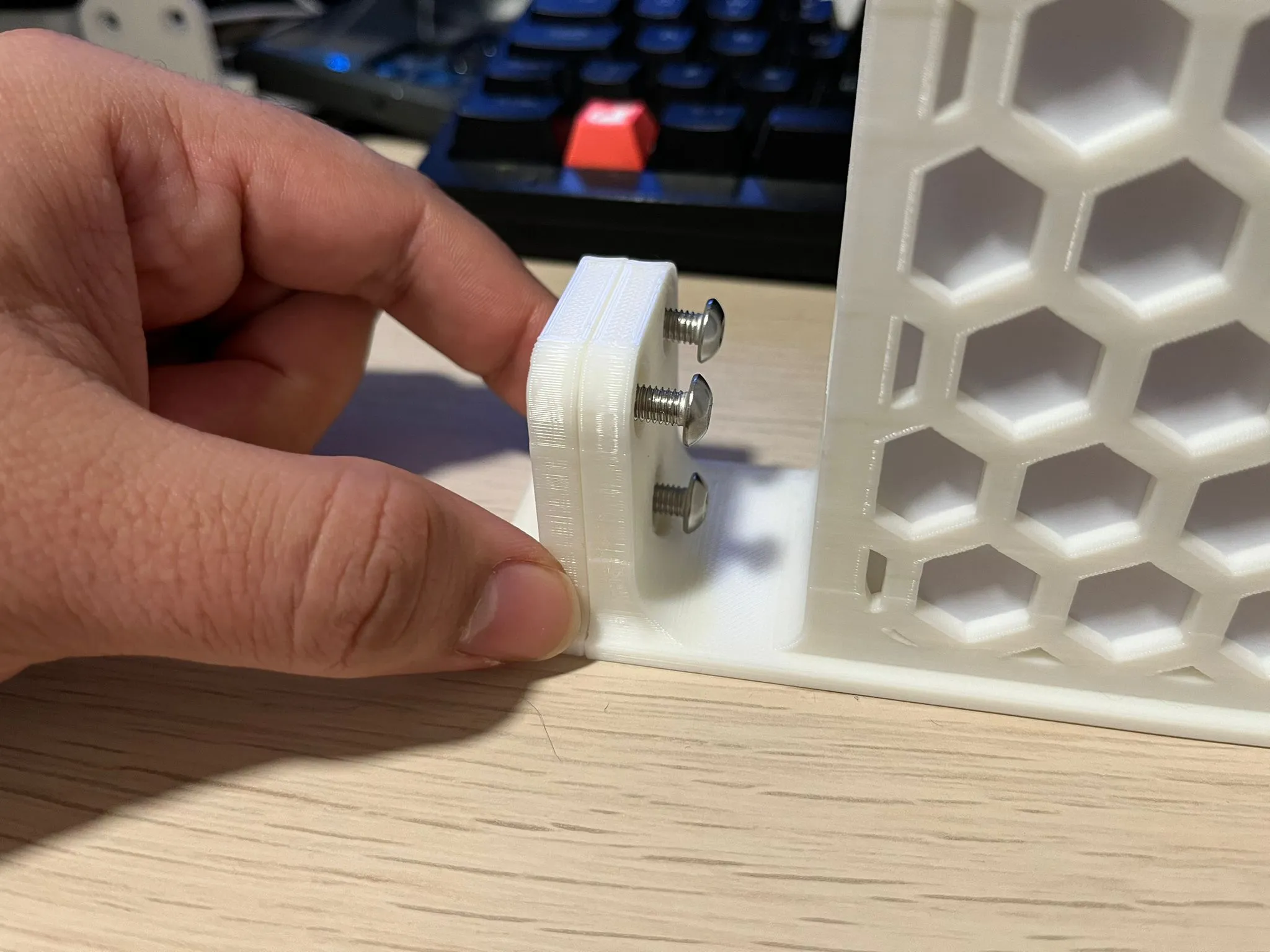

• To assemble the parts, insert the 3 screws into the Right module.

• Then align it with the Left module.

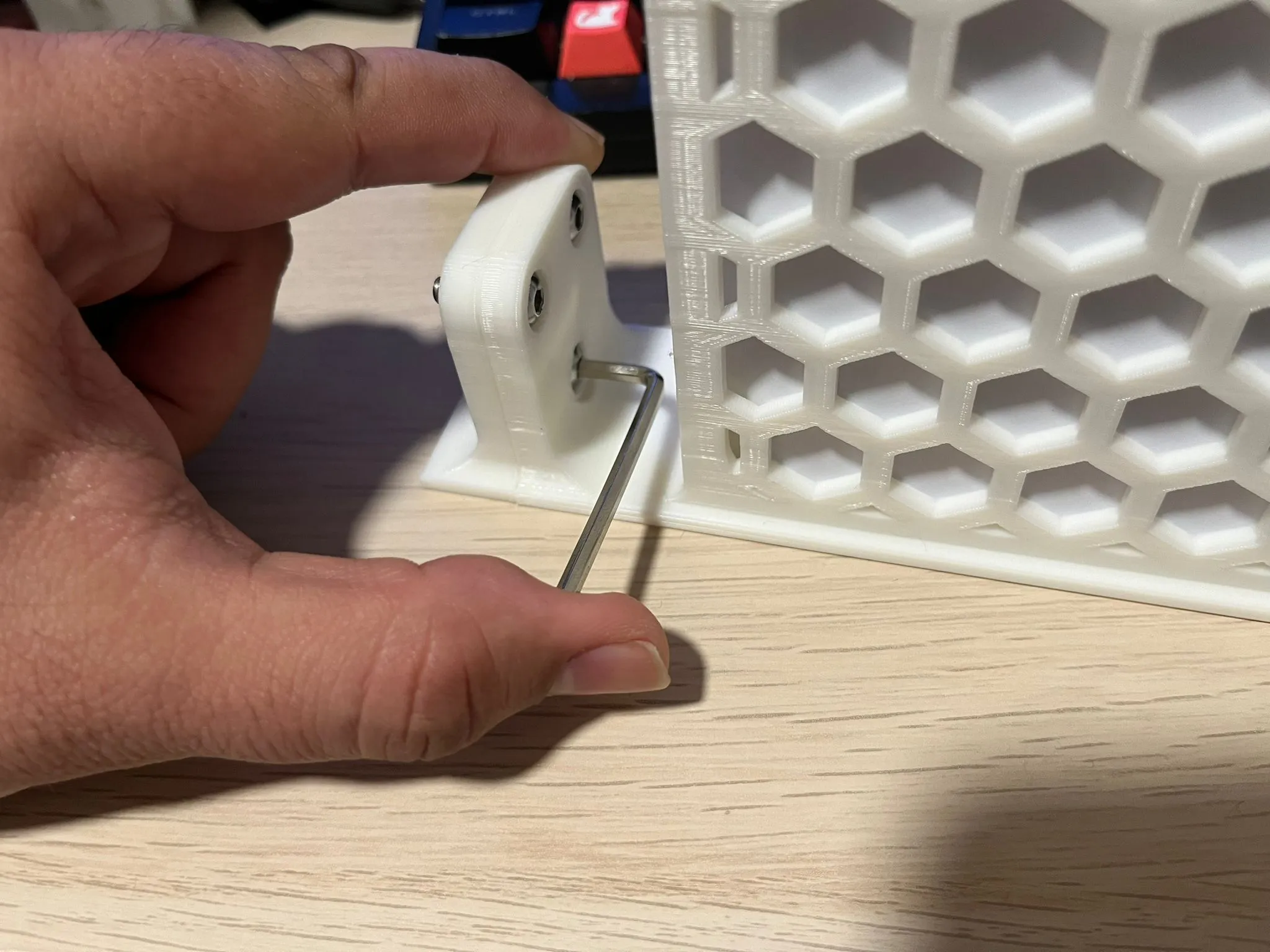

• After that, insert the hex nuts in the screws, and using a screwdriver or Allen key.

• Tighten the screws until you start feeling resistance and the nuts are securely into place. After that, you can install the mount in your rack.

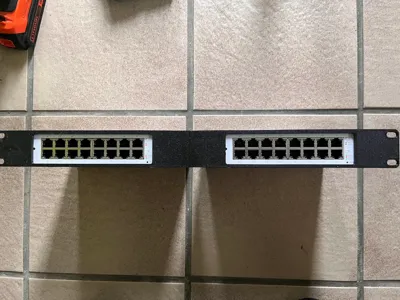

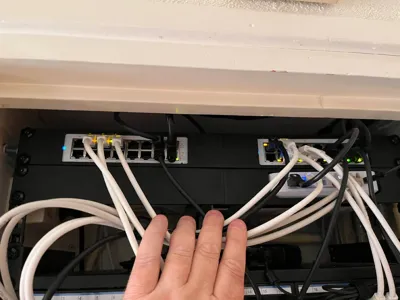

Installing the switch

To install your switch to this mount, simply slide it in from the back. Then, screw the back cover using the M4 screws to secure the switch in place.

Print Settings

Rafts:

Doesn't Matter.

Supports:

No.

Resolution:

0.2 or 0.24

Walls/Perimeters:

At least 3. Better with 4.

Infill:

25% or more

Filament:

PLA+/PETG/ABS/ASA/Nylon
