Description

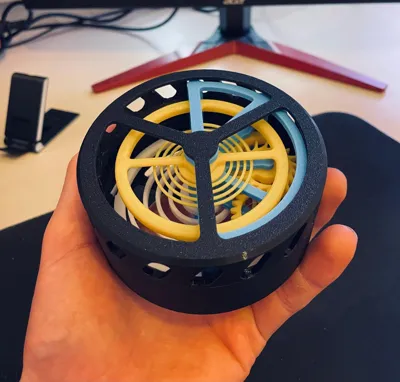

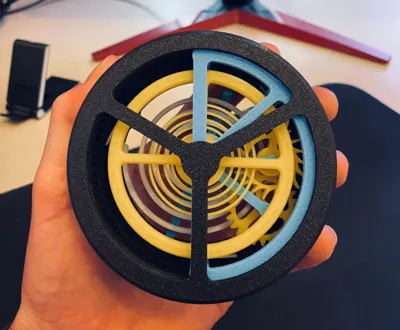

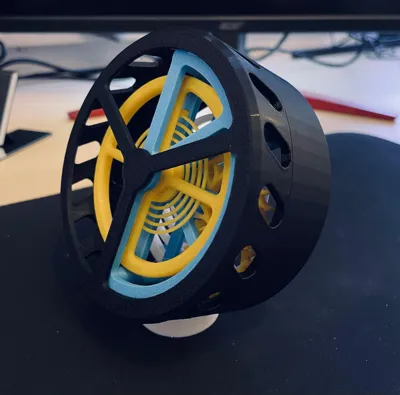

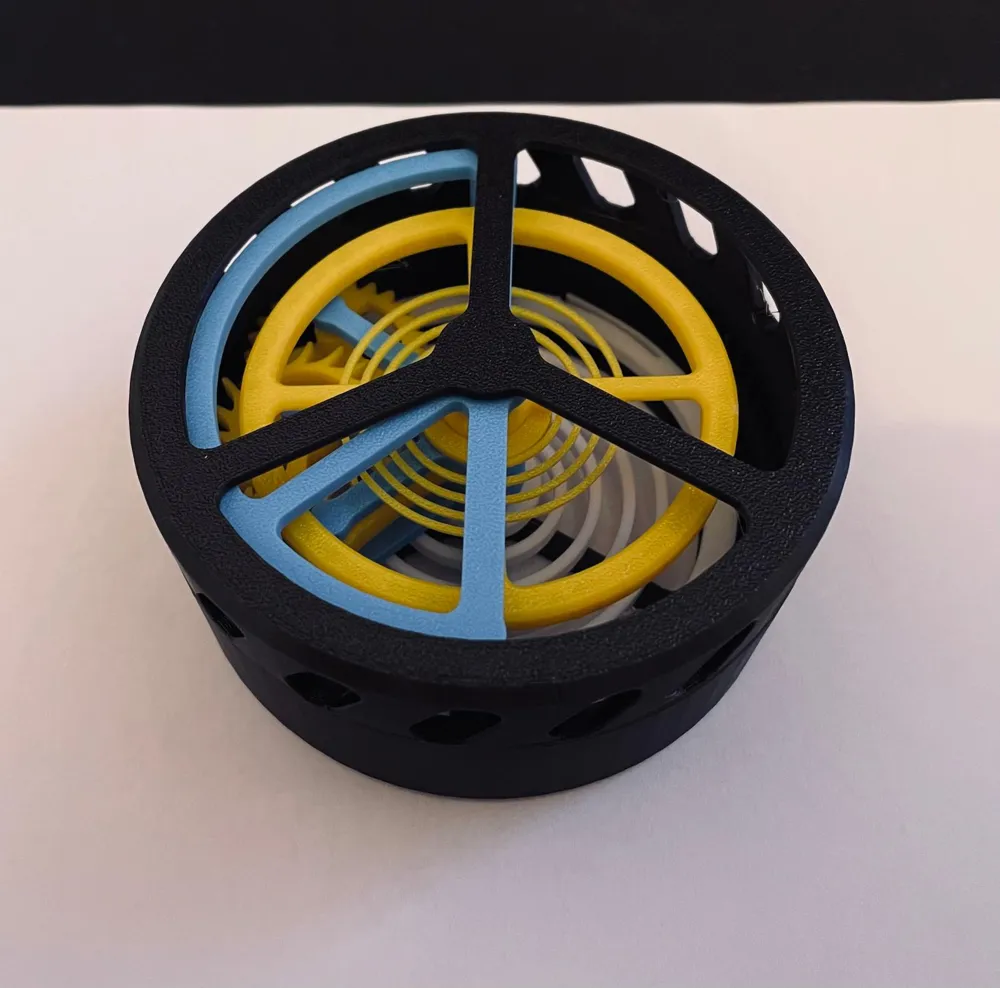

I created this model based off the Swiss Lever escapement mechanism. I wanted it to be fun to play with and interesting to watch, it is housed in a case so that it is easy to handle.
No extra components are required!
No glue! Click in place!
Post Processing:

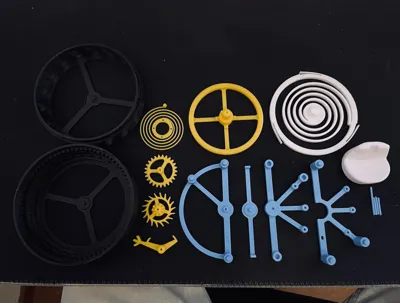

Holes for these components need to be drilled out using a 2mm drill bit (pallet fork, gear, escapement wheel, flywheel)
I tried my best not to use this method, but unfortunately I could not get the tolerances tight enough :(
Note: Drill slowly or else the plastic will melt and the drill bit will get stuck!
Assembly:

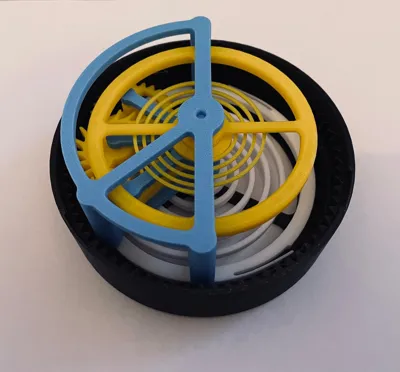

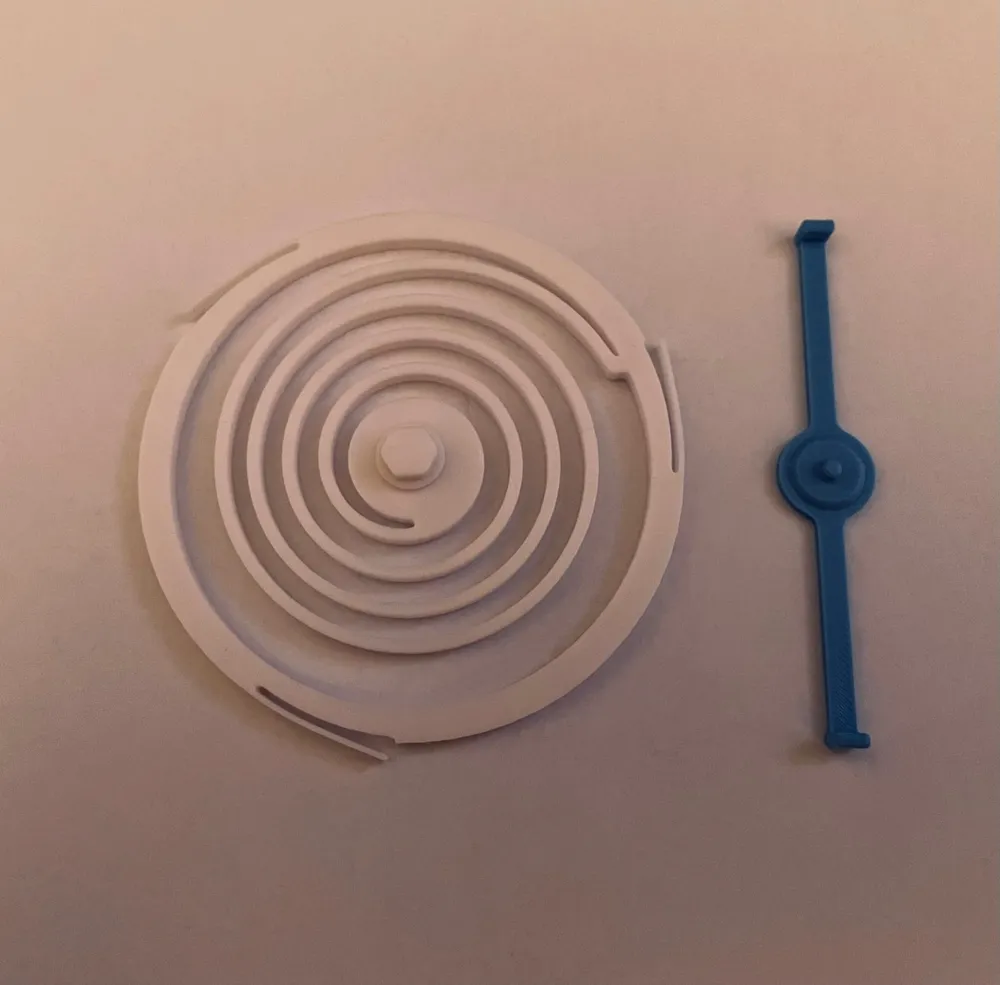

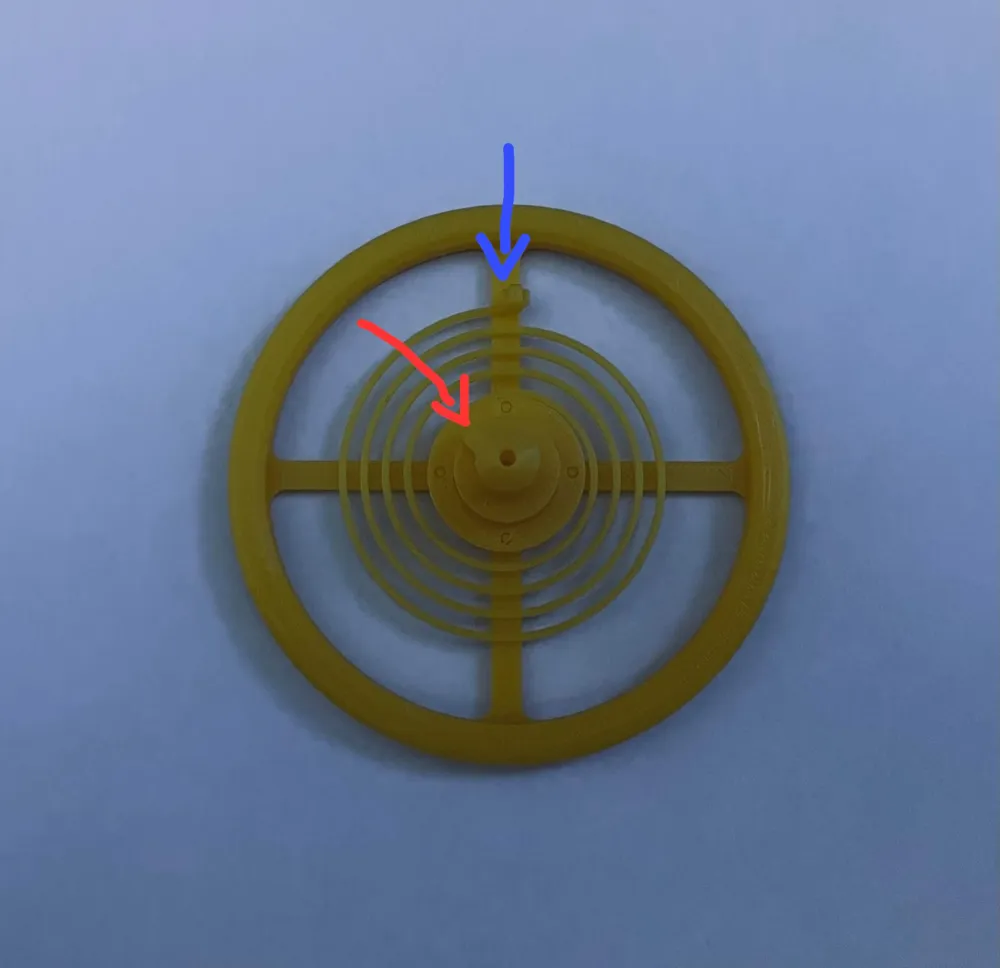

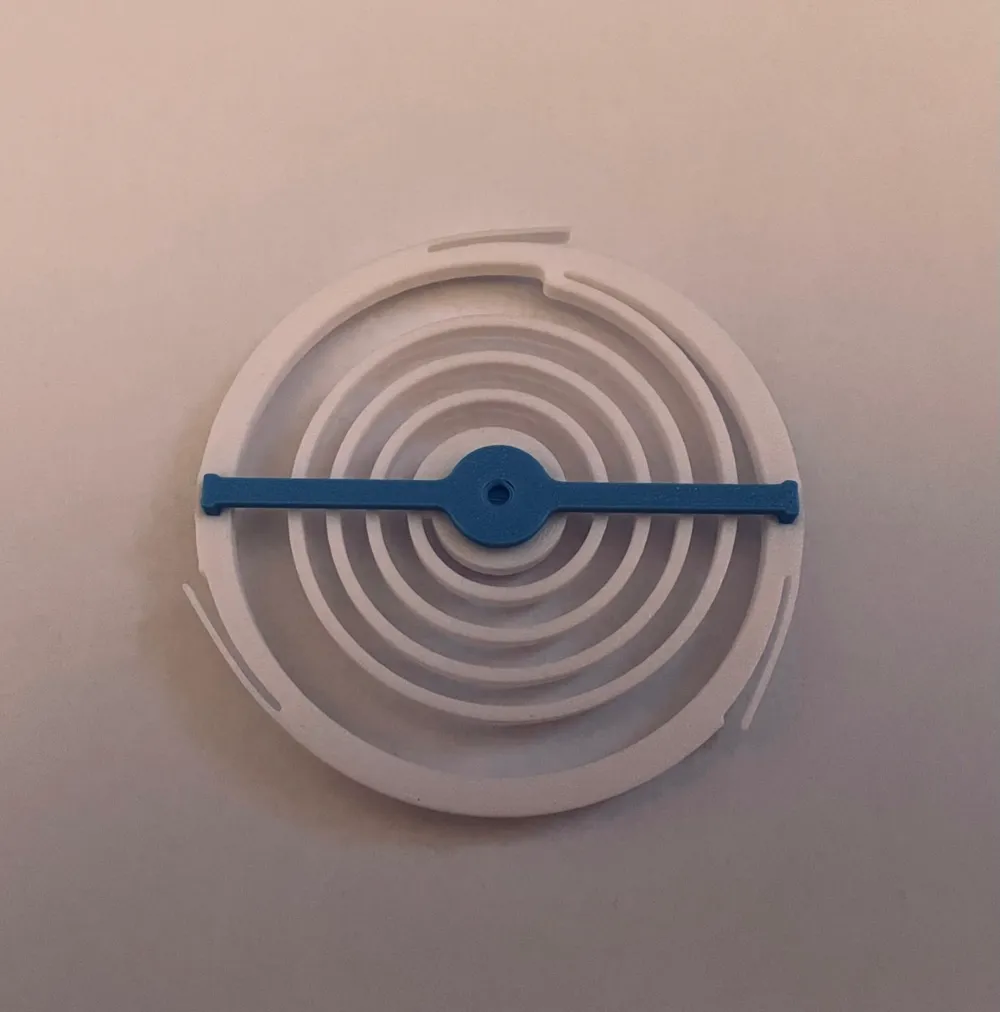

I have added step-by-step images to guide you through the assembly process.
Cut 3x 16mm and 1x 25mm filament pieces for the axles.
Enjoy ;)
