Skoda Fabia 1 (1999 - 2007) phone holder dashboard

Skoda Fabia 1 (1999 - 2007) phone holder on dashboard

Diameter of the ball is 17mm

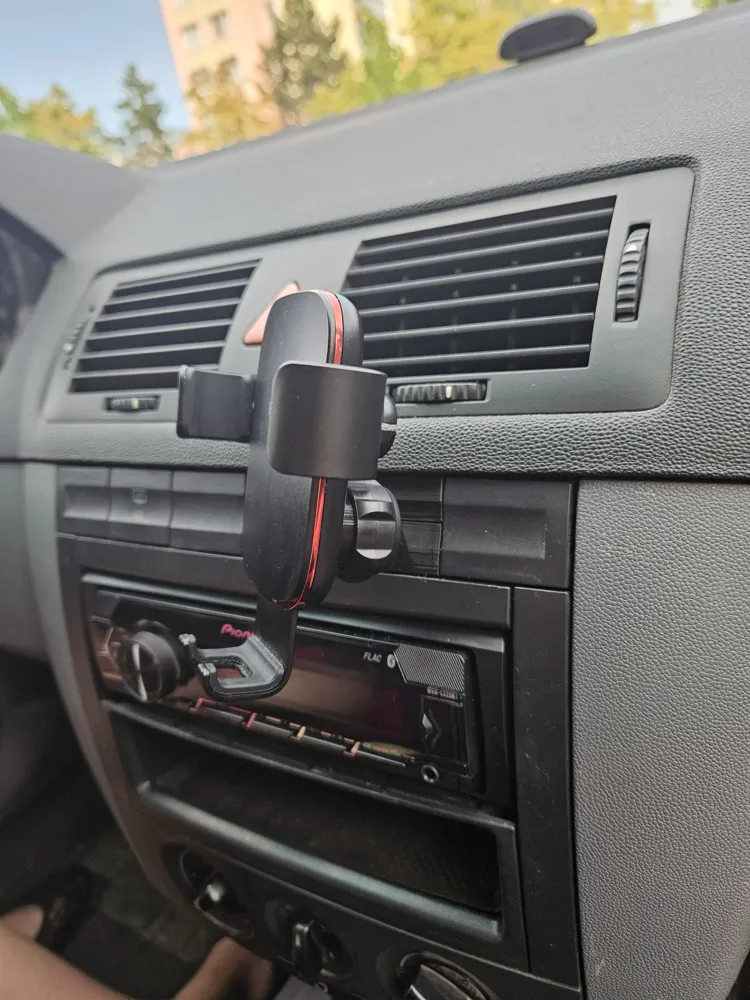

I used the Baseus Car Phone Holder from Aliexpress as the holder itself https://s.click.aliexpress.com/e/_DBAMS11

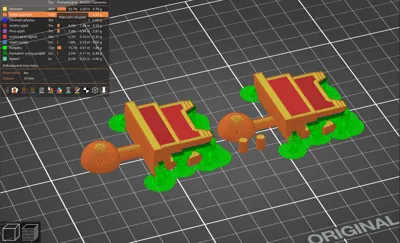

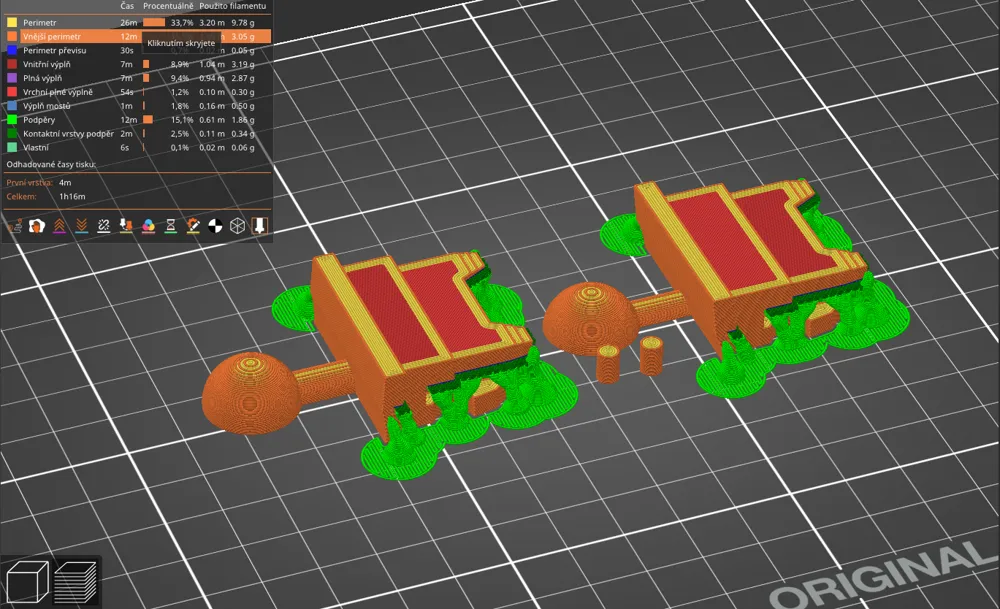

It is necessary to print the model split in half and use supports. It is also a good idea to use the connectors for the connections generated in PrusaSlicer.

I didn't model the nut, but I used the original one supplied with the Baseus holder. I modeled and glued a new thread to the Baseus holder to move it higher so that the phone would not hang in front of the car radio.

Material: PETG

Layer: 0.2

Infill: 30%

Perimeters: 5

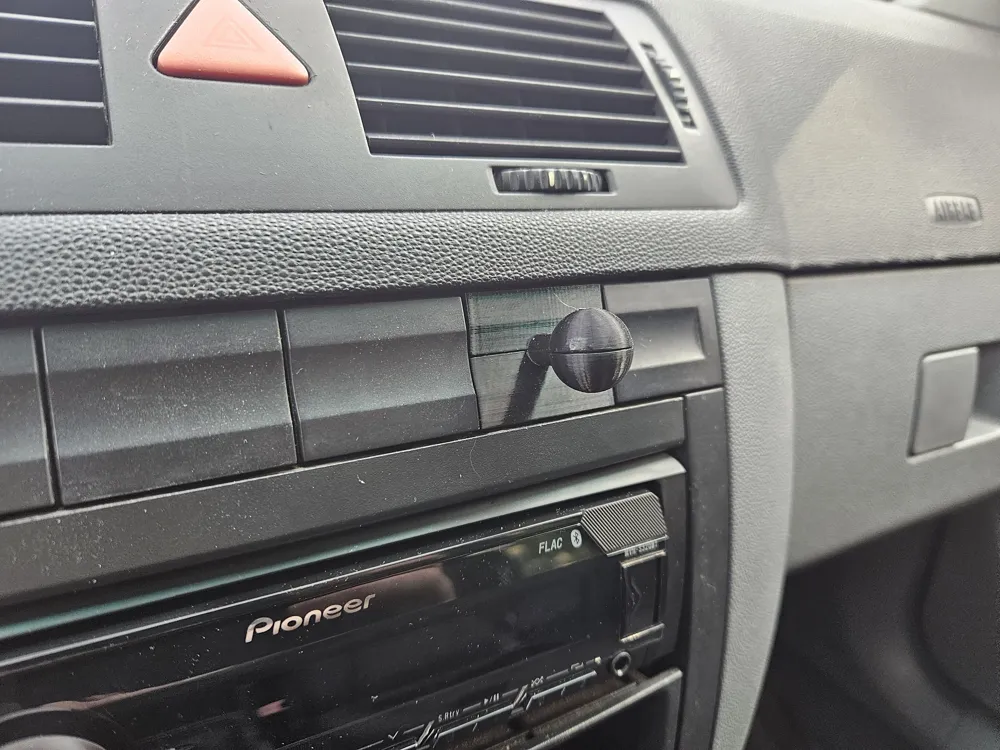

You need to use a bit of force to insert it into the dashboard, but it holds really tight ;)
