Rugged box for soldering iron
IP Report
Print Profile(2)
0.12mm layer, 2 walls, 15% infill
19.6 h
3 plates
0.12mm layer, 2 walls, 15% infill - only lid with img
8.8 h
1 plate
Open in Bambu Studio
Boost
84
188
21
8
304
97
Released
Description

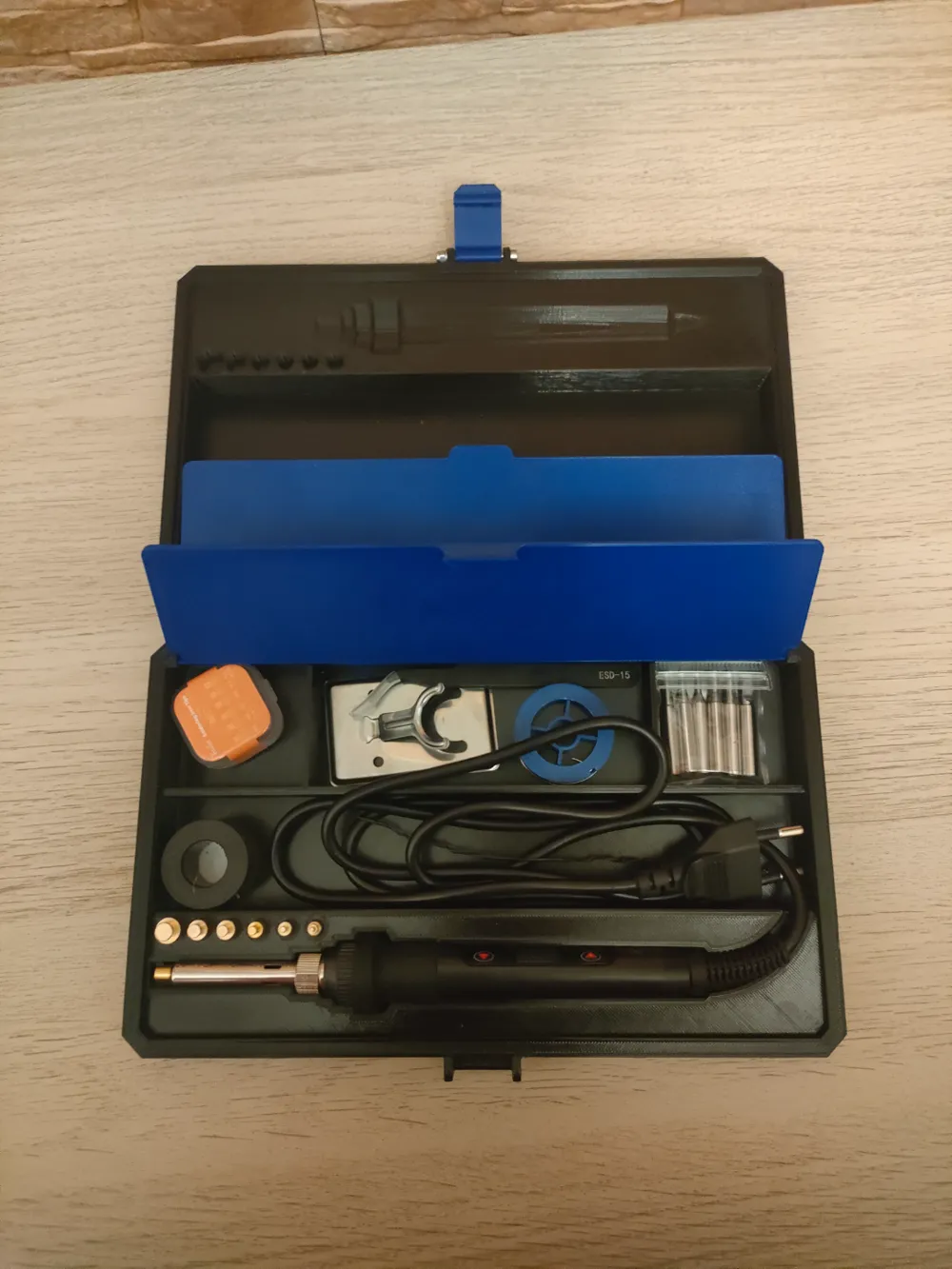

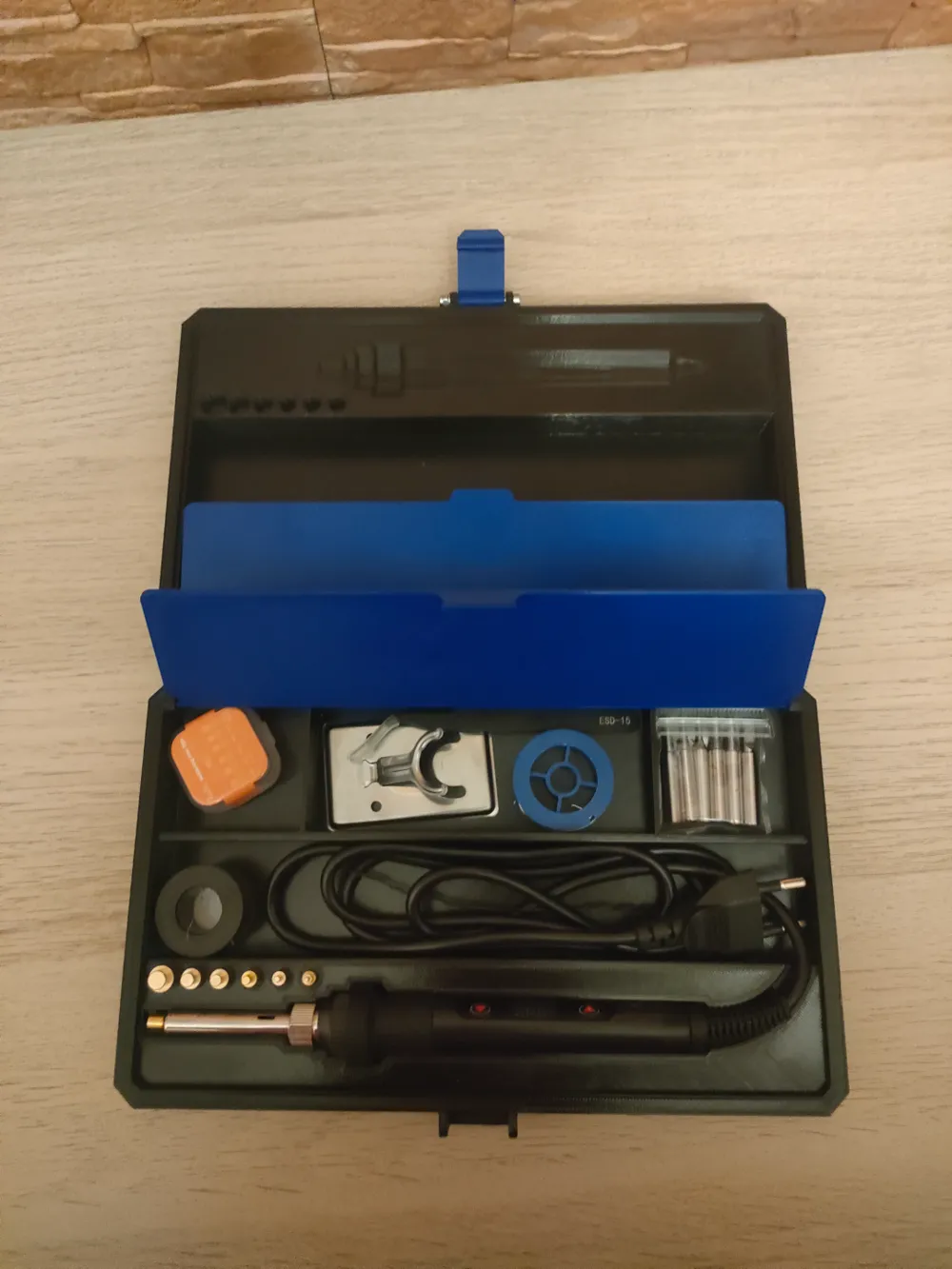

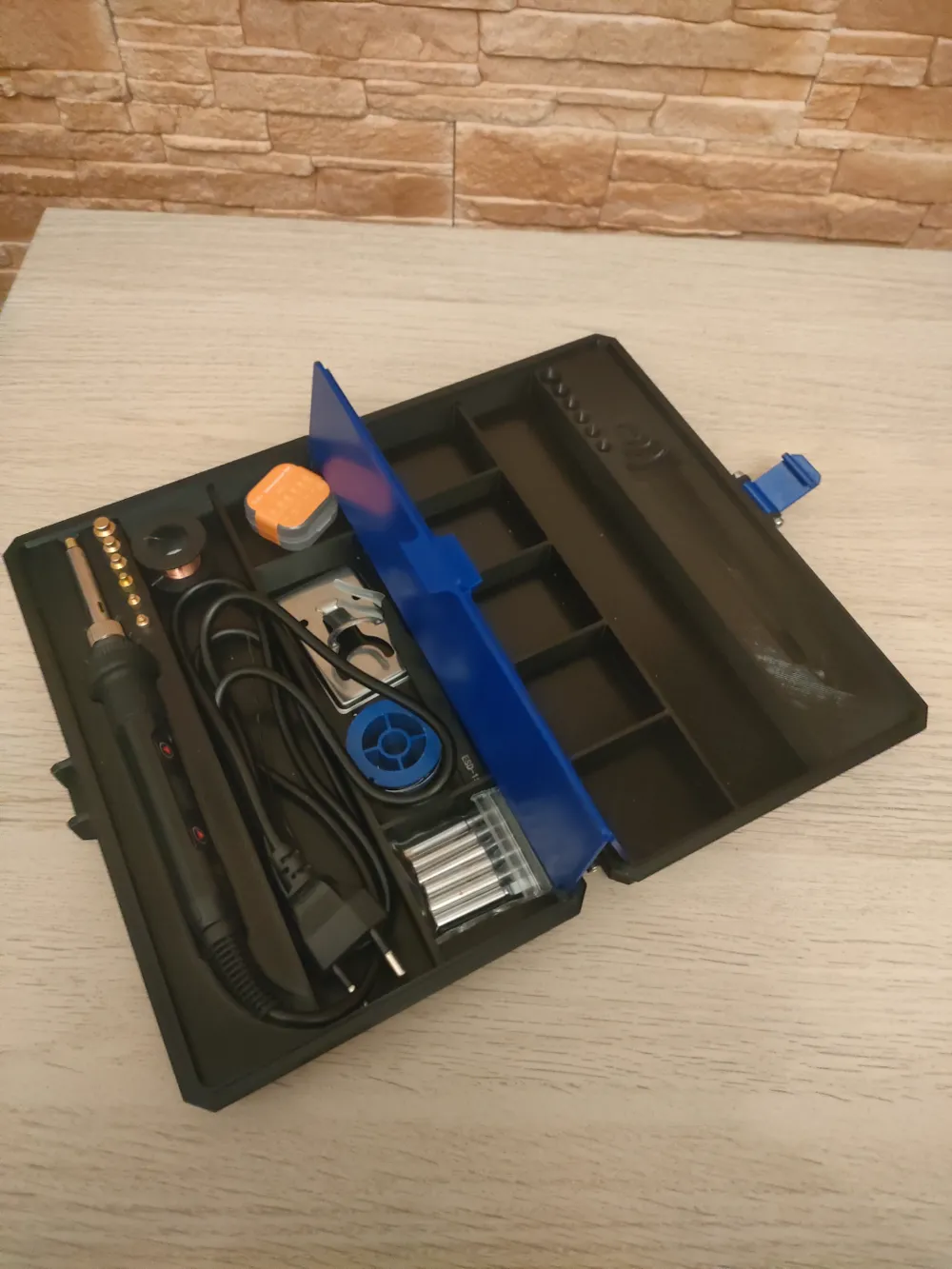

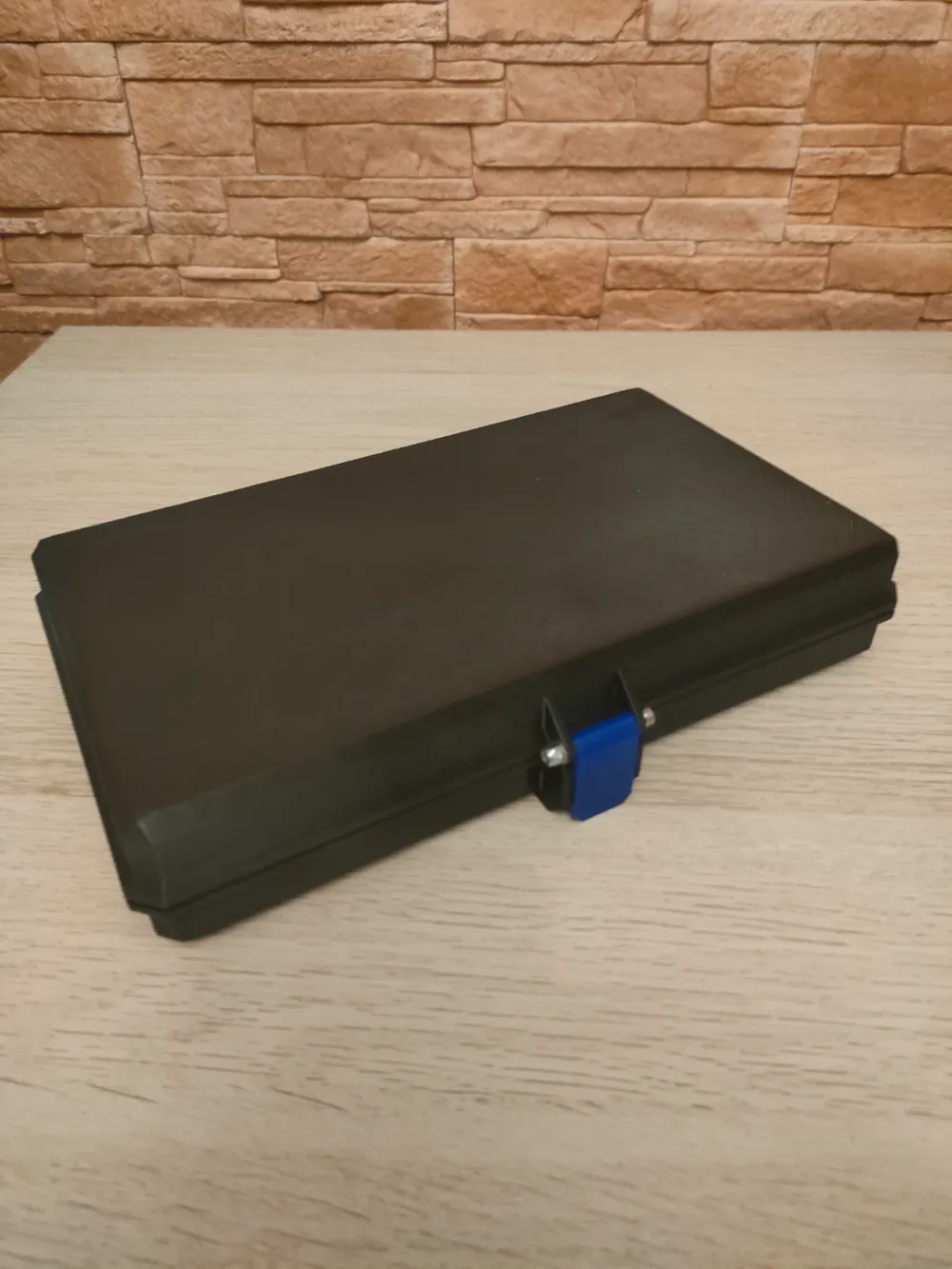

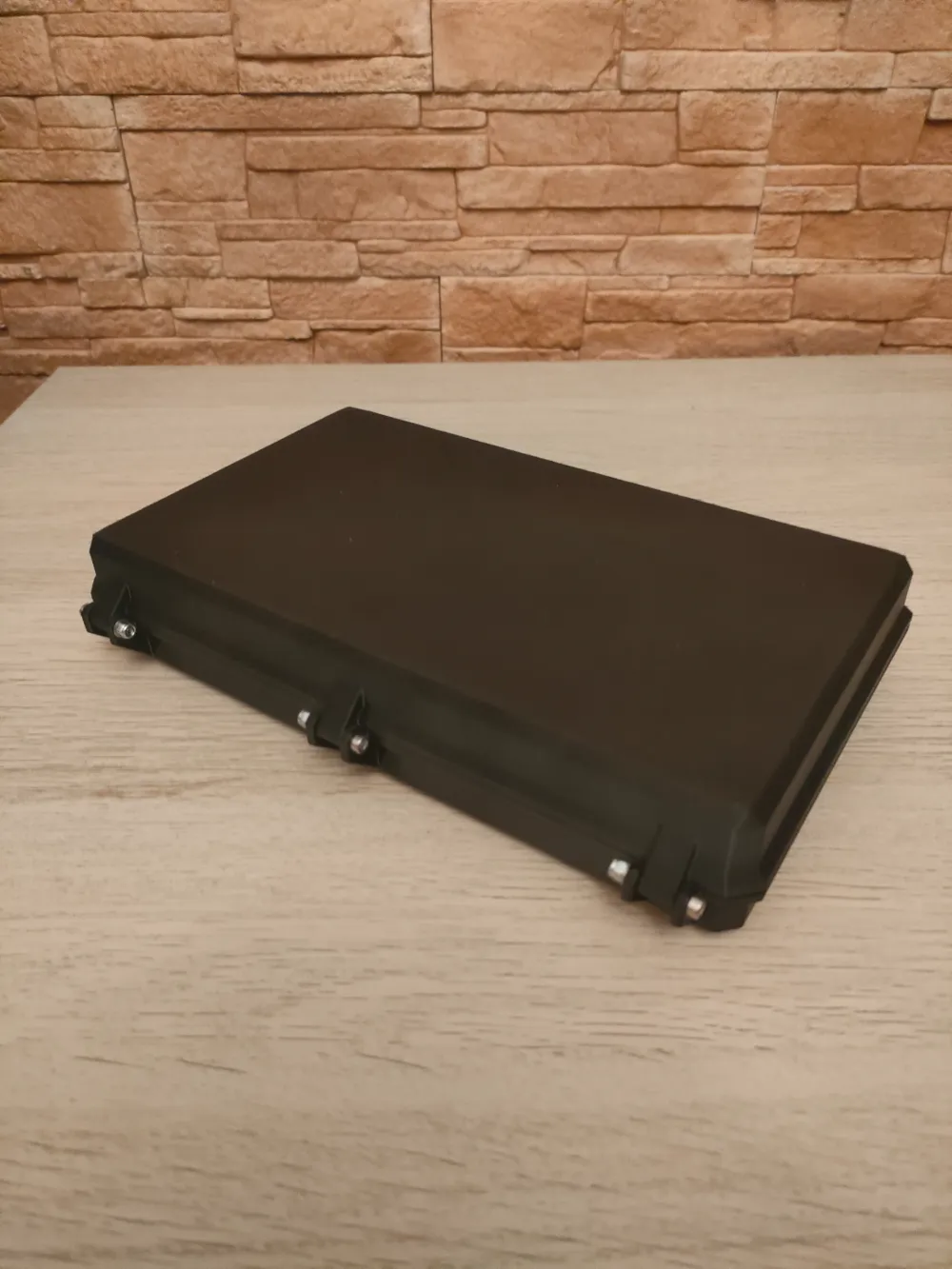

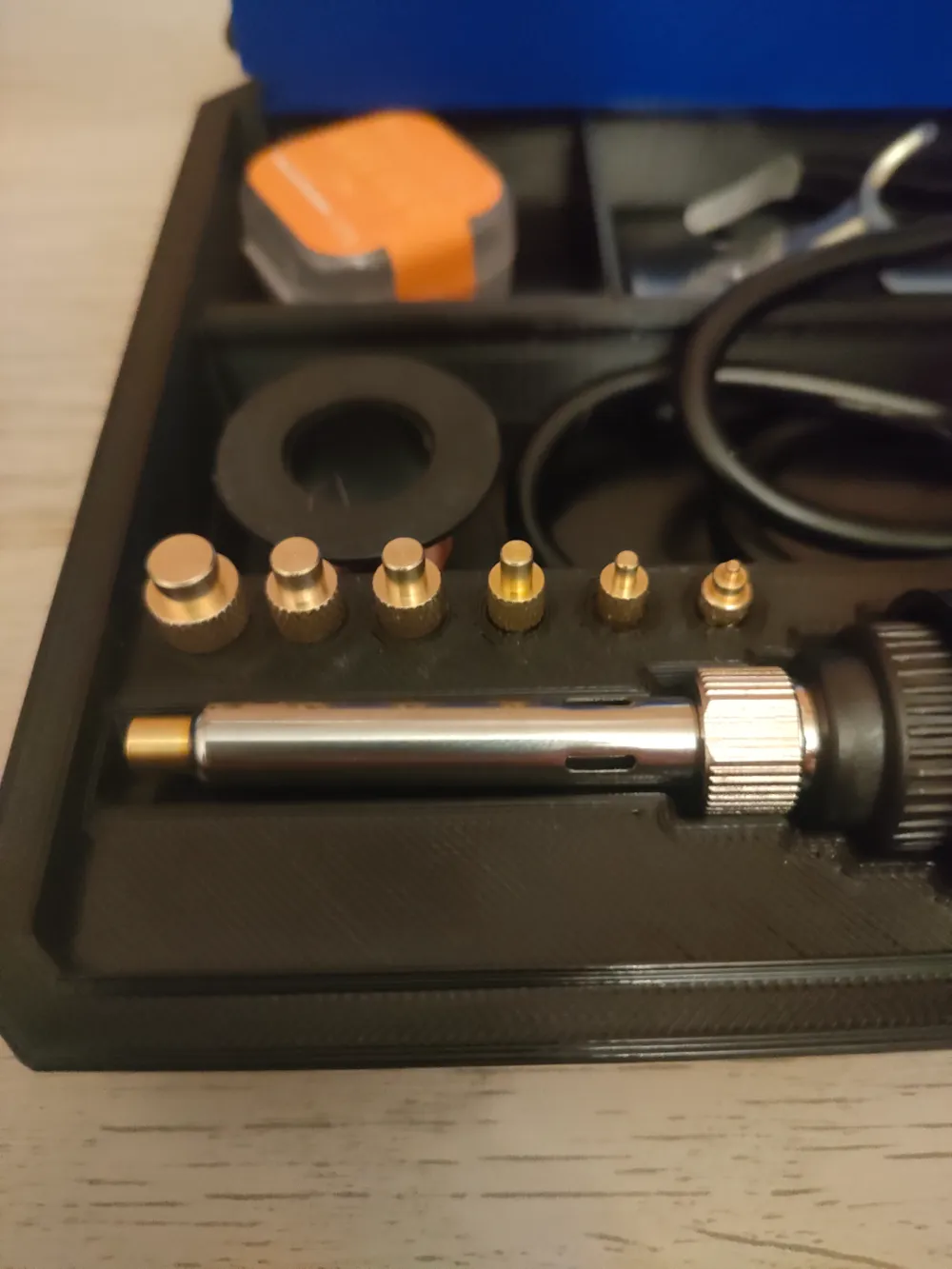

Rugged soldering iron case with additional internal containers with covers.
Holes for threaded inserts are slightly smaller and inserts fit tight and should be screwed with base without tap just by hand.

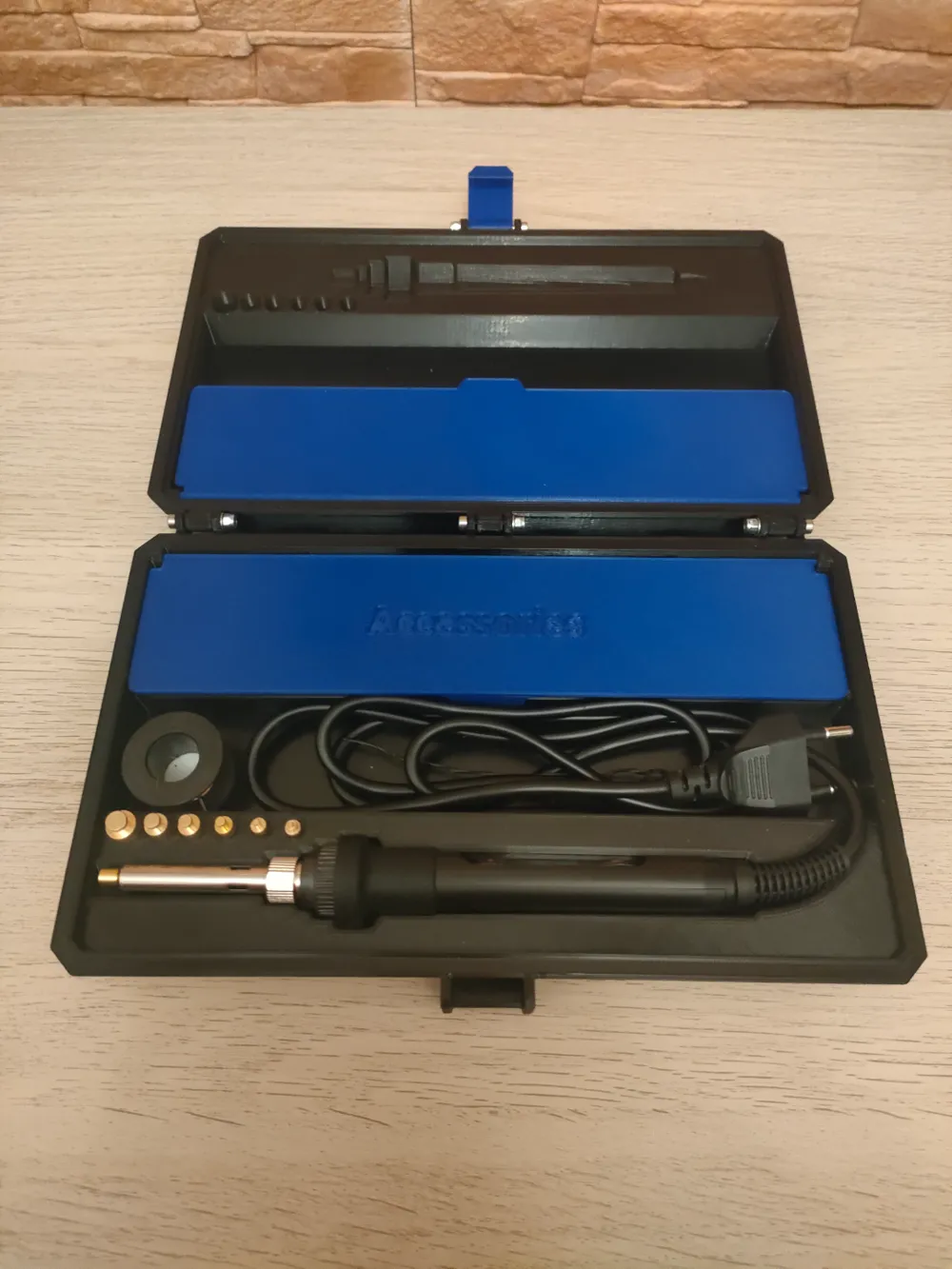

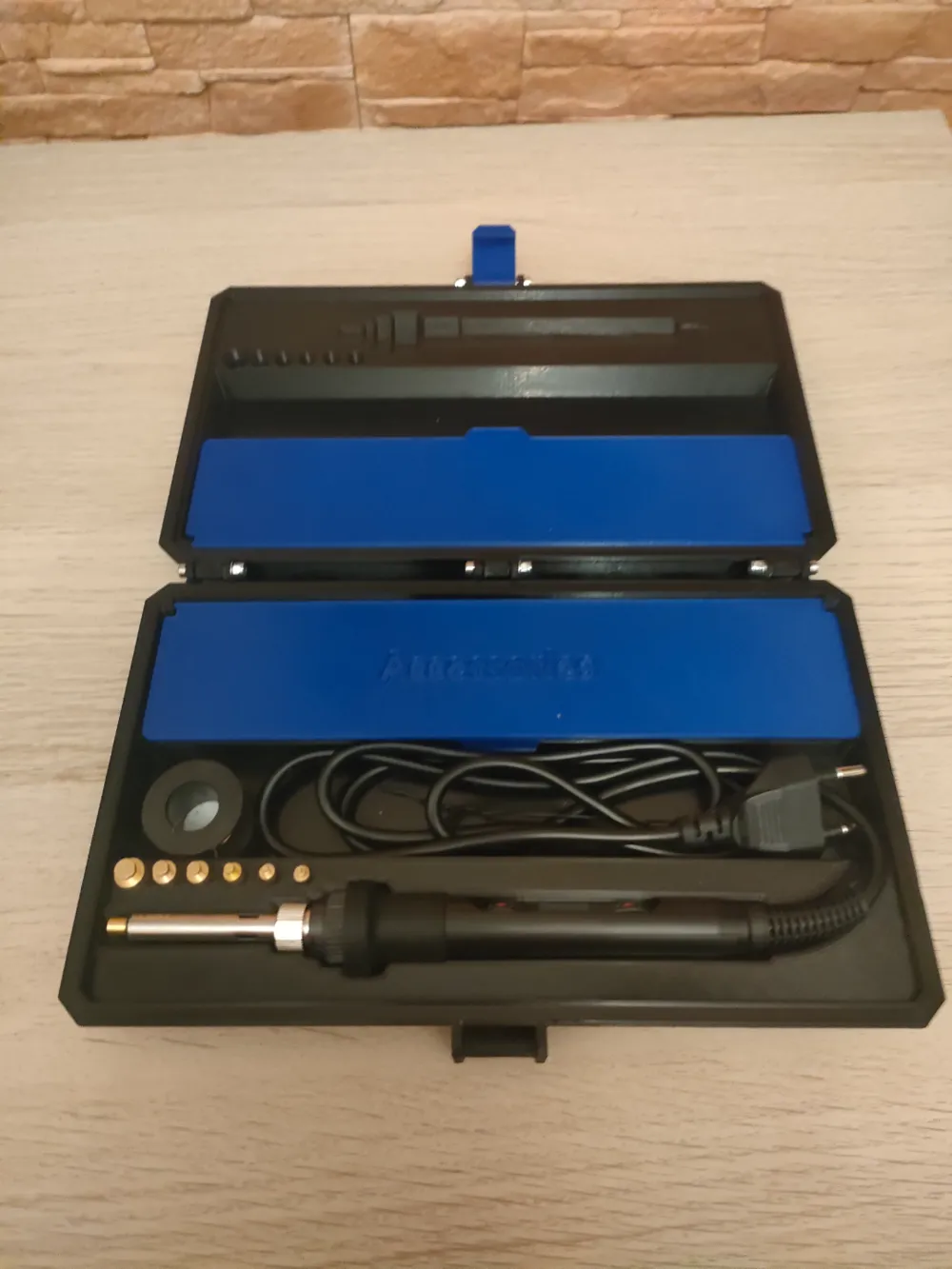

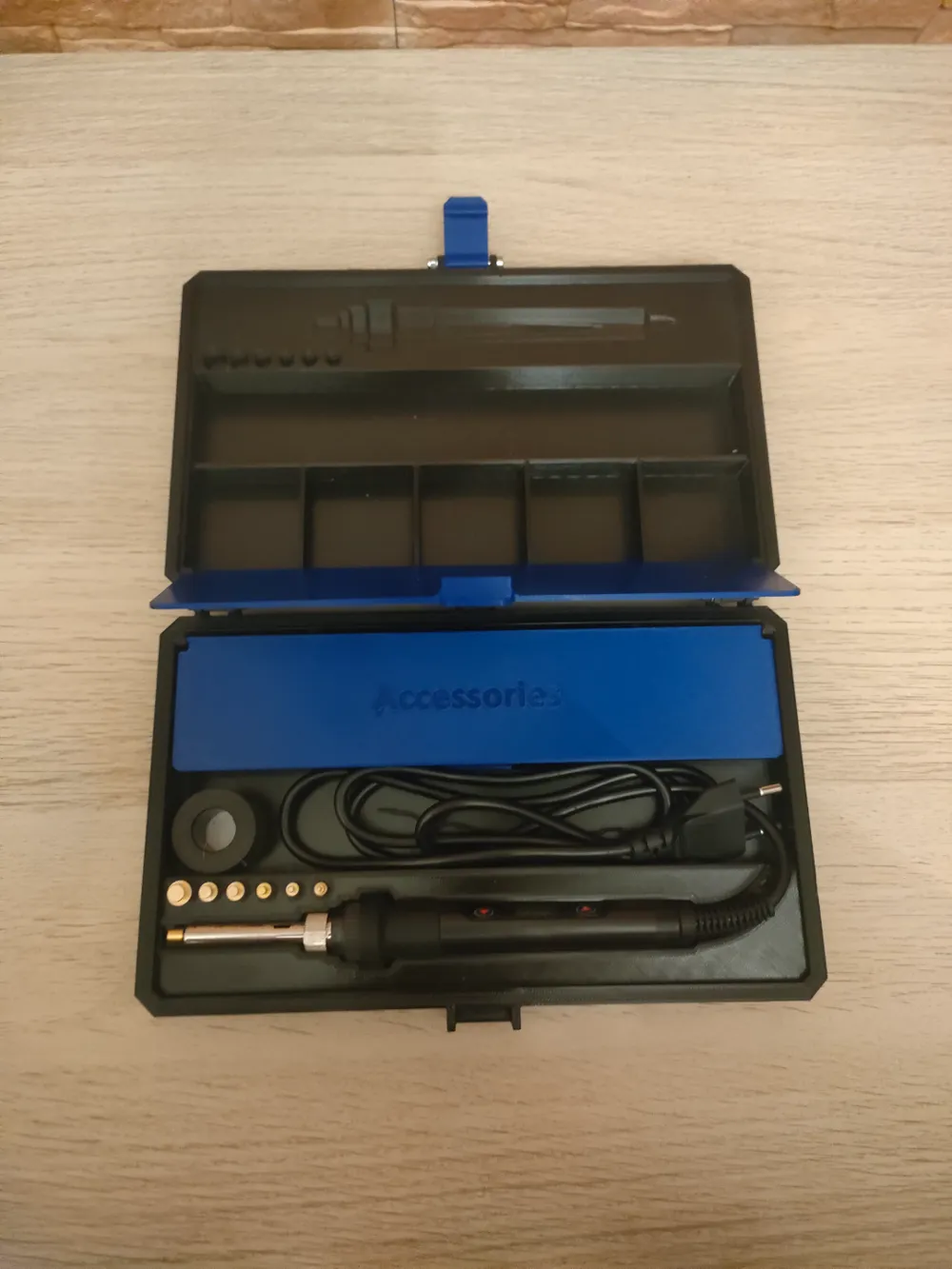

Two internal lids are needed -1198-4
Link for soldering iron:
https://pl.aliexpress.com/item/1005005610255110.html?spm=a2g0o.order_list.order_list_main.17.27cf1c24YaOiJG&gatewayAdapt=glo2pol
Fasteners:
-3x M3x20mm Socket Head Screw
-1x M3x30mm Socket Head Screw
-4x M3 Nylock nut ( or normal )
-4x M3 washer.
Material:
PLA, PETG, ABS, etc.
Layer high:
0,3 or lower
Supports needed - in base for latch.
