Joint inside - 0.2mm layer, 6 walls, 55% infill

Designer

2.4 h

1 plate

4.6(25)

joint outside - 0.2mm layer, 6 walls, 55% infill

Designer

3.2 h

1 plate

4.3(3)

Open in Bambu Studio

Boost

104

229

807

554

Released

Description

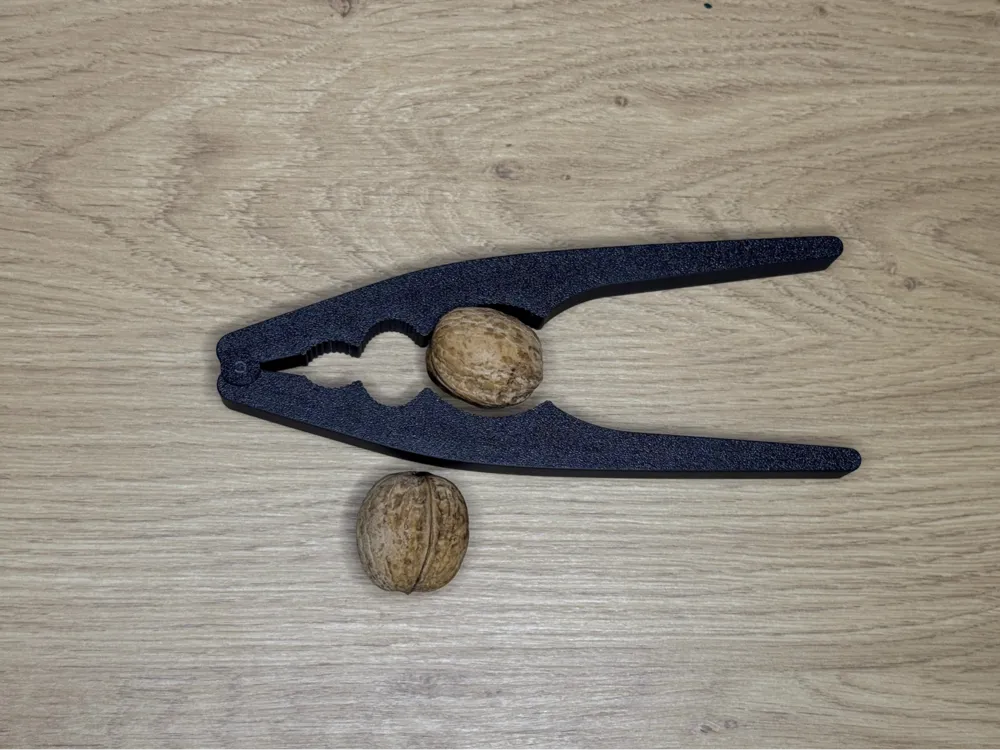

A gripper style nutcracker with a print-in-place hinge.
Works very well, easy print and no hassle break-free.

Please don't use the old print profiles anymore! Use the new ones!

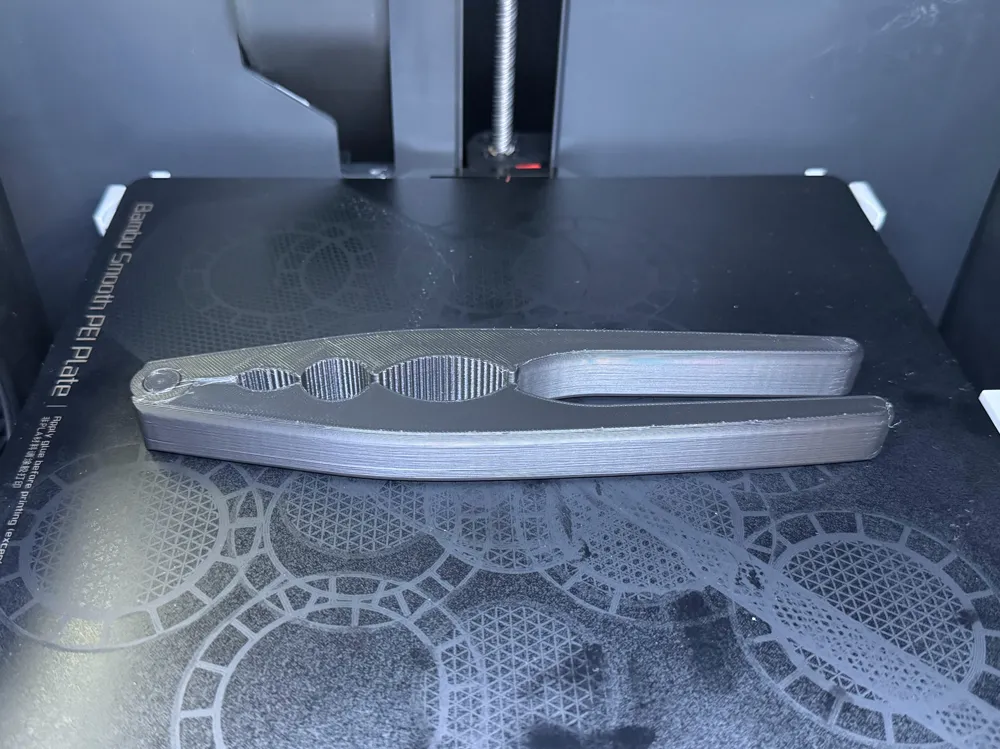

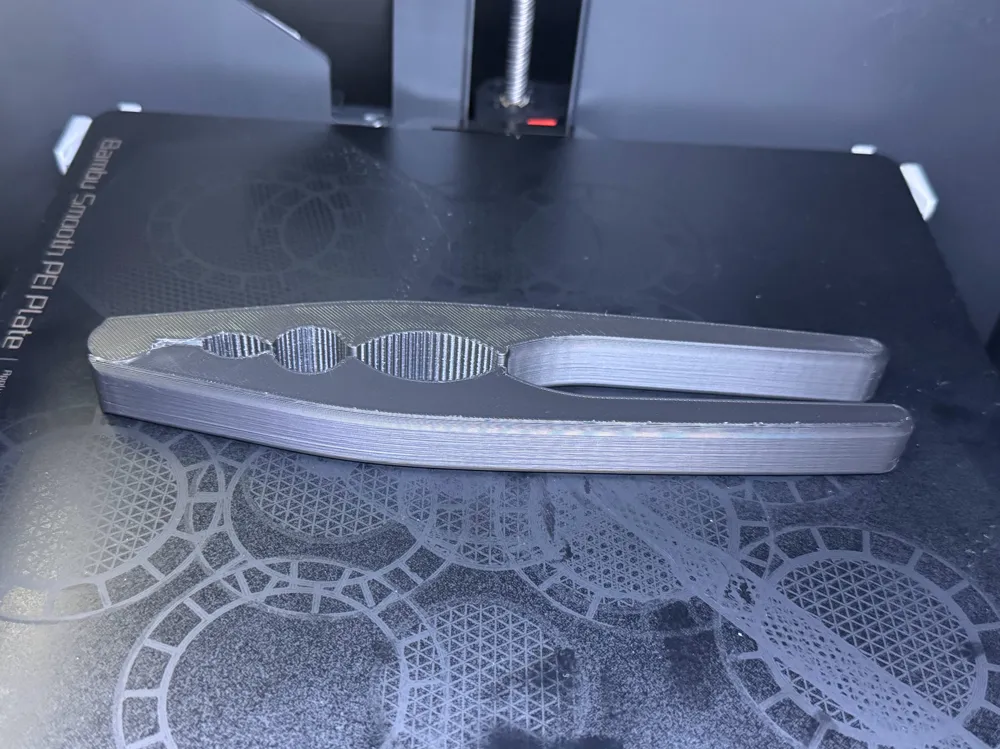

2025-03-27: I uploaded new print profiles, one with a joint inside and
another with an joint outside. Both joints are bigger and has little more play.
First it is easier to break free and it is more robust. The grip was also made a little bit
thicker on the end. With PLA-CF it has few flex.

Please leave a comment, print profile rating and pictures.

Have a look on my other models.

Boost Me (for free)

If you like the model, please give it a boost!
Thank you!

Comment & Rating (75)

@user_3460234330

It didn't work but thank you

The designer has replied

@don_manfredo

Maybe try the print profile (model) with the inner joint?

@user_1000588873

Print Profile

joint outside - 0.2mm layer, 6 walls, 55% infill

Printed in PLA - 7walls. Kept flexing and totally smashing the nuts. Then I tried a different position of nuts (see the picture) and this works. I've crack-openned many hazelnuts and it keeps working, didn't break.

@Adrian1337

Boosted

Printed it with 7 walls, it is just great 👍 Thanks

The designer has replied

Show original

@don_manfredo

Vielen Dank!

@tomwpr

The print profile is no longer public

It works great! Thanks a lot! Very good design!

The profile uploader has replied

@don_manfredo

Moderate force should break it free. Therefore calibration of the printer and filament is so important. Hope it works well for you.

@Cesinek

The print profile is no longer public

Nice model, printed fine. As to the intended use, it has quite a bit of flex (printed in PLA), but it works. The edges could be a bit more rounded to be more comfortable in hand.

The profile uploader has replied

@don_manfredo

Thank you for the feedback. But it does not look broken? All critics is known. I will work on a better version as soon I have time and nuts. Then I will adress * the flex * rounding on the handle (as long no support is needed) * surface of the joint But so far I cracked a lot of nuts with that piece. I am surpriced myself it lasts that long.

(Edited)

@Liomen8

Very good model I set wall lines to 7 and a very high infill density inside the part so that it is very strong and for now it works very well

Show original

@Mfcce

Print Profile

Joint inside - 0.2mm layer, 6 walls, 55% infill

just printed perfect! thank you!!!

@user_4232735375

The print profile is no longer public

Strength Issue:Joint broke after the first use

The profile uploader has replied

@don_manfredo

Which filament did you use?

@user_4232735375

Bambulab PLA Metal

@mdsmedes

The print profile is no longer public

thanks

@Sproove

I tried it with PETG, because with such a model I assume it will not hold up during later use. 120mm/s + 85% infill = 9h print time....... I was never able to use the part because it is designed too tightly and the joint sticks together -> it broke at the joint during disassembly

(Edited)

The designer has replied

Show original

@don_manfredo

I have never printed it in PETG, nor have I ever recommended it. The text clearly states which filaments I successfully used to print the nutcracker (many, many times). After printing, the part must cool down, and then the joint can be broken free. Which one did you actually print? Joint inside or outside? The models are different - not just the names. I can upload another model with a larger clearance.

(Edited)

Show original

@Sproove

Replying to @don_manfredo :

I had printed it with "joint outside". Thank you for the offer of more clearance, but you don't need to do that for me anymore. As a proof of concept model, it is quite interesting, but I don't want to invest any more material and energy and will simply buy a nutcracker in the 1-€ shop

Show original

@don_manfredo

Replying to @Sproove :

I didn't have a nutcracker over the weekend. Therefore, it was intended as a makeshift solution, which has proven to be practical. I will adjust and upload this in the next few days... and of course print it

Show original
