Folding Display Stand / Easel

Print in place folding display stand easel

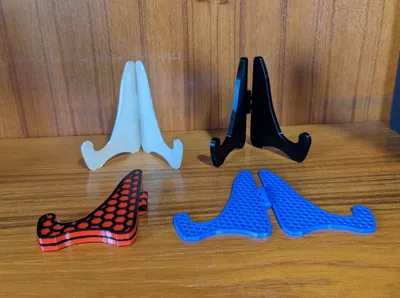

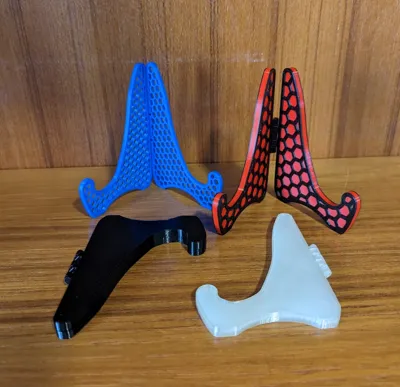

Files include the solid display stand, a thinner model, and one with a 2 sided honeycomb pattern good for color change. The stands can be folded flat in half when not in use.

The solid and hex have 5mm sides, while the thin option is 3mm. For a solid thin model, you can use 8 and 7 solid layers on the top and bottom. They can also be printed with zero top and bottom layers with your choice of infill and density for different design options.

They work well to display light pictures or displays. They could be used as a phone holder, or small tablet horizontally. They can work for a variety of things as long as they are not too tall and top heavy.

The print in place hinge has a fairly tight tolerance, but if it sticks at all off the build plate, should break free easily with a fold.

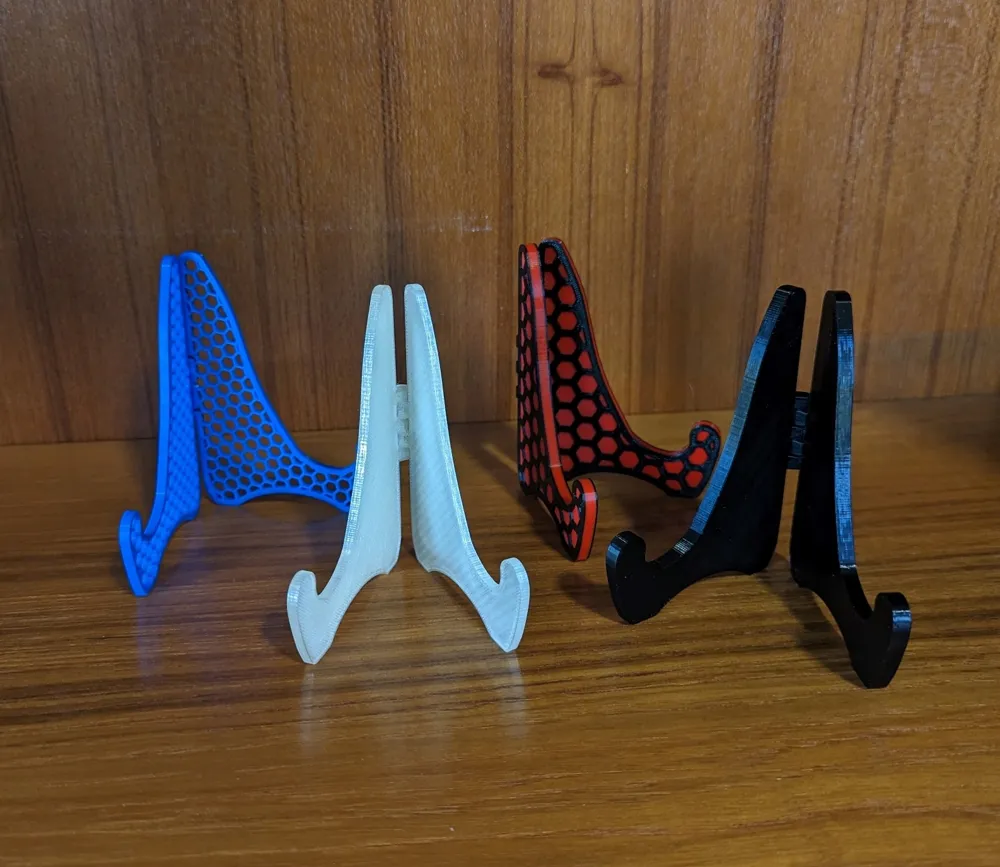

The blue one pictured is printed with 4 perimeters, 0 top and bottom layers, with 15% honeycomb infill.
