0.2mm layer, 2 walls, 15% infill

Designer

4.1 h

4 plates

4.9(22)

0.2mm layer, 3 walls, 25% infill

8.2 h

5 plates

5.0(9)

Open in Bambu Studio

Boost

128

196

Released

Bill of Materials

Maker's Supply Kits and Parts

Select all

BT3x20 BHCS Self Tapping Screw (10PCS) - AA146

BT3 Button Head Cap Self Tapping Screw (BHCS)

List other parts

Glue x 1:

Description

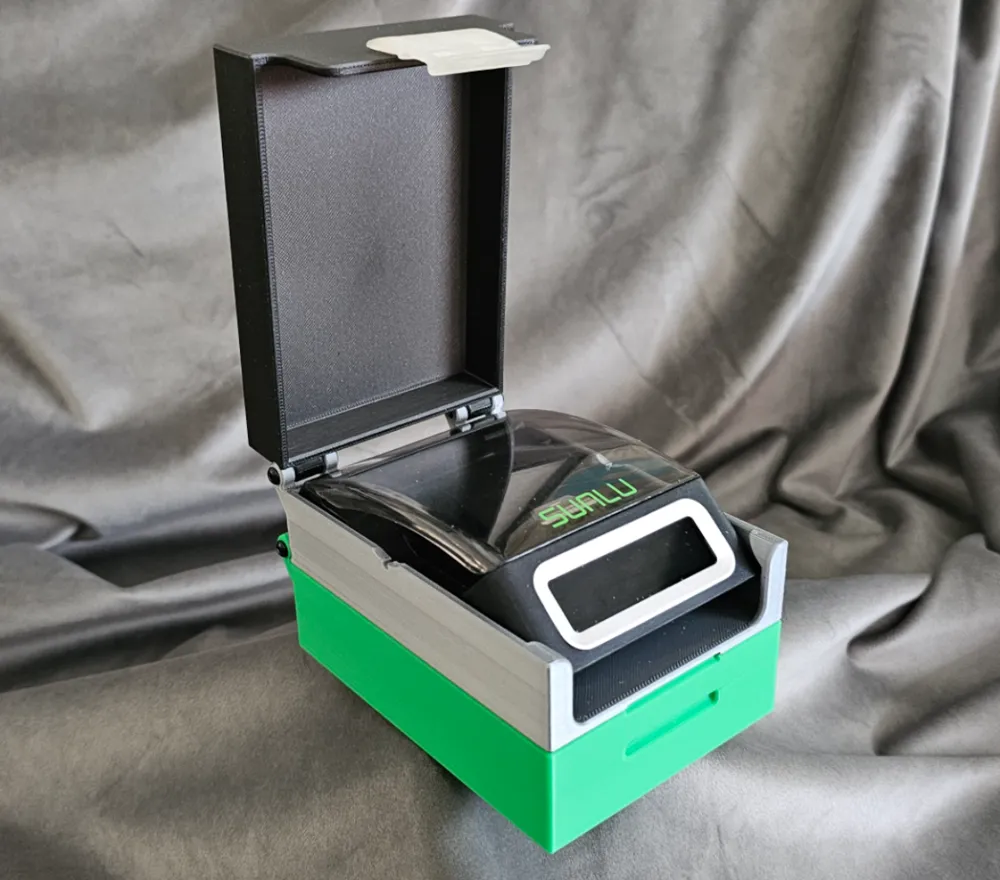

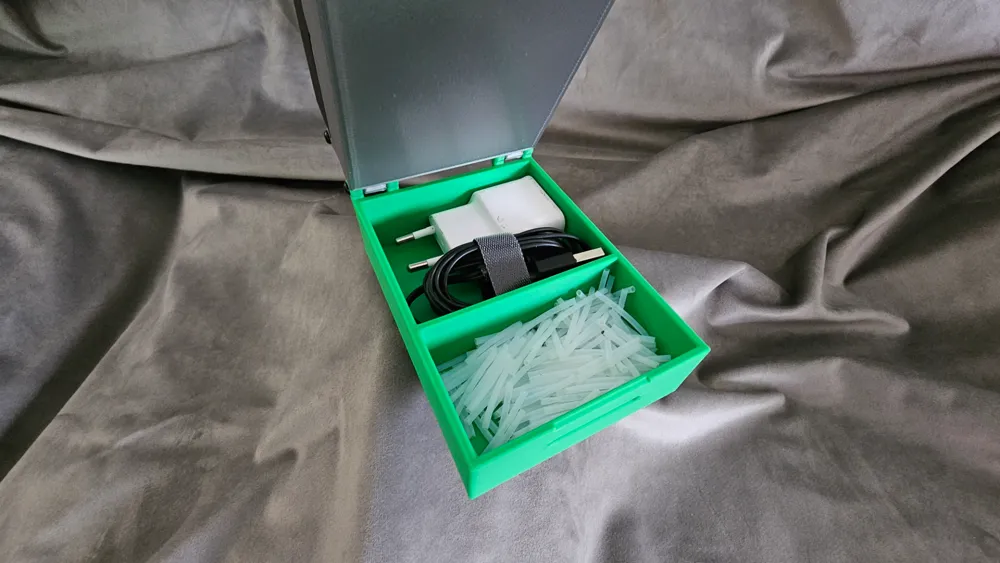

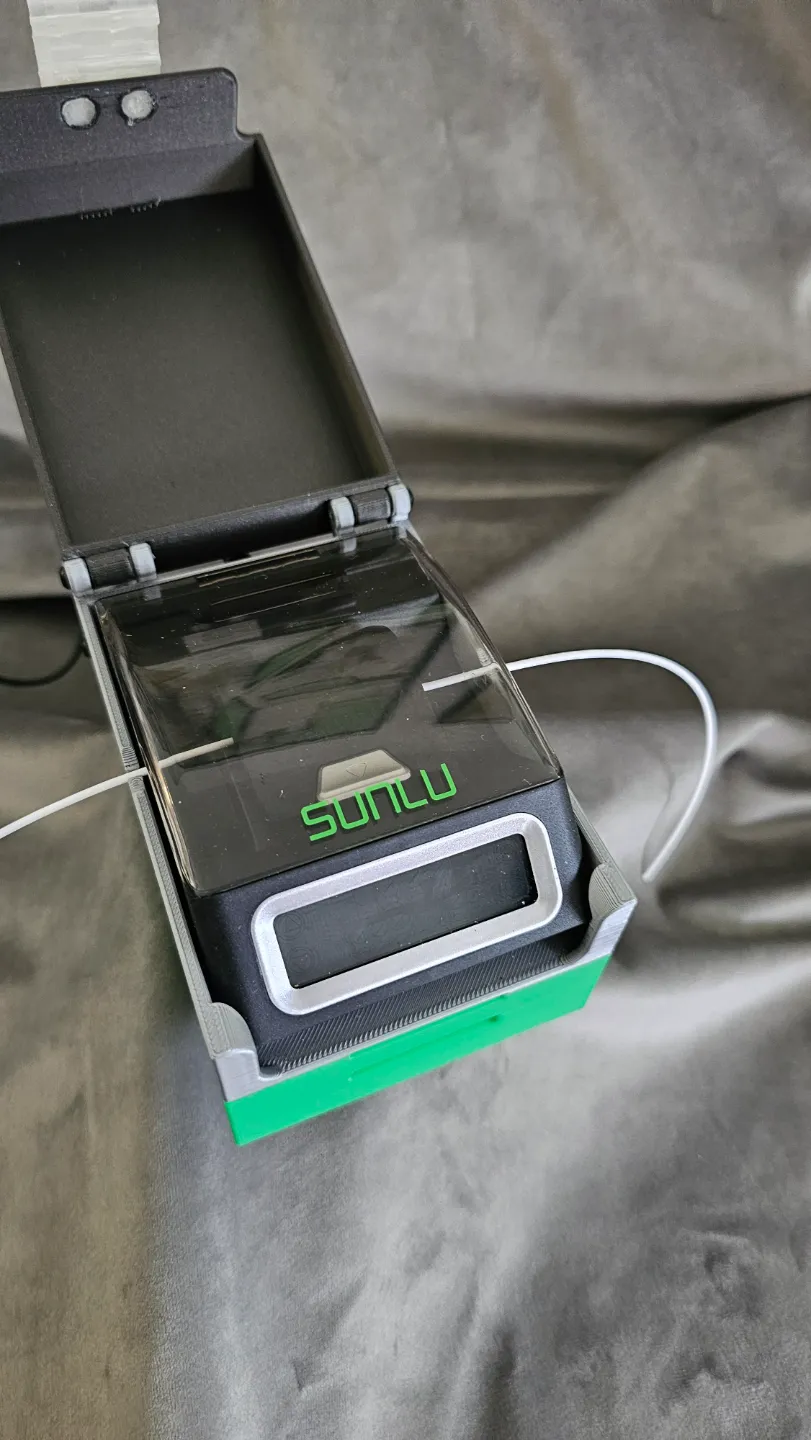

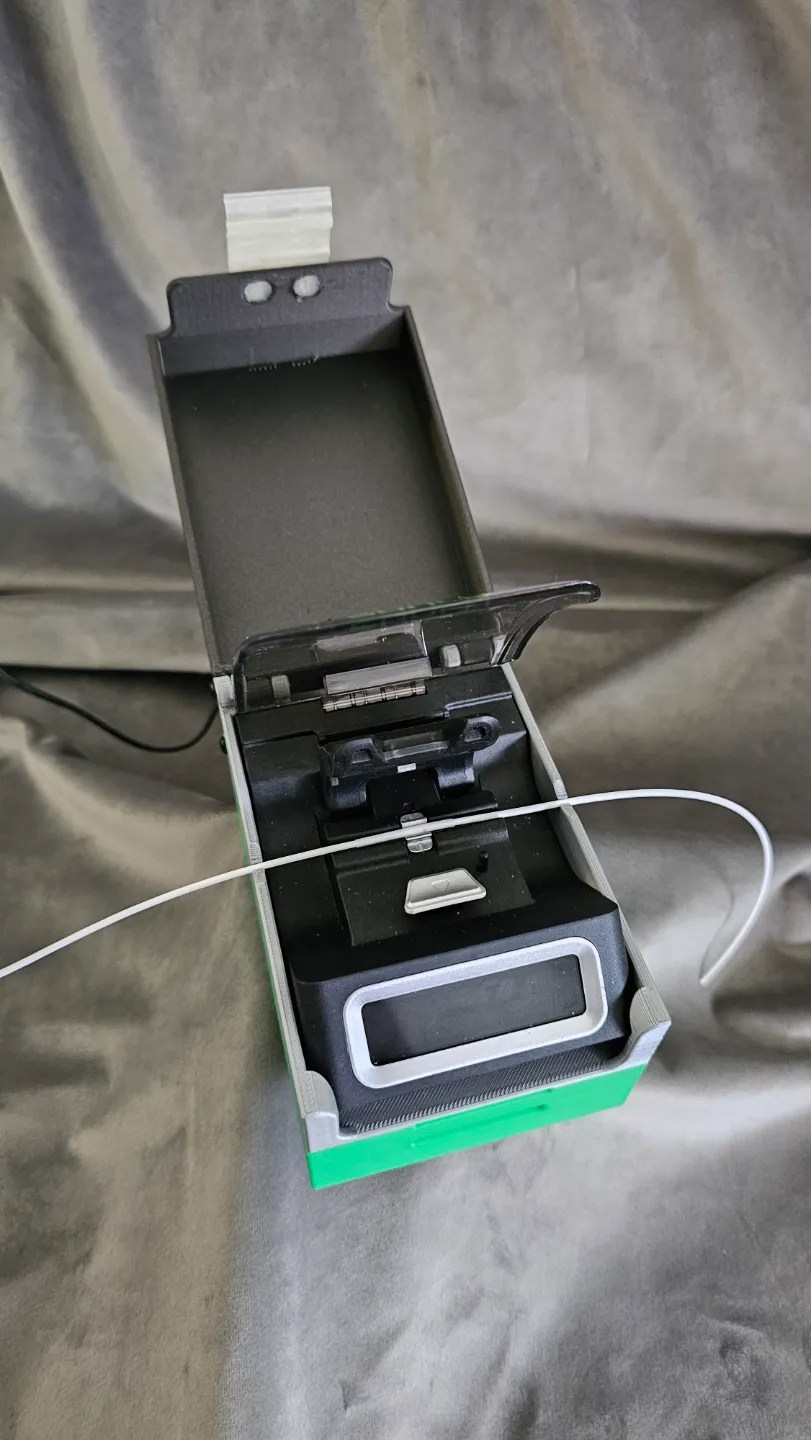

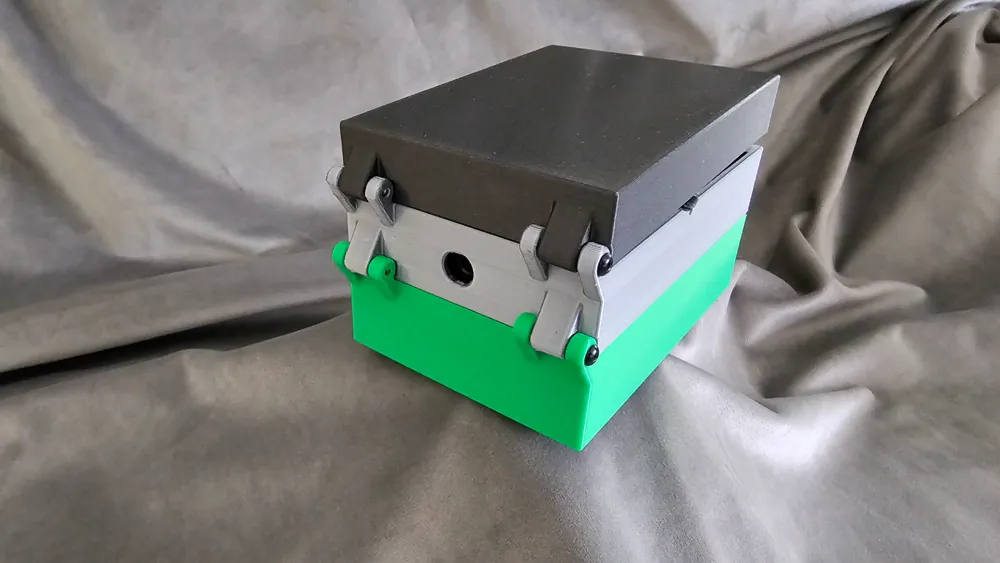

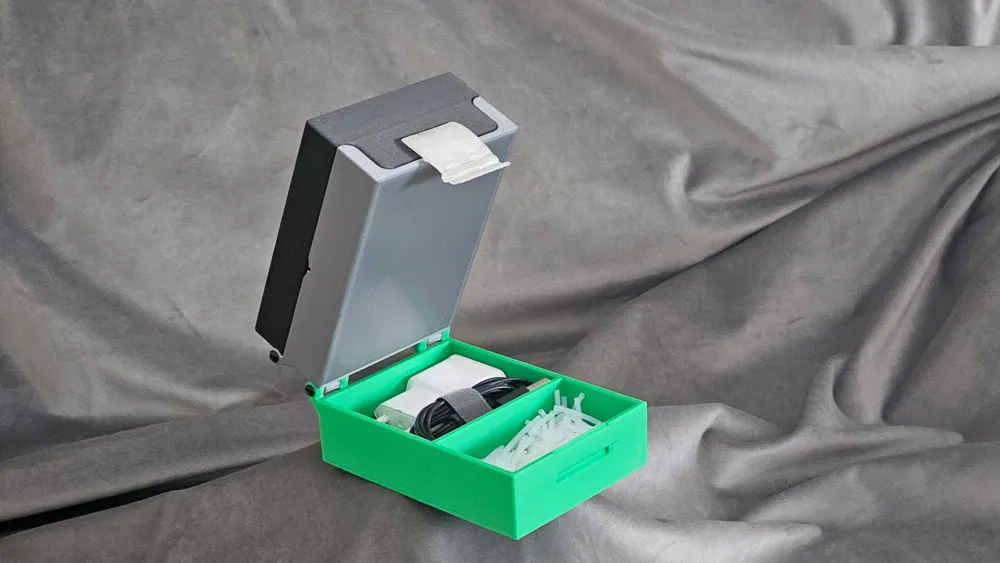

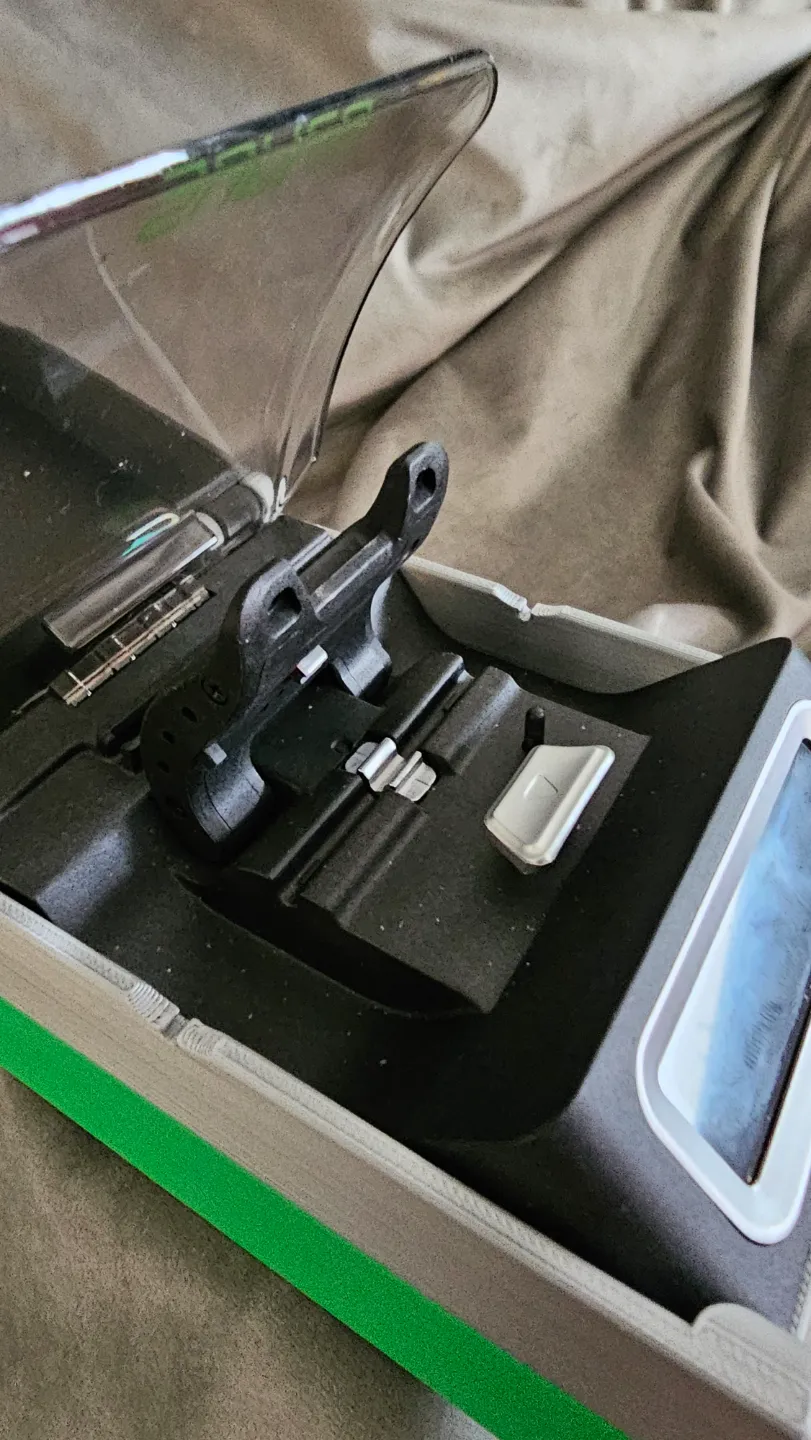

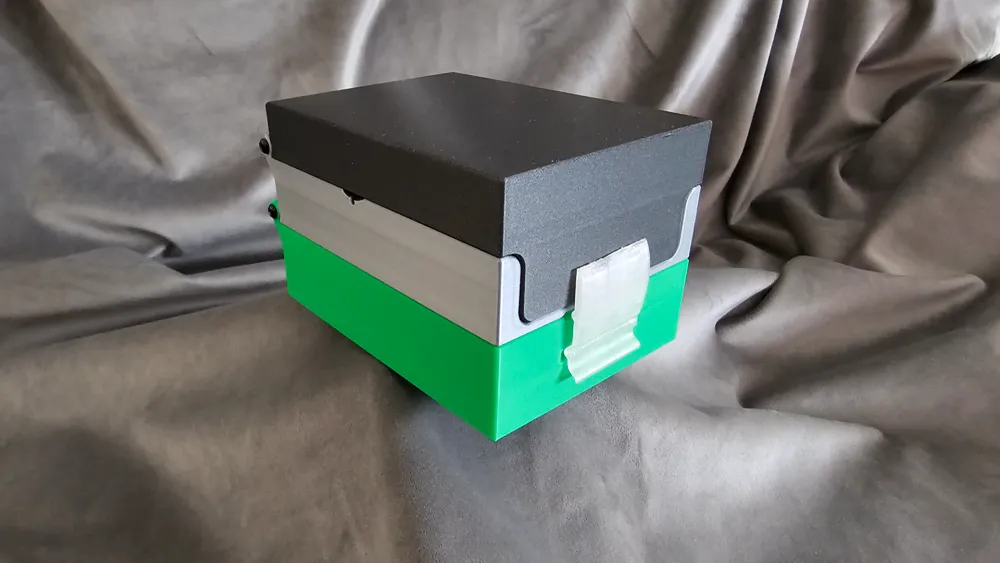

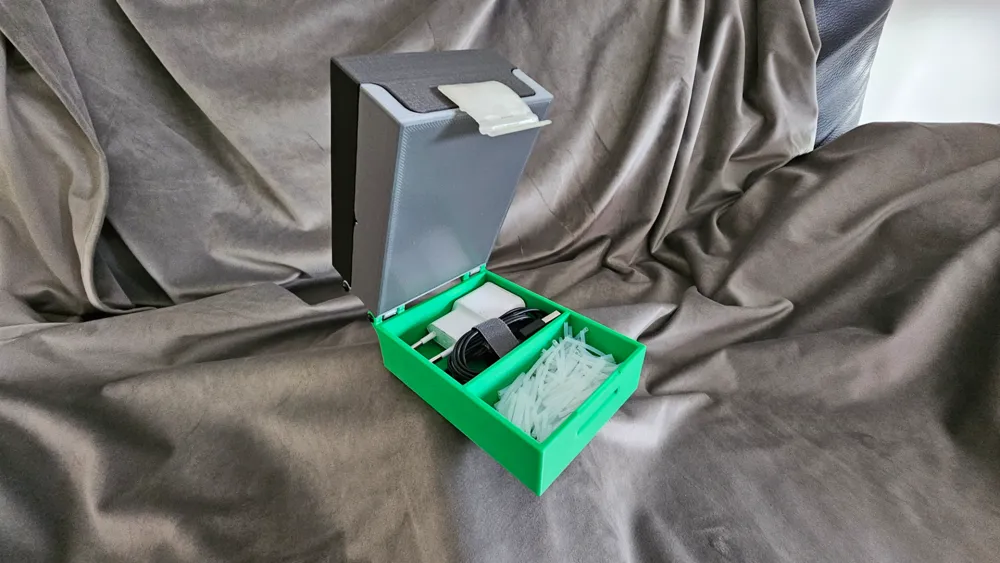

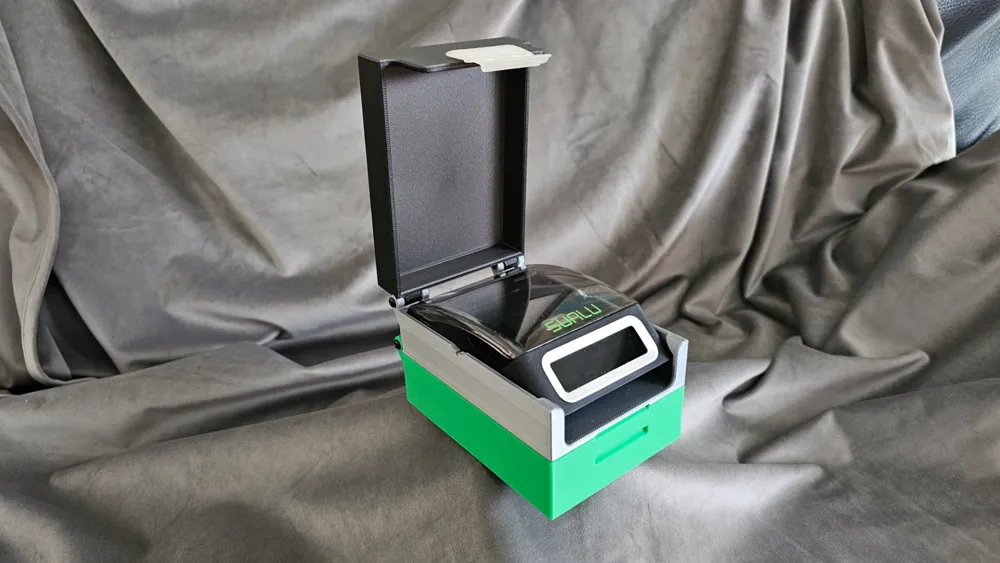

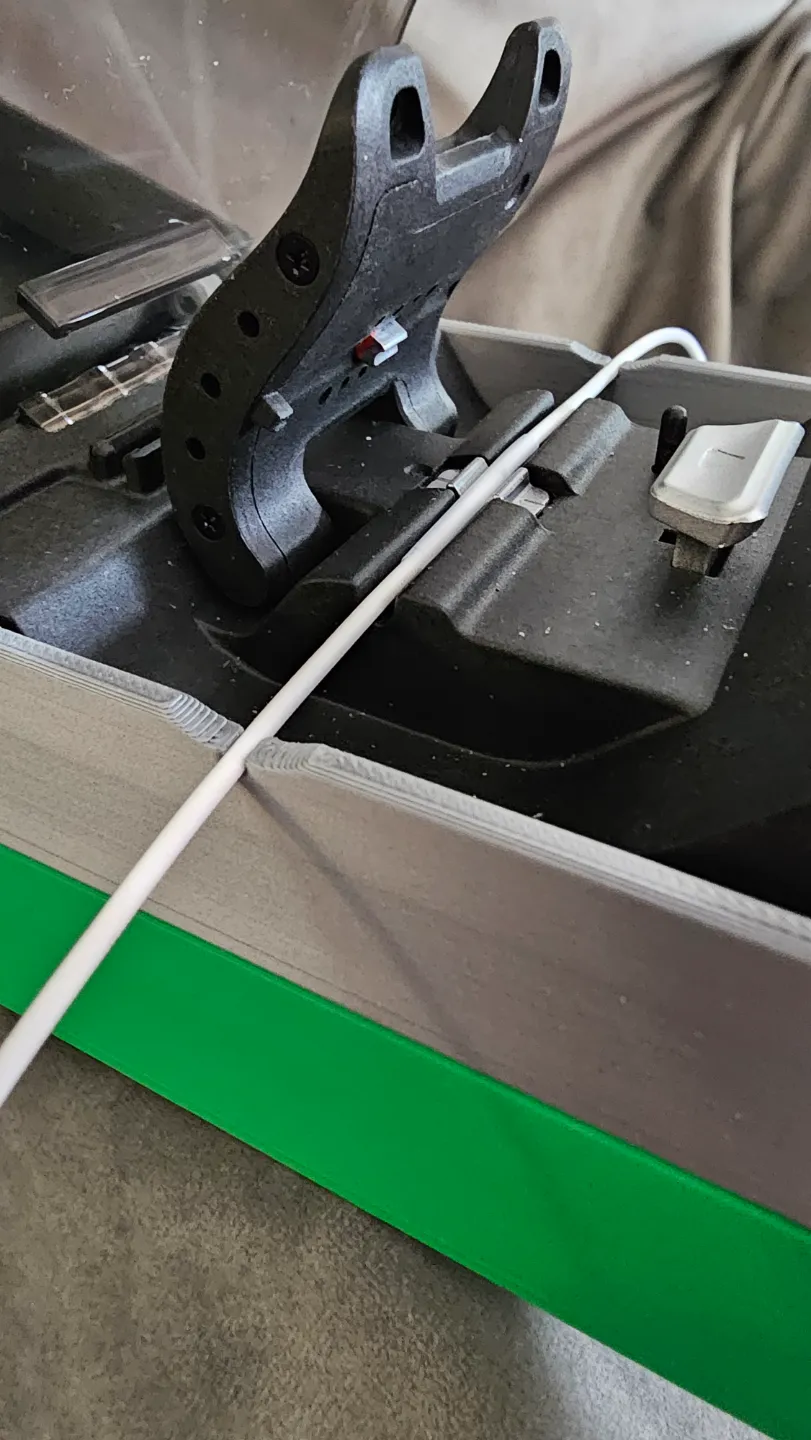

Sunlu FC01 storage box for splicing necessities, and integrated aligning aid.

Boost Me (for free)

2 Boost or not 2 Boost... That is the question!

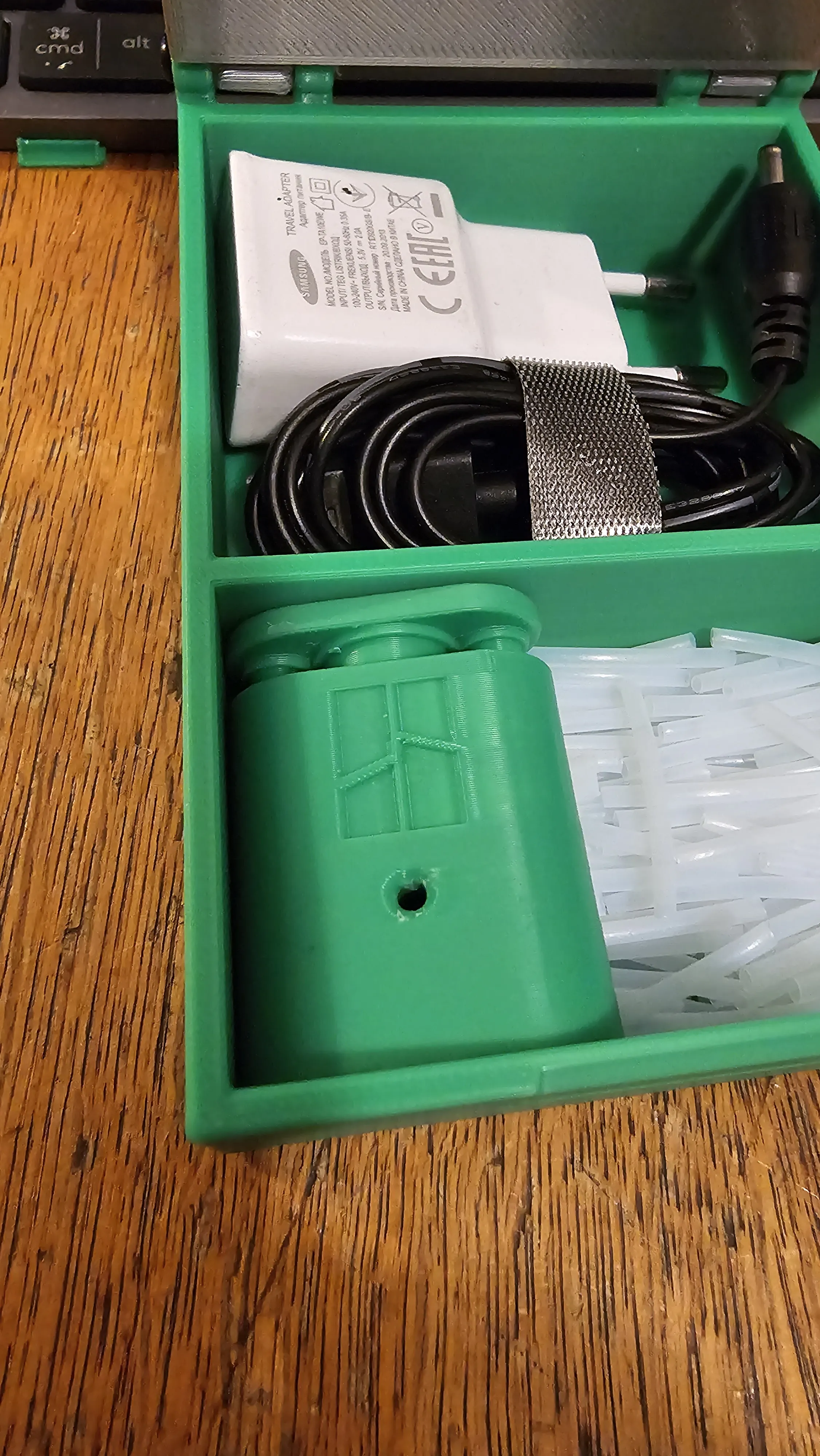

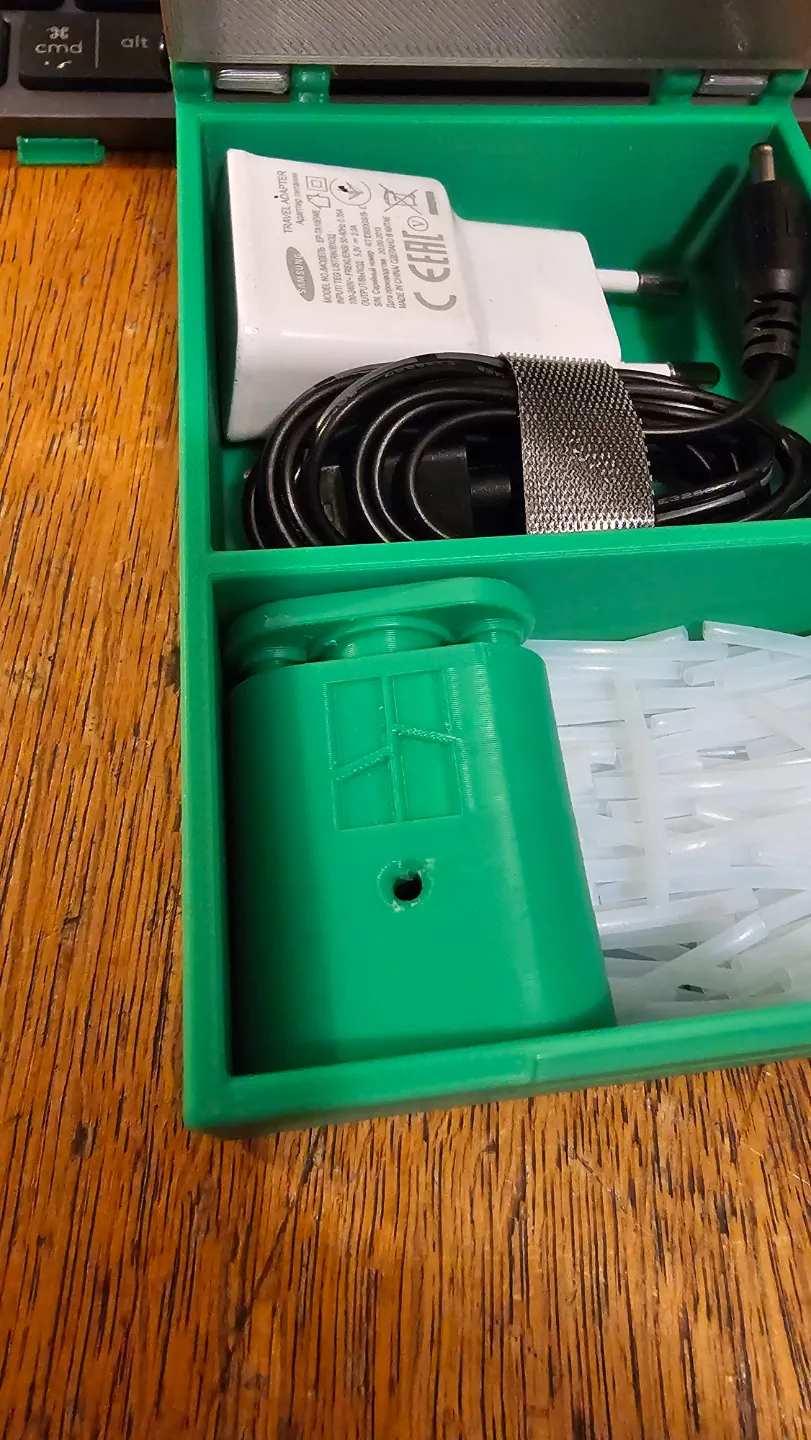

Nice Filament cutter fits in storage compartment:

https://makerworld.com/en/models/148890?from=search#profileId-162478

sunlu

fc01 fc 01 splicer storage box align aid

Comment & Rating (51)

@Coolernu

Print Profile

0.2mm layer, 2 walls, 15% infill

No issues with the print. Made some pins to replace the bolts for hinges.

@LayerCraft84

Hello, could the STL files for the pen holders be provided as separate pieces instead of screws? That would be lovely. <3

Show original

@Coolernu

Replying to @LayerCraft84 :

I just modeled them up in Bambu Studio and didn't save the STL. The picture is what they looked like with a negative model on the ball to give them a split to flex to fit through the hole. Hope that helps. I'll try to remodel them and add them as a remix to this model.

(Edited)

@keithlongley4

Boosted

Nice design. It printed awesome. I didn't have any screws and didn't want to spend money on them so I came up with an alternative. I used the wooden end of a cotton swab and pushed it into the hinges and they are a perfect fit. I didn't check to see how much black I had on the spool and ran out on the bottom. So the bottom is burnt titanium. I added the letters to the top. Not happy with the placement or font might reprint the top.

The designer has replied

@Gerberg

Looks very nice. thx for your boost!

@OldRN

I wanted to thank you for your FC01 storage solution. I did a mash-up of yours, and the magnetic alignment feature of Ollie’s filament connector system. Bit of a Frankenstein but meets my needs. Making a point to thank both of you for your designs.

(Edited)

@bluebug013

Boosted

This was perfect, I used the filament I spliced to make it. Just waiting for the screws to come in as I hadnt used those yet.

The designer has replied

@Gerberg

Very nice spliced filament printed filament splicer dock... love it

@Barnes27

Print Profile

0.2mm layer, 2 walls, 15% infill

Hello, very useful for the Sunlu, thank you very much for your creativity

Show original

@user_991515799

Print Profile

0.2mm layer, 2 walls, 15% infill

Perfect storage for my filament connector and it's accessories.

(Edited)

@user_3605305571

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

excellent design,and printed great thank you .

@Phil83130

Great work except for the handle, I don't understand why the two buttons weren't extruded, that would have been simpler and stronger!

The designer has replied

Show original

@Gerberg

merci beaucoup

@Gerberg

Replying to @Gerberg :

yes your right, this is the first idea i had to do it, next time i try another solution.

@Fraseco

What is TPU actually saved for in the print profile

The designer has replied

Show original

@Gerberg

No purpose, i just forgot to delete it before saving the 3mf, sorry. The amount and type of filaments in a 3mf profle is in fact not related to the filament which is really used. It shows only all filaments which are added in Bambu studio, or are in the ams when u press resync. So again i am sorry to confuse u.
