Vortex Viper PST 5-25x50 Gen II Sunshade and Killflash

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.12mm layer, 3 walls, 15% infill
0.12mm layer, 3 walls, 15% infill
Designer
2.2 h
1 plate
4.5(4)

Open in Bambu Studio
Boost
45
144
11
4
149
60
Released

Description

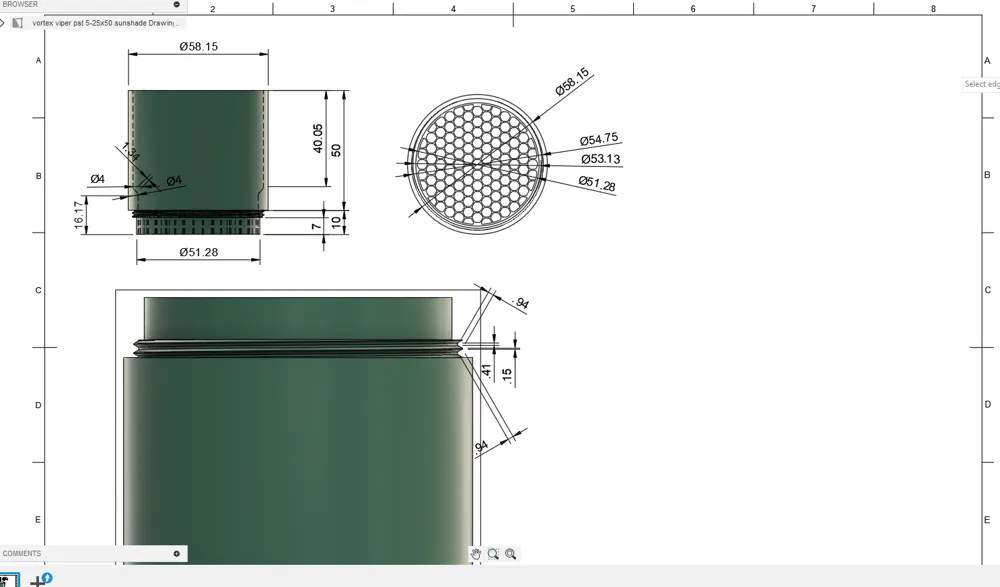

Revised: two models uploaded with corrected thread pitch, one is just the sunshade and the other has killflash, designed for the Vortex Viper PST 5-25x50 gen2 scope. Print with hex pattern down on hot plate. Print does require support for the overhang above the threads but cleans up easily. Use Inner and outer brims for the sunshade version to prevent print from lifting as there is little surface area on the plate. For the Killflash version do not use Inner brim as this will fill in the killflash which will take forever to remove. Disclaimer: I currently do not have access to my printer so I was unable to test print either of these updated files however the only the thread pitch was changed on the killflash model.
