stampa perfetta e tool utilissimo per la misura degli angoli. Io l'ho assicurato insieme con una fascetta di plastica

perfect print and very useful tool for measuring angles. I secured it with a plastic zip tie

Z10Dng

0.2mm layer, 2 walls, 15% infill

Muy útil a la hora de diseñar para ver los ángulos. Los uní con una anilla para llaveros en dos grupos, muy profesional en mi opinión. Tuve problemas de adhesión a la cama pero estoy seguro de que es culpa mia jajaja

Very useful when designing to see the angles I joined them with a keychain ring in two groups, very professional in my opinion I had bed adhesion problems but I'm sure it's my fault hahaha

MrCombatSheep

Print was nice and easy but the smaller two sizes of the corner scales (1mm and 2mm) might be a bit too small for my printer or my settings as they turned out to be not precise enough. All others are spot on!

Kaputnik

Single color, no supports, 0.16 layer, higher strength

Printed great! Immediately was able to measure some rounded corners.

Material Fusion

Roman

verry good model, i've link them with a little bit of PLA filament welded by a lighter !

matur

Simple mais tellement pratique
S'imprime correctement. J’ai descendu la vitesse d'impression pour la première couche.
Merci.

Simple yet incredibly practical
Prints flawlessly I reduced the print speed for the first layer
Thank you

Phouky

Perfect for finding fillet sizes in tight areas where the other rulers won’t fit

Forestergump

Pepe

mark8018

vakahala

cover





Darby



Flipped the objects and removed the drawn on supports. Feel free to edit any other setting to your liking :)Rearranged to fit on A1 Mini plate.&nbsp;(This is my first time uploading a print profile so apologies in advance if something isn&#39;t right.)

John

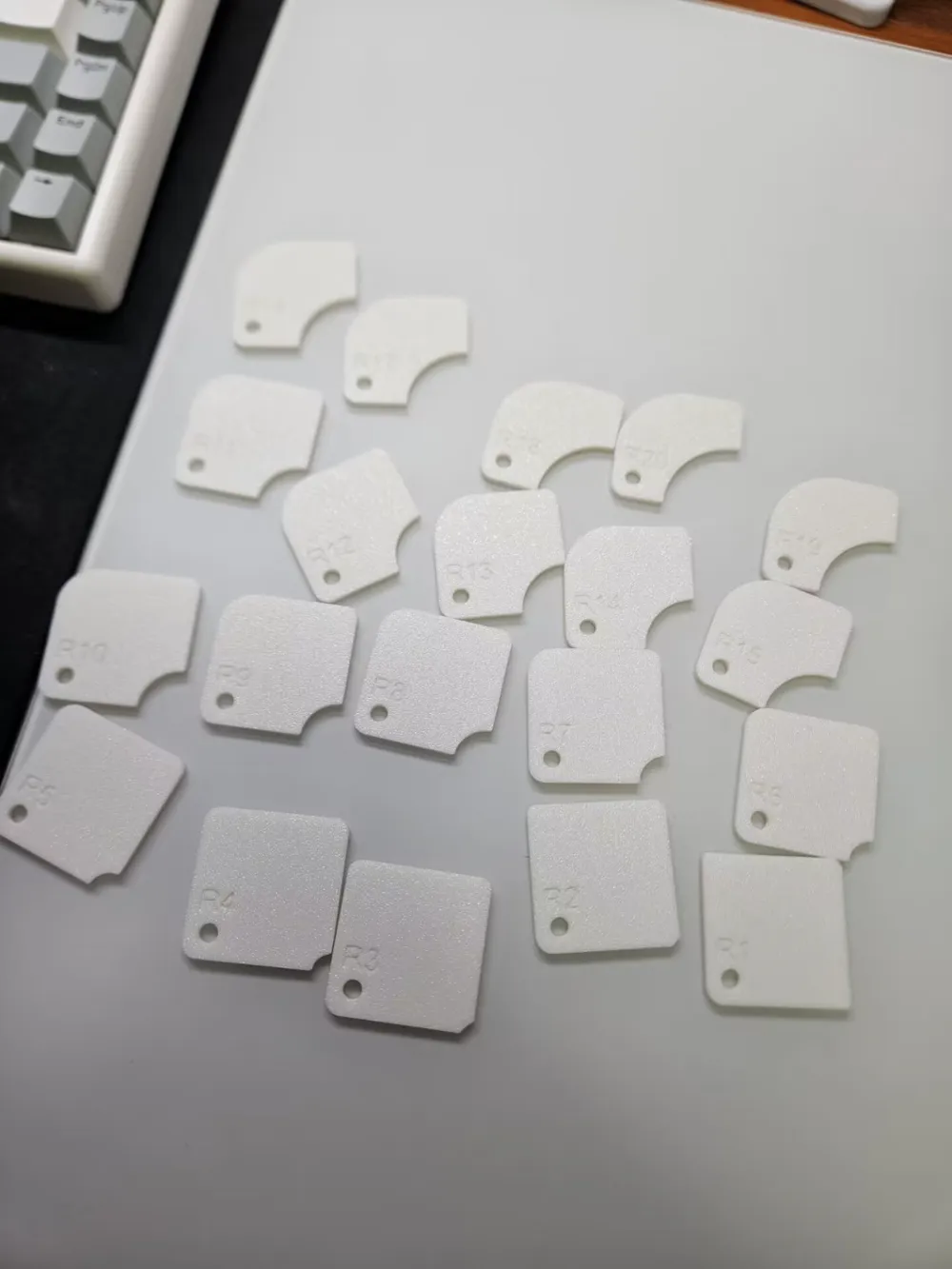

Radius Gauge R1-30mm [Remix]

经常要测R角非常折腾，参考画了一套R角测量器，可以使用M4外径的对锁螺丝或者绳子固定注意切片要看接缝位置，防止影响测量

Measuring R-angles is often a hassle. This design is a Radius Gauge that can be fixed using a M4 outer diameter locking screw or rope.When slicing, make sure to check the joint position to avoid affecting measurement.

Print Profile(2)

Description

Comment & Rating (44)

This remix is based on

License

Remixes (1)

Related Models

Radius Gauge Fillet Ruler R1-20mm
