Description

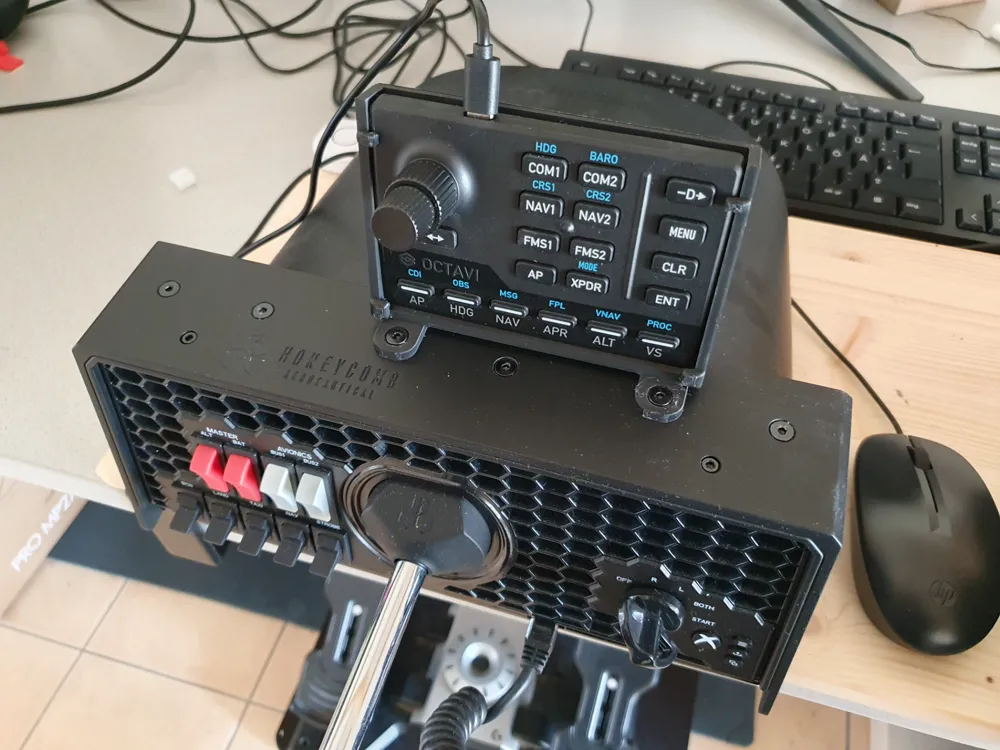

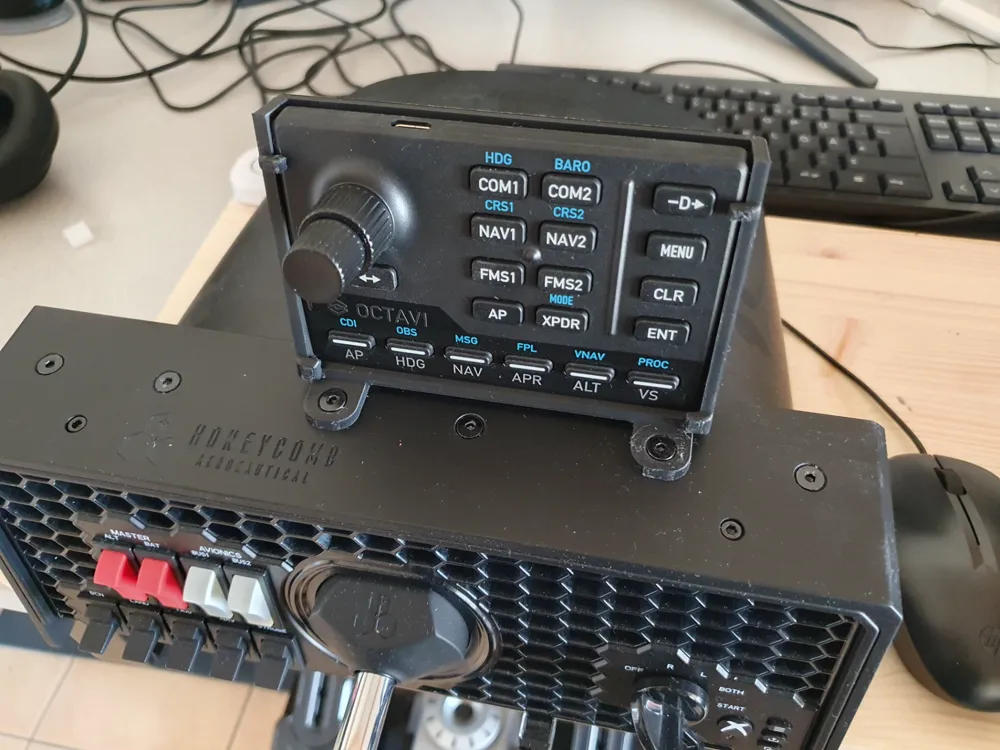

I have designed this model to mount my Octavi IFR-1 “Autopilot Controller” atop my yoke. This way, I have it right in front of my eyes instead of somewhere on the desk where it is not as easy to use.

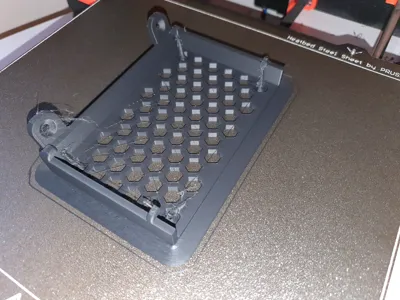

A very simple model, printed in basic PLA, and attached with two of the screws already atop the yoke. It should also be compatible with the Bravo quadrant, but I did not actually test this.



After having a bit of inspiration from https://www.printables.com/model/781231-octavi-ifr-1-mount , I decided to measure the controller myself once again. If the controller is a bit hard to insert into the mount, squeeze the rubber feet a tiny bit.

The Fusion 360 file is attached as well, feel free to give me hints if something could have been designed in a more elegant way.
