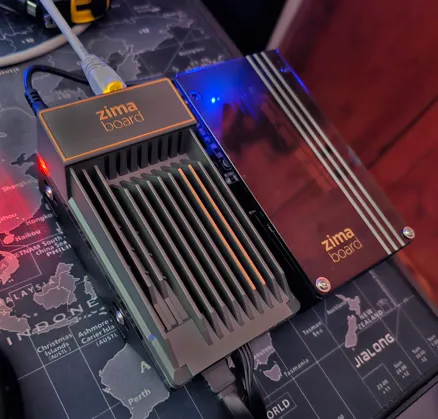

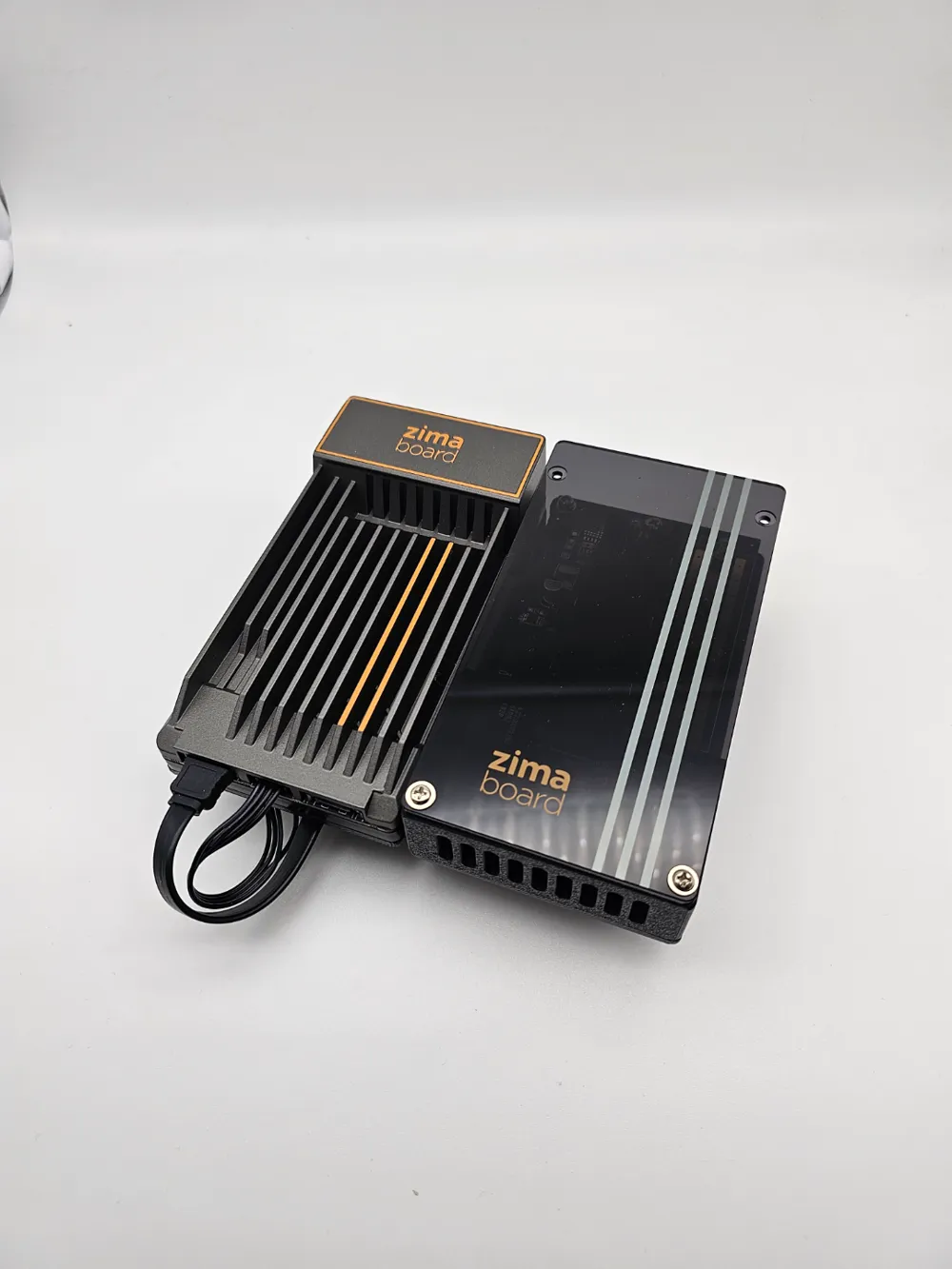

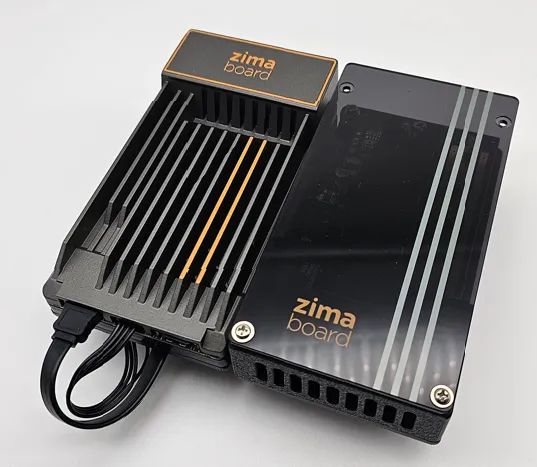

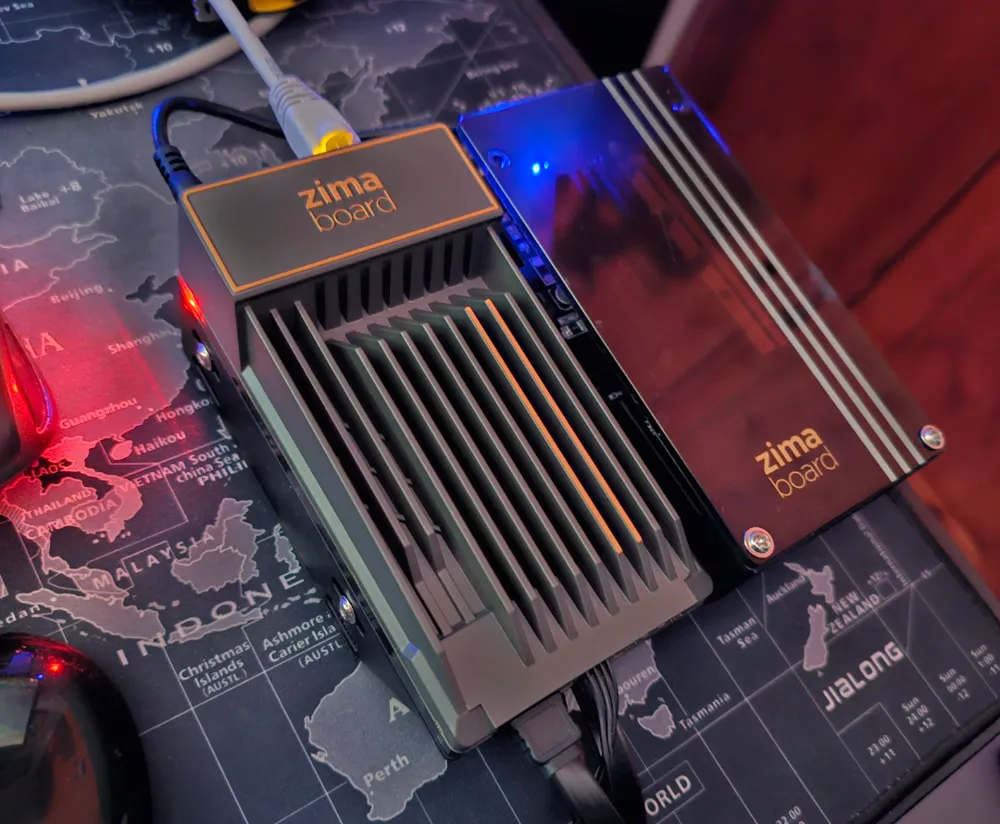

Zimaboard-NVMe-HDD-SDD Multi-support

This is a multi-support for:

SUPPORT1

• 1x Zimaboard
• 2x SDD/HDD 2.5" hmax 10mm

SUPPORT2

• 1x SDD/HDD 2.5" hmax 15mm

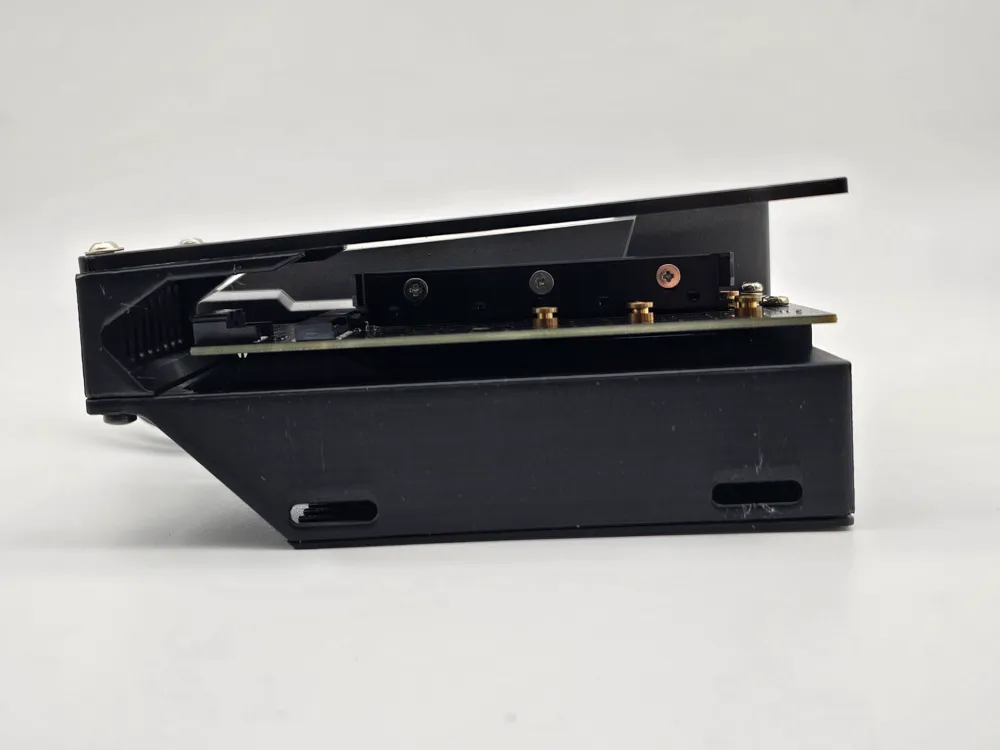

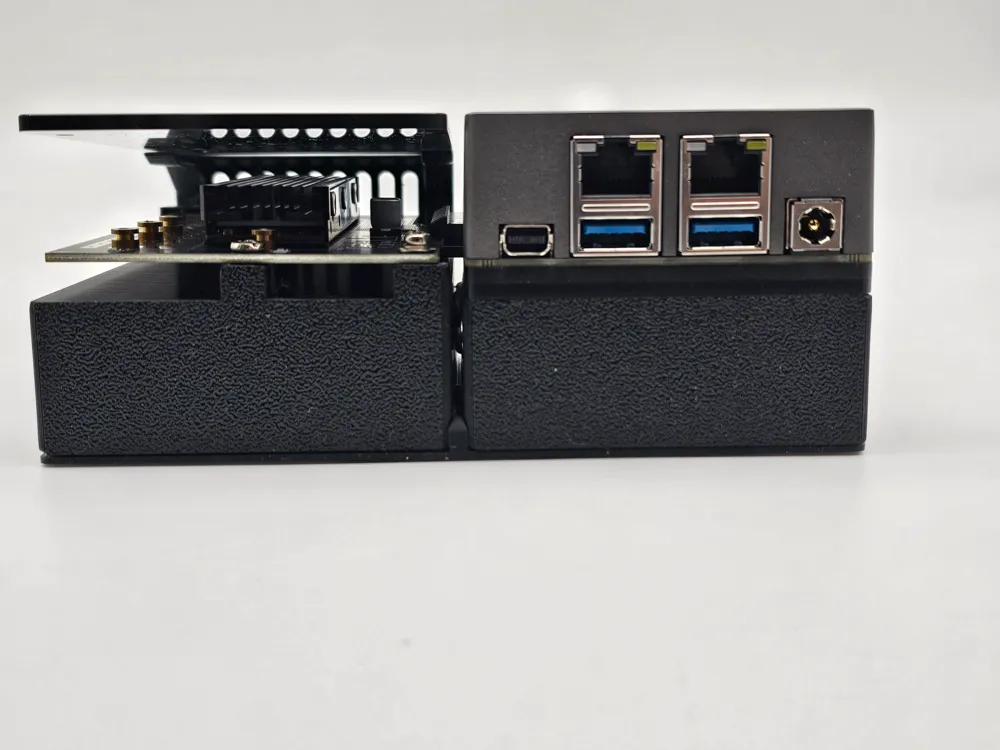

• 1x Board (PCIe to NVMe & NGFF SSD Adapter)

Assembling

You will need to unscrew and remove the plastic bottom plate from the ZimaBoard.

You can reuse the screw to mount it to the bracket (@Orax design) provide with holes.

You can reuse the previous removed plastic bottom (with Zima board logo) and assembly it on the other bracket.

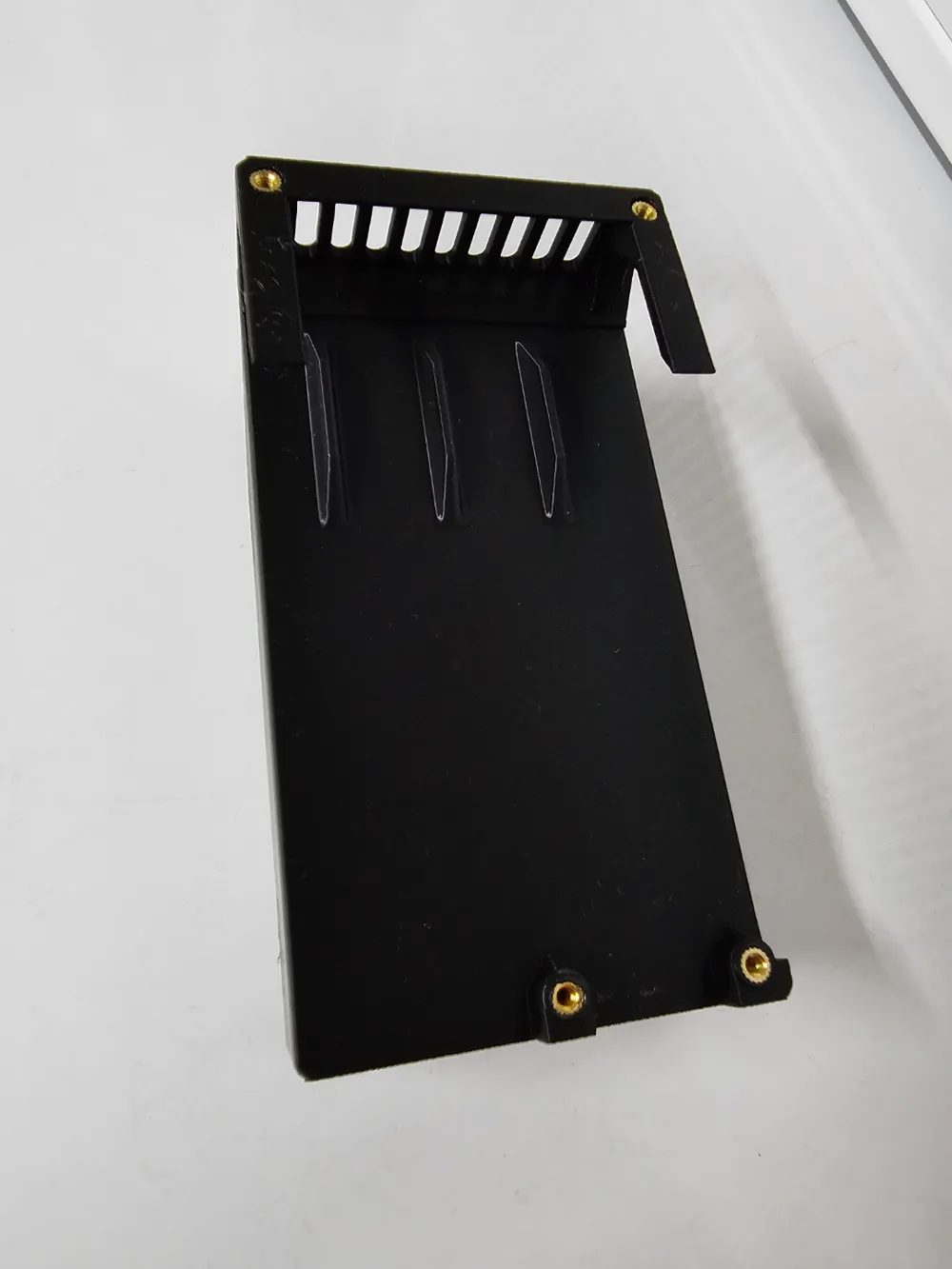

Total 6x M3 insert needed.

6x M3 screws needed for assembly the cover and the plastic support.

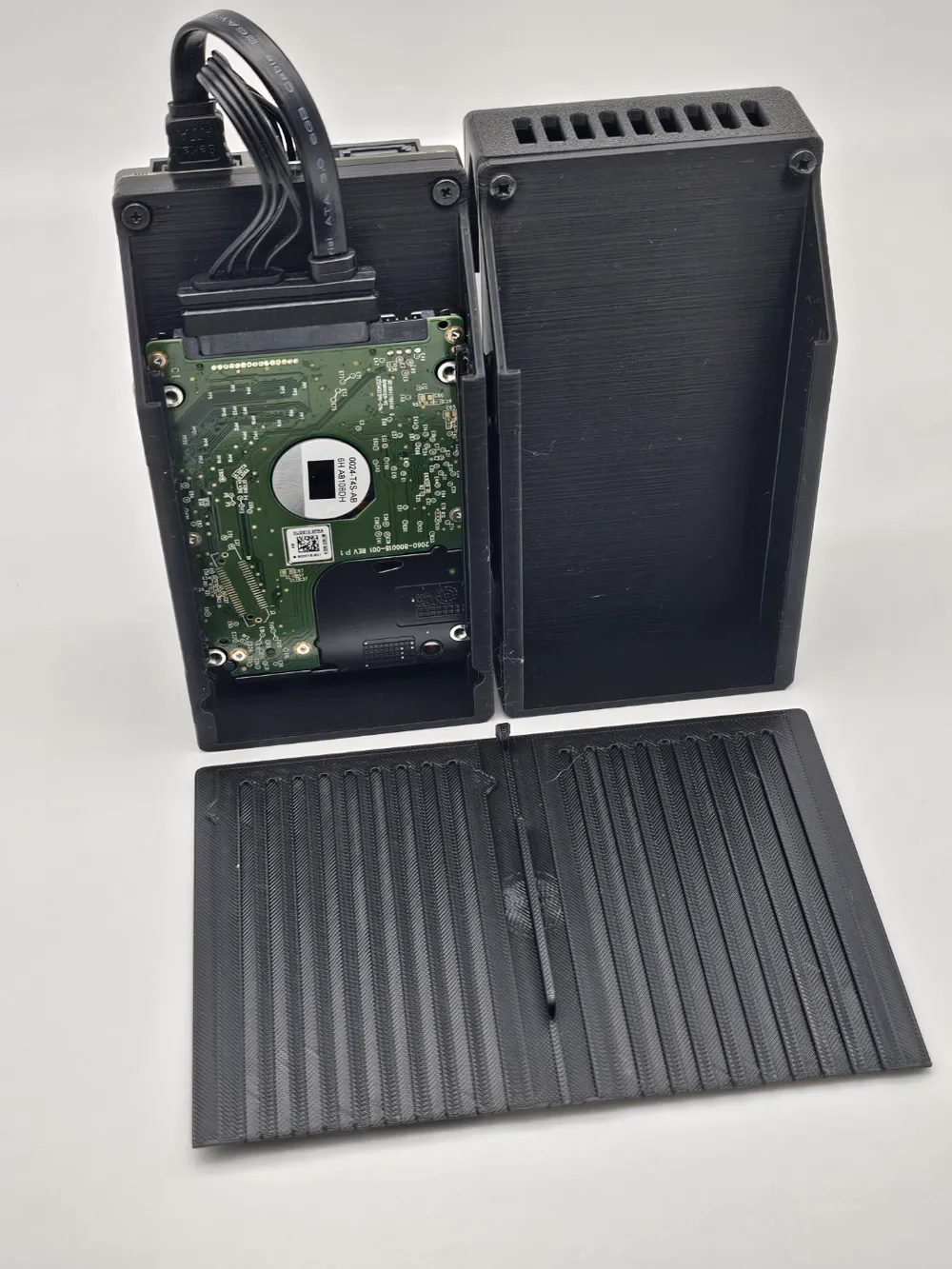

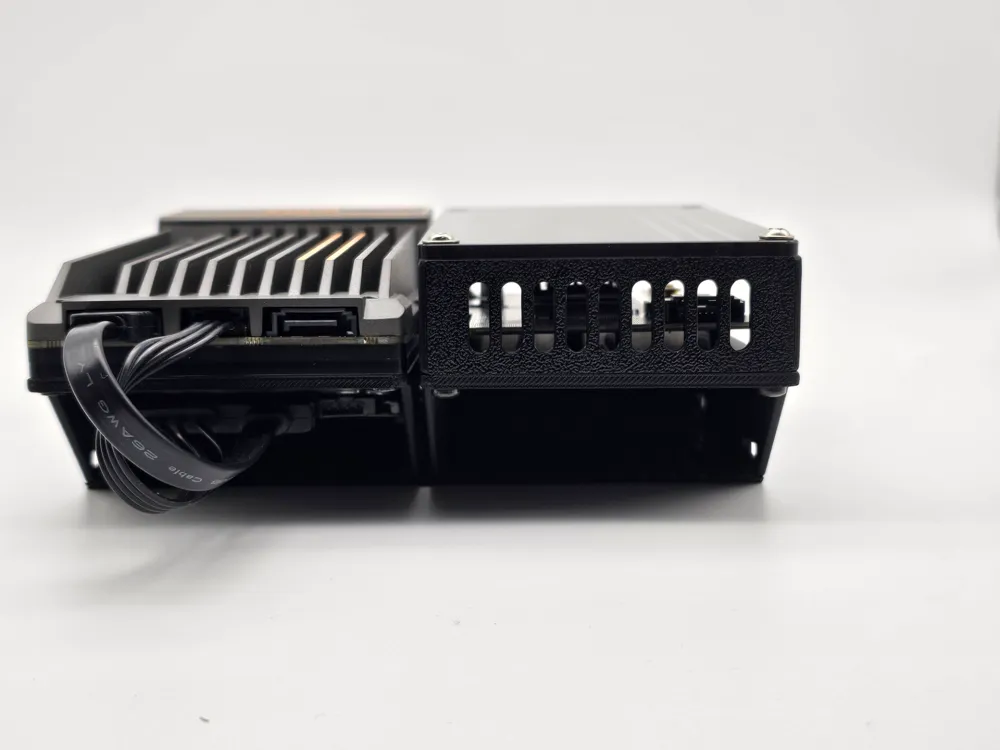

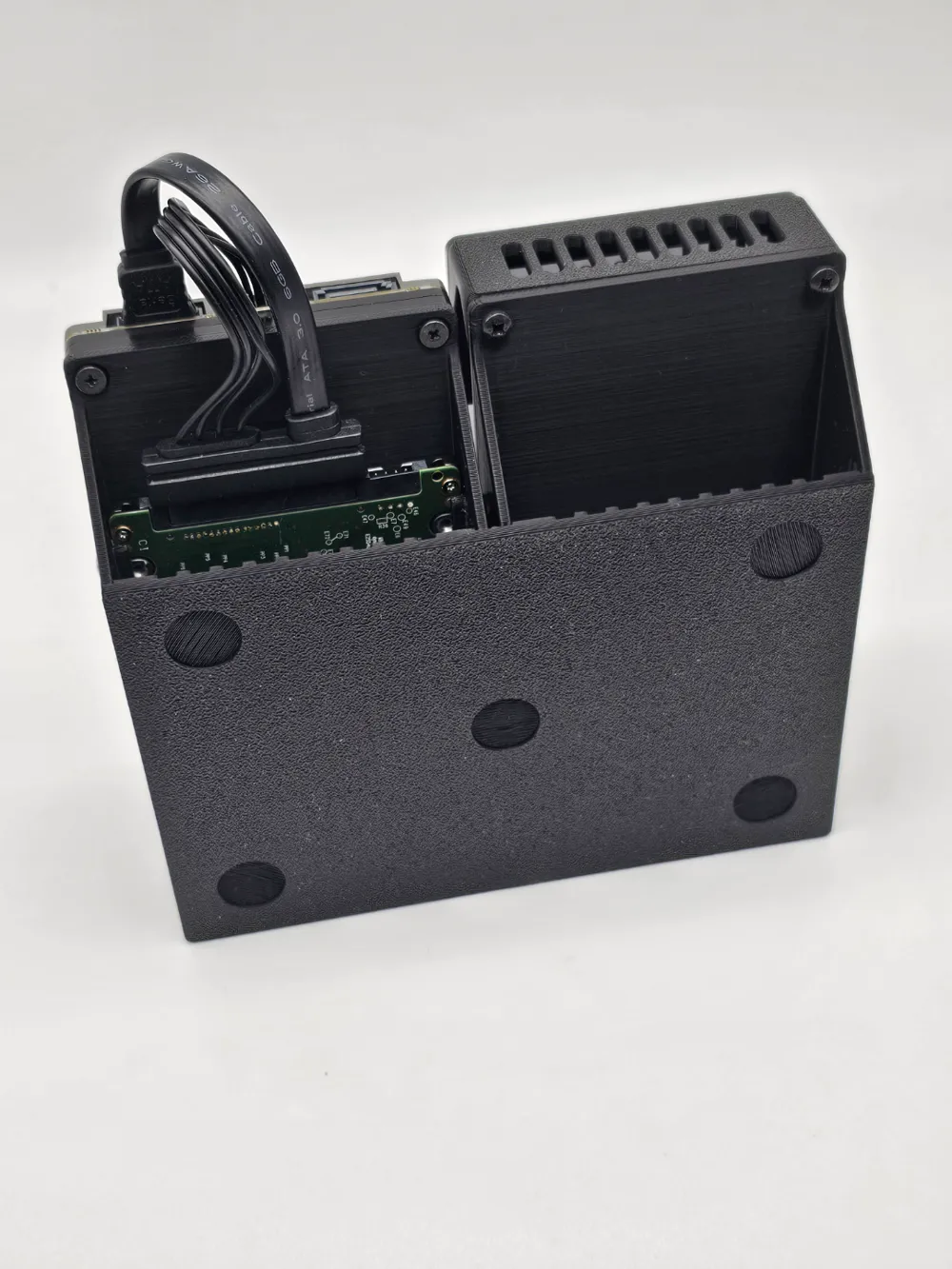

After you have assembled the SDD/HDD drives and Zimaboard, you can put the two brackets over the base and complete the insertion of the PCIe and cover.
