Portable Meshtastic Heltec V3 ruggedized case
Print Profile(1)
Bill of Materials
Description

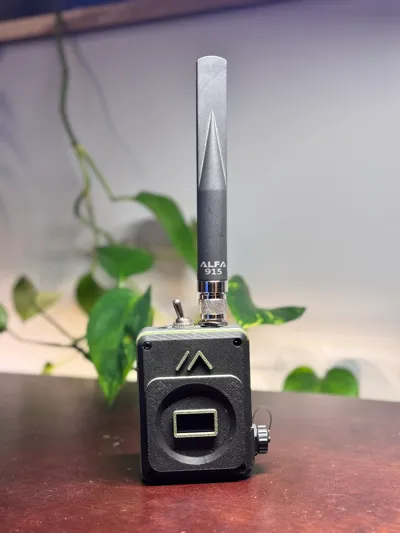

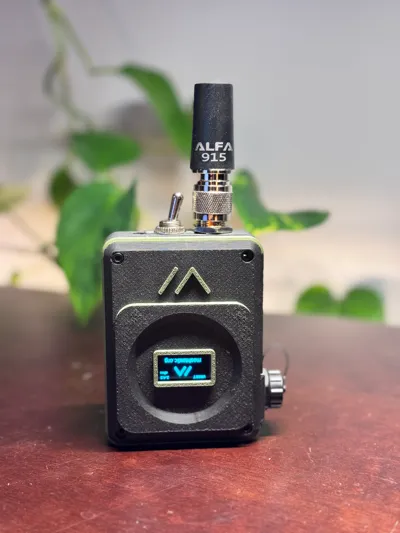

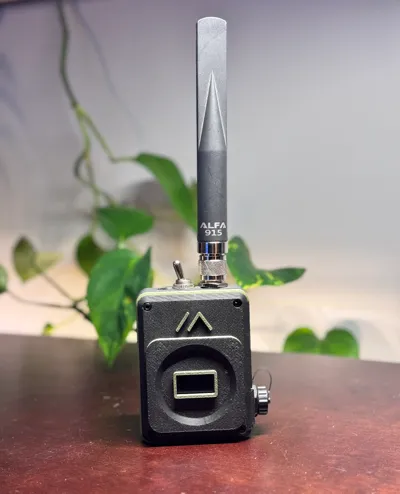

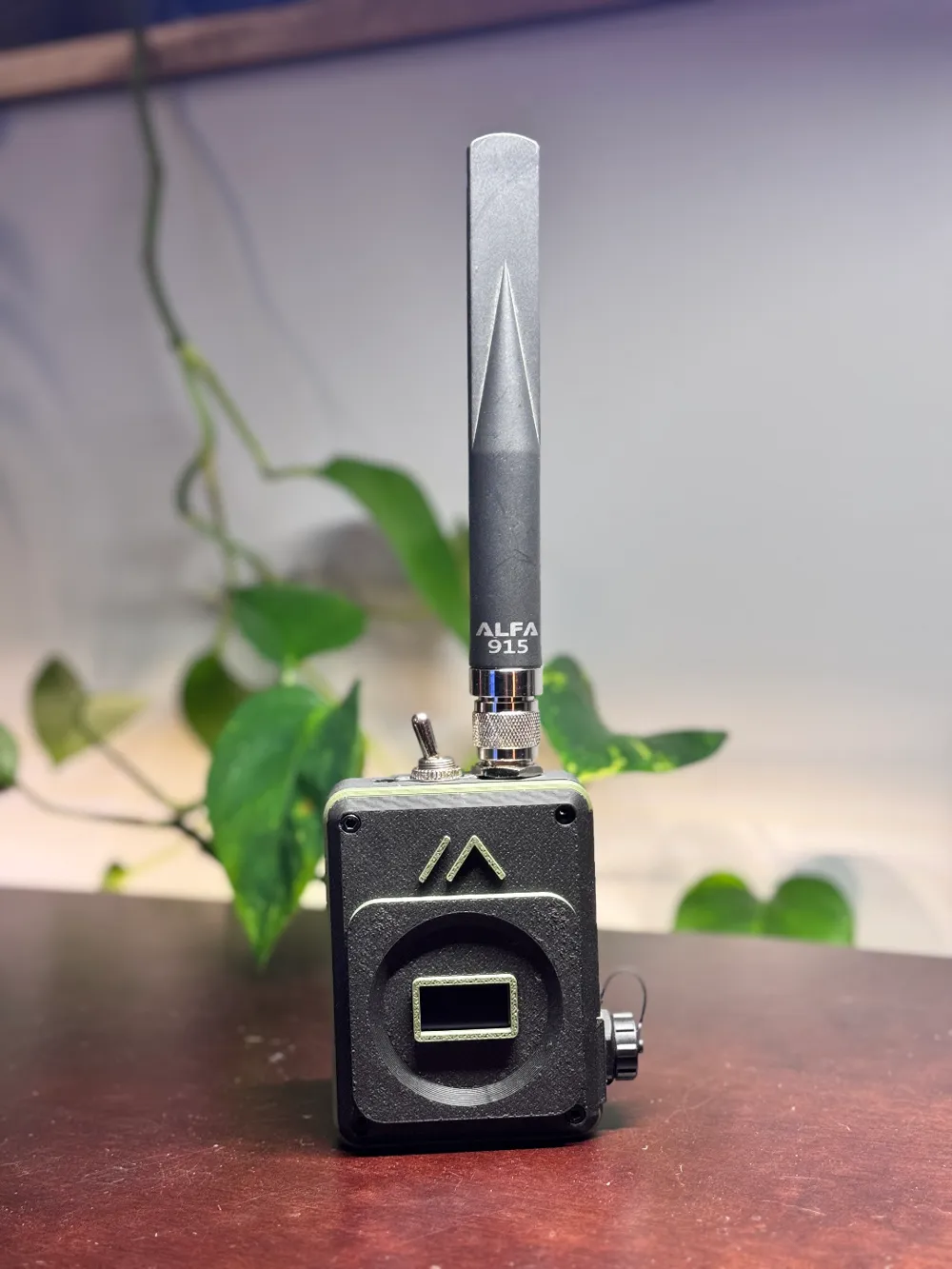

This rugged, portable Meshtastic radio enclosure is designed around the Heltec v3 LoRa ESP32 board. Whether you're building a resilient off-grid communication network or experimenting with long-range data transmission, this enclosure provides a robust solution for securely housing all components while offering convenient features for power management and durability.

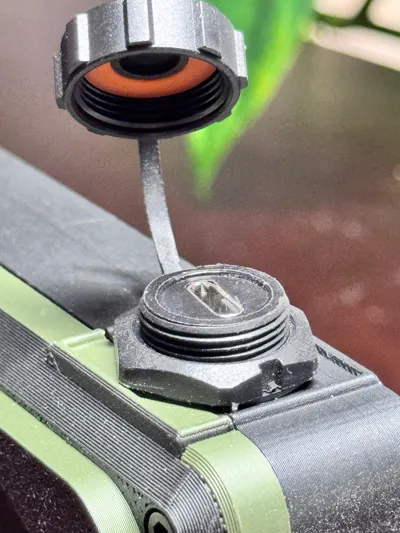

The enclosure is designed to house a Lithium 18650 battery, providing long-lasting portable power for the Meshtastic node. It also integrates a power switch for easy on/off control and a USB-C charging circuit for convenient recharging without needing to remove the battery. The USB-C port is ruggedized for outdoor use, ensuring durability during extended field operations.
An N Female antenna connector is incorporated into the design, providing a reliable connection for external antennas to enhance range and signal quality. This makes it suitable for a variety of use cases, from hiking to rural deployments. The interior of the enclosure is carefully designed to fit all components snugly, with secure mounts for the battery and board.
This project is ideal for Meshtastic enthusiasts who need a durable, portable solution that can handle rough conditions and extended use.
Features:
- Heltec v3 LoRa ESP32 compatible: Specifically designed to fit the Heltec v3 board with mount clips
- 18650 battery sized: Supports a standard Lithium 18650 battery

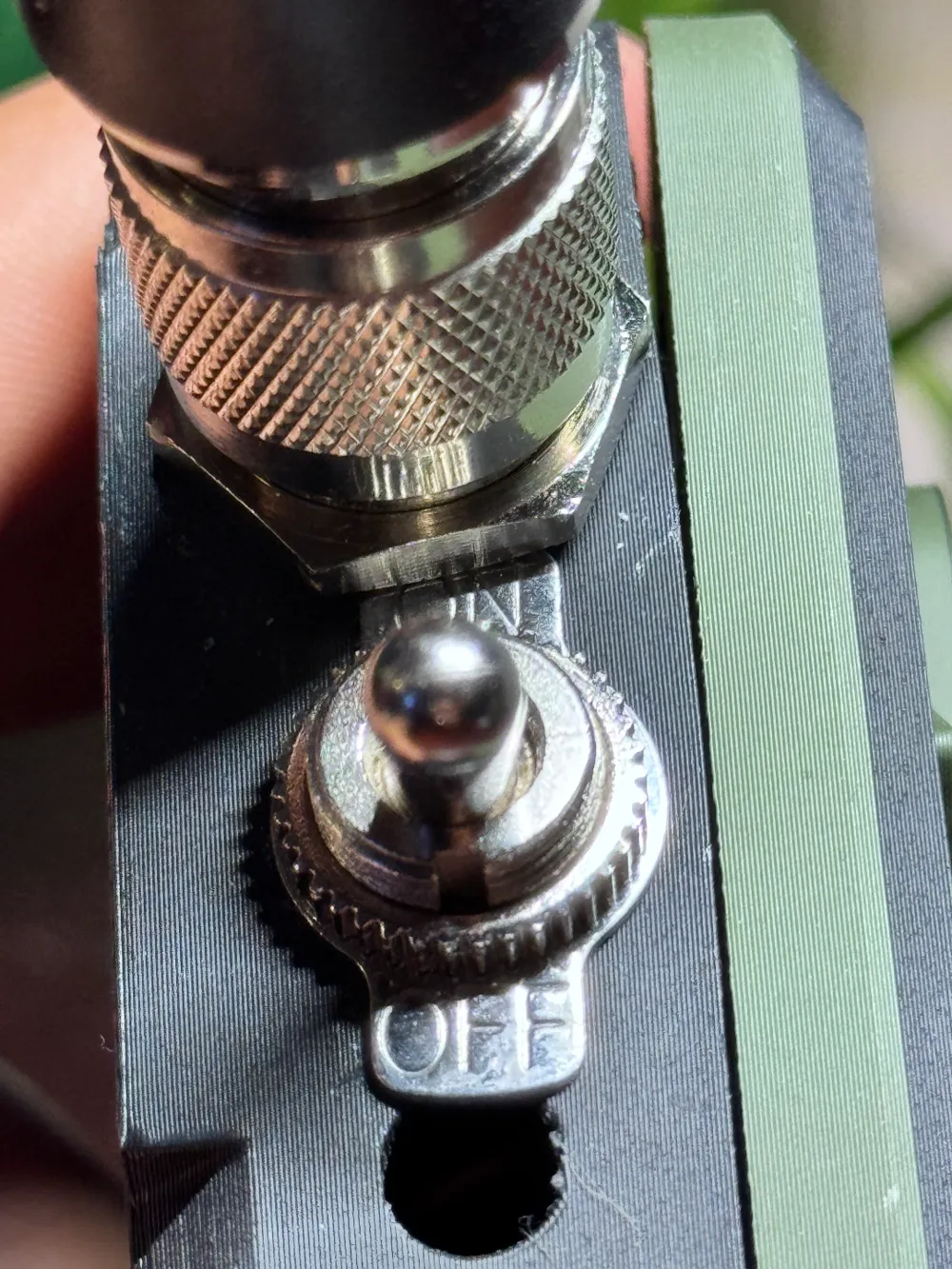

- Power switch: Easily toggle power on and off without disconnecting the battery.
- USB-C charging circuit: Rugged USB-C port allows for convenient recharging with modern cables, protected by a reinforced connector design.

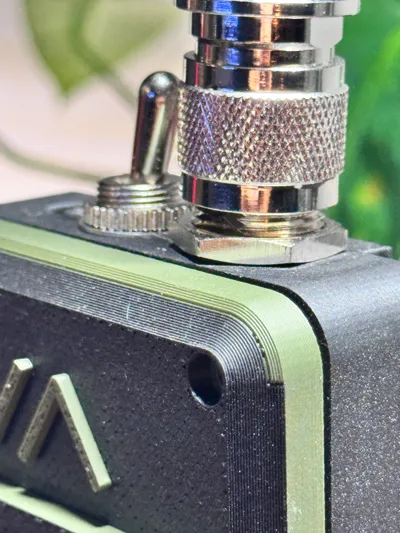

N Female antenna connector: Configured to work with N-type antennas, ideal for extending range in rugged environments.
Boost Me (for free)
Please consider boosting this model if you enjoy it, or share photos with me!
Print Details:
- Material: PLA, or PETG for improved durability and weather resistance.
- Layer Height: 0.2 mm for good detail and strong component fits.
- Supports: Recommended for the top section
- Infill: 30% for ruggedness and impact resistance, 100% for the antenna hole subcomponent
