Description

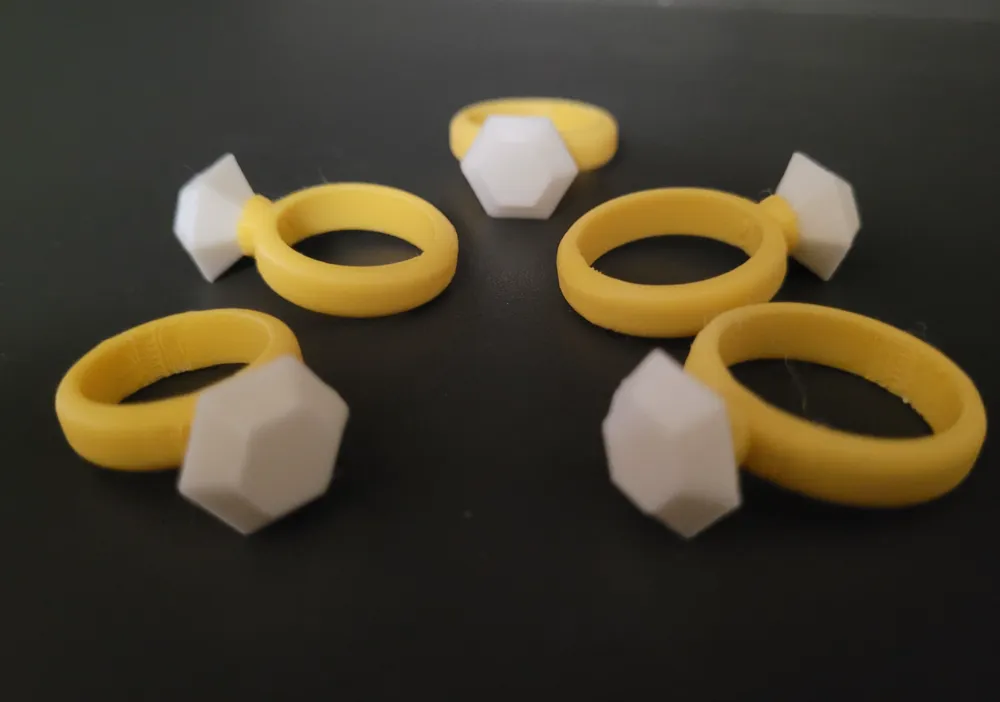

Custom diamond ring with customizable diamond and band size, and custom debossed text inside the band.
- If you are having any issues with the customizer, you may have better results running the script locally in the dev snapshot version of OpenSCAD, using the settings below. Additionally this script requires the BOSL2 library to be added to OpenSCAD's available libraries.
- Under Edit / Preferences / Features check the boxes next to
- manifold
- lazy union
- textmetrics
- predictable-output
- To install BOSL2 library (additional installation instructions on github readme)
- download zip file from github (click green code button and download as zip)
- extract contents of zip and rename extracted directory as “BOSL2”
- in OpenSCAD, under File, select Show Library Folder
- move extracted BOSL2 folder into library folder
- Under Edit / Preferences / Features check the boxes next to
- Files exported from OpenSCAD can be exported as either .stl or .3mf but need to be separated by part in slicer so each part can be colored individually.
- Files exported from customizer need to be exported as .3mf
