Looking for Gears? Look no further.

This OpenSCAD script lets you generate a wide variety of gears - spur, ring, crown, bevel, worm gears, and gear racks - all fully parametric and customizable. Built using the power of BOSL2, it uses real-world gear parameters like circular pitch, pressure angle, and helical angles to create functional, realistic gears. Whether you're designing for mechanical systems, learning about gear mechanics, or simply experimenting, this script has you covered.

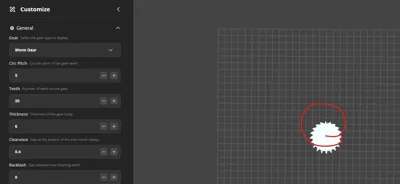

Click on Customize to open the generator.

🚀 Quick Start

Select a Gear Type
Choose a gear type. Adjust general parameters like circular pitch and teeth count, which are shared across all types.
Customize Your Gear
Each gear type has its own unique parameters. Expand the relevant section (e.g., spur, bevel) and adjust those to your needs.
Render and Export
Generate your gear at the desired resolution, then export it for slicing and 3D printing.

⭐ Features

Multiple Gear Types
Generate spur, ring, crown, bevel, worm gears, and gear racks with ease.
Customizable Parameters
Adjust circular pitch, teeth count, pressure angle, helical angles, clearance and more.
Precision Modeling
Adheres to standard gear design principles for functional prototypes and gear ratio experiments.
Realistic Results
Create not just visual representations but fully functional designs that meet engineering standards.

This script is open source under a Creative Commons Attribution license - free to use, modify, and share with proper credit. Credits go to the BOSL2 library and team. Refer to gears.scad for full documentation. If you have GitHub, go show them some love with a star!
