CREALITY SPACE PI DRYER 4.0MM BOWDEN TUBE STOPPER

CREALITY SPACE PI - DRYER - 4.0MM BOWDEN TUBE STOPPER - 1.75MM FILAMENT

IF YOU ARE HAPPY WITH THIS PRODUCT AND FEEL GENROUSE TODAY, YOU CAN BUY MY DESIGN AT:

STL file CREALITY SPACE PI - 4.0MM BOWDEN TUBE STOPPER - 1.75MM FILAMENT 🛰 ・3D printing idea to download・Cults (cults3d.com)

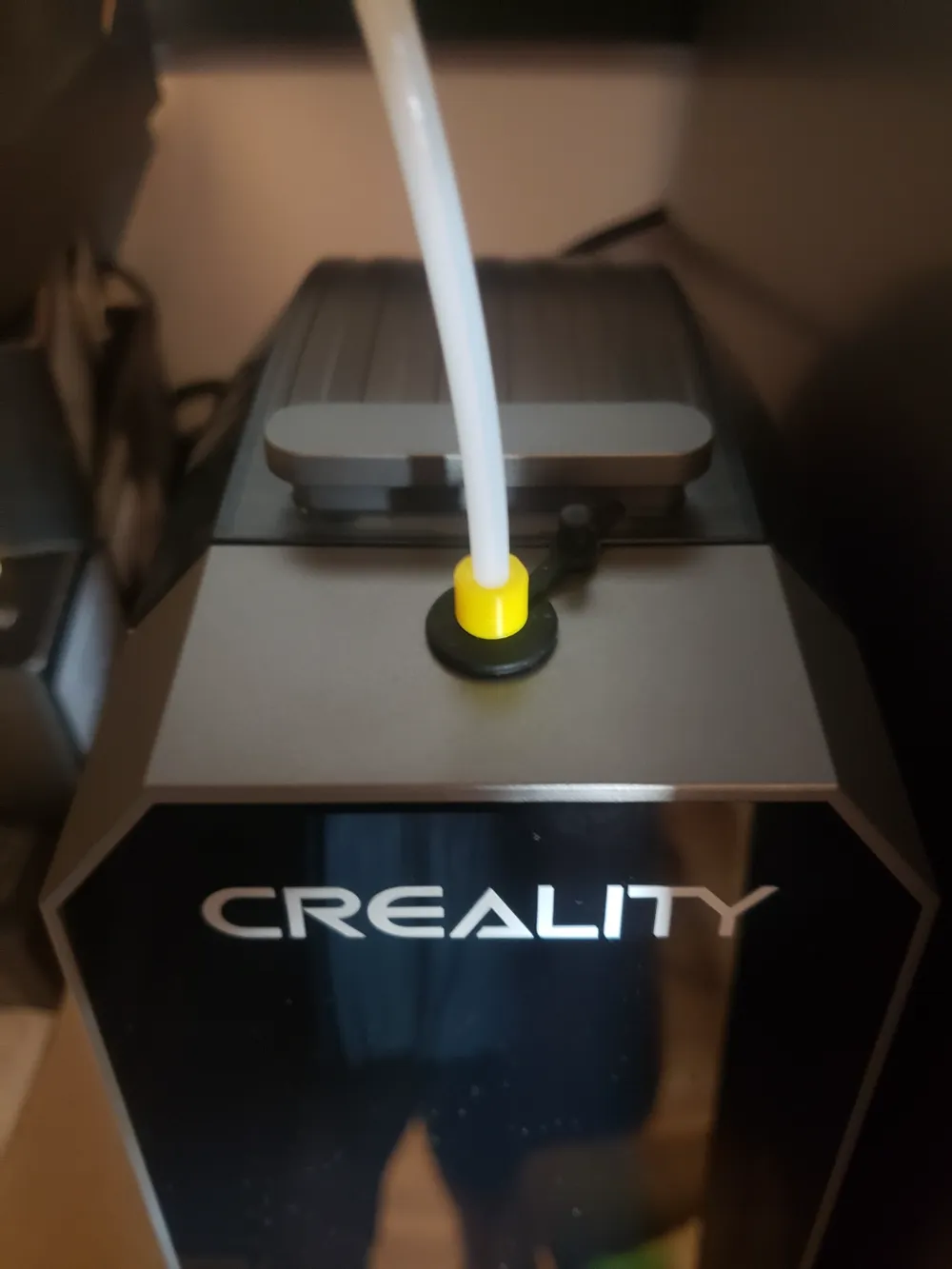

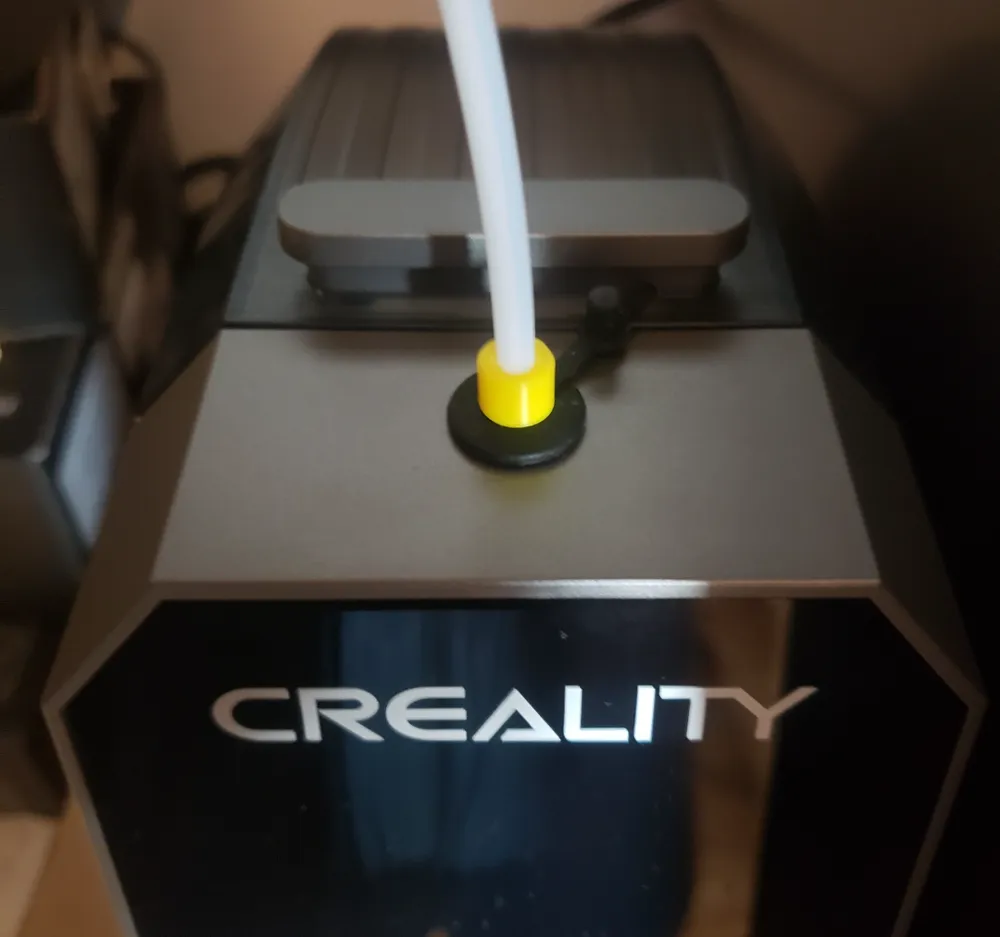

THE BOWDEN TUBE STOPPER - IS GOING TO LOCK AND STOP THE BOWDEN TUBE TO ENTER IN TO THE FILAMENT DRYER HOUSING, AND KEEP IT TIGHT ON POSITION.

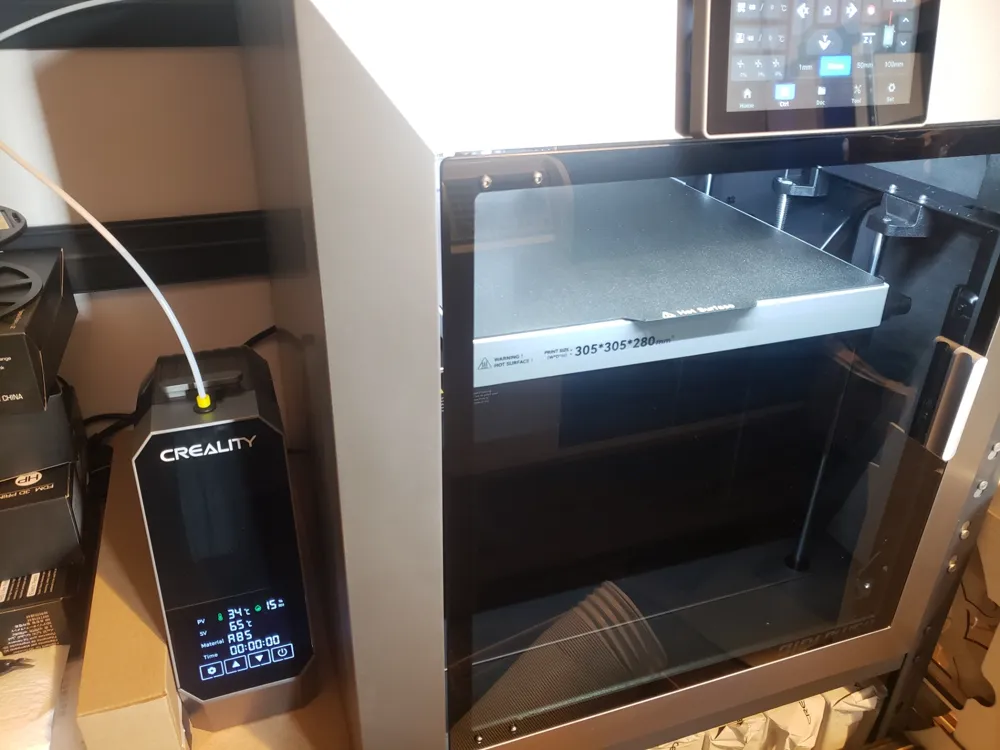

THIS IS GOING TO SOUND LIKE THE BEGINING OF A BAD JOKE, A PART WAS 3D PRINTED ON A BAMBU X1 CARBON, TO FIT A CREALITY FILAMENT DRYER - SPACE PI, WHAT IS GOING TO BE USED WITH THE 3D PRINTER - QIDI PLUS 4 ... THEY ALL ENTER IN TO A BAR!

JOKE ASIDE, THE QIDI PLUS 4 IS A GREAT MACHINE. ON THE FILAMENT LINE - IS INSTALED A SENSOR - WHAT DETECT IF FILAMENT IS ENTANGLED, AND PAUSE THE PRINTING PROCESS... WAYTING FOR YOU TO FIX THE PROBLEM!

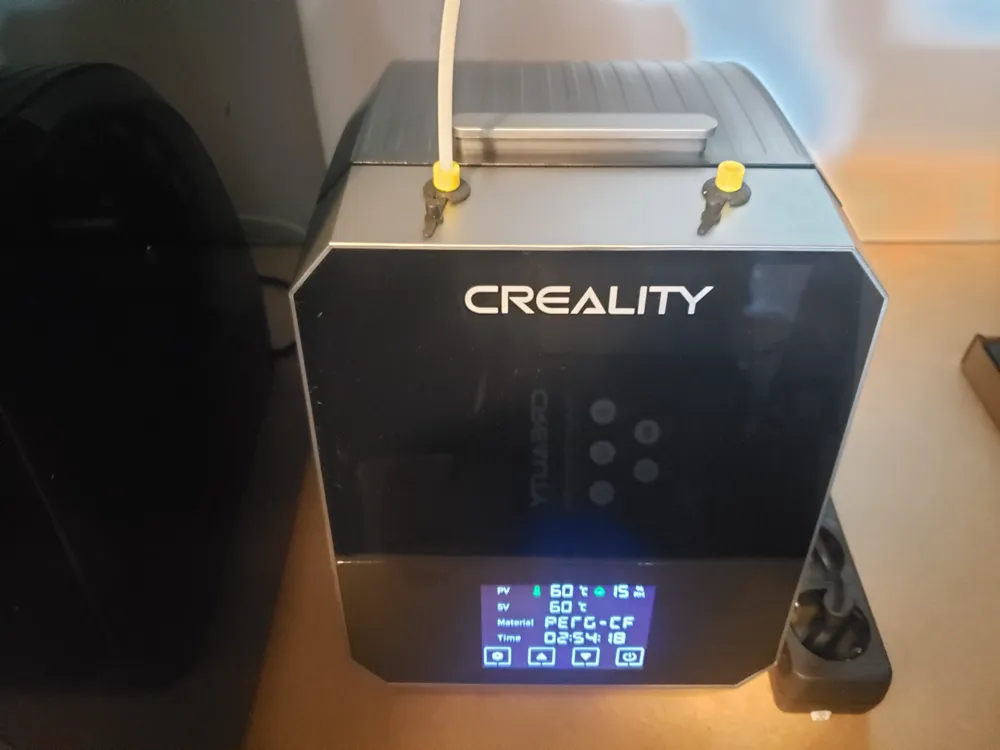

TO KEEP MY FILAMENT DRY, I USE THE CREALITY PI FILAMENT DRYER, WHAT IS A GOOD MACHINE, EXEPT FOR THE ENTRY POINT OFF THE BOWDEN TUBE, IN TO THE DRYER ! IT WAS NOT DESIGNED A WAY TO STOP AND LIMIT THE LENGHT OF THE BOWDEN TUBE, ALOWED TO ENTER THE UNIT! JUST A RUBBER WASHER WITH A PLUG!

SOME OF MY ROLES OF FILAMENT - HAVE FROM THE INJECTION MOLD - ON THE RIM - WHERE THE TAB GATE USE TO BE - AND WAS CUT OFF - SMALL ABERATIONS/IMPERFECTIONS... ALOWING FOR THE ROLL TO GET STUCK, WHEN SEATING ON TO THE FILAMENT DRYER RODS/BEARINGS.

AS A RESULT, WHEN FILAMENT IS PULL BY THE 3D PRINTER, AND THE FILAMENT ROLL IS STOCK ... THE BOWDEN TUBE IS PULL IN TO THE DRYER... UNTIL THE ENTIRE SYSTEM IS LOCKED ... AND YOU HAVE AN ERROR THAT FILAMENT IS ENTANGLED... IF YOU ARE LUCKY TO HAVE THIS FEATURE ON YOUR PRINTER, AND GOT THE CHANSE TO SAVE THE PRINT BY FIXING THE PROBLEM ... AND RESTART THE JOB!

MYSELF, BEFORE REALISING WHAT WAS GOING ON... AT THE BEGINING I CONSIDER THE POSIBILITY OF FILAMENT TO BE MESS-UP ON THE ROLL... WHEN IT HAPPEN FOR THE SECOND AND THIRD TIME - ON THE SAME PRINT - I REALISE WHAT THE PROBLEM WAS...
IN ORDER NOT TO STOP THE PRINT - I PULL THE BOWDEN TUBE OUT OF THE DRYER, HAVING IT REST ON THE EDGE OF THE ENTRY POINT ... AT AN ANGLE, SO IT WILL NOT GET PULL IN TO THE DRYER, AND KEEP THE PRINT GOING ON!
LUCKLY, I MANAGE TO COMPLEATE THE JOB, AND NOT LOSE ALL THE FILAMENT ALREADY USED IN THE PROCESS! QIDI 4 PRINTER MADE A GREAT RECOVERY!

I REALISE THAT I NEEDED TO DESIGN A PART WHAT IT WILL LOCK AND STOP THE BOWDEN TUBE TO ENTER THE DRYER AND KEEP IT LOCKED IN TO POSITION... SINCE THE BOWEDN IS LOCKED ... THE 3D PRINTER WILL MANAGE TO PULL THE FILAMENT ... AND THE FILAMENT ROLE TO SPIN ... AND KEEP THE JOB MOVING ON!

AND THERE YOU HAVE IT ... THE STORY OFF THE THREE PRINTER BRANDS, WORKING FOR A SMALL PLUG!

PS: RIGHT AFTER I INVENTED THE WHEEL AND DISCOVER THE WATER FORMULA, I WENT TO PUBLIH THE TUBE STOPPER DESIGN ON MAKERWORD … JUST TO FIND OUT THAT ARE ALLSO FEW OTHER ITERATIONS OF THE SAME IDEEA, ALREADY PUBLISH!

Thank you for your interest in our product!

Stay safe, be safe and be happy!

DESIGN TO PRINT WITHOUT SUPPORT! BY COSTA!
