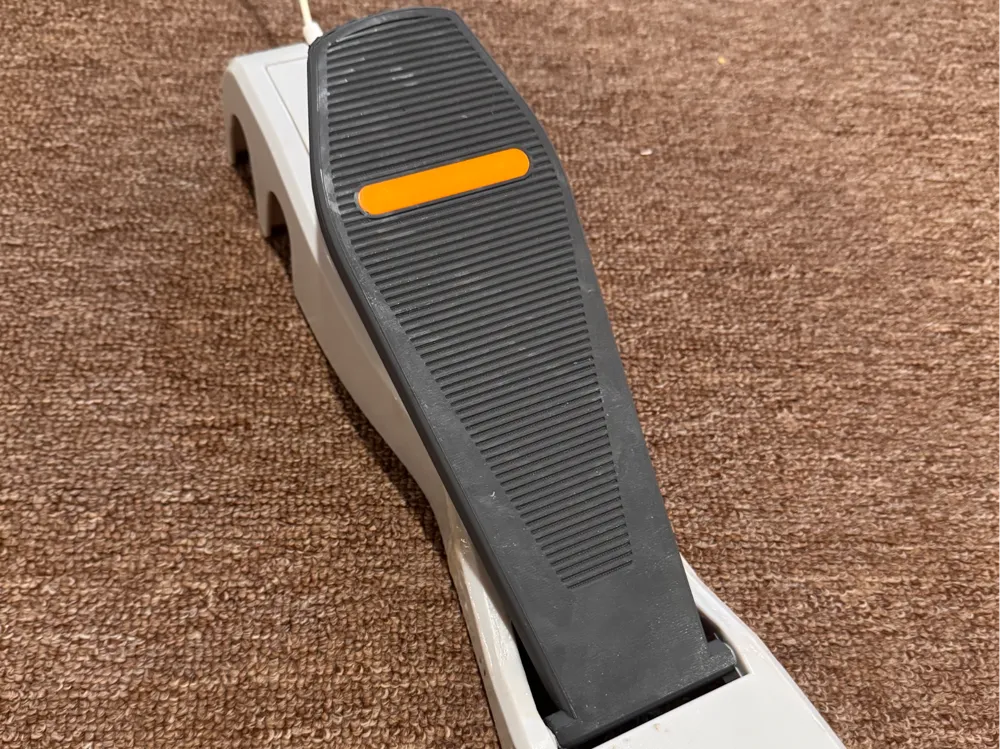

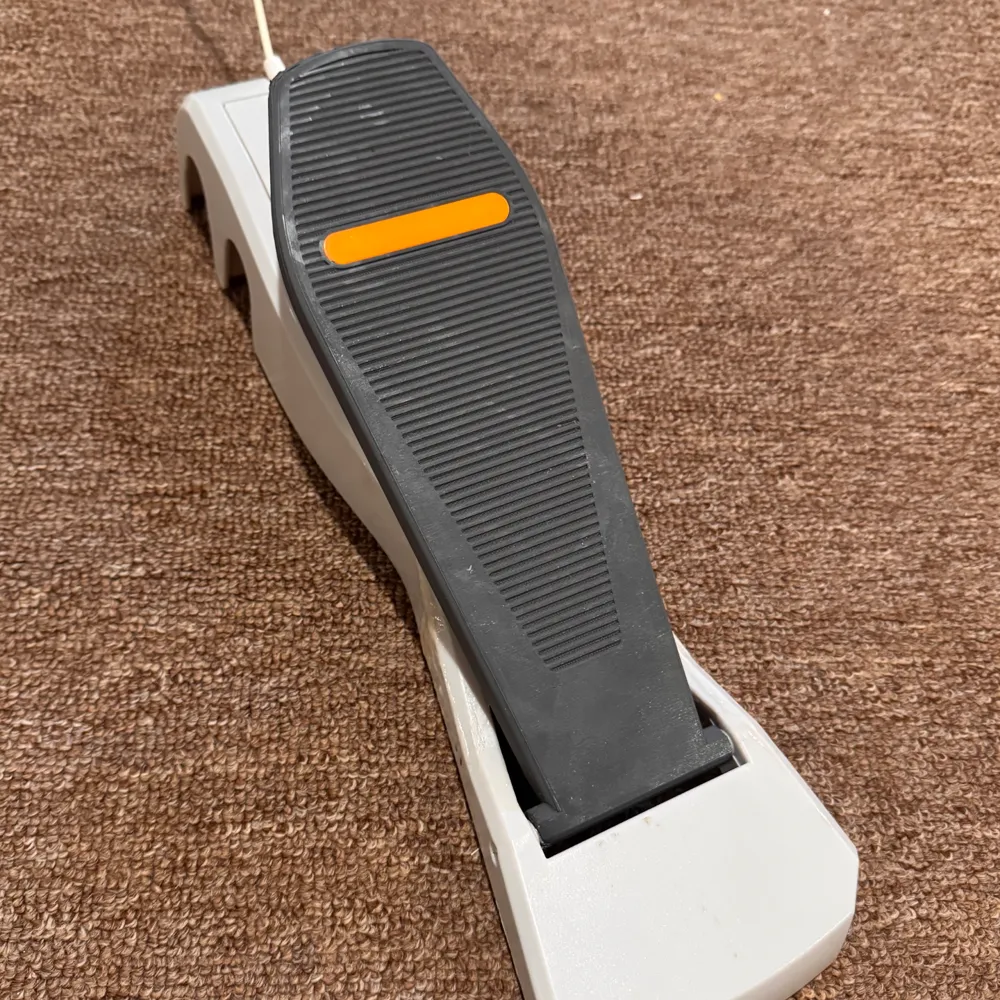

Rockband Pedal using pin (and nubs)

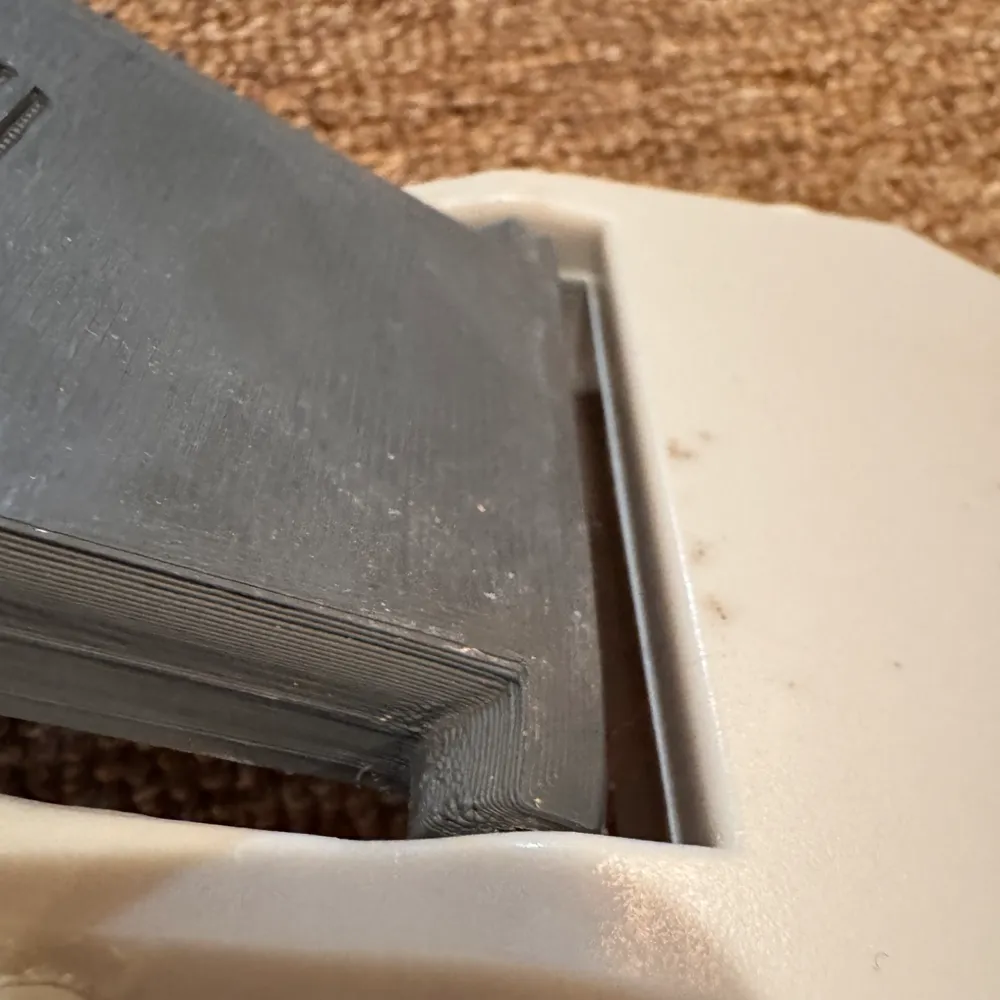

If your RockBand Drum Pedal is broken (or the plastic dampening nubs have broken off) this is fix for your issue. The original model has multi-color pedals, but did not use the metal pin from the pedal. In my experience the pedal would not stay in place so I modified it allow the pin to be inserted into the print and also increased the area of plate adhesion near the pin. The original author also updated his model to allow the pin to be fully used, but I have not tried that model since it was updated.

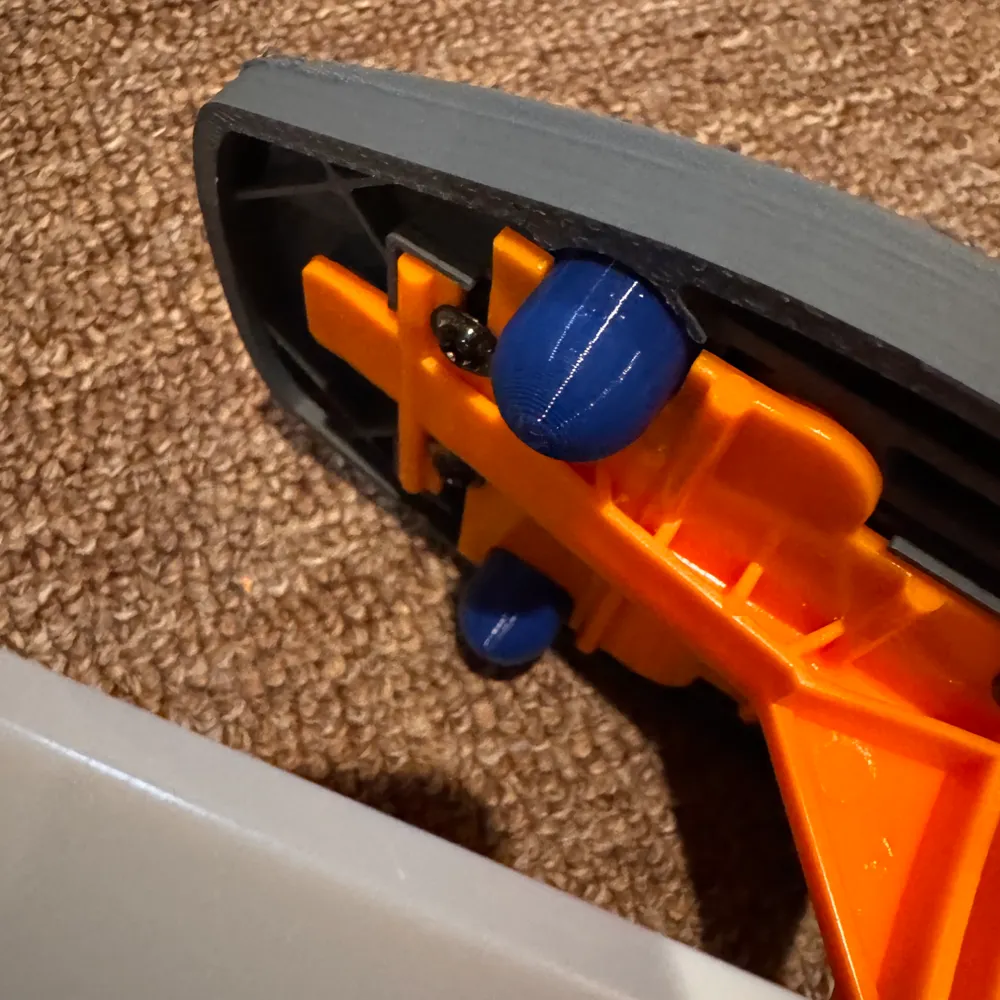

When removing the dampening nubs from the original model both broke. The nubs are should be printed in TPU and slide right into the new pedal.

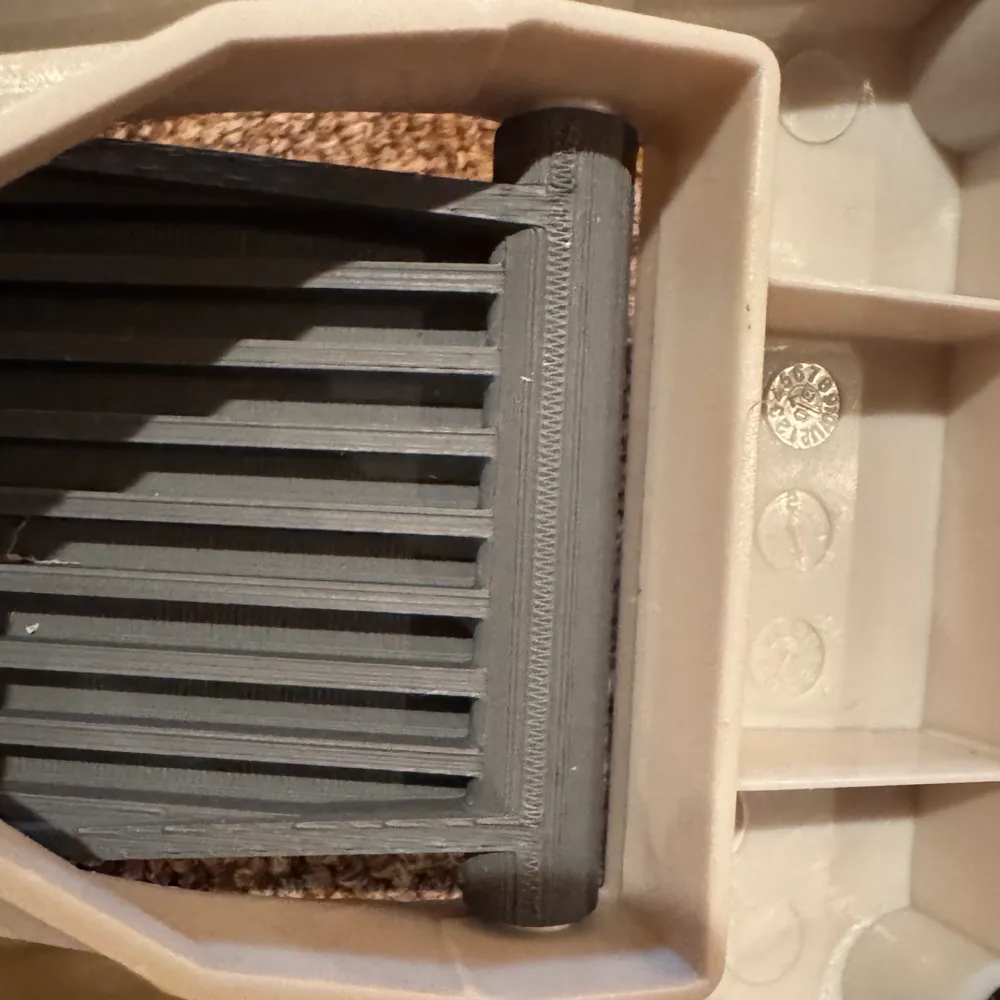

To remove the pin clamp the pedal lightly if possible and use a small punch and hammer carefully. It may help to lightly heat the plastic. One side of the pin has knurling to hold the pin in place.
