Description
Boost Me (for free)
2025/10/17 v4.0 Update:
- Make the ridges on the cap smaller so it would close shut without bulging.
----------------------------------------

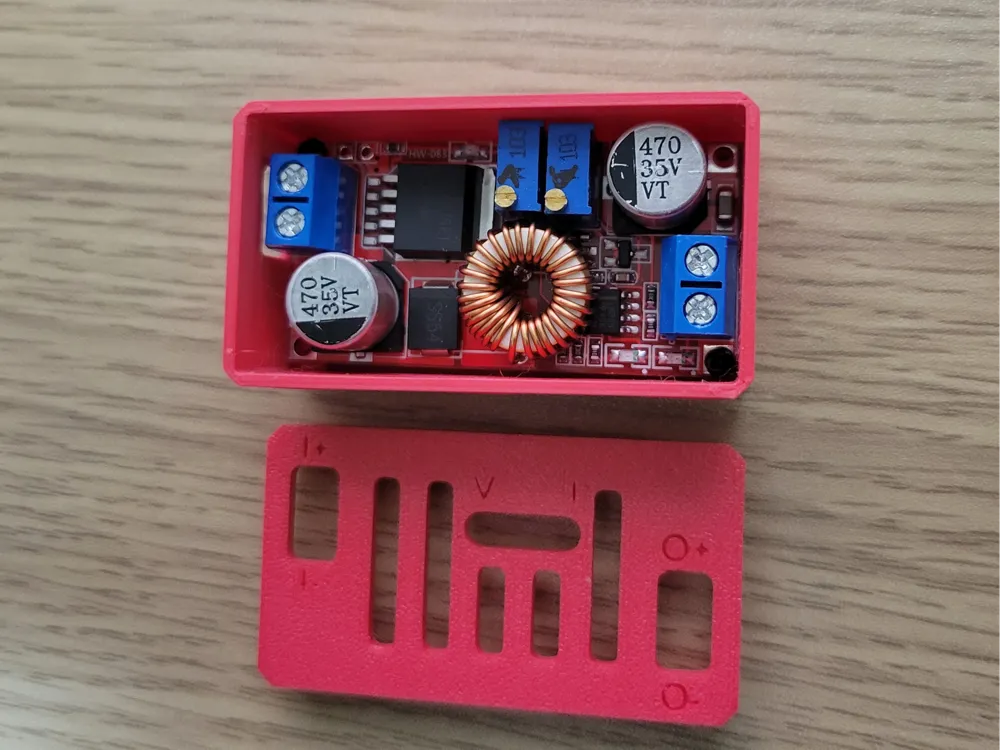

Remixed ExtremeExtruder's case from scratch based on his design.

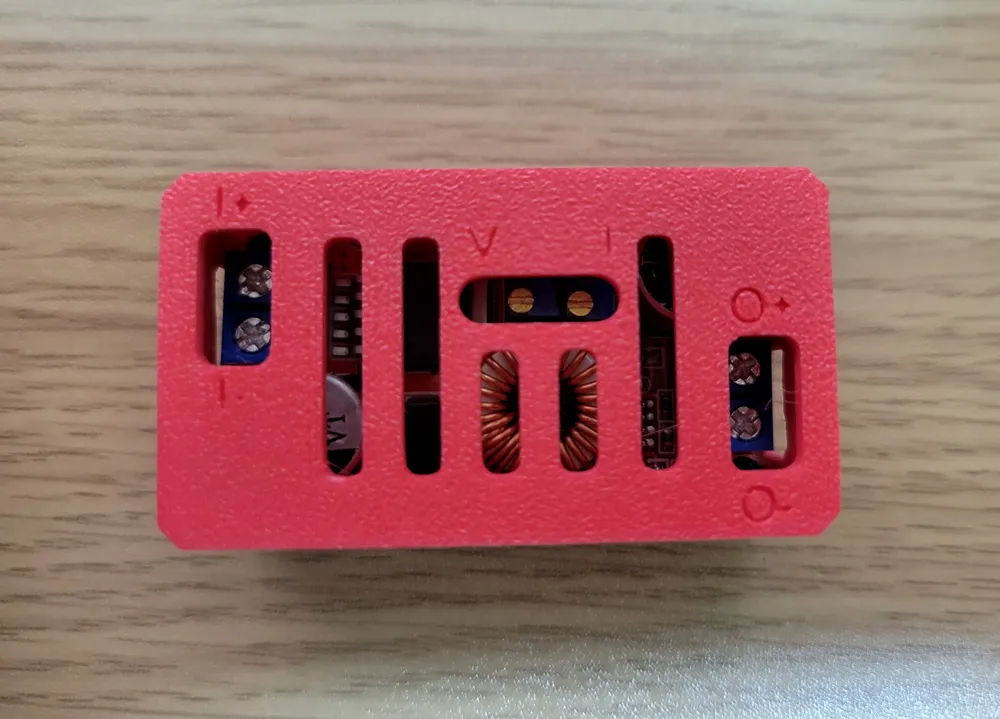

- Lid with holes for adjusting current, voltage as well as openings for screwing input/ output wires
- Make the case smaller because the original from ExtremeExtruder are perfect length-wise but have quite a lot of empty space with the width, at least with the board I have.
- Added 4x2mm holes for fixing the board in place. Need 2mm screw which are quite rare so if you don't have them just skip it.
- Add ridges to the cap so it won't pop out.
- Enlarge trim-pot holes and merge them together for larger tolerance
- Added label (might be a bit small, but was legible on my printer.)
