STIM shot airsoft/dummy - Free 3D Print Model

Search models, users, collections, and posts

Akhto Designs

Hobby & DIY>Sport & Outdoors

IP Report

GIF

Print Profile(3)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.2mm layer, 5 walls, 15% infill, 0.4 nozzle

Designer

3.1 h

2 plates

4.8(19)

0.6mm nozzle, 0.2mm layer, 5 walls, 15% infill

Designer

2.9 h

2 plates

4.0(2)

FOR AMS!! 0.2mm layer, 5 walls, 15% infill

Designer

9.8 h

3 plates

Open in Bambu Studio

Boost

726

1408

702

293

Released

Bill of Materials

List other parts

1x 6-8x25-35mm spring x 1:

Description

3D model description

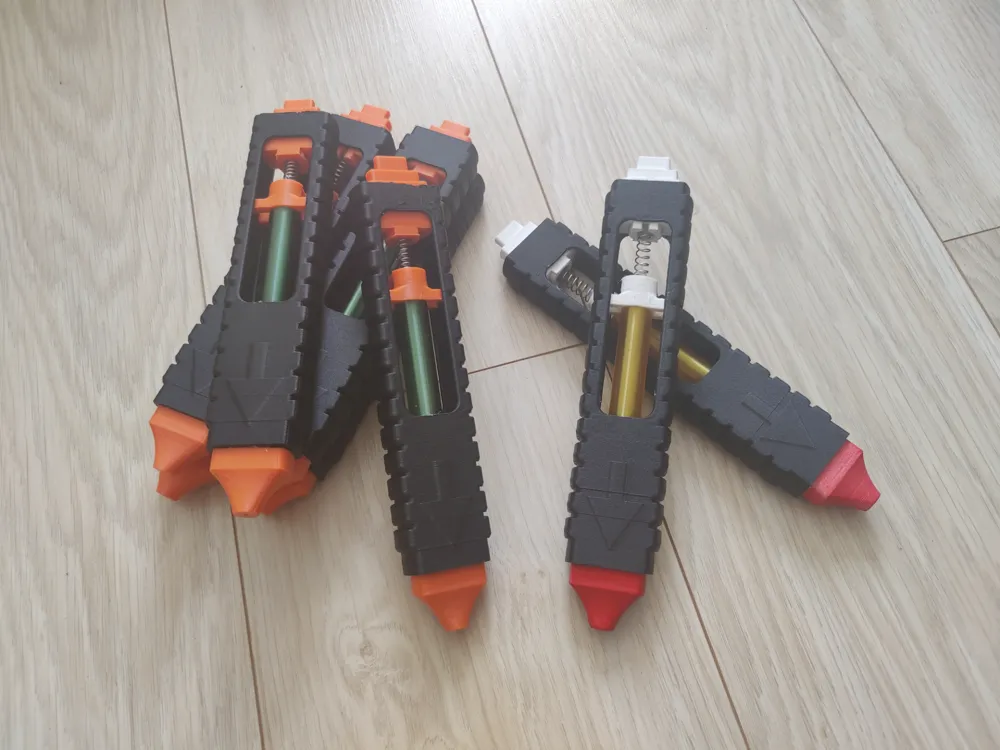

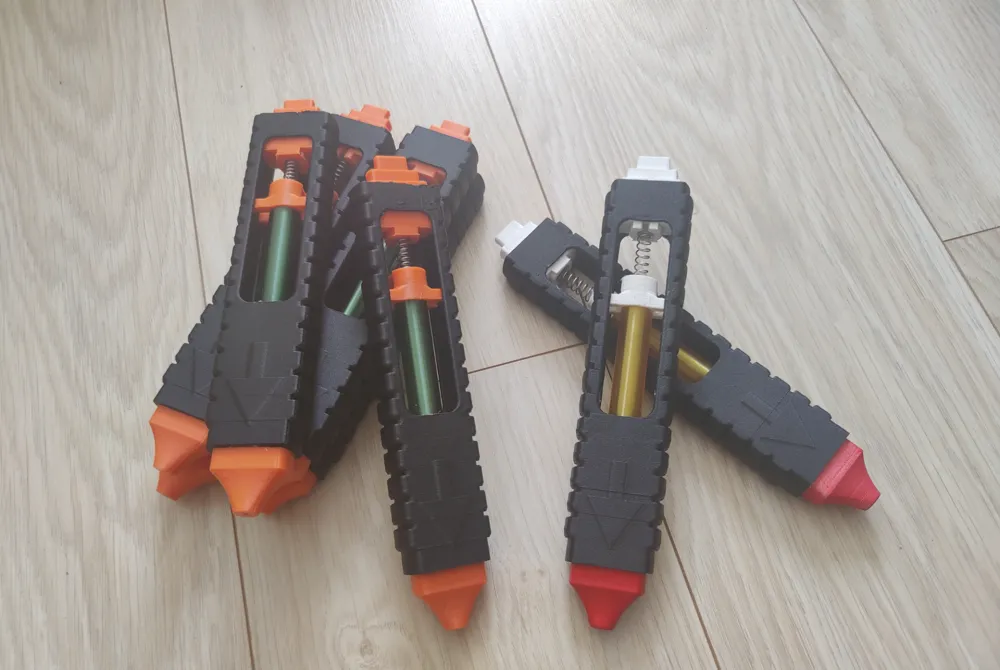

After almost a 1 year pause, I finally finished the 4th version of my STIM shot prototype!
features:

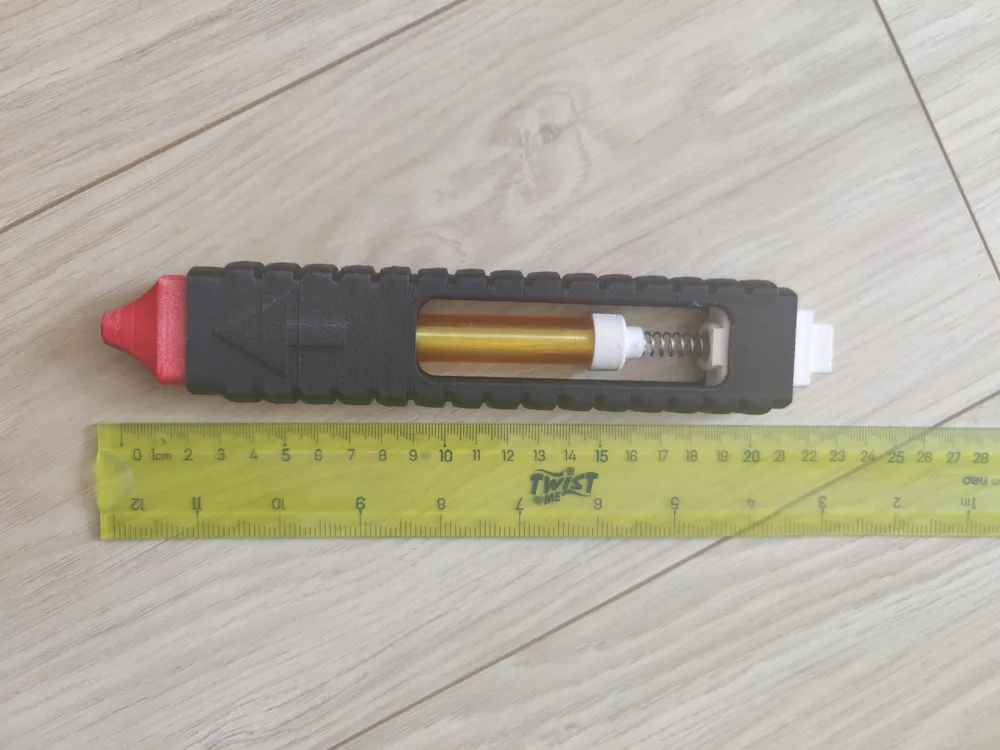

-200+mm long
-main body is supportless
-is optimalized for 3D printing!

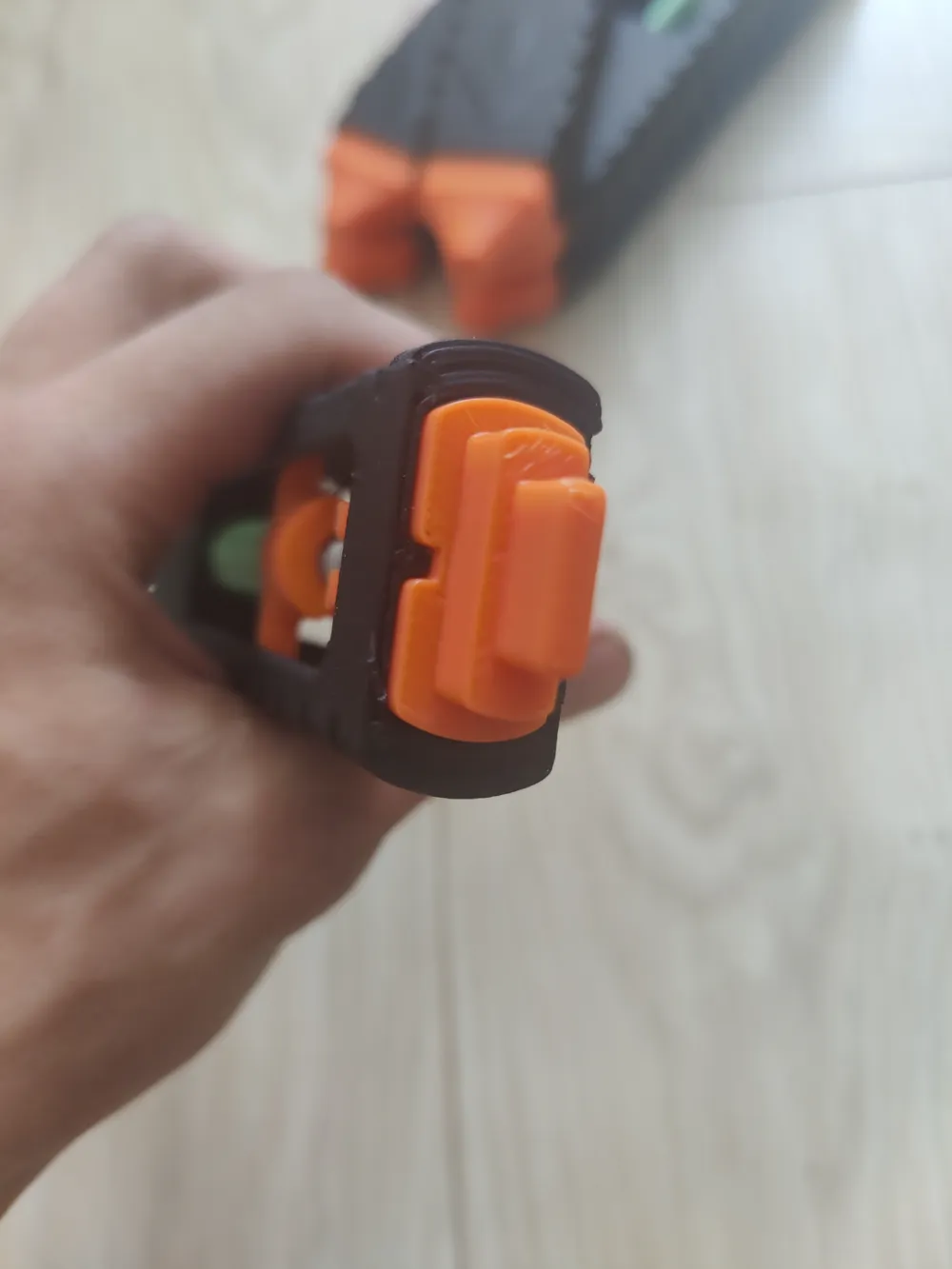

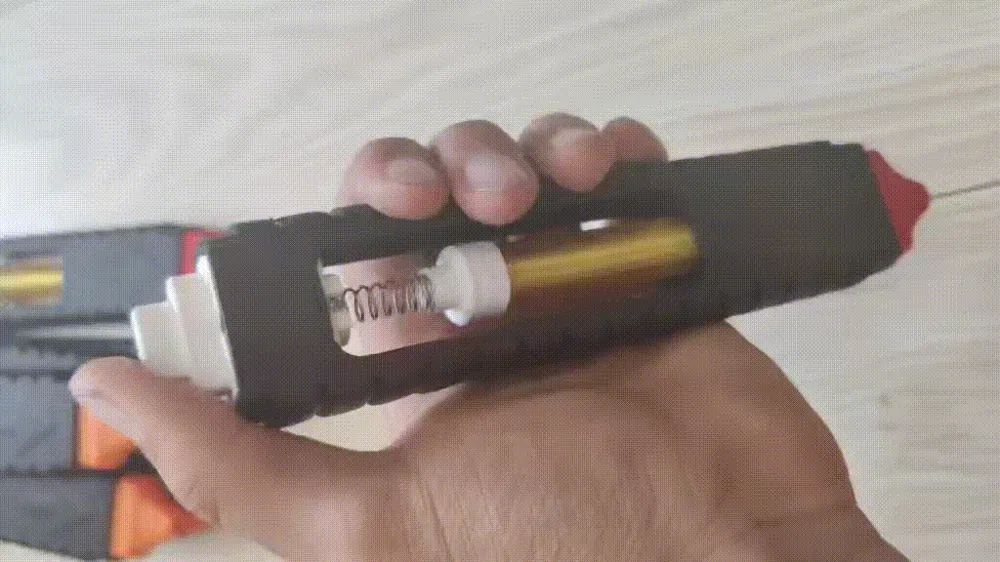

-working button
-as durable and easy to print as it can be while maintaining its looks.
Enjoy!

Assembly:

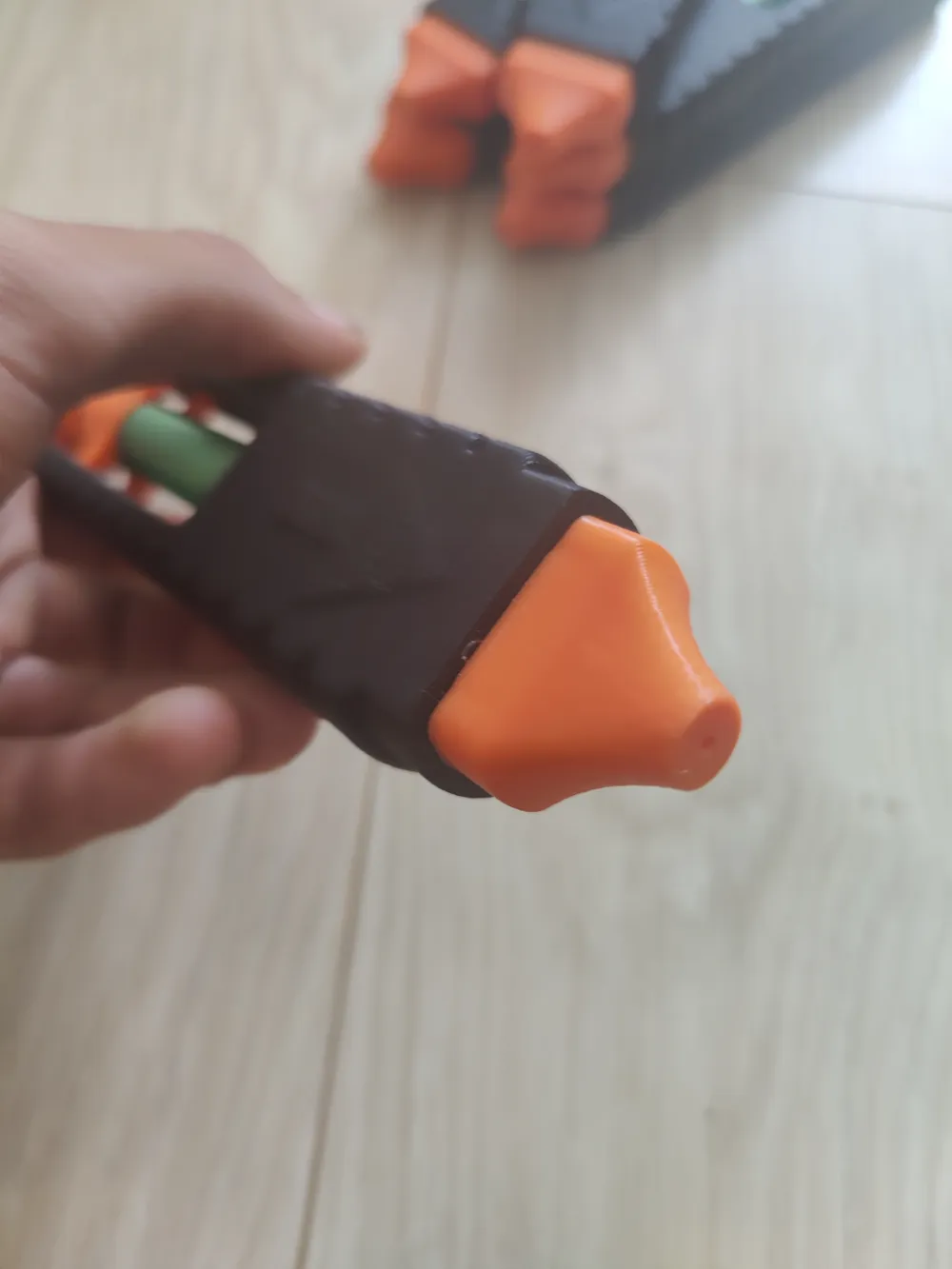

glue on the nozzle to the body, then the"liquid" to the body, THEN GLUE ON THE "MID" TO "LIQUID YO UCAN ONLY INSERT IT BY ROTATING IT, AND FROM THE MIDDLE!!, then comes the spring and button, and it's done!

Parts list:
-1x 6-8x25-35mm spring
-hotglue
-3D printed parts.
Note that this isn't an 1:1 replica of any COD or other STIM shot, it is an inspiration optimalized for 3DP!

Remixing:
as long as you mention me, and not sell neither the print nor the file it is absolutely okay! Message me if you want to sell it in any form, it is not accidental that I made it free.

3D printing settings

To ensure maximum performance and style follow my instructions:
-Main body, connector: stiff material
-nozzle, button, mid: whatever you like.
-"liquid": transcluent material.

Boost Me (for free)

Boost me if you wanna see more cool stuff for FREE! :)

Comment & Rating (75)

@3DPIRATE

Love it! But can you add a cap like the real stim shot, where you can pop off the cap and then use the stim?!

(Edited)

The designer has replied

@SpideyDork

yes!!! I was about to say that

@3DPIRATE

Replying to @SpideyDork :

Thanks!!

@Akhto__

Yes, will definitely do! Currently I am working on 2 aap kits (smg and a barrett m70), after that I will probably continue with the Stim series! the next version will include a single use lock mechanism and the cap too

@Noloty_3

Print Profile

0.2mm layer, 5 walls, 15% infill, 0.4 nozzle

It prints without problem and need only some glue for combining the different section

The profile uploader has replied

@Akhto__

Thanks for rating and posting a photo, I'm glad you like it! :)

(Edited)

@pophax

Print Profile

0.6mm nozzle, 0.2mm layer, 5 walls, 15% infill

a little hard to put together, sand paper is required

The profile uploader has replied

@Akhto__

Hi! I tried my best with the tolerances, and most people don't have fitting issues. Unfortunately it is unavoidable to make a model everyone can print because of filament and printer properties change all the time. I'd recommend you run a size calibration cube, especially if you have fitting issues regularily!

@pophax

Replying to @Akhto__ :

ok thank you

@MattL2365

Print Profile

0.2mm layer, 5 walls, 15% infill, 0.4 nozzle

Printed with no issues

@davidemaker3d

Print Profile

0.2mm layer, 5 walls, 15% infill, 0.4 nozzle

good

@MonarchOne

HEllo! I love the model however I cant seem to find the spring. Does anyone have a link or alternative? I live in the US so EU sellers dont work for me. Thank you!

(Edited)

The designer has replied

@Akhto__

Hmm. I used a 8x35mm spring, but if you get like a 6 it probably won't be a problem. Also the length of the spring is almost always configurable, meaning you can easily get like a 8x50. With that info, you should be able to find these on Amazon, Temu, etc. But if you still can't find one, let me know and I'll source it :)

@MonarchOne

Replying to @Akhto__ :

Thank you! Im kinda dumbb when it comes to hardware :/ but I found some i can order. I appreciate it!

@Akhto__

Replying to @MonarchOne :

Neat! Lemme know if you still have any kind of problems about it! :)

@DeltaForceGame

Print Profile

0.2mm layer, 5 walls, 15% infill, 0.4 nozzle

works very well just wish there was a cap like the real stim

The profile uploader has replied

@Akhto__

There will be probably this year :)) Right now, I am wokring on multiple projects, and some big ones too like an aap01 carbine kit, and an aap01 barrett m70 kit, but I do plan to make more versions to this project. Also, there will be a version where you can only push the button once! It's already half complete, the mechanism kinda of works.

(Edited)

@DeltaForceGame

Replying to @Akhto__ :

that’s cool I want a aap 1 but it can’t get shipped here in my state

(Edited)

@hash_brown

I got brutally attacked by a McChicken luckily I had this

The designer has replied

@Akhto__

Haha, glad you survived the attack

@hash_brown

Replying to @Akhto__ :

thanks

@kruzy_models

do i gonna run faster with that?

The designer has replied

@Akhto__

Oh absolutely! Even your health goes up to the max! Just take care of your plates lol

@user_2318259511

What is that supposed to be good for

The designer has replied

Show original

@SpideyDork

its from call of duty its a prop

@Akhto__

Yes as the other said, it is a prop of a medical device (absolutely functional, kind of a battle drog) from COD games!
