(20mm) MFT Holes Caps
Print Profile(2)
Description
Boost Me (for free)
Do you like my work ? Give me a boost, it's free for you and it helps me a lot!
➡️ ⚙️ ⚒️ 📏 Checkout the entire 20mm Ultimate MFT Bench Dogs collection
Update 23024-10-14:
- Added an ‘embedded nut’ version
- Enlarge a little bit the ‘press fit’ version to make it easier to insert

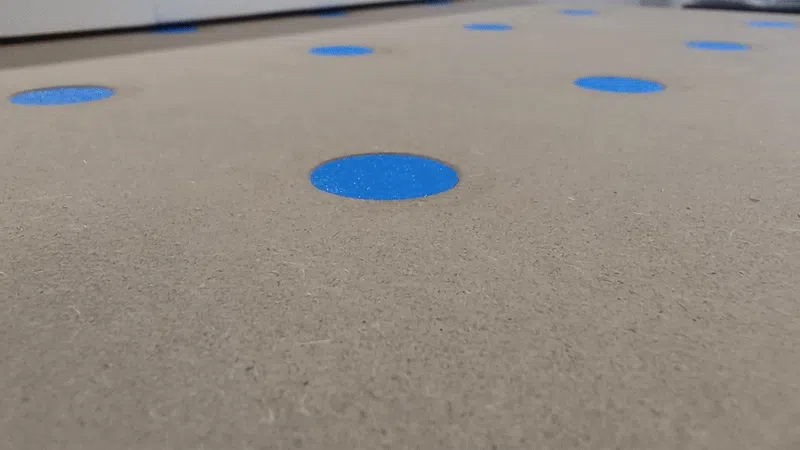

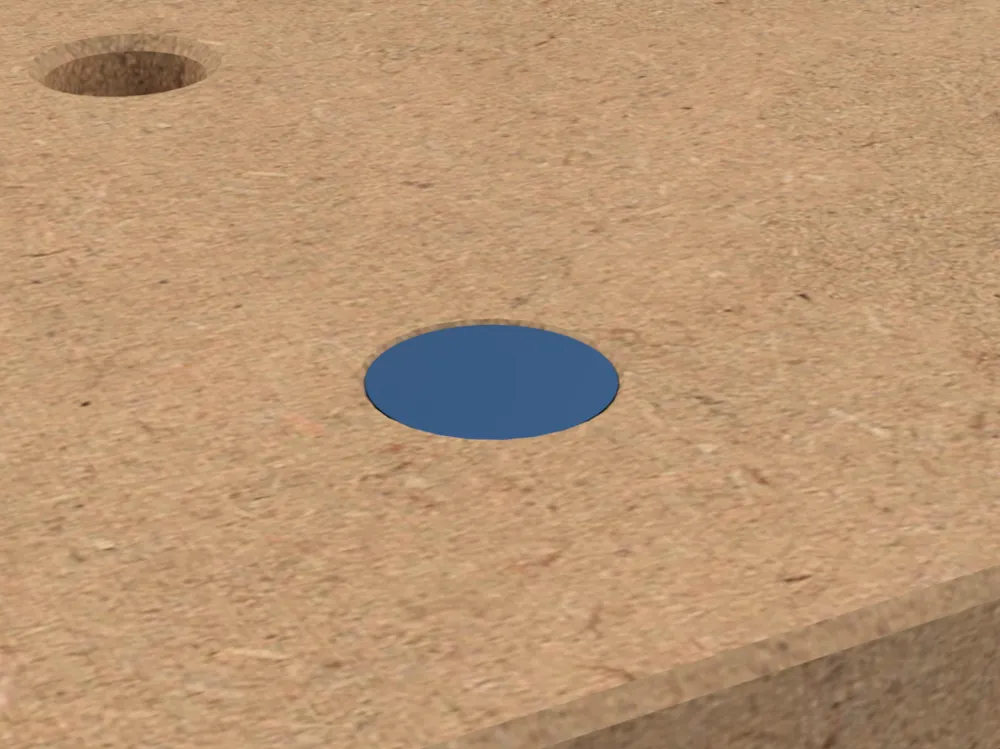

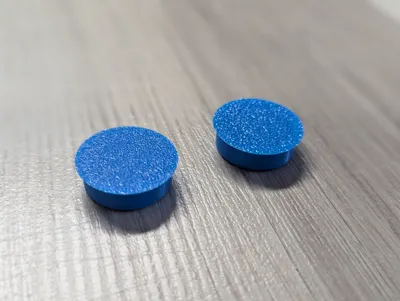

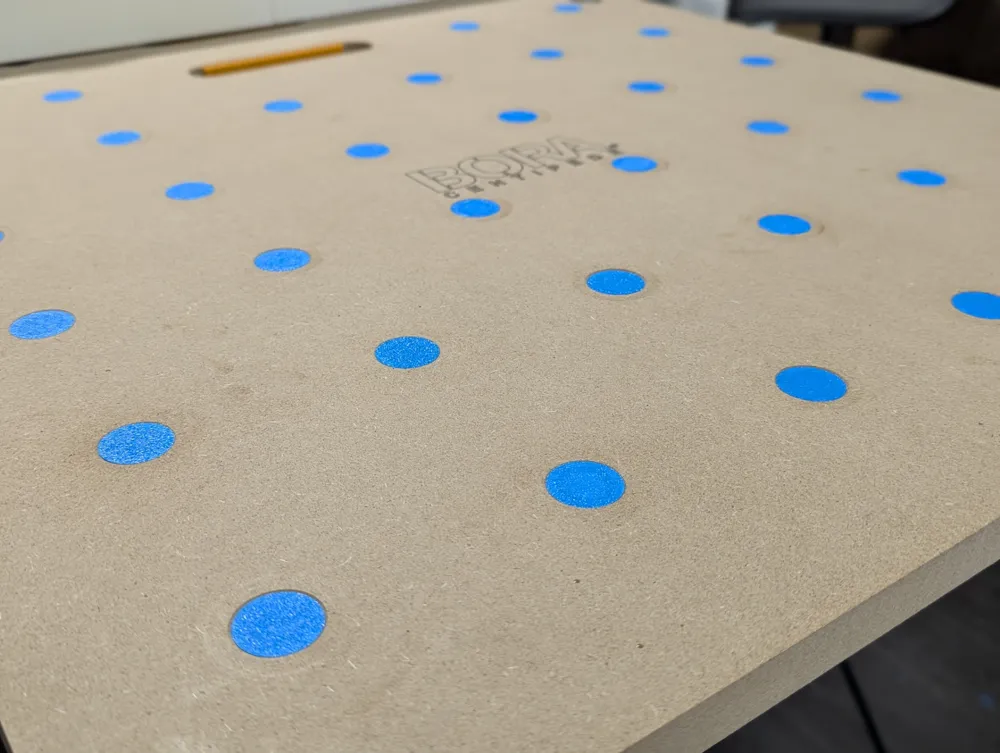

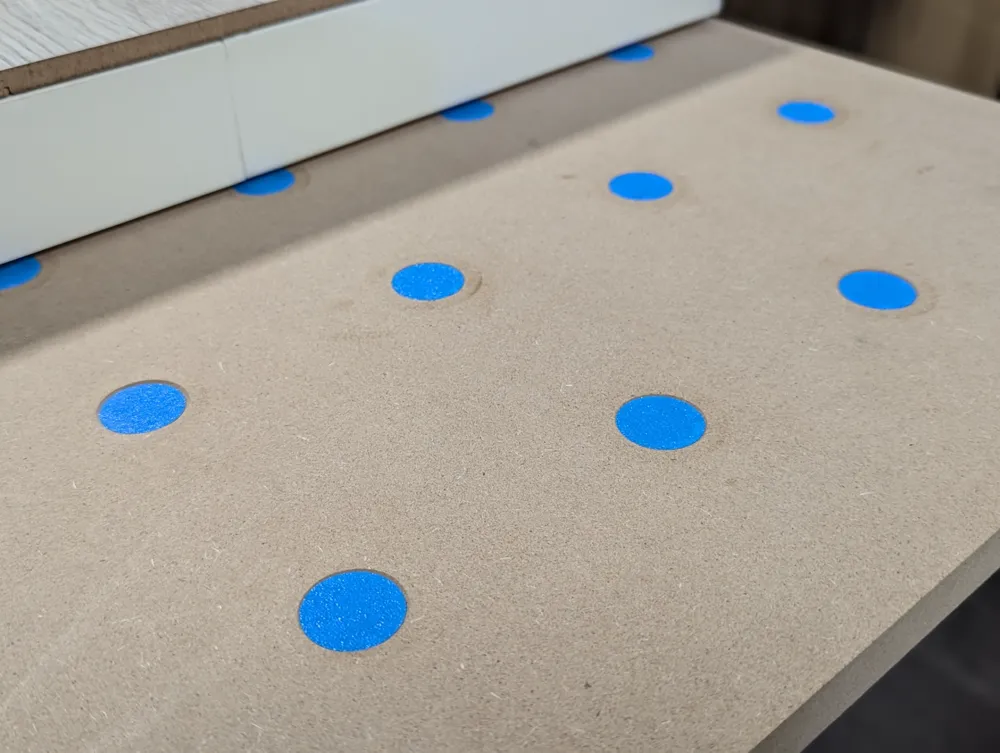

MFT holes caps to prevent small items like screws to fall into the MFT table holes.
It requires chamfered holes (at least 1mm), you can chamfer yout holes with this chamfer tool if needed.

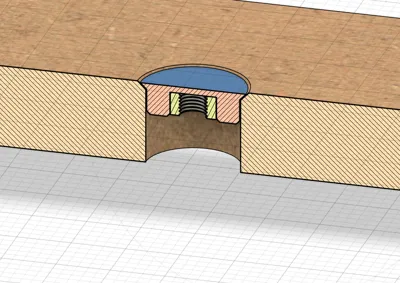

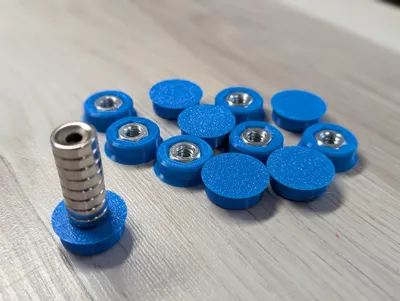

A pocket at the bottom let you insert a piece of metal for easy removal with a magnet (consider my magnetic pen model).

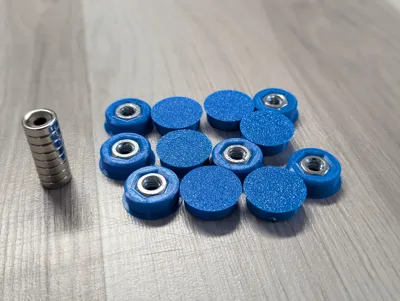

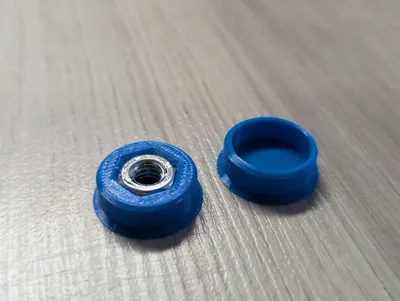

There is a version with a M6 nut pocket, a ¼-20 nut pocket and another with a 16.5mm diameter hole (the max size possible) to let you insert any metal piece you want.
You may need a hammer to press fit the nut, it's normal, it is to prevent it to fall and the need of glue. To help, place the nut on a bolt it is easier.
Enjoy!
