0.2mm layer, 6 walls, 25% infill

Designer

1.2 h

1 plate

3.8(4)

Open in Bambu Studio

Boost

Released

Description

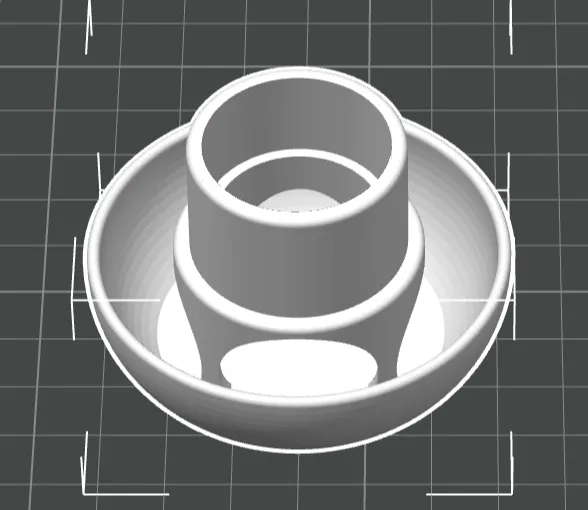

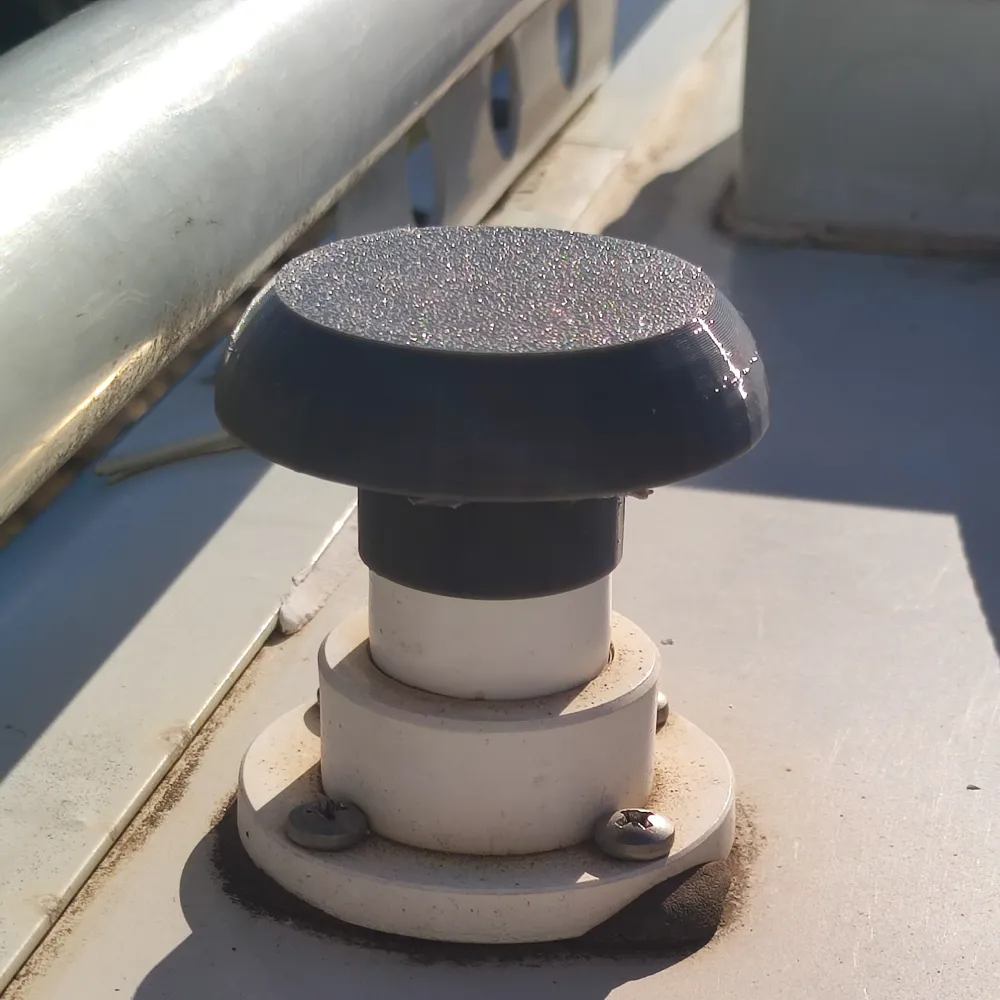

this is the rooftop ventilation cover for the Alde heating system installed on my camper

Comment & Rating (8)

@lgrubbmo

Print Profile

0.2mm layer, 6 walls, 25% infill

Strength Issue:the walls are to thin so they seperate from the base

The profile uploader has replied

@mariousai

Did you use PETG and 6 walls

Show original

@lgrubbmo

Replying to @mariousai :

Yes, I did. Tried 2 different prints with 2 different rolls of PETG, but same result. the rolls came straight out from my filament dryer, so the filamentwas completely dry.

@mariousai

Replying to @lgrubbmo :

strange, I printed 2 without any problems if you tell me the internal diameter you need I can post one with the suitable internal measurement and sturdier walls
