0.2mm nozzle, 0.12mm layer, 4 walls, 15% infill

Designer

44.9 h

1 plate

4.9(10)

Open in Bambu Studio

Boost

188

388

475

Released

Description

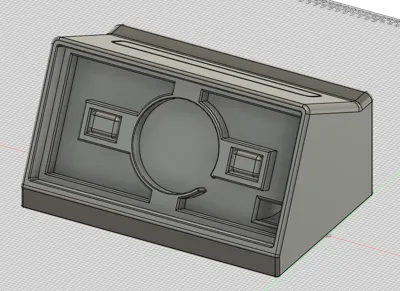

I liked the design of the iPhone Dock which is a remix of, however, when I opened the provided model files I saw it wouldn't be easy to modify the size to fit my Samsung S24 Ultra. Instead of simply messing with the original model I decided to use it to influence my design. Thus I re-made the project with the goal of adding adjustable parameters so others can modify the files easily to fit their own phones.

Be sure to check the 3mf file and adjust the parameters to meet the size dimensions of your phone and your wireless charger. I am using an inexpensive $14 charge that I purchased from amazon. The design does require some sort of mag-mount compatibility with your phone.

Amazon.com: Android Wireless Charger Magnetic Fast Charging Stations Pad Car Phone Charger for iPhone 15 16 14 13 12,Google Pixel 8 Pro 7 Samsung Wireless Charger for Galaxy S24/S23/S22/S21/S20/Note20/10/9 : Cell Phones & Accessories

Amazon.com: sheheme Titanium Clear for Samsung Galaxy S24 Ultra MagSafe Case with Camera Lens Protector,Magnetic Case for S24 Ultra,Full Protection Plating Anti-Scratch Slim Thin Case Cover,Black Titanium : Cell Phones & Accessories

Comment & Rating (25)

@rgbarron

Boosted

Good print, but the mechanism was a little tight. Nothing some sanding and deburring couldn't fix. It works well, and is faithful to the original!

@vivekkrsingh

Boosted

Print Profile

0.2mm nozzle, 0.12mm layer, 4 walls, 15% infill

fitted s23 ultra was littel lose fit ,i added tpu film on phone to make it tight and also provided firm grip

@Hot.end

How can I change the dimensions in a 3mf file? I don't see options for this in Bambu Studio.

@Hot.end

Never mind. I assume you meant to "check the f3d file". I found the Parameters in Fusion 360. I measured my phone with a Spigen Tough Armor case and my cheapo magsafe charger, but will sit on it for a while. It is a lot of filament (370g) and about 12 hours printing time. I have had bad experiences with Grid infill pushing the print off the bed, so will change it to something different (Rectilinear or Aligned Rectilinear).

(Edited)

@Gasguirre

Replying to @Hot.end :

am I getting something wrong? I can't open it on fusion 360

@Hot.end

Replying to @Gasguirre :

Make sure you download the 3fd-file, not the 3mf-file.

@user_2520800713

Print Profile

0.2mm nozzle, 0.12mm layer, 4 walls, 15% infill

@Nibulak

Print Profile

0.2mm nozzle, 0.12mm layer, 4 walls, 15% infill

@user_2123743489

did you design it to fit with a case on the phone or without?

The designer has replied

@axi_offroad

Without

@tytheengineer

It was with

@Mystics

Print Profile

0.2mm nozzle, 0.12mm layer, 4 walls, 15% infill

on the second try after messing up messurements works great

@user_1123295847

I love this Design and awesome job with the adjustable parameters.

@hank.e.jones

Boosted

wonderful files

@hank.e.jones

Boosted

I have the base set to the parameters for an otterbox defender case, but now i'm struggling trying to get the button properly sized. any help or suggestions?
