Parametric DN40 Standby Dock + Ultra 2 Watch

Remix of a remix.

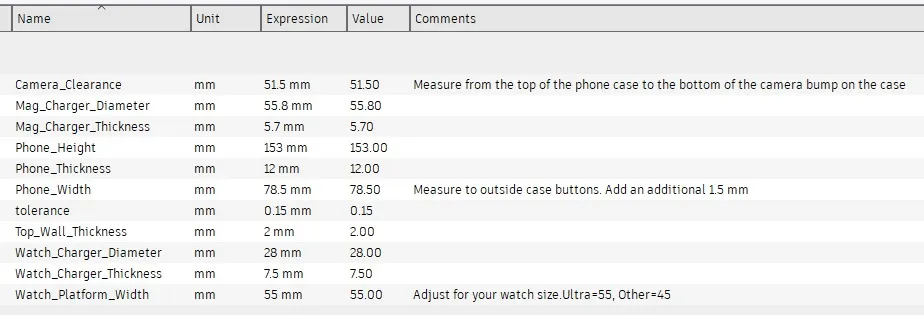

Added some parametric settings to allow for adjustments based on your gear:

• Phone dimensions with a case, including depth. Give yourself enough width for the buttons.
• Mag charger dimensions (I did not have the Apple branded item)
• Watch charger
• Width of watch platform - original was too small for my Ultra
• MOST Importantly: Camera bump clearance

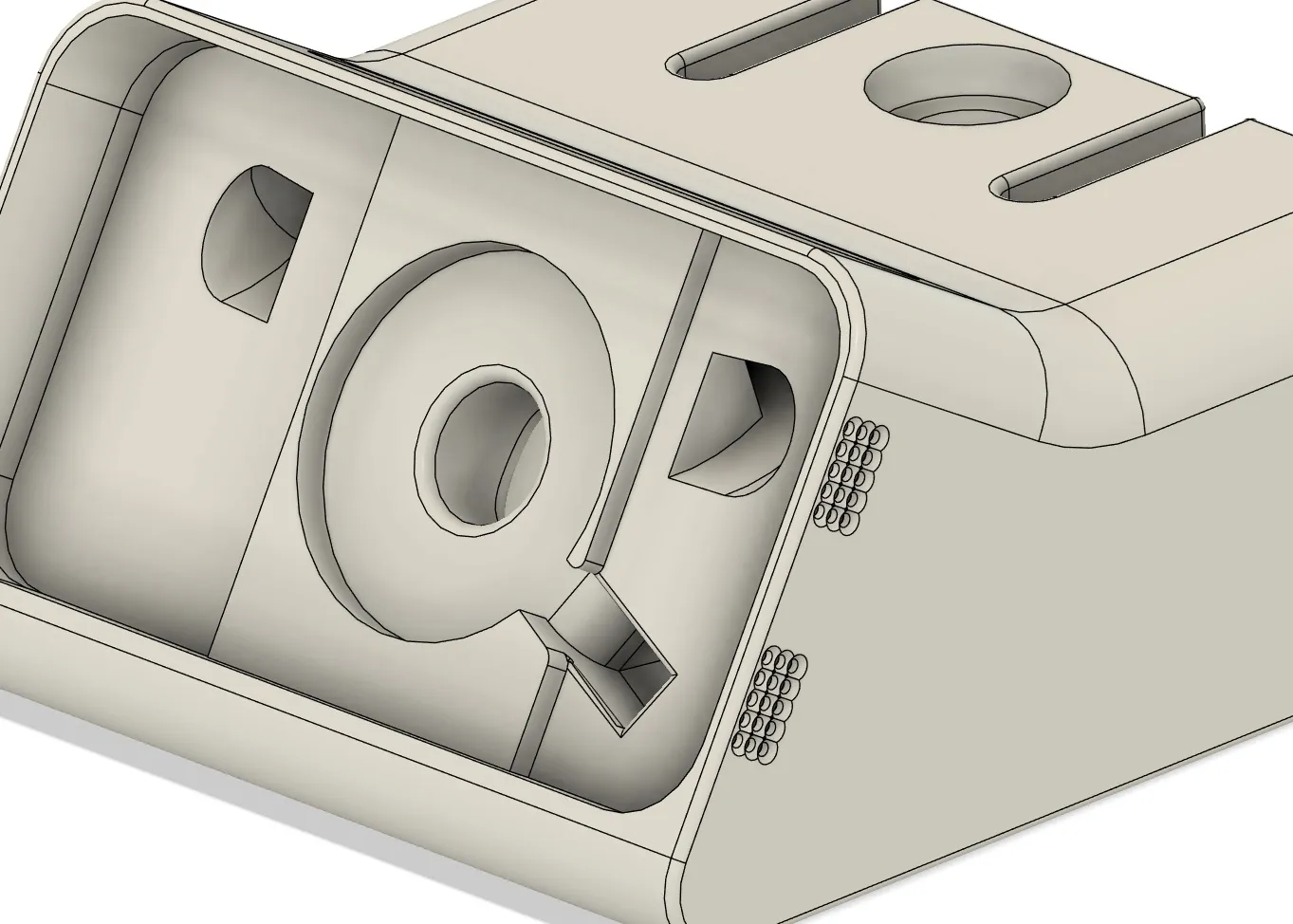

I wasted an entire print before realizing that a phone case makes the camera bump much larger and the original design cannot accommodate. The Camera_Clearance setting will move the mag charger to the right.

Like many others, I've tried to clean up the Fusion file to accommodate the parametric settings. The tester piece is at the end of the design file so you can roll the history marker to the end to cut another tester if your dimensions change.

Also added the speaker holes so alarms and other sounds come out better. It's subtle so hopefully doesn't detract from the overall esthetic of the fantastically simple design.

I printed at 0.16 mm layer height just to minimize the layer lines.

Update 2024-10-11: Added a new Fusion 360 file to fix some issues with the Pro Max sized phones

Update 2024-11-06: Added STL file for Clicker
