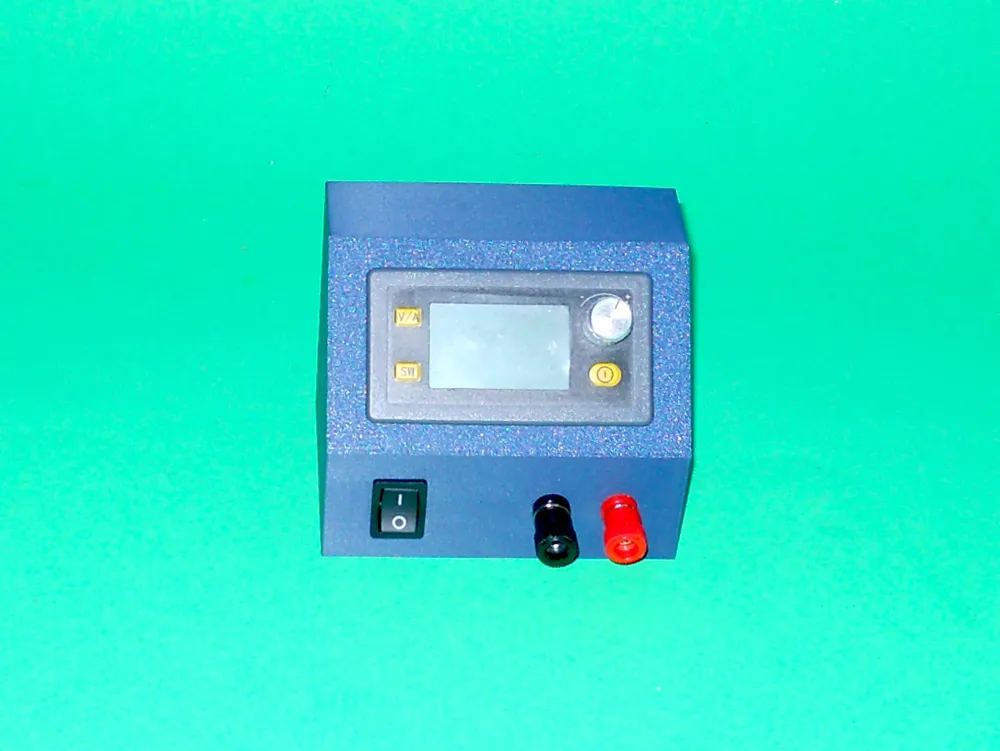

XY-SK80H Buck Boost Converter Case

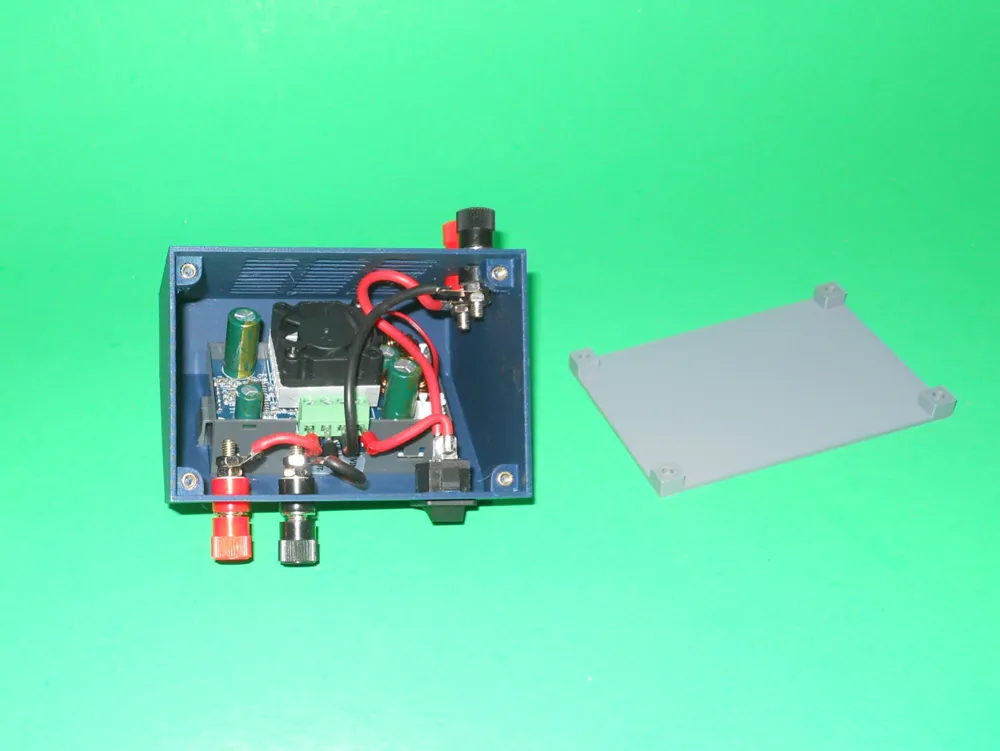

This is a case for a XY-SK80H Buck Boost Converter. It fits many different
models having this form factor (39mm x 71.3 mm). You'll need the following to
assemble it:

* 4 M3 x 5 mm brass insert or glue
* 4 M3 x 8 mm screws or glue
* 4 ferrules (optional)
* 1 KCD1-101 switch
* 2 black binding posts (mounting diameter of 8 mm)
* 2 red binding posts (mounting diameter of 8 mm)
* Some wire
* Soldering related tools

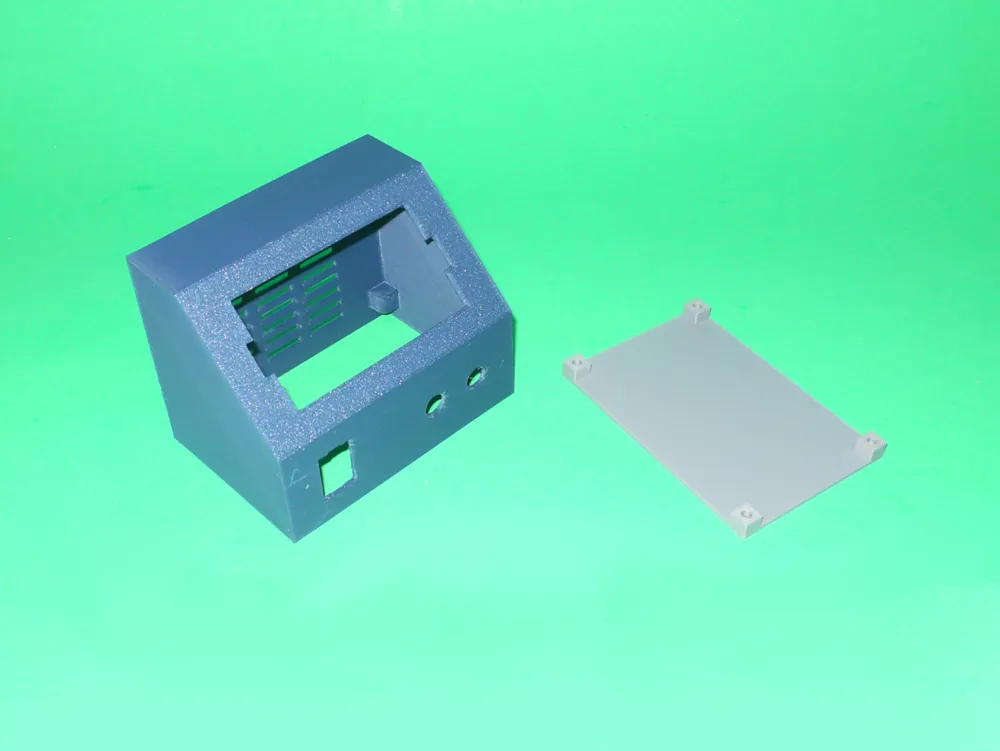

Support material is not required for the main body. Support material that
touch the build plate is required for the bottom cover. An infill of 25% is
recommended.

This object main web page is:
http://www.ctheroux.com/xy-sk80h-buck-boost-converter-case/.

This object was designed using Solid Edge Community Edition.

You can request the source files on the page listed above.
